SunGoldPower 10kW Off-Grid Solar Kit | 20.48kWh LiFePO4 Battery + 5.4kW Solar Array
Build a powerful off-grid or backup energy system with the SunGoldPower SGR-10K20E. This complete 48V solar kit combines a 10,000W 120V/240V split-phase inverter, 20.48kWh of LiFePO4 battery storage, and 5,400 watts of solar panels into one complete package.
It is an excellent solution for off-grid homes, cabins, workshops, farms, remote properties, small businesses, and residential backup power.
Key Features
- ⚡ 10,000W Inverter Output: Power multiple household appliances and larger loads at the same time.
- 🔋 20.48kWh LiFePO4 Battery Storage: Four 51.2V 100Ah lithium batteries.
- ☀️ 5,400W Solar Array: Twelve 450W bifacial N-Type solar panels.
- 🏠 120V + 240V Split-Phase Output: Designed for common North American residential loads.
- 🔌 Expandable System: Compatible inverter platform supports parallel expansion.
- 🗄️ Battery Cabinet Included: Keeps the battery bank protected and organized.
- 🛡️ Electrical Protection Included: DC and PV breakers included with the kit.
- 🔧 Installation Accessories Included: Battery cables, solar extension cables, and panel mounting brackets.
What Can This 10kW Solar Kit Power?
With up to 10,000 watts of inverter output, this system can support a wide range of household, off-grid, and workshop equipment.
Kitchen Appliances
- ✓ Refrigerator
- ✓ Freezer
- ✓ Microwave
- ✓ Coffee maker
- ✓ Blender
- ✓ Toaster
- ✓ Dishwasher
- ✓ Small kitchen appliances
Home Essentials
- ✓ LED lighting
- ✓ TVs
- ✓ Wi-Fi routers
- ✓ Computers and laptops
- ✓ Phone and tablet chargers
- ✓ Ceiling fans
- ✓ Security cameras
- ✓ Garage door openers
Water & Utility Equipment
- ✓ Well pumps*
- ✓ Sump pumps*
- ✓ Water pressure pumps
- ✓ Washing machines
- ✓ Furnace blowers
- ✓ Many 120V and 240V household loads
Heating & Cooling
- ✓ Mini-split air conditioners*
- ✓ Window A/C units*
- ✓ Portable air conditioners*
- ✓ Fans
- ✓ Selected HVAC equipment*
Workshop & Garage
- ✓ Power tools
- ✓ Battery chargers
- ✓ Shop lighting
- ✓ Bench tools
- ✓ Air compressors*
- ✓ Garage equipment
*Large motors, pumps, compressors, air conditioners, electric water heaters, dryers, ranges, and similar appliances may have high startup or continuous power requirements. Always verify the wattage and startup surge of your specific equipment before installation.
How Much Can You Run at the Same Time?
The 10kW inverter rating determines how much equipment the system can power simultaneously.
For example, a household could potentially operate a combination such as:
| Appliance |
Example Running Load |
| Refrigerator |
150W |
| Freezer |
150W |
| LED Lighting |
200W |
| TV + Electronics |
200W |
| Wi-Fi + Computers |
250W |
| Microwave |
1,200W |
| Washing Machine |
500W |
| Well Pump |
1,000W |
| Mini-Split A/C |
1,500W |
| Example Combined Load |
Approx. 5,150W |
That example remains well below the inverter's 10,000W output capacity. Actual appliance consumption and startup surge will vary by model.
20.48kWh Battery Bank, How Long Can It Run?
The system includes four 51.2V 100Ah LiFePO4 batteries, providing approximately 20.48kWh of nominal energy storage.
| Average Power Consumption |
Approx. Theoretical Runtime |
| 500W |
41 hours |
| 1,000W |
20.5 hours |
| 2,000W |
10.2 hours |
| 3,000W |
6.8 hours |
| 5,000W |
4.1 hours |
| 8,000W |
2.6 hours |
Runtime figures are simplified theoretical estimates based on nominal battery capacity. Actual runtime will be lower due to inverter losses, battery operating limits, temperature, state of charge, startup loads, and other system conditions.
During daylight hours, the solar array can also help power your loads while recharging the battery bank, which can significantly extend operating time.
5.4kW Solar Array
The system includes 12 × 450W bifacial N-Type monocrystalline solar panels for a total rated solar capacity of:
5,400 Watts of Solar
As a simple example, if the array receives approximately 5 peak sun hours in one day:
5.4kW × 5 hours = approximately 27kWh of theoretical solar production.
Actual solar production varies based on:
- Location
- Season
- Weather
- Panel orientation
- Installation angle
- Shading
- Temperature
- Electrical and system losses
Understanding the System: 10kW + 20.48kWh + 5.4kW Solar
⚡ 10kW Inverter Power
Determines approximately how much equipment you can power at the same time.
🔋 20.48kWh Battery Storage
Determines approximately how long your loads can operate when solar or another charging source is unavailable.
☀️ 5.4kW Solar Array
Determines how much solar power the system can potentially generate under available sunlight.
A properly sized off-grid system needs all three to match your application.
Can This Kit Power an Entire House?
For many homes and off-grid properties, it can power a substantial portion of the home's electrical needs with proper load management.
The system is especially well suited for:
- Refrigerators and freezers
- Lighting
- Internet and electronics
- Kitchen appliances
- Water pumps
- Washing machines
- Selected air-conditioning systems
- Power tools
- General 120V and 240V loads
However, homes with several large electric appliances operating simultaneously may need a larger system.
You May Need a Larger System If You Use:
- Multiple central air conditioners
- Large electric resistance water heaters
- Electric furnaces
- Electric ranges and ovens
- Electric clothes dryers
- Large well pumps
- Pool pumps and pool heaters
- High-power EV charging

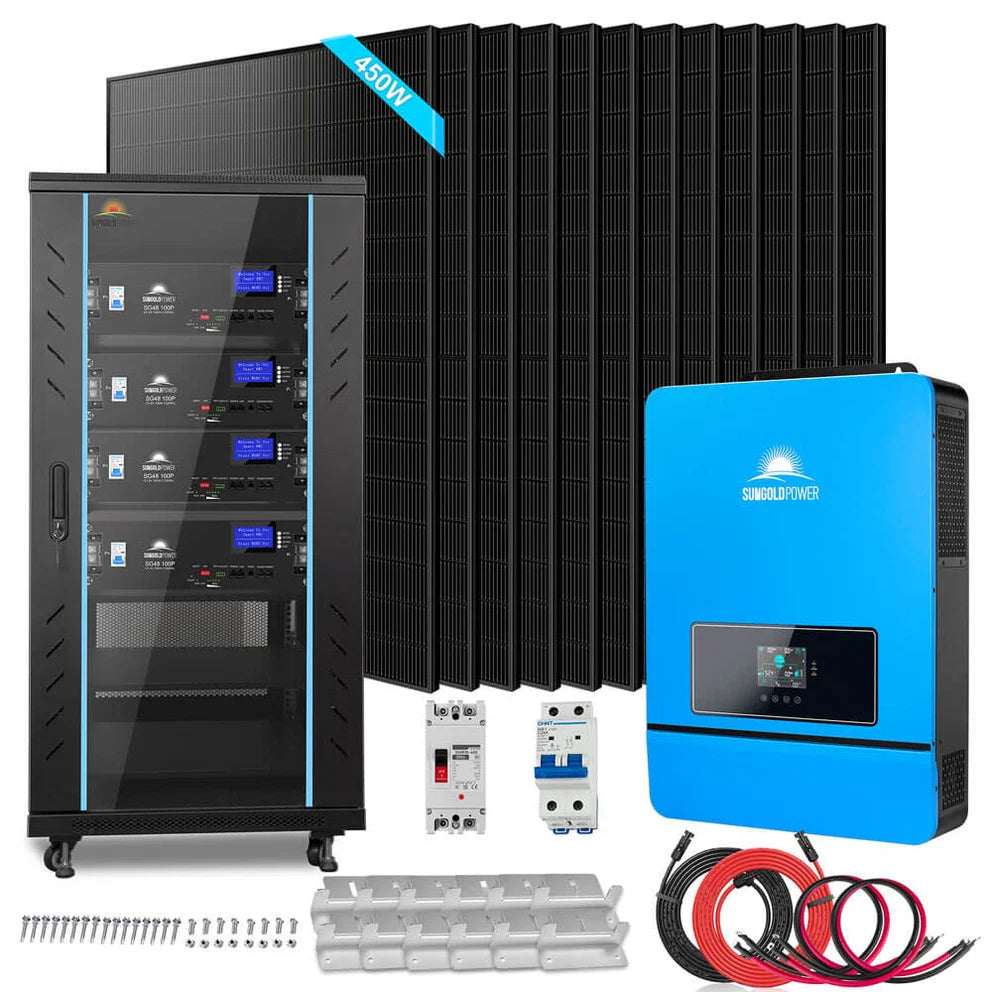

What's Included?
1 × 10,000W 48V Split-Phase Inverter
- 10,000W inverter output
- 48V DC battery system
- 120V/240V split-phase AC output
- Designed for residential and off-grid applications
- Supports compatible parallel expansion

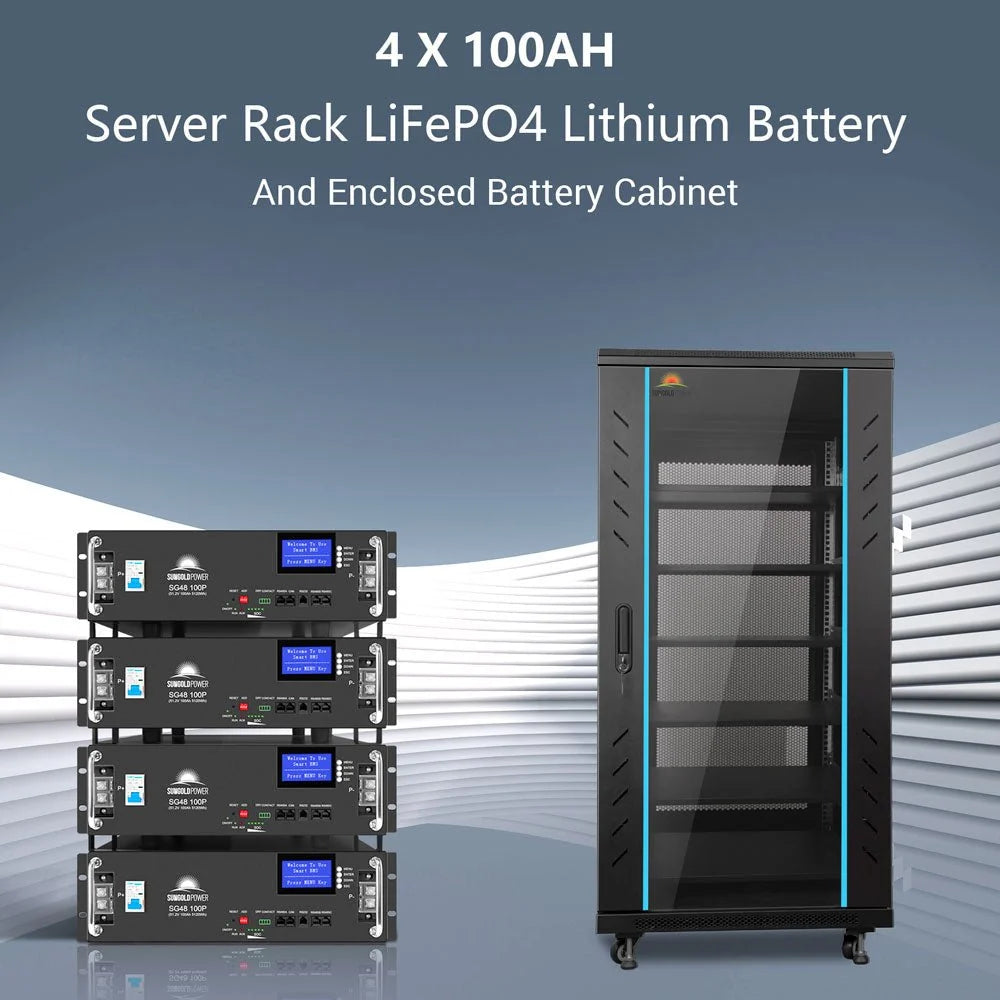

4 × SunGoldPower SG48100P LiFePO4 Batteries
Each Battery:
- 51.2V nominal voltage
- 100Ah capacity
- 5.12kWh nominal energy
Total Battery Bank: 20.48kWh nominal capacity
12 × 450W Bifacial N-Type Solar Panels
- 450 watts per panel
- 12 panels total
- 5,400 watts total solar capacity
- Bifacial technology can capture additional reflected sunlight from the rear of the panel when installation conditions allow.
1 × Enclosed Battery Cabinet
Provides an organized enclosure for the included lithium battery bank.
Solar & Electrical Accessories
- 50 ft solar extension cables
- Solar panel mounting Z-brackets
- 200A DC breaker
- PV breaker protection
- 2/0 AWG battery-to-inverter connection cables
Best Applications
🏠 Off-Grid Homes
Power everyday household appliances and essential electrical loads without relying entirely on the utility grid.
⚡ Home Backup Power
Maintain important household loads during outages when incorporated into a properly designed backup electrical system.
🌲 Cabins & Remote Properties
Bring substantial 120V and 240V electrical capacity to locations where traditional utility service is unavailable or expensive.
🚜 Farms & Rural Properties
Support refrigeration, lighting, pumps, electronics, tools, and other appropriately sized equipment.
🔨 Workshops & Garages
Power lights, chargers, tools, compressors, and other workshop equipment within the system's limits.
🏢 Small Businesses & Remote Facilities
Provide stored solar power for offices, communications equipment, refrigeration, lighting, and other essential loads.
Is the 10kW / 20.48kWh Kit the Best Choice for You?
Choose This Kit If:
- ✓ You want a substantial residential-size off-grid system.
- ✓ You need both 120V and 240V power.
- ✓ You need to operate several appliances simultaneously.
- ✓ Your maximum simultaneous loads remain within the inverter's capabilities.
- ✓ Approximately 20kWh of battery storage matches your backup or overnight needs.
- ✓ You want the inverter, batteries, solar panels, cabinet, and major accessories in one package.
Consider a Larger Kit If:
- You have central air conditioning.
- Your home is primarily or completely electric.
- You regularly use an electric dryer, oven, range, or large water heater.
- You need significant overnight HVAC runtime.
- Your property consumes considerably more energy each day than the solar array can replenish.
- You want multiple days of battery backup without depending on strong solar production.
Not Sure Which Solar Kit You Need?
Choosing an off-grid solar system based only on the size of your home can lead to an undersized or unnecessarily expensive system.
The best system depends on what you need to power, how much power those appliances use, and how long you need to run them.
Before ordering, contact us with:
- The appliances and equipment you want to power
- The wattage or model numbers of your largest loads
- How many hours per day you expect to use them
- Whether you need 120V, 240V, or both
- Your installation ZIP code
Our team can help determine whether the 10kW / 20.48kWh system is the best fit or whether a different configuration would better match your project.
Frequently Asked Questions
Can this system power an entire house?
Potentially, depending on your home's electrical loads and daily energy consumption. The inverter provides up to 10kW of output, but homes with multiple large electric appliances or HVAC systems may require additional inverter, battery, or solar capacity.
Can it run a refrigerator and freezer?
Yes. Refrigerators and freezers are generally modest loads compared with the overall capacity of the system, although startup surge should still be considered.
Can it run a well pump?
Many well pumps may be supported. The pump's voltage, running wattage, and startup surge should be checked before confirming compatibility.
Can it run an air conditioner?
It can support many appropriately sized air-conditioning systems, including certain mini-splits and window units. Large central A/C systems should be evaluated individually because compressor startup requirements can be substantial.
Can it power 240V appliances?
Yes. The included inverter provides 120V/240V split-phase AC output. Individual appliance requirements should still be verified.
How much battery storage is included?
The four included 51.2V 100Ah batteries provide approximately 20.48kWh of nominal energy storage.
How many solar panels are included?
The kit includes 12 × 450W solar panels, providing a total rated solar array of 5,400 watts.
Can I expand the system later?
The compatible inverter platform supports parallel expansion. Any expansion should be designed and installed according to SunGoldPower's requirements and applicable electrical codes.
How do I know if 20.48kWh is enough for me?
The best way is to calculate your expected daily energy consumption in kilowatt-hours (kWh). Send us the appliances you want to power and your expected daily usage, and we can help you determine the appropriate system size.
Important: Solar system performance and runtime vary based on loads, installation, solar conditions, temperature, battery state of charge, system losses, and other factors. High-power appliances and motor loads should be verified before purchase. Professional installation by a qualified electrician or solar installer is recommended.
