Yes. The MINI form factor was specifically developed for the Club Car DS battery compartment, which is more compact than the battery bays in many other golf cart models. When selecting your cart at checkout, choose "Other" as your cart model not the Club Car Precedent or Tempo option, which uses a different bracket configuration.

Before ordering, confirm your compartment has at least 15.8 inches of length, 11.1 inches of width, and 10.9 inches of height of interior clearance. If you have any doubt, contact us with your compartment measurements before placing your order.

Yes. The MINI form factor was designed for golf carts with compact battery bays including ICON Electric Vehicles, Bintelli, Vivid EV, Epic EV, and Advanced EV where a full-size single-pack lithium battery would not fit without modifying the battery compartment. If your cart model is not listed in the dropdown at checkout, select "Other."

Measure your battery compartment first and confirm a minimum of 15.8 inches (L) by 11.1 inches (W) by 10.9 inches (H) of interior clearance is available.

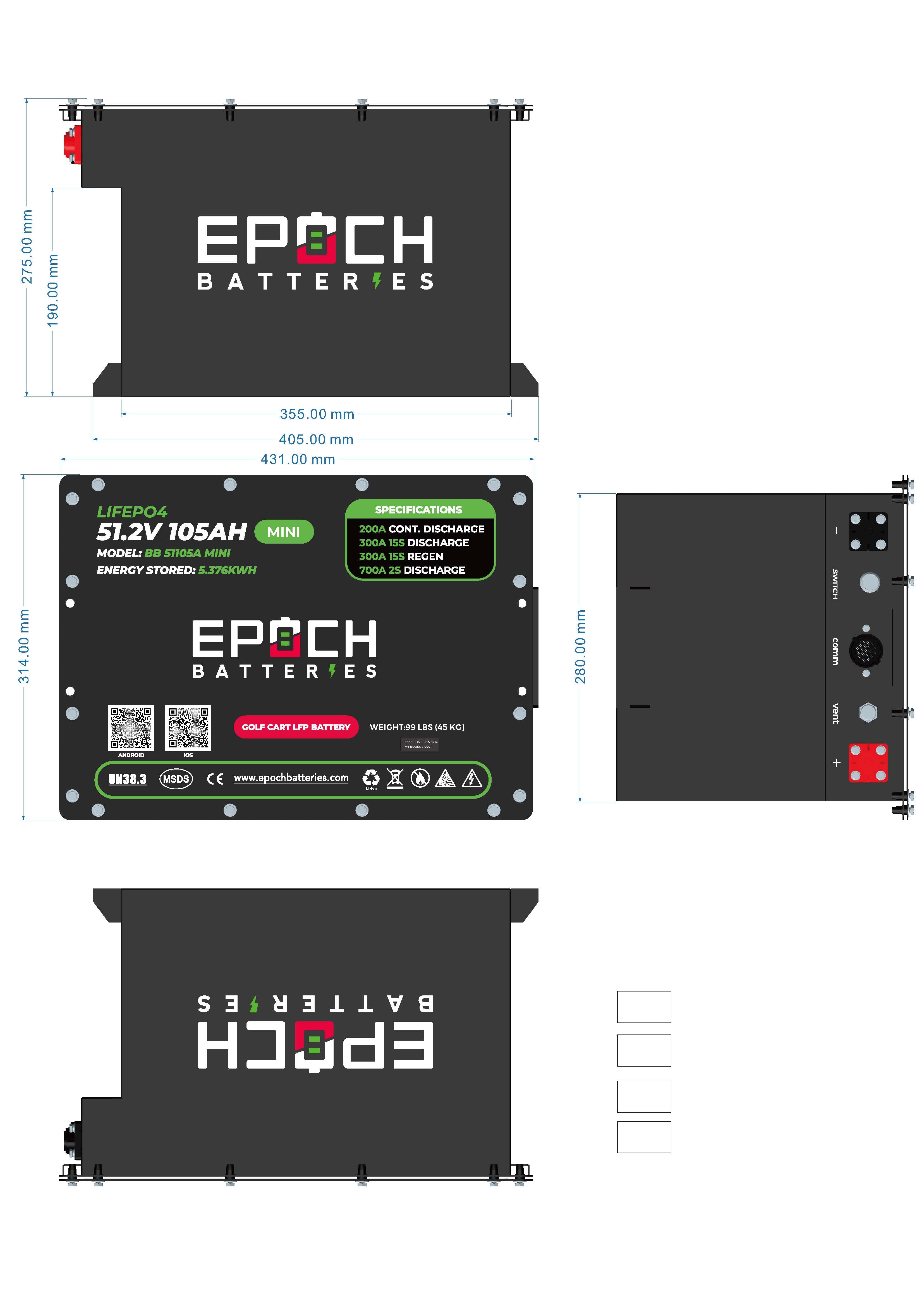

The MINI has a smaller physical footprint (15.8" L x 11.1" W x 10.9" H) compared to the standard 48V 105Ah, which is sized for larger battery bays found in traditional EZGO TXT and Yamaha carts. The MINI was designed specifically for golf carts that have compact or non-standard compartments such as the Club Car DS, ICON Electric Vehicles, Bintelli, Epic EV, and Vivid EV where the standard-size pack does not fit without modifying the battery compartment.

Both models share the same electrical specifications: 51.2V, 105Ah, 200A continuous discharge, and 3,500 cycle life.

Range varies based on several factors: terrain, passenger and cargo weight, driving speed, tire size, and accessory use (lights, radio, etc.). Under typical conditions on a stock 48V golf cart, you can expect 30 to 50 miles per charge. A standard 18-hole round of golf uses a fraction of that capacity for most players.

Carts that have been modified with larger tires, lifted suspension, performance motors, or heavy accessory loads will see lower range figures.

No. Lead-acid chargers are not compatible with LiFePO4 batteries. Using a lead-acid charger will damage the battery and will void the warranty. The complete kit includes a 48V 15A lithium charger that is matched to the LiFePO4 charging profile. Use only the included charger or a third-party charger that can be programmed to the exact voltage and current specifications listed in the Tech Specs tab.

Using the included 48V 15A charger, a full charge from empty takes approximately 7 hours. Partial charges are safe and do not negatively affect battery capacity or lifespan. LiFePO4 chemistry does not require full charge cycles.

Epoch recommends professional installation by a qualified golf cart technician. The kit includes step-by-step instructions, cart-specific mounting brackets, a pre-assembled wiring harness, a replacement charge receptacle, and an on/off switch for the dashboard. Customers who are comfortable with basic DC electrical work have completed the installation themselves, typically in 1 to 2 hours. Improper installation voids the warranty.

The kit includes a 48V to 12V DC converter specifically for this purpose. Connect all 12V accessories through the converter. Do not tap 12V accessories directly from the main battery terminals on a lithium system doing so can damage the battery and void the warranty.

Yes. LiFePO4 chemistry does not produce hydrogen gas or acid fumes. It does not require ventilation during charging. The sealed IP67-rated case prevents any liquid from escaping. The battery can be safely charged and stored in an enclosed garage. Recommended storage temperature is 32°F to 95°F (0°C to 35°C).

The warranty is tiered:

• Years 1 through 3: A defective battery is repaired or replaced at no cost to you.
• Years 4 through 5: A comparable replacement is offered at 40% off the retail price at time of claim.
• Years 6 through 11: A comparable replacement is offered at 25% off the retail price at time of claim.

You must register your battery at epochbatteries.com within 60 days of purchase to activate warranty coverage. Keep your proof of purchase. For Full details read the "Warranty" Tab.

On a stock, unmodified cart, the top speed will not increase. What you will notice is that the cart maintains consistent performance throughout the entire charge cycle. Lead-acid batteries lose voltage as they discharge, which causes the cart to slow down progressively. LiFePO4 maintains a stable voltage curve, so acceleration and hill performance remain consistent from full charge to near-empty.

Yes. The Epoch 48V 105Ah MINI supports a maximum of two units connected in parallel. This configuration doubles the capacity to 210Ah, roughly doubling the range. Both units must be identical (same model) and wired according to Epoch's parallel connection instructions. Do not connect more than two units in parallel.

A quality set of 48V lead-acid batteries (for example, six 8V Trojan T-875s) typically costs between $800 and $1,200 and has a service life of 3 to 5 years under regular use, which means multiple replacements over a 10-year period. The Epoch MINI is rated for 3,500 cycles approximately 9 to 10 years of daily use with no water additions, no terminal maintenance, and no equalization charges. The upfront cost is higher; the long-term maintenance burden is significantly lower.

LiFePO4 (Lithium Iron Phosphate) is a specific type of lithium chemistry known for its thermal and chemical stability. Unlike lithium cobalt oxide cells used in some consumer electronics, LiFePO4 cells do not produce flammable gases under normal conditions and are not prone to thermal runaway. LiFePO4 also has a longer cycle life compared to other lithium chemistries.
