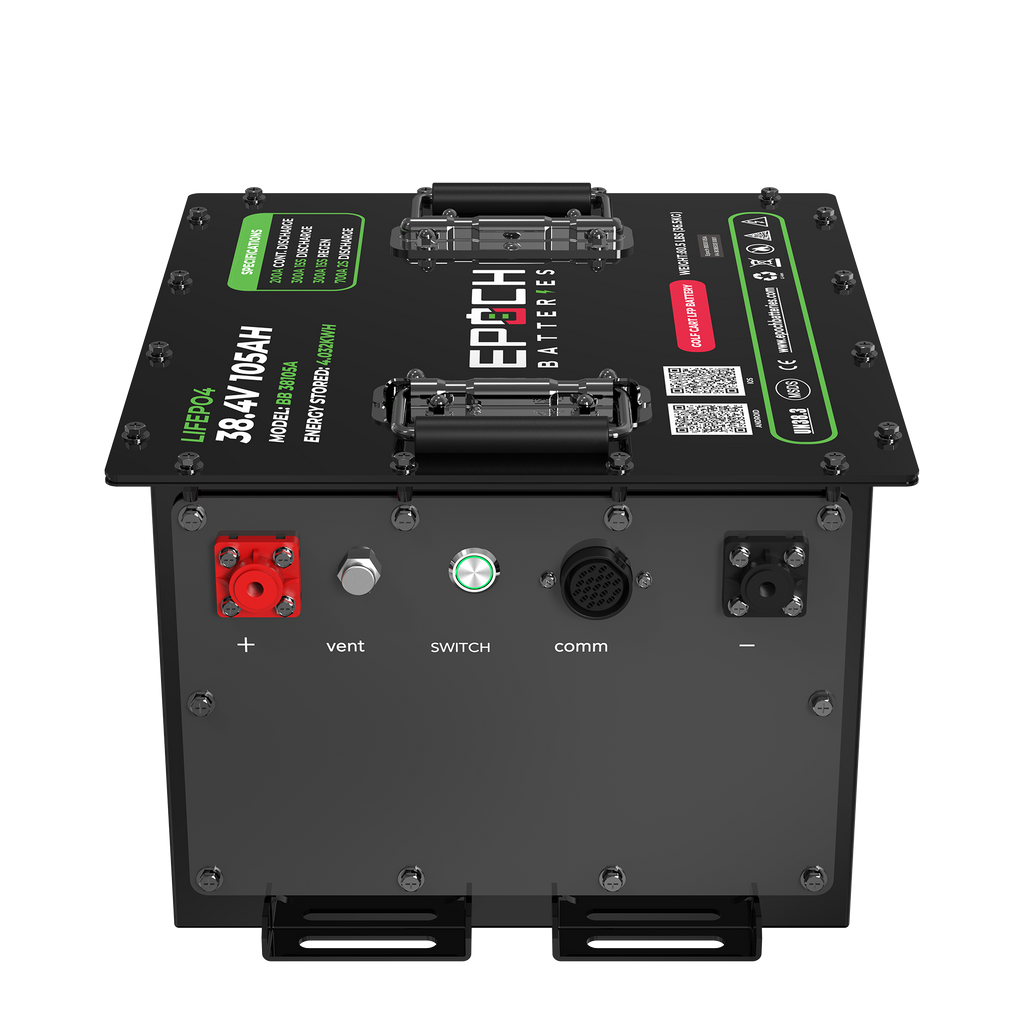

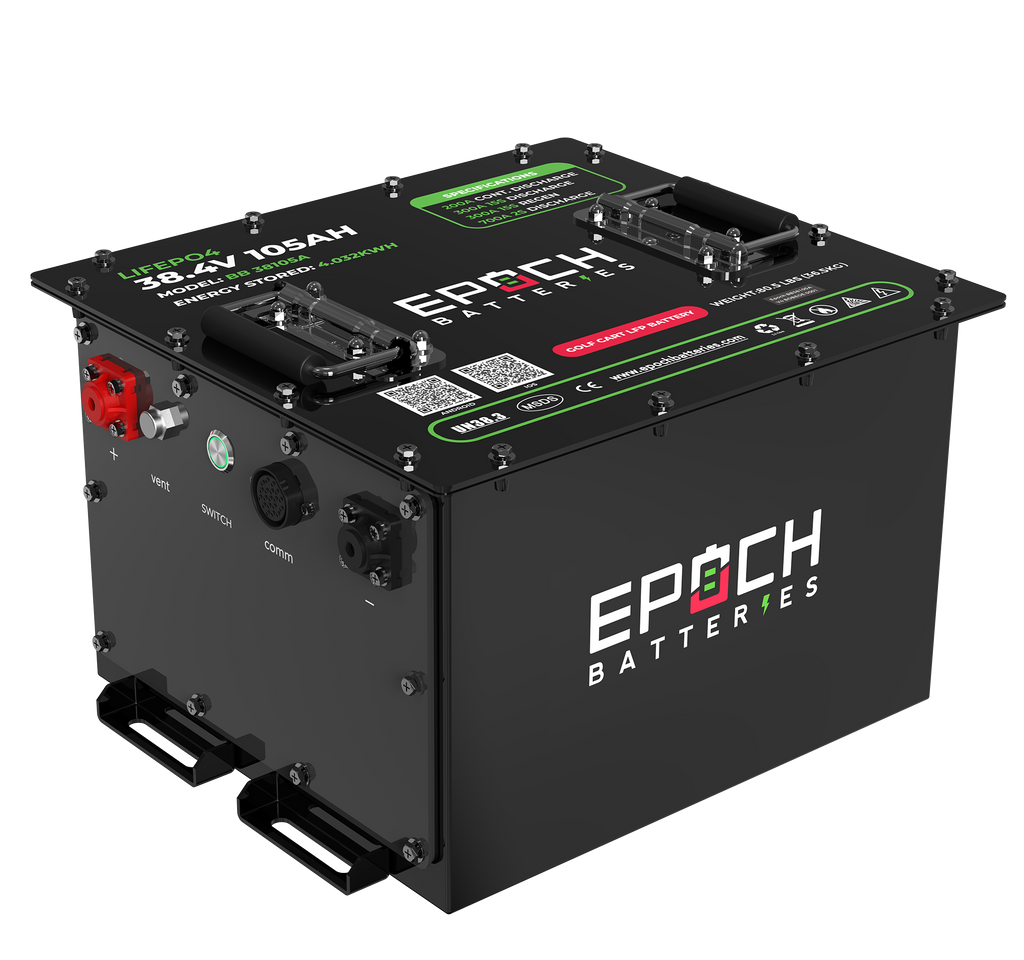

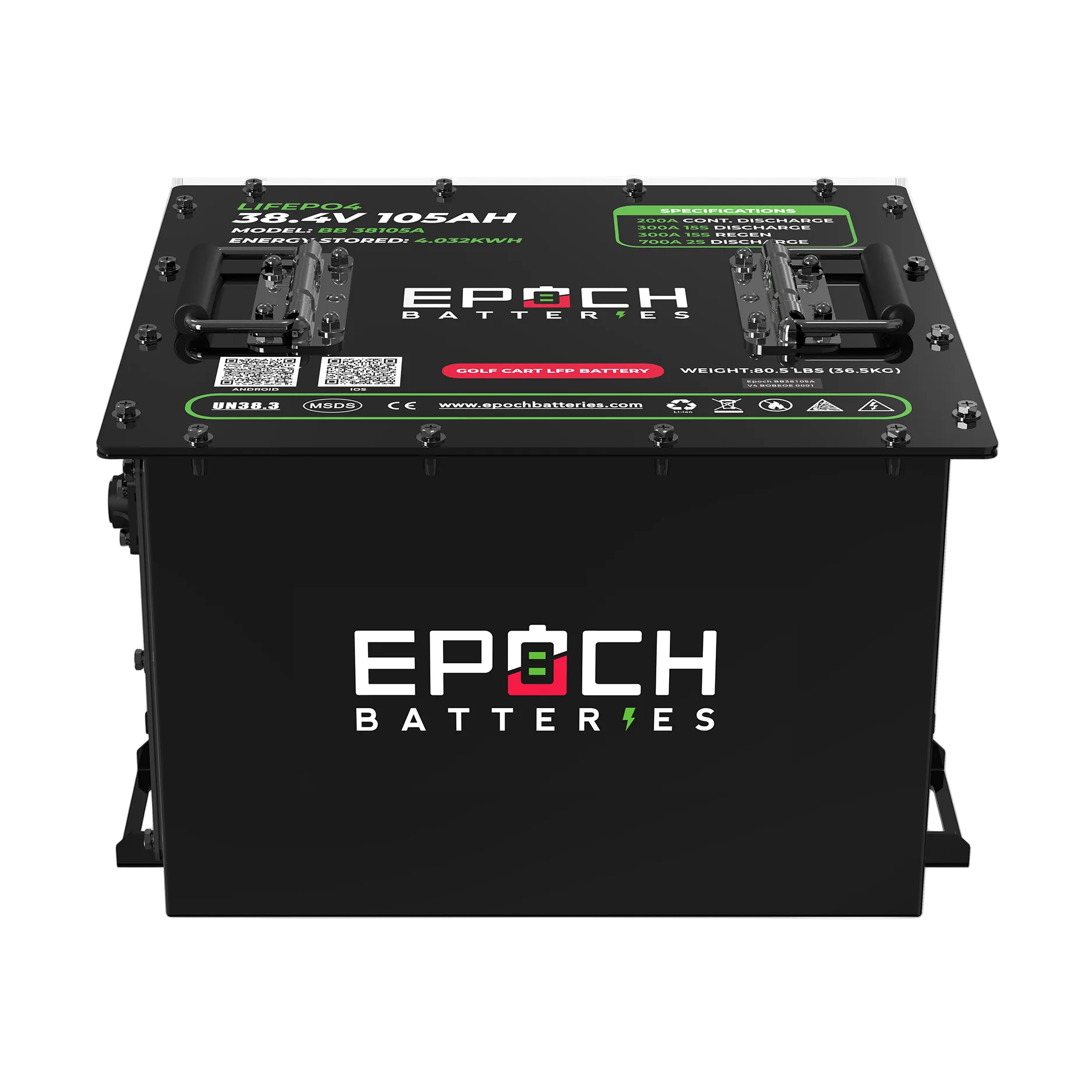

Epoch 36V 105Ah LiFePO4 Lithium Golf Cart Battery Kit for EZGO, Club Car, Yamaha
The Epoch LiMax Series Kit is a 36V 105Ah lithium iron phosphate (LiFePO4) battery designed as a drop-in replacement for standard lead-acid golf cart batteries. Compatible with EZGO TXT, EZGO RXV, Club Car Precedent, Club Car DS, Yamaha Drive, and Yamaha G29 36-volt golf carts. This battery weighs 81 lbs and replaces six 6V lead-acid batteries (typically 400+ lbs total). The battery provides 4,032Wh of energy storage, offers 3,500 charge cycles, and includes a built-in 200A Battery Management System with Bluetooth monitoring and IP67 waterproof protection.
This lithium battery is suitable for golf cart owners looking to reduce weight, eliminate maintenance, and extend battery lifespan. The LiFePO4 chemistry provides consistent power output throughout the discharge cycle, operates in temperatures from -4°F to 140°F, and charges in 2-3 hours with a compatible 50A charger. The battery is manufactured with automotive-grade prismatic cells and includes UL 1642, UL 9540A, and IEC 62619:2022 safety certifications.
Key Specifications Summary
| Model Number |
BB38105A-KIT-1 |
| Voltage |
36V (38.4V nominal) |
| Capacity |
105 Ah (4,032 Wh) |
| Weight |
81 lbs |
| Dimensions |

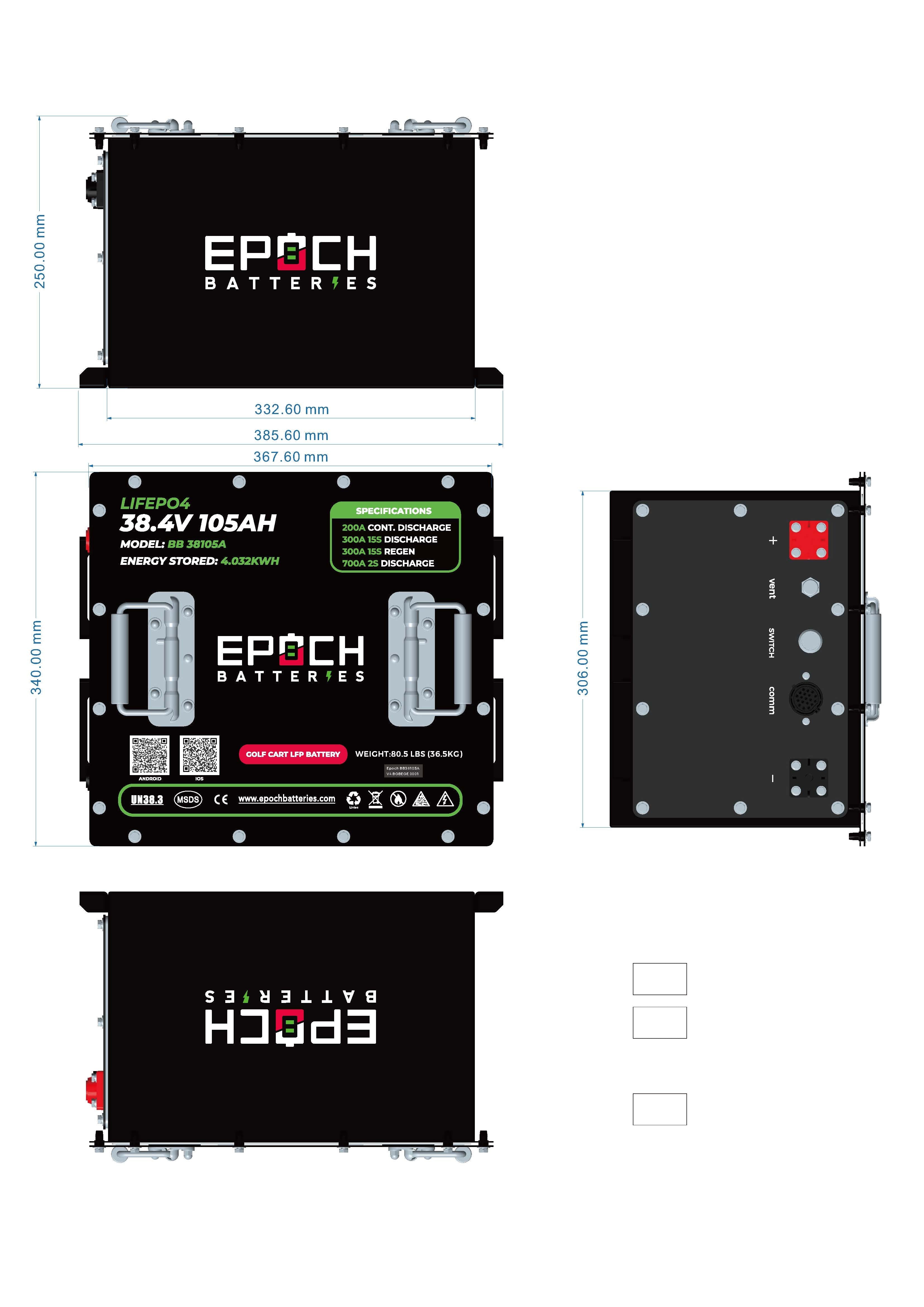

14.6" L x 13.4" W x 9.9" H |
| Cycle Life |
3,500 cycles at 100% depth of discharge |
| Warranty |
11 years |
| Chemistry |
LiFePO4 (Lithium Iron Phosphate) |
Compatible Golf Cart Models
This battery is compatible with 36-volt golf cart systems from the following manufacturers:
EZGO Models: TXT (1996-present), RXV (2008-present), Freedom (1996-2013), Marathon (1994-1995)
Club Car Models: Precedent (2004-present), DS (1996-2013)
Yamaha Models: Drive (2007-present), G29 (2007-2016), Adventurer (2017-present)
The battery replaces six 6V lead-acid batteries or three 12V lead-acid batteries wired in series. Compatible with golf carts using motors up to 5kW and controllers up to 600A.
Complete Technical Specifications
| Specification |
Value |
| Nominal Voltage |
38.4V |
| Nominal Capacity |
105 Ah |
| Energy Stored |
4,032 Wh (4.032 kWh) |
| Chemistry |
LiFePO4 (Lithium Iron Phosphate) |
| Cell Configuration |
1P12S (12 cells in series) |
| Operating Voltage Range |
30V - 43.8V |
| Weight |
81 lbs |
| Dimensions (L x W x H) |
14.6" x 13.4" x 9.9" |
| Case Material |
Steel with IP67 waterproof rating |
| Terminal Type |
M8 Female |
| Series/Parallel Connections |
Max 2 batteries in parallel only |

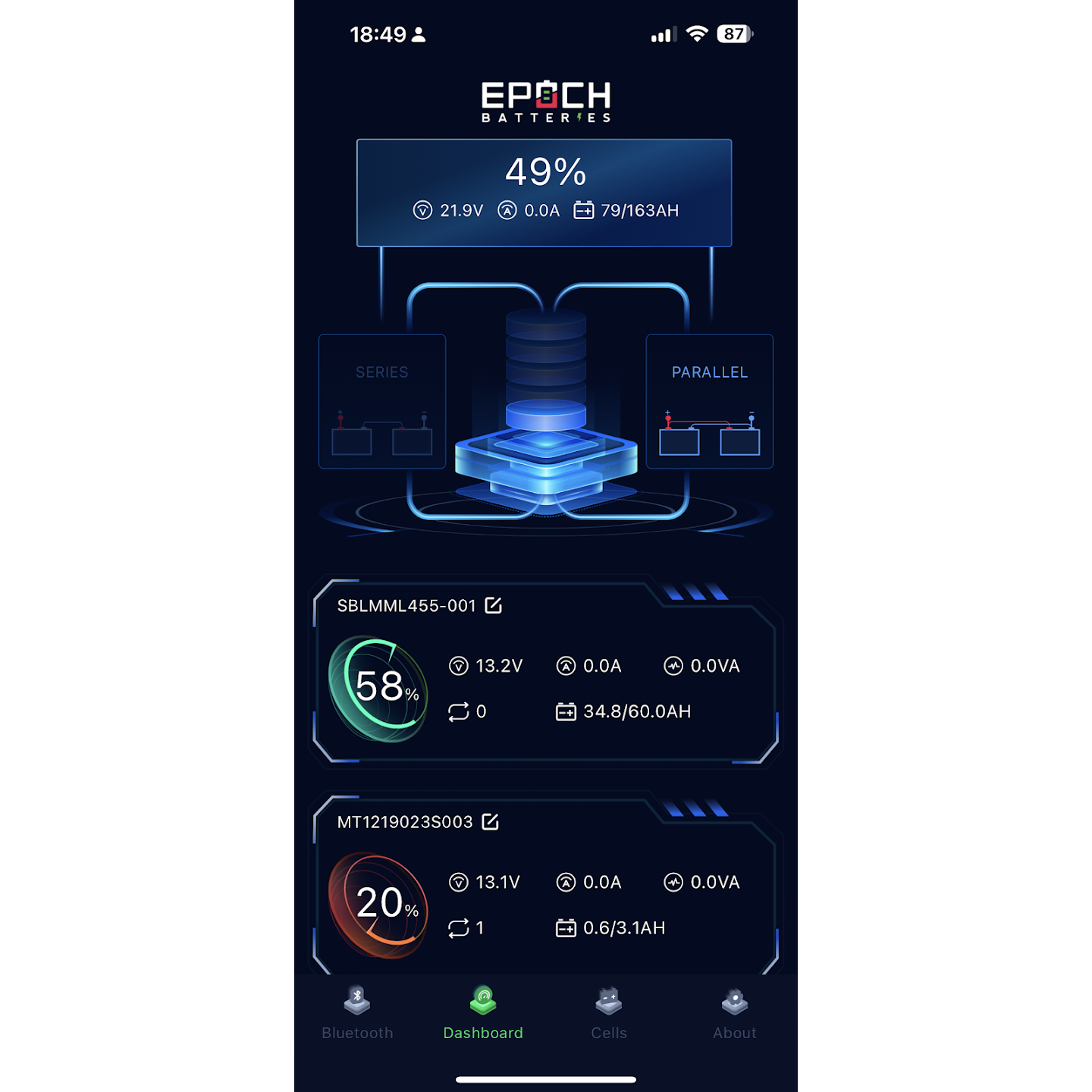

| Bluetooth Monitoring |
Yes, integrated |
| Software Updates |
Over-the-air capable |
| Self-Heating |
No |
| Low-Temperature Charge Protection |
Yes |
Discharge Performance
| Max Continuous Discharge Current |
200A |
| Max Discharge Current (15 seconds) |
300A |
| Max Discharge Current (2 seconds) |
700A |
| Discharge Temperature Range |
-20°C to 60°C (-4°F to 140°F) |
| Expected Range per Charge |
25-30 miles on flat terrain with typical load |
Charging Specifications
This battery requires a LiFePO4-compatible charger with 43.8V output. Standard lead-acid chargers are not compatible.
| Max Continuous Charge Current |
100A |
| Max Charge Current (15 seconds) |
300A |
| Bulk/Absorption Voltage |
42.6V - 43.2V |
| Float Voltage |
40.0V - 40.8V (disabled by default) |
| Charge Temperature Range |
0°C to 55°C (32°F to 131°F) |
| Charging Time (50A charger) |
2-3 hours |
| Charging Time (25A charger) |
4-5 hours |
| Re-bulk Voltage |
39.6V |
| Cycle Life (100% DOD) |
3,500 cycles |
| Expected Lifespan |
10+ years with typical golf cart use |
| Self-Discharge Rate |
Less than 3% per month |
| Recommended Storage Charge Level |
50% state of charge |
| Storage Temperature Range |
0°C to 35°C (32°F to 95°F) |
Safety Features and Certifications
The battery includes a built-in 200A Battery Management System that monitors and protects against overcharge, over-discharge, overcurrent, short circuits, and temperature extremes. The IP67-rated enclosure provides protection against water immersion up to 1 meter depth for 30 minutes and complete dust ingress protection.
| Battery Management System (BMS) |
200A integrated protection system |
| Overcharge Protection |
Yes, automatic cutoff at 43.8V |
| Over-discharge Protection |
Yes, automatic cutoff at 30V |
| Overcurrent Protection |
Yes, limits current to safe levels |
| Short Circuit Protection |
Yes, instant disconnection |
| Temperature Protection |
Yes, high and low temperature cutoff |
| Low-Temperature Charge Protection |
Prevents charging below 0°C (32°F) |
| Enclosure Rating |
IP67 (waterproof and dustproof) |
| UL 1642 |
Lithium Battery Cells Safety Standard |
| UL 9540A |
Energy Storage Systems Safety Testing |
| IEC 62619:2022 |
Industrial Lithium Battery Safety Standard |
| CE Marking |
European Conformity |
| RoHS Compliance |
Restriction of Hazardous Substances |
| UN 38.3 |
Transportation of Dangerous Goods Certified |
Comparison to Lead-Acid Batteries
This lithium battery offers several measurable advantages compared to traditional lead-acid golf cart batteries:
| Weight Comparison |
81 lbs (lithium) vs 400+ lbs (six 6V lead-acid batteries) |
| Weight Reduction |
Approximately 75% lighter |
| Cycle Life Comparison |
3,500 cycles (lithium) vs 500-800 cycles (lead-acid) |
| Charging Time Comparison |
2-3 hours (lithium) vs 8-12 hours (lead-acid) |
| Maintenance Comparison |
Zero maintenance (lithium) vs regular watering required (lead-acid) |
| Voltage Consistency |
Maintains voltage throughout discharge (lithium) vs voltage drop during discharge (lead-acid) |
| Usable Capacity |
100% usable (lithium) vs 50% usable (lead-acid) |
What's Included
- 1x Epoch 36V 105Ah LiFePO4 Battery with integrated Bluetooth
- Battery Management System (200A, pre-installed)
- IP67 waterproof steel enclosure
- M8 female terminals
- User manual
- 11-year warranty registration information
Installation Requirements
This battery is designed as a direct replacement for standard 36V lead-acid battery systems. Installation involves removing the existing six 6V batteries (or three 12V batteries) and installing this single lithium battery. The battery connects using standard golf cart wiring. Installation time is typically 30-45 minutes. No modifications to the battery compartment are required for most golf cart models.
Important: A LiFePO4-compatible charger with 43.8V output voltage is required. Standard lead-acid chargers will not fully charge this battery and may reduce lifespan. Recommended charger output: 25A to 50A.
Frequently Asked Questions
What charger do I need for this battery?
You need a LiFePO4-compatible charger with 43.8V output voltage. Standard lead-acid chargers are not compatible. Recommended charging current is 25A to 50A for optimal charging speed.
How long does this battery last?
The battery is rated for 3,500 charge cycles at 100% depth of discharge. With typical golf cart use (2-3 rounds per week), this translates to 10+ years of service life.
Will this battery work with my EZGO TXT golf cart?
Yes, this battery is compatible with EZGO TXT models from 1996 to present, provided your cart uses a 36-volt system.
Can I use this battery in cold weather?
The battery operates in discharge temperatures from -4°F to 140°F. For charging, the temperature must be above 32°F (0°C). The battery includes low-temperature charge protection to prevent damage.
How much weight will I save compared to lead-acid batteries?
This battery weighs 81 lbs compared to six 6V lead-acid batteries that typically weigh 400-420 lbs total. The weight reduction is approximately 320-340 lbs (75% lighter).
Is this battery waterproof?
Yes, the battery has an IP67 rating, which means it is completely protected against dust and can withstand water immersion up to 1 meter depth for 30 minutes.
Can I connect multiple batteries together?
You can connect up to 2 batteries in parallel to increase capacity. Do not connect batteries in series to increase voltage, as this will damage the Battery Management System.
Does this battery require maintenance?
No. Unlike lead-acid batteries that require regular watering and terminal cleaning, this lithium battery is maintenance-free. The sealed enclosure requires no servicing.
