If your EZGO RXV ELiTE came from the factory with a Samsung lithium battery and that battery is now dead, degraded, or holding far less charge than it used to this kit is the direct solution.

The EcoBattery 51V 105Ah Thru-Hole Gen3 Bundle is built specifically to replace the original Samsung SDI Gen1 lithium system in 2017–2021 EZGO RXV ELiTE golf carts.

The factory Samsung Gen1 pack was a 60Ah system (two 30Ah batteries in series). This EcoBattery bundle replaces it with a single 105Ah LiFePO4 pack  roughly double the usable capacity along with the dedicated CAN charger, CAN SOC meter, DC-DC converter, charge port, mounting hardware, and the Factory Lithium Conversion Adapter that makes it all communicate with your cart's existing controller. Everything in the box. Nothing extra to source.

This is not a generic lithium swap. The EZGO RXV ELiTE uses a CAN bus-dependent electrical system, which means a replacement battery must be able to communicate with the cart's controller or the cart simply won't operate. The EcoBattery Gen3 BMS firmware is configured specifically for this application that's what makes it a true drop-in replacement, not a workaround.

Expected real-world range on a full charge: 30 to 45 miles, depending on terrain, load, and driving conditions.

Backed by a Limited Lifetime Warranty. For full details read the Warranty Tab

Why Upgrade

The Samsung Gen1 system was a solid first-generation factory lithium pack, but it has known limitations that become more noticeable as the battery ages or after it fails completely.

Common problems with the factory Samsung Gen1 pack:

• Range degradation over time. The original 60Ah pack loses capacity with each charge cycle. Owners who used to get a full round of golf on one charge start needing to plug in more frequently, then find the cart barely makes it around the neighborhood.
• Regen braking shutdowns. A known issue with the Gen1 BMS when the battery is near full charge and the cart is going downhill, the BMS cannot always accept the spike of regenerative braking current. The cart cuts out mid-drive. The only fix is to cycle the battery off and on. EcoBattery's Gen3 BMS handles regen input without shutting down.
• Deep discharge lock-out. If the Samsung pack drops too low  from sitting unused, a lost charger, or a failing cell it can brick itself. The cart loses all communication with the battery and refuses to operate. Replacing the full pack and restoring CAN bus communication is the correct fix.
• Limited capacity. The Gen1 system provides approximately 60Ah of usable energy. The EcoBattery Gen3 105Ah pack delivers 75% more usable capacity in the same installation footprint.
• Proprietary charger dependency. The factory Samsung charger is not compatible with aftermarket packs, and OEM replacements are expensive and increasingly hard to find.

The EcoBattery Gen3 bundle resolves all of the above. The Gen3 BMS communicates with the cart's controller, handles regen braking properly, and charges from the included CAN charger no dependency on the factory Samsung charger or OEM support chain.

EcoBattery Gen3 vs. OEM Samsung Gen2 Upgrade Kit at a glance:

Key Features

• Factory Lithium Conversion Adapter (Samsung Gen1)
  This is the part that makes the kit work on your specific cart. It interfaces with the EZGO RXV ELiTE's CAN bus system so the controller can communicate with the EcoBattery pack the same way it communicated with the original Samsung battery. Without this, a standard lithium battery would not be recognized and the cart would not operate.
• Gen3 LiFePO4 BMS - Built for the RXV Platform
  The battery management system in this pack uses cart-specific firmware tuned for the EZGO RXV ELiTE application. It handles the regen braking charge spikes that caused the factory Samsung Gen1 BMS to shut down mid-ride, and manages cell balancing, temperature limits, and discharge protection in a single integrated unit.
• 105Ah Capacity  75% More Than Factory
  The original Samsung Gen1 system provided approximately 60Ah of total capacity. At 105Ah, this pack delivers significantly more usable energy per charge, which translates directly to longer range per session and fewer charge cycles over the life of the battery.
• 15A CAN Charger Included
  The 38V–51V 15A CAN Charger communicates with the Gen3 BMS during the charge cycle to deliver the correct charge profile and auto-shutoff when full. No manual intervention required. Compatible with standard 110V household outlets via the included EZGO RXV charge port.
• CAN LCD SOC Meter
  Displays accurate, real-time state of charge pulled directly from the BMS over CAN bus not a voltage estimate. The difference matters: voltage-based meters can read "full" when the pack is at 85% or show "low" when there's still 20% capacity remaining. This meter shows what's actually in the battery.
• DC-DC 12V Converter (40V–90V Input)
  Powers your cart's 12V accessories lights, horn, USB outlets, audio systems  directly from the 51V lithium pack. Replaces the function of a 12V accessory battery without adding weight or requiring a separate charge system.
• Remote Button Battery Wake-Up Kit
  LiFePO4 batteries enter a sleep state when not in use to protect the cells. The wake-up kit allows you to bring the battery out of sleep mode without needing to plug it in first useful after extended storage or if the pack has been sitting for several weeks.
• Thru-Hole Center-Mount Design
  EcoBattery's patented Thru-Hole mounting tunnel runs through the center of the battery case, allowing installation using a center rod rather than side brackets. The Universal Center Rod Kit is included. This design simplifies installation in the RXV's existing battery tray and eliminates the need for custom fabrication.
• LiFePO4 Chemistry Stable, Long-Cycle
  LiFePO4 (lithium iron phosphate) is a chemically stable lithium format that does not produce the same thermal runaway risk associated with other lithium chemistries. It also maintains a flatter discharge curve meaning consistent voltage and power output from full to near-empty, rather than the performance drop-off common with lead-acid and some other lithium types.
• Limited Lifetime Warranty
  EcoBattery backs the Gen3 pack with a Limited Lifetime Warranty supported by a U.S.-based team. Terms are available at ecobattery.com and for full details read our Warranty Tab

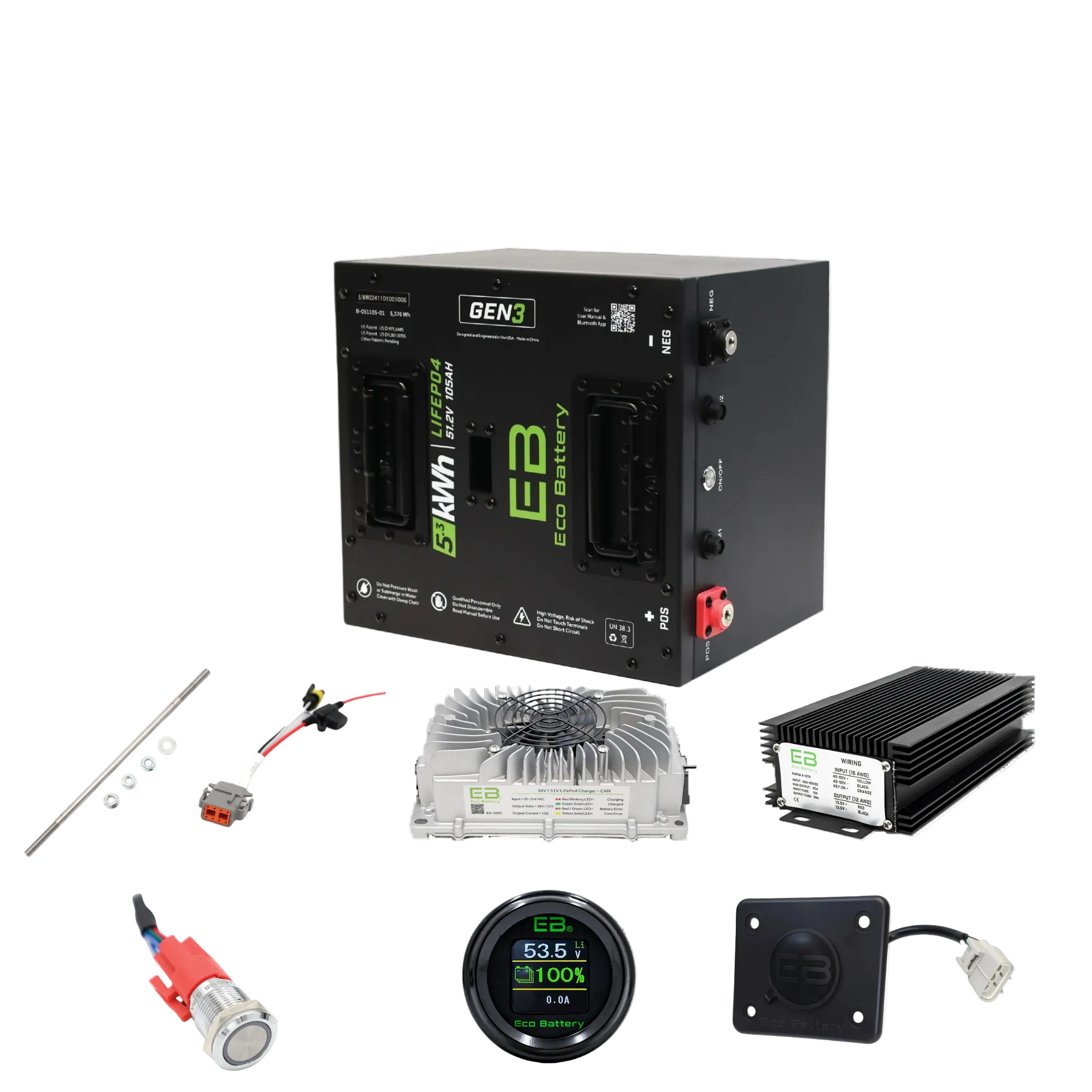

What's in the Kit

This bundle includes every component needed for a complete installation. Nothing additional needs to be purchased to get your cart running.

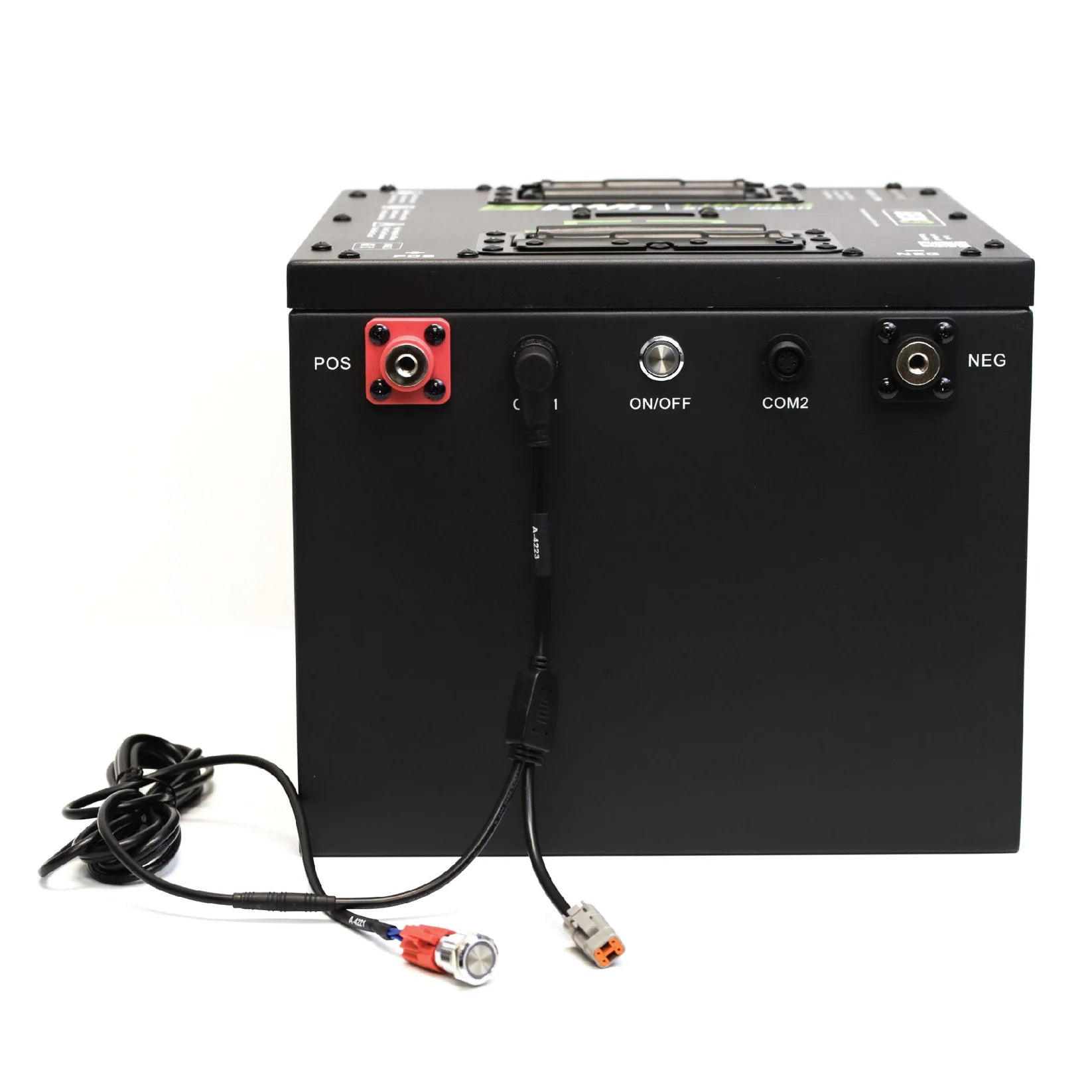

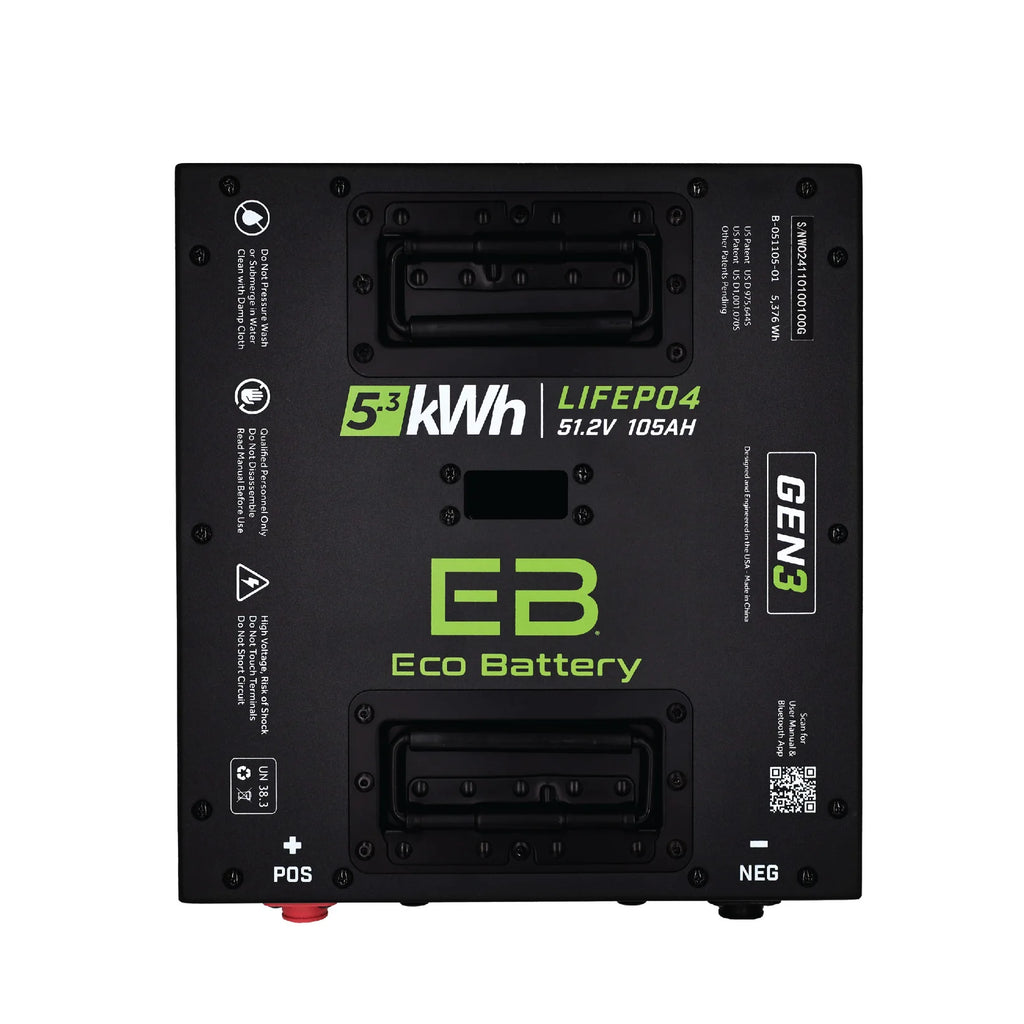

• 51V 105Ah Thru-Hole LiFePO4 Battery Gen3 the main battery pack with integrated Gen3 BMS
• 38V–51V 15A CAN Charger communicates with BMS for a safe, auto-shutoff charge cycle
• DC-DC 12V Converter (40V–90V input) powers 12V accessories from the main pack
• CAN LCD SOC Meter real-time state of charge display via CAN bus communication
• EZGO RXV Charge Port / 110V Plug (Quick Connect) cart-specific charge receptacle, pre-wired for clean installation

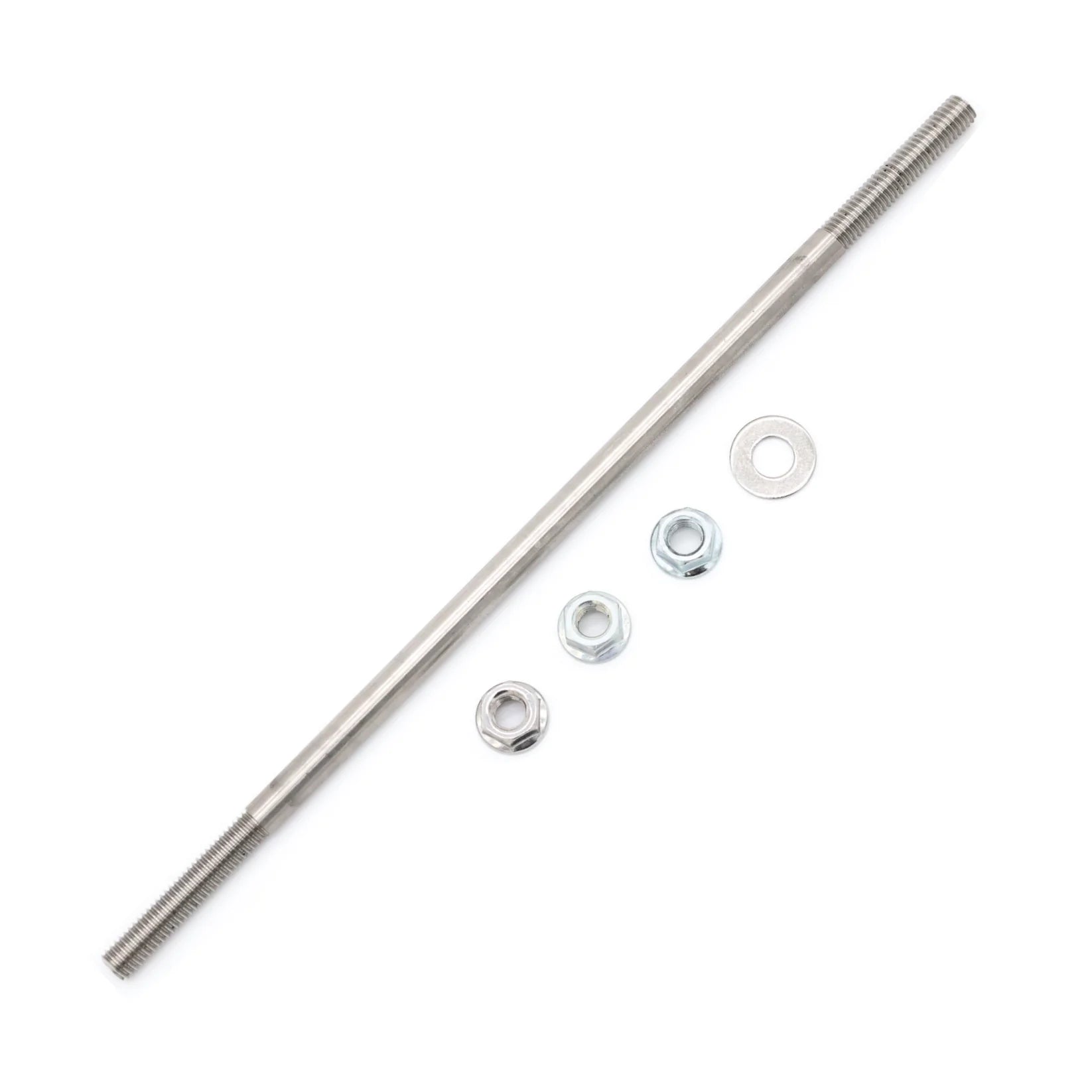

• Universal Center Rod Kit mounting hardware for the Thru-Hole battery in the RXV battery tray

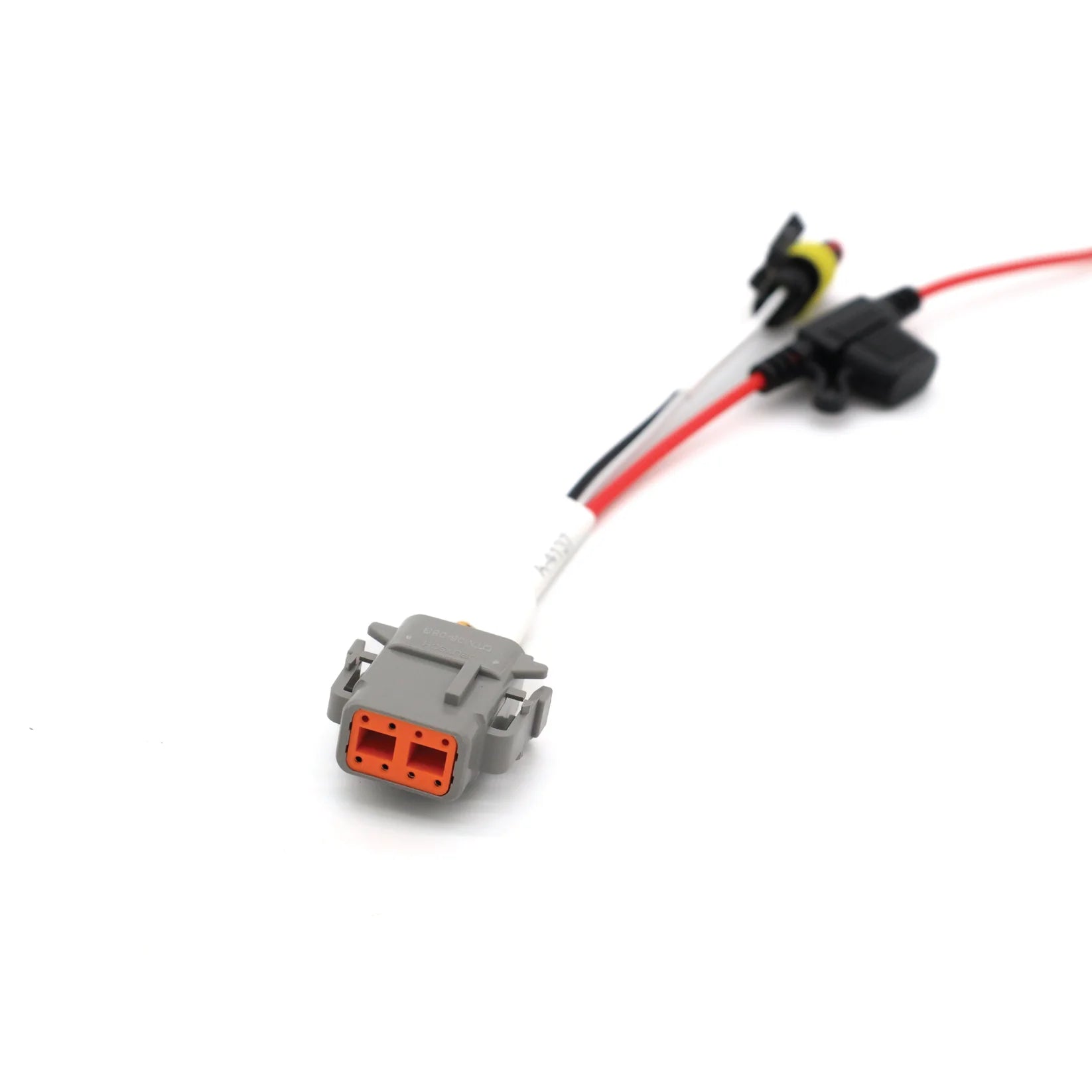

• Factory Lithium Conversion Adapter / EZGO Samsung Gen1 the critical interface component that allows CAN bus communication between EcoBattery Gen3 and the EZGO RXV ELiTE controller
• Remote Button Battery Wake-Up Kit allows the battery to be woken from sleep mode without plugging in

About battery cables: This kit works with your cart's existing factory battery cables no additional cables are required to complete the installation. EZGO RXV ELiTE carts came from the factory with 4-gauge or 6-gauge cables, which are compatible with this setup. Upgrading to 2-gauge cables is an optional improvement some owners make for better current transfer, particularly on carts used heavily or on hilly terrain. Contact us if you'd like a recommendation for your model year.

Compatibility

This kit is designed for one specific application:

• EZGO RXV ELiTE golf carts equipped with the factory Samsung SDI Gen1 lithium battery system
• Model years: 2017, 2018, 2019, 2020, 2021
• Factory system voltage: 48V nominal / 51V actual

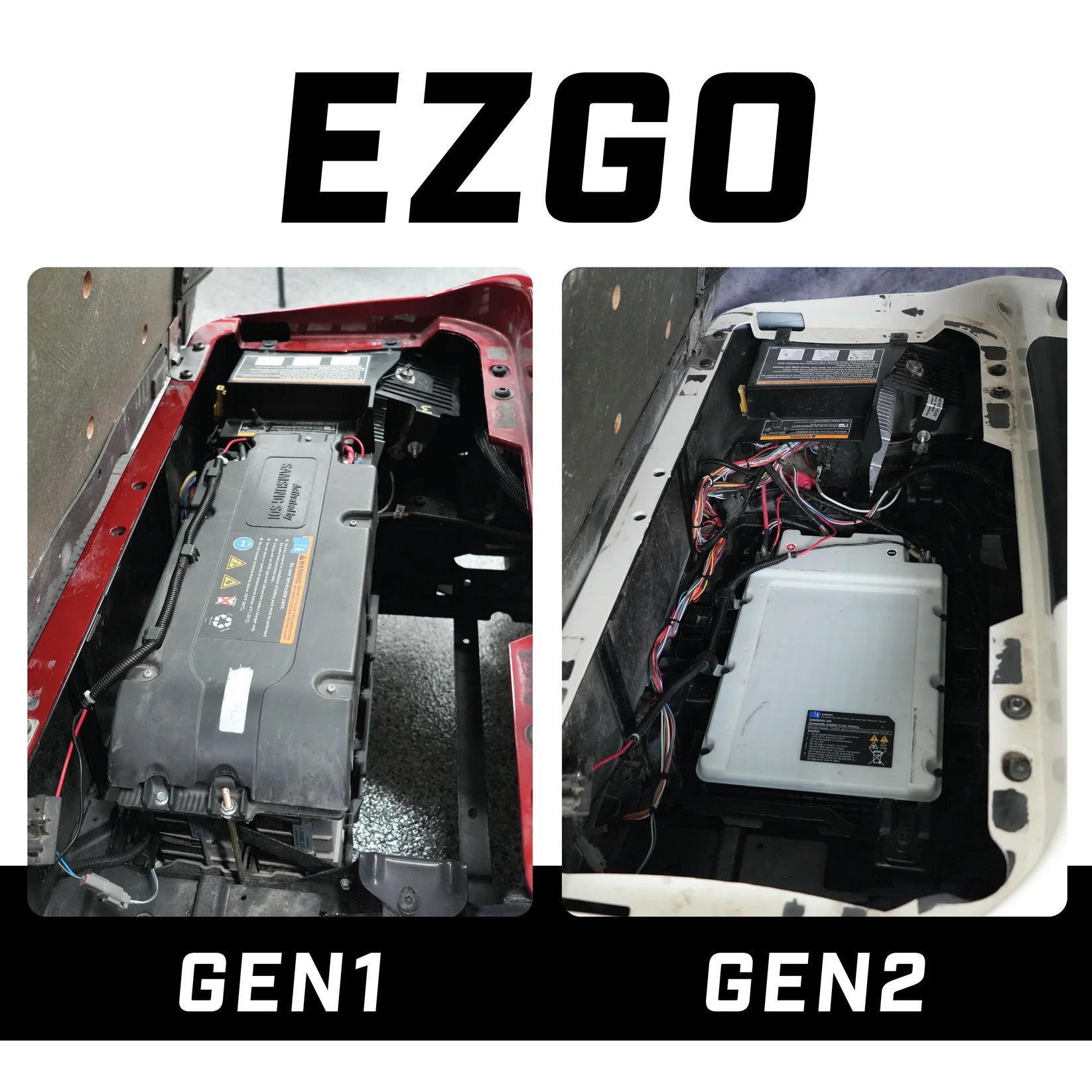

How to confirm you have a Samsung Gen1 system:

• Your cart is an EZGO RXV labeled "ELiTE" or "ELiTE Lithium"
• The battery compartment contains two separate battery modules (not one single pack)
• The battery modules are labeled Samsung SDI
• The original charger has a proprietary Samsung plug
• The cart has a digital SOC gauge on the dash (not a needle-style fuel gauge)

This kit is NOT for:

• EZGO RXV carts with standard lead-acid batteries (different bundle required)
• EZGO RXV ELiTE carts with the Samsung Gen2 system (2022 and newer)
• EZGO TXT models (different tray configuration)
• Club Car or Yamaha golf carts

Not sure which battery system your cart has? Contact us with your cart's serial number and we'll confirm compatibility before you order.

Installation

This kit is designed for a clean installation without cutting, fabricating, or modifying the cart's existing wiring harness. The Factory Lithium Conversion Adapter plugs directly into the cart's OEM connector, and the Thru-Hole battery drops into the existing battery tray using the included center rod mounting hardware.

What the installation involves:

• Remove the failed Samsung Gen1 battery pack and original charger receptacle
• Install the EcoBattery Thru-Hole pack in the existing battery tray using the Universal Center Rod Kit
• Connect the Factory Lithium Conversion Adapter to the cart's OEM wiring harness connector
• Install the new EZGO RXV Quick Connect Charge Port
• Connect the DC-DC 12V Converter to power 12V accessories
• Mount the CAN LCD SOC Meter in the dash area
• Install the Remote Wake-Up Button in an accessible location
• Perform initial charge using the included CAN Charger

Battery cables: Your existing factory cables (4-gauge or 6-gauge depending on model year) are compatible with this installation no cable upgrade is required. Some installers choose to upgrade to 2-gauge cables as an optional improvement for reduced resistance, particularly on heavily used carts. Contact us if you'd like guidance on that.

First use wake-up procedure: LiFePO4 batteries ship in a sleep state for safe transport. Use the included Remote Button Battery Wake-Up Kit to wake the battery before initial charge. The quick-start guide included with the kit walks through this step.

This installation is suitable for experienced DIYers familiar with 48V golf cart electrical systems. If you are not comfortable working around high-voltage DC systems, professional installation by a golf cart technician is recommended.
