Eco Battery GEN3 51.2V 105Ah Thru-Hole Lithium Bundle is a complete lithium iron phosphate (LiFePO4) conversion kit designed specifically for the EZGO RXV golf cart with a factory plastic battery tray the configuration that typically holds four 12-volt lead-acid batteries.
Tray compatibility check important before ordering: This bundle is engineered for the EZGO RXV (2008 and newer) equipped with a factory plastic battery tray (4 x 12V configuration). If your RXV has a factory metal battery tray (6 x 8V configuration), you will need the Eco Battery Skinny bundle instead. When in doubt, contact us before placing your order.
This kit replaces your full set of lead-acid batteries with a single 98 lb lithium unit compared to the 340+ lbs your current battery pack weighs. That weight reduction alone improves efficiency, acceleration, and performance on hills. The thru-hole mounting design threads directly through the existing factory rod in your plastic battery tray, making installation straightforward and clean without permanent modifications to your cart.
The GEN3 battery is built around Grade-A prismatic lithium iron phosphate cells in a 1P16S configuration, housed in a powder-coated steel shell rated IP67 for water and dust resistance. The proprietary Eco Battery BMS (Battery Management System) monitors every cell in real time, handles balancing automatically, and communicates via Bluetooth and CAN protocol with the included CAN charger and LCD gauge.
Designed for the EZGO RXV's AC drive and regenerative braking system. The RXV relies entirely on regenerative braking there are no traditional friction brakes. A lithium battery that cannot accept regen current safely will cause the electromagnetic motor brake (EMB) to lock unexpectedly. The Eco Battery GEN3 BMS is engineered to handle the RXV's regen current profile with a 200A max continuous charge acceptance and 600A peak discharge for 5 seconds, providing the headroom the RXV system requires. No controller reprogramming is required for standard Curtis or GE controller-equipped RXV models.

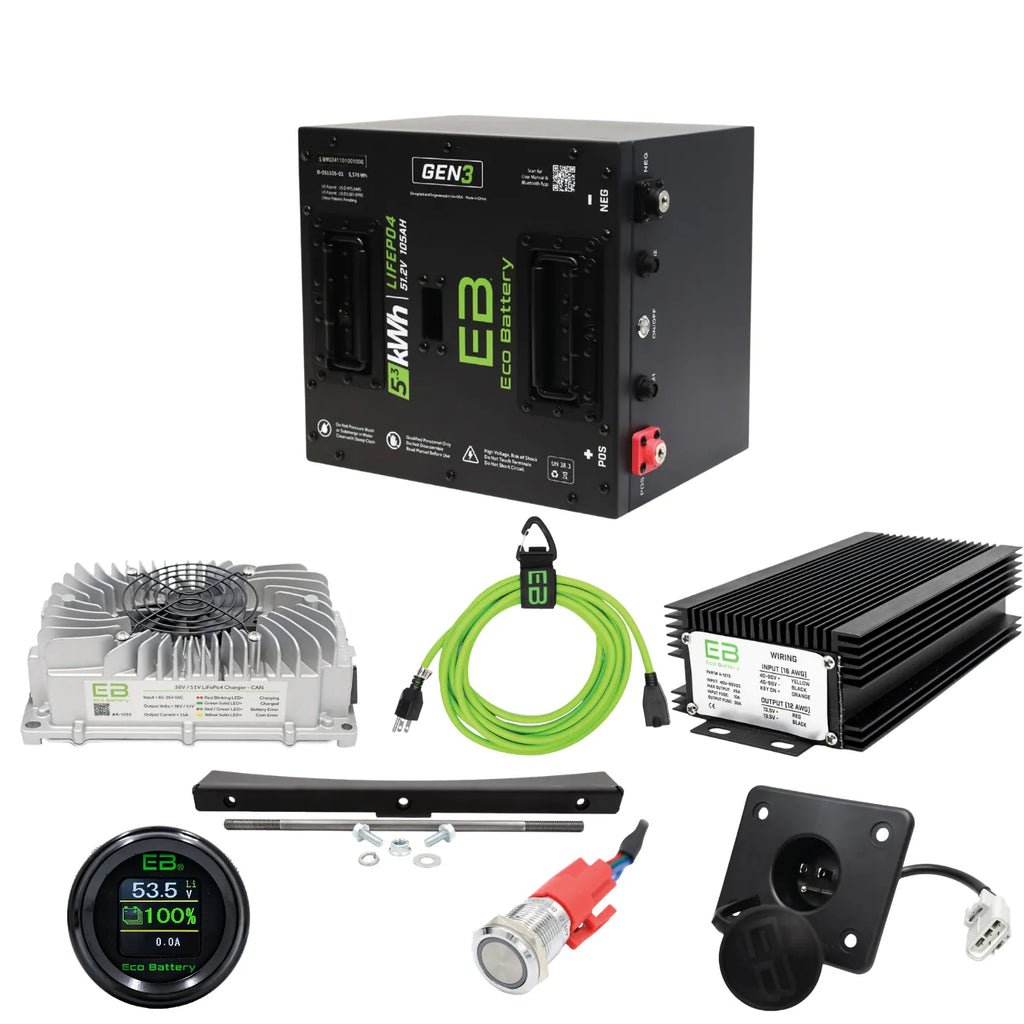

The bundle includes every component needed for a complete installation: battery, charger, 12V DC converter, LCD state-of-charge meter, locking charge port, model-specific mounting hardware, and a remote battery wake-up button. Nothing is sold separately.
Sold and supported by an authorized Eco Battery reseller. Eco Battery is a U.S.-based manufacturer. All warranty service and technical questions are handled through Eco Battery's US-based support team. We facilitate that process as your point of contact.
Features
-
Purpose-built for EZGO RXV with plastic battery tray (4 x 12V layout) the thru-hole mounting system uses your cart's existing factory rod channel for a secure, clean install without drilling or permanent modifications.
-
Single-battery replacement one 98 lb unit replaces the entire bank of lead-acid batteries, freeing up weight and space in the battery compartment.
-
Grade-A prismatic LiFePO4 cells lithium iron phosphate chemistry is thermally stable, non-combustible under normal operating conditions, and certified to UN38.3 and UL1642 Cell standards.
-
5,376Wh of usable energy 105Ah at 51.2V nominal provides driving range of approximately 40 to 45 miles per charge depending on load, terrain, and driving conditions.
-
IP67-rated enclosure fully sealed against dust ingress and capable of withstanding temporary immersion. Suitable for all-weather golf cart use.
-
Powder-coated steel shell durable construction built to handle the vibration and physical demands of golf cart use on varied terrain.
-
Proprietary Eco Battery BMS with 8-layer protection monitors and protects against pack over-voltage, pack under-voltage, cell under-voltage, cell over-temperature, BMS over-temperature, short circuit, and over-current, plus charging freeze protection below 32°F.
-
Bluetooth connectivity and over-the-air firmware updates pair the battery with the Eco Battery mobile app on iOS or Android to monitor state of charge, cell voltage, temperature, and receive firmware updates wirelessly. The battery improves over time without any manual intervention.
-
CAN communication protocol the battery communicates directly with the included CAN charger for precision charge management and accurate state-of-charge reporting.
-
Auto charger wake-up the battery wakes automatically when the charger is connected. The included remote wake-up button also allows manual activation without needing to access the battery directly.
-
Low self-discharge rate 1% per month. Store your cart for an extended period without worrying about the battery losing significant charge.
-
Parallel connectable up to two units can be connected in parallel for extended range applications if needed in the future.
-
Zero maintenance no watering, no equalization charges, no terminal cleaning, no acid management. Charge and drive.
-
Patented design US Patent D975,644 S and US D1,001,070 S.

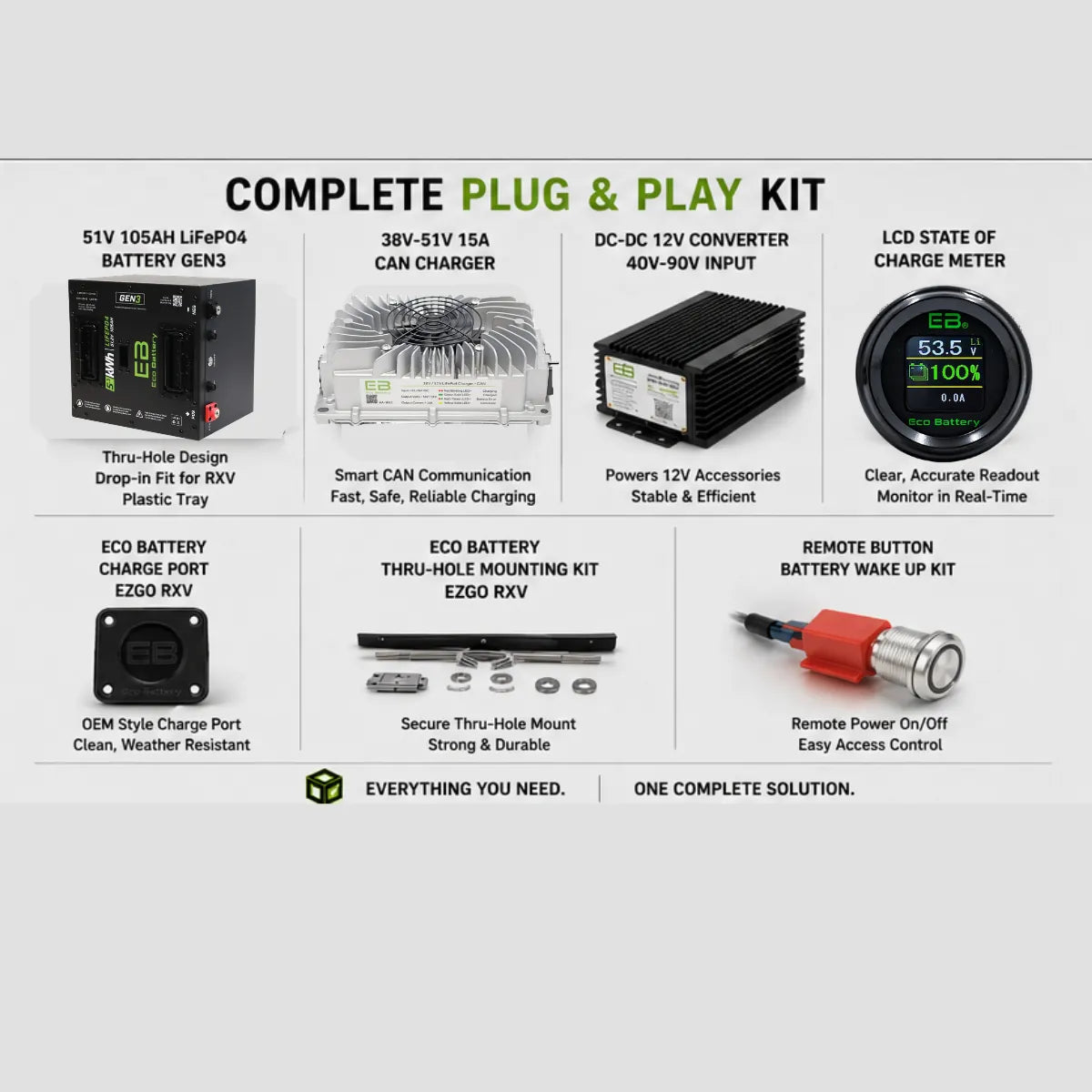

What's Included
This is a complete bundle. Every component required for installation in an EZGO RXV with a factory plastic battery tray is included. No additional purchases are needed for a standard stock RXV.
51.2V 105Ah Thru-Hole LiFePO4 Battery GEN3
Part# A-051105-01
The main battery unit. Prismatic LiFePO4 cells, powder-coated steel shell, IP67 rated, with integrated proprietary BMS.
38V–51V 15A CAN Charger
Part# A-1055
Communicates directly with the battery via CAN protocol for precision charging. Terminates automatically at full charge.
DC-DC 12V Converter (40V–90V Input)
Part# A-1272
Powers 12V accessories on your EZGO RXV (lights, horn, USB ports, etc.) directly from the lithium battery pack. Replaces the function previously handled by a dedicated 12V battery or the lead-acid pack.
LCD State of Charge Meter
Part# A-3102
Digital display showing real-time battery state of charge. Mounts in the cart dash area.

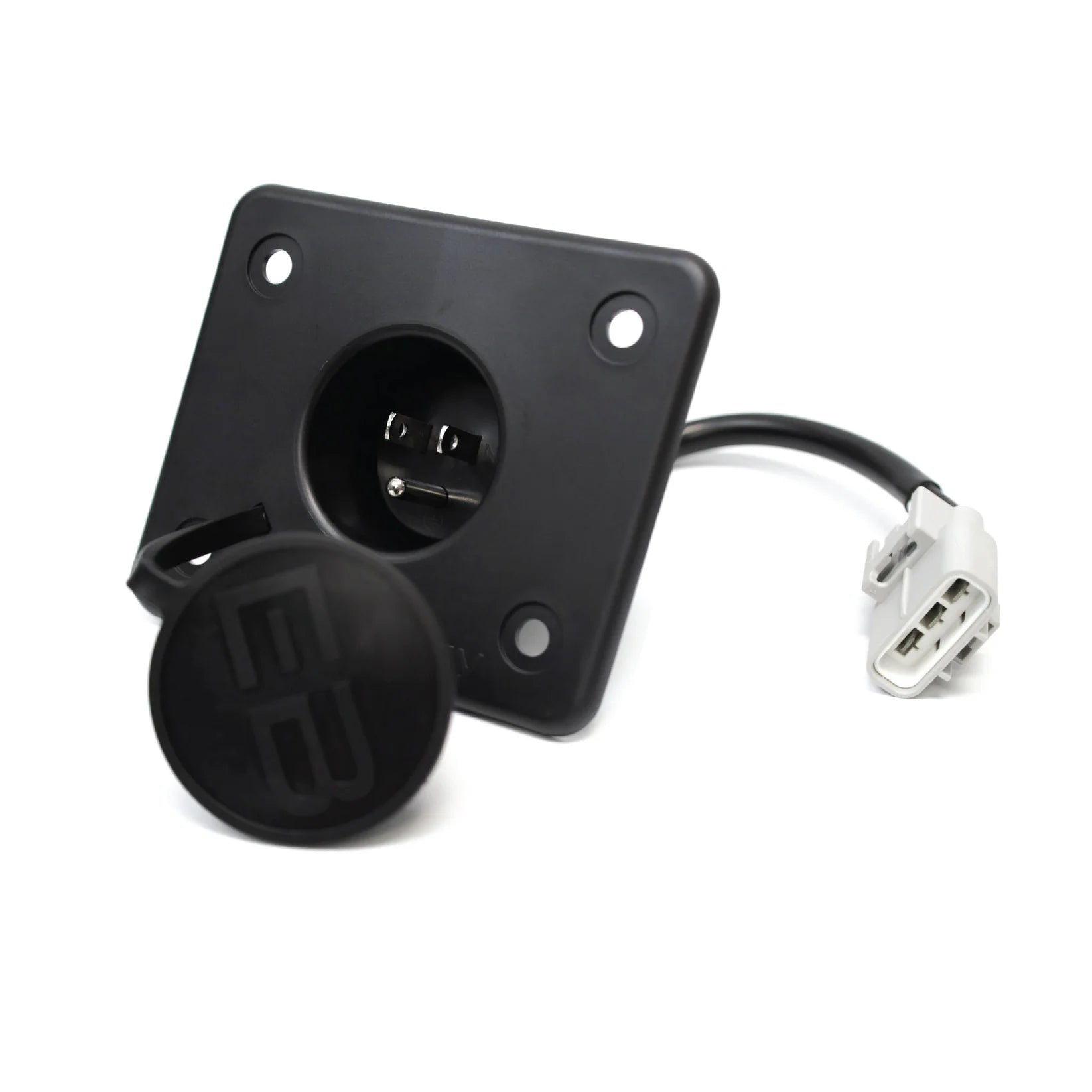

Eco Battery Charge Port EZGO RXV / 110V Quick Connect Plug
Part# A-4032
Locking charge receptacle specific to the EZGO RXV. Provides a secure, weather-resistant connection point for the CAN charger.

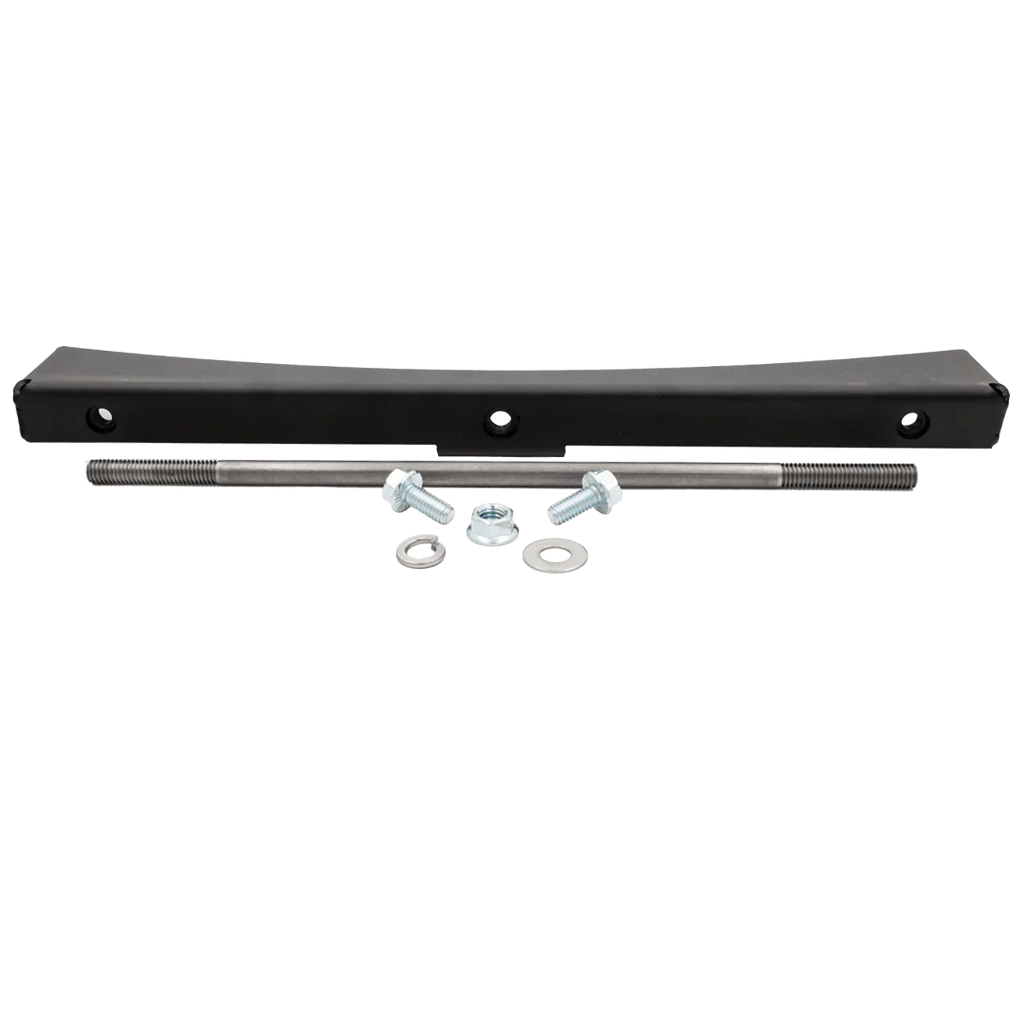

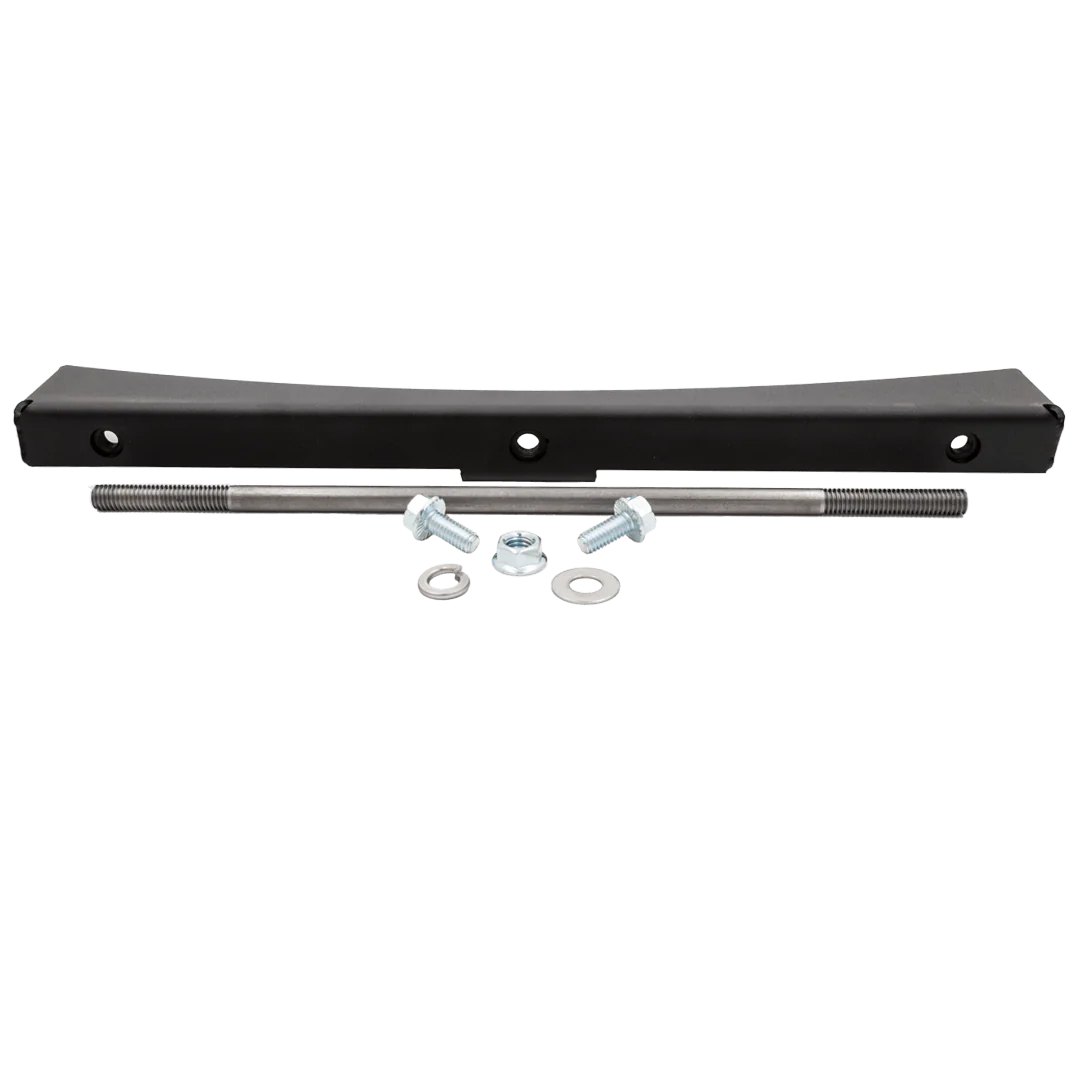

Thru-Hole Mounting Kit EZGO RXV
Part# A-8101
Includes all mounting hardware for the thru-hole installation: bracket, mounting rod, plate, and hardware. Designed specifically for the EZGO RXV plastic tray configuration.
Remote Button Battery Wake Up Kit
Part# A-4220
Allows you to power on the battery remotely without reaching into the battery compartment. Mounts conveniently on the cart for everyday use.
Note: A compatible Eco Battery mobile app (iOS / Android) is required to access Bluetooth monitoring and over-the-air firmware updates. The app is available as a free download from Eco Battery's website. Installation of the latest firmware during initial setup is recommended.
Tech Specs
General
| Part Number |
051105-01 |
| Model Name |
GEN3 51.2V 105Ah Thru-Hole |
| Nominal Voltage |
51.2V (marketed voltage: 48V) |
| Working Voltage Range |
43.2V – 58.4V |
| Recommended Operating Voltage |
48.0V – 57.0V |
| Nominal Capacity |
105Ah |
| Total Energy |
5,376Wh (5.376kWh) |
| Cell Count |
16 cells |
| Cell Configuration |
1P16S |
| Reserve Capacity @ 25A |
252 minutes |
| Self Discharge Rate |
1% per month |
| IP Rating |
IP67 |
| BMS |
Proprietary Eco Battery (EB) |
| Patents |
US D975,644 S / US D1,001,070 S |
Physical
| Cell Chemistry |
Lithium Iron Phosphate (LiFePO4) |
| Cell Type |
Prismatic |
| Shell Type |
Powder Coated Steel |
| Terminal Type |
M8 Female |
| Weight |
98 lbs (44.45 kg) |
| Dimensions (L x W x H) |
13.14" x 12.24" x 10.15" |
| UN Shipping Class |
UN 3480 |
Discharging
| Max Continuous Discharge |
250A |
| Max Discharge (5 seconds) |
600A |
| Max Discharge (10 seconds) |
550A |
| Recommended Voltage Cutoff |
48.0V |
| BMS Voltage Recovery |
46.4V |
| Discharge Temperature Range |
-20°F to 140°F (-29°C to 60°C) |
Charging
| Auto Charger Wake-up |
Yes |
| Max Continuous Charge |
<52A |
| Max Charge (30 seconds) |
200A |
| Bulk / Absorb Voltage |
57.0V |
| Float Voltage |
54.0V or Off |
| BMS High Voltage Cutoff |
59.2V |
| Charging Temperature Range |
32°F to 130°F (0°C to 54°C) |
| Charging Freeze Protection |
Yes, charging disabled below 32°F |
Safety & Certifications
| Pack Over-Voltage Protection |
Yes |
| Pack Under-Voltage Protection |
Yes |
| Cell Under-Voltage Protection |
Yes |
| Cell Balancing |
Yes, active cell balancing |
| Cell Over-Temperature Protection |
Yes |
| BMS Over-Temperature Protection |
Yes |
| Short Circuit / Over-Current Protection |
Yes |
| Certifications |
UN38.3, UL1642 Cell |
Communication & Connectivity
| Bluetooth |
Yes |
| CAN Communication |
Yes |
| Mobile App / PC Software |
Yes, Eco Battery App (iOS & Android) |
| Software Updates |
Over-the-air (OTA) |
Compatibility
| Compatible Cart |
EZGO RXV (2008 and newer) |
| Required Tray Type |
Factory plastic battery tray (4 x 12V battery layout) |
| Compatible Controllers |
Stock Curtis and GE controllers no reprogramming required |
| Series Connectable |
No |
| Parallel Connectable |
Yes, up to 2 units |
Compatibility
This bundle is engineered exclusively for the EZGO RXV (2008 and newer) equipped with a factory plastic battery tray. The plastic tray typically houses four 12-volt lead-acid batteries in a square/grouped formation.
How to identify your tray type:
-
Plastic tray (this bundle): Cream, tan, or dark-colored plastic tray. Usually holds 4 x 12V batteries arranged in a compact square pattern. Common on RXV models from 2008 onward with the standard 48V system.
-
Metal tray (not this bundle): Gray steel tray. Usually holds 6 x 8V batteries in a longer, narrower row arrangement. If you have a metal tray, you need the Eco Battery Skinny bundle instead.
Controller compatibility:
The EZGO RXV uses either a Curtis or Danaher (GE) motor controller depending on the model year. Both are compatible with this battery at the stock voltage level. The 51.2V nominal voltage of this lithium battery operates within the acceptable working range of these controllers. Controller reprogramming is not required for stock configurations.
Regenerative braking:
The EZGO RXV uses a full-time regenerative braking system paired with an electromagnetic motor brake (EMB). The GEN3 battery accepts up to 200A of charge current for 30 seconds, which provides adequate headroom for the RXV's regen braking demands in normal operating conditions. This is one reason Eco Battery's thru-hole bundle is specifically recommended for this cart model by RXV owners and installers in golf cart communities.
This bundle does not fit:
- EZGO RXV with a factory metal battery tray
- EZGO TXT, Express S4, S6, or L6 (different bundles are available for those models)
- EZGO carts with factory-installed lithium battery systems (OEM ELiTE models)
- Club Car, Yamaha, or other golf cart brands (separate model-specific bundles required)
If you are unsure which tray your cart has, please contact us with your cart's serial number before ordering. We will confirm compatibility before you purchase.
Installation

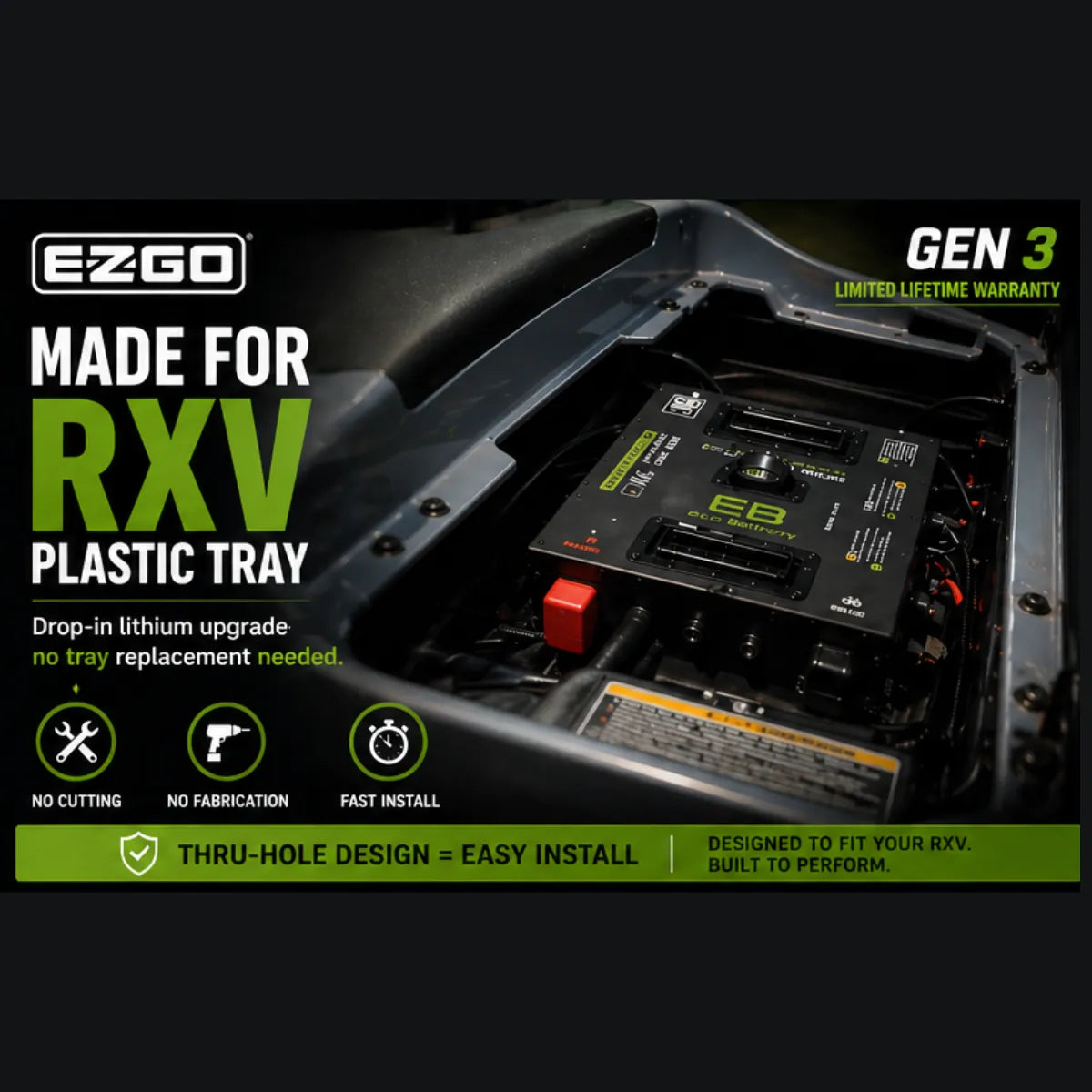

The thru-hole mounting system is one of the key reasons this bundle is widely used for EZGO RXV conversions. Instead of requiring a new battery tray or extensive hardware modifications, the battery mounts using a rod that passes through the battery body and threads into the bracket below following the same general principle as your existing lead-acid hold-down system.
General installation overview (for reference only always follow the official Eco Battery installation guide included with your kit):
- Turn the key to OFF and place the cart in TOW mode before beginning any work.
- Disconnect and remove your existing lead-acid batteries. The factory plastic tray typically holds four 12V batteries that are removed individually.
- Install the Eco Battery thru-hole mounting bracket (A-8101) into the existing tray using the included hardware.
- Lower the GEN3 battery into the tray the weight is 98 lbs, so a second person is recommended for safe handling.
- Thread the mounting rod down through the battery and into the bracket below. Secure with the included mounting plate and nut.
- Connect the battery terminals per the included wiring diagram. The battery should be oriented with terminals facing toward the controller.
- Install the charge port (A-4032) in the existing charge receptacle location on the cart.
- Mount the LCD state-of-charge meter (A-3102) in a visible location on the dash.
- Connect and mount the 12V DC converter (A-1272) to power cart accessories.
- Mount the remote wake-up button (A-4220) in a convenient location.
- Power on the battery using the remote button or by connecting the charger.
- Download the Eco Battery app and install the latest over-the-air firmware update before first use.
Most owners report completing this installation in 1 to 2 hours. The kit includes all required hardware for a standard EZGO RXV plastic tray installation. A T50 Torx socket and standard 9/16" wrench are among the common tools required refer to the included documentation for the complete tool list.
Professional installation is available through authorized Eco Battery dealers. If you prefer to have the conversion done by a technician, contact us and we can help connect you with local installer options.
FAQs
Will this battery work with my EZGO RXV's regenerative braking system?
Yes. The EZGO RXV uses a full-time regenerative braking system that also controls the electromagnetic motor brake (EMB). This is different from most golf carts, and it requires a lithium battery that can safely accept regen current without disconnecting under braking loads. The Eco Battery GEN3 accepts up to 200A of charge current for 30 seconds, which provides adequate headroom for the RXV's regen braking demands under normal driving conditions. This is why Eco Battery's thru-hole kit is one of the most widely recommended options specifically for the RXV among golf cart communities.
Note: If your cart has significant aftermarket performance upgrades (higher-speed motor, upgraded controller), please contact us before ordering to confirm compatibility.
Do I need to reprogram my controller after installing this battery?
No. For stock EZGO RXV models equipped with a Curtis or GE (Danaher) controller, no reprogramming is required. The 51.2V nominal voltage of this battery operates within the acceptable working range of these controllers. Some dealers have told customers reprogramming is necessary Eco Battery has confirmed this is not required for standard stock RXV configurations. If you have specific concerns about your cart's setup, reach out to us or contact Eco Battery's US-based support team directly before installation.
How do I know if my EZGO RXV has a plastic tray or a metal tray?
The plastic tray is typically a cream, tan, or dark-colored plastic basin that holds four 12-volt batteries arranged in a compact square pattern. It is the standard tray on most 48V EZGO RXV models from 2008 onward using a 4 x 12V battery configuration.
The metal tray is a gray steel tray, typically found on RXV models using six 8-volt batteries in a longer, narrower arrangement. If you have a metal tray, you need the Eco Battery Skinny bundle not this one.
If you are unsure, contact us with your cart's serial number and we will confirm the correct bundle before you order.
What is the difference between the Thru-Hole bundle and the Skinny bundle?
The difference is the battery form factor and how it mounts in your cart both are GEN3 LiFePO4 batteries from Eco Battery with the same 105Ah capacity, but they are designed for different tray shapes.
The Thru-Hole bundle (this product) is designed for carts with a grouped, square-format battery tray such as the EZGO RXV with the factory plastic tray (4 x 12V). The battery mounts via a rod that passes through the battery body.
The Skinny bundle is designed for carts with a longer, narrower battery tray such as the EZGO RXV with the factory metal tray (6 x 8V) or the EZGO TXT. It is a narrower form factor that fits those tray dimensions. Contact us if you need help selecting the correct bundle.
Is everything I need for the installation included in this bundle?
Yes. This bundle includes the battery, CAN charger, 12V DC converter, LCD state-of-charge meter, locking charge port with EZGO RXV-specific connector, thru-hole mounting kit with all hardware, and the remote wake-up button. For a standard stock EZGO RXV with a plastic tray, no additional components are required.
You will need common hand tools (including a T50 Torx socket) and the free Eco Battery mobile app to complete the setup and activate over-the-air firmware. The official installation guide is included with the kit.
How far will this battery take me on a single charge?
Range depends on a combination of factors including cart weight, terrain, speed, passenger load, tire pressure, and temperature. Under typical conditions a standard EZGO RXV on moderately flat golf course or neighborhood terrain owners report ranges of approximately 40 to 45 miles per charge. The reserve capacity of this battery at a 25A draw is 252 minutes (4.2 hours), which translates to multiple full rounds of golf without requiring a charge.
For comparison, a standard set of lead-acid batteries typically delivers declining range as they age. This lithium battery delivers consistent voltage output throughout the discharge cycle, so you will not experience the gradual power drop that lead-acid users notice toward the end of a charge.
How long does it take to charge this battery?
The included 15A CAN charger (A-1055) provides a full charge from 0% to 100% in approximately 7 hours. Charging from a typical daily-use discharge level (not fully depleted) will take less time. The charger communicates directly with the BMS via CAN protocol and shuts off automatically at full charge there is no risk of overcharging.
The battery can also accept partial charges at any time without affecting battery lifespan. LiFePO4 chemistry does not suffer from the memory effect that older battery types experienced.
What warranty does this battery carry?
The Eco Battery GEN3 carries manufacturer warranty against defects in materials and workmanship, subject to Eco Battery's published warranty terms and conditions.
| Years 1–6 |
Free repair or replacement (at ECO Capital’s discretion) |
| Years 7–9 |
Replacement battery at 50% of current MSRP |
| Years 10–12 |
Replacement battery at 75% of current MSRP |
| Year 13 and beyond |
Free replacement Approved Parts shipped to buyer. Approved Parts include: battery management system, terminals, power button, bus bars, com ports, Bluetooth module, heating module, and any other parts designated by ECO Capital. Installation is the buyer’s responsibility and cost. |
As an authorized reseller, we facilitate warranty claims on your behalf. For full warranty terms, visit ecobattery.com or contact us directly and we will provide the documentation. Full details in the "Warranty Tab"
Can I use this battery in cold weather or store my cart outdoors in winter?
The battery discharges safely down to -20°F (-29°C), so driving in cold weather is not a concern. However, charging is restricted to temperatures above 32°F (0°C). The BMS includes built-in charging freeze protection that automatically prevents charging below 32°F to protect the cells. If you store your cart outdoors in freezing temperatures, the battery will not accept a charge until it warms up this is normal and a protective feature, not a defect.
For extended winter storage, the battery's 1% per month self-discharge rate means it will retain the majority of its charge for many months without needing a maintenance charge.
Can I connect two of these batteries together for more range?
Yes. The GEN3 51.2V 105Ah Thru-Hole battery supports parallel connection of up to two units. Connecting two in parallel would double the capacity to 210Ah and significantly extend your driving range. Series connection is not supported. Contact us before attempting a dual-battery setup to confirm space availability and wiring requirements for your specific cart configuration.
Do I need to download an app to use this battery?
The battery operates without the app it is not required for daily use. The included LCD state-of-charge meter provides real-time battery level information on the cart. However, the Eco Battery mobile app (free, iOS and Android) is needed to access Bluetooth monitoring, detailed cell-level data, and to install over-the-air firmware updates. Eco Battery recommends installing the latest firmware during initial setup, so downloading the app at installation time is advisable.
We are a reseller where does warranty and technical support come from?
Eco Battery is the manufacturer and warranty holder. Their US-based support team handles technical questions and warranty claims. As an authorized Eco Battery reseller, we are your first point of contact we facilitate communication with Eco Battery on your behalf and will not leave you navigating the process alone. For urgent technical questions during installation, Eco Battery's support team is also reachable directly at ecobattery.com.
