The Bolt Energy 51.2V 160Ah is a high-capacity LiFePO4 lithium battery kit built for 48V golf carts. With 8,192Wh of usable energy and up to 70 miles of range per charge, it replaces your entire lead-acid battery bank in a single unit no watering, no terminal cleaning, no load-balancing between multiple batteries.
Compatible with Club Car, Yamaha, and E-Z-GO carts. Available in a heated version for cold-climate use.
Why upgrade to the 160Ah
-
Up to 70 miles range on a single charge nearly double what a lead-acid pack delivers
-
8,192Wh of energy the highest-capacity single-battery option in the Bolt lineup
-
250A continuous / 520A peak discharge handles hills, cargo loads, and heavy accessories without voltage sag
-
IP66-rated steel enclosure sealed against dust and water for year-round use
-
Bluetooth monitoring via included receiver check charge level and battery status from your phone
-
Heated option available maintains full performance in cold weather
-
Maintenance-free no watering, no equalization charges, no terminal corrosion
Kit configurations: Choose between the Standard Kit or Professional Kit. Both are available in heated and non-heated versions. Select your configuration using the options above.
Have questions about fitment or which kit is right for your cart? Contact us before ordering we're here to help.
What's Included
Standard Kit
- 51.2V 160Ah LiFePO4 battery
- Waterproof high-speed charger
- Smart SOC state-of-charge meter
- Bluetooth receiver
- Mounting bracket
- 3/8" battery ring terminal connectors
- 10" tie straps

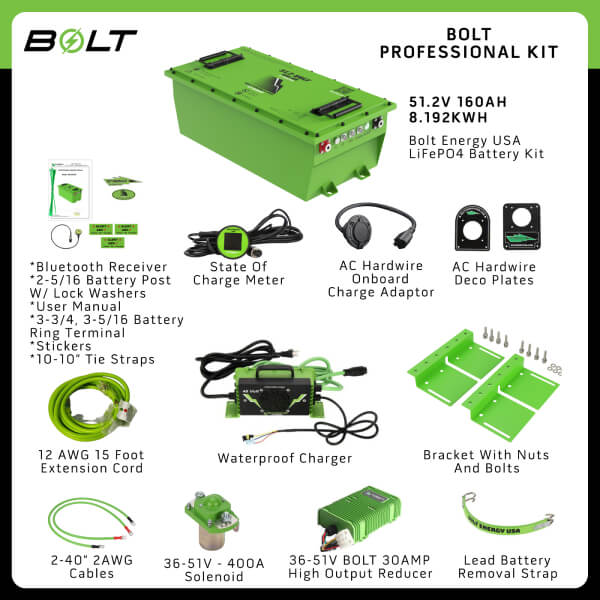

Professional Kit — 14 items
- 51.2V 160Ah LiFePO4 battery
- Waterproof high-speed charger
- Smart SOC state-of-charge meter
- Bluetooth receiver
- Mounting bracket
- 3/8" battery ring terminal connectors
- 10" tie straps
- AC hardwire port
- DECO cover plate (universal or Club Car)
- 15ft 12-AWG lighted extension cord
- 30-amp voltage reducer
- 2× 40" 2AWG premium installation cables
- 400A heavy-duty solenoid
- Lead battery removal strap
Which kit do I need? If your cart's solenoid and wiring are in good working condition, the Standard Kit covers the essentials. The Professional Kit is recommended for first-time lithium conversions or older carts with aging wiring — it includes the solenoid, cables, voltage reducer, and all mounting hardware so you're not sourcing parts separately.
Not sure which to choose? Contact us and we'll help you decide based on your cart's make, model, and current condition.
Fits Your Cart
The Bolt Energy 160Ah is compatible with 48V Club Car, Yamaha, and E-Z-GO golf carts. Confirm your cart's voltage before ordering this battery is designed for 48V systems only.
Club Car DS (48V)
Precedent
Onward
Tempo
Transporter
Villager
Carryall
Yamaha Drive (G29)
Drive2 (G29)
The Drive2 QuieTech
UMAX
E-Z-GO TXT (48V)
RXV
Express
Freedom RXV
Valor
Not sure if your cart qualifies? Check your existing battery compartment voltage or the cart's nameplate. If it says 48V, this battery is designed to fit. Contact us with your cart's year, make, and model and we'll confirm before you order.
Important notes
- Designed for 48V systems only — not compatible with 36V, 72V, or other voltages
- Most carts from the mid-1990s through 2014 require an OBC bypass during installation the Professional Kit includes instructions; Bolt Energy also provides installation videos at boltenergyusa.com
- The DECO cover plate included in the Professional Kit is available in universal or Club Car configurations select at checkout or contact us to confirm which fits your cart
Specifications
Mechanical
| Specification |
Value |
| Dimensions (L × W × H) |
29.57″ × 10.17″ × 9.13″ |
| Weight |
153 lbs (69.4 kg) |
| Terminal Type |
M8×1.5×25mm |
| Cell Configuration |
1P16S |
| Cell Chemistry |
Prismatic LiFePO4 |
| Case Material |
Powder Coated Steel |
| Enclosure Rating |
IP66 |
Electrical
| Specification |
Value |
| Nominal Voltage |
51.2V |
| Nominal Capacity |
160Ah |
| Energy |
8,192Wh |
| Working Voltage |
43.2V – 58.4V |
| Recommended Voltage |
48.0V – 57.0V |
| Efficiency |
0.99 |
| Self Discharge |
<3% per month |
Discharge
| Specification |
Value |
| Max Continuous Discharge |
250A |
| Peak Discharge Current |
520A ± 15.6A (30s) |
| BMS Discharge Cut-Off |
260A ± 7.8A (50s) / 520A ± 15.6A (30s) |
Charging
| Specification |
Value |
| Recommended Charge Current |
5 – 52A |
| Maximum Input Current |
350A |
| Charge Current Cut-Off |
375A |
| BMS Charge Voltage Cut-Off |
58.5V |
| Reconnect Voltage |
<58.5V |
| Charging Temp Range |
34°F – 140°F (0°C – 60°C) |
Communication
| Specification |
Value |
| Bluetooth |
Bluetooth receiver (included) |
| CAN Port |
Available for diagnostics and testing |
FAQ
Will this battery fit my golf cart?
The Bolt Energy 160Ah is compatible with 48V Club Car, Yamaha, and E-Z-GO golf carts. Supported models include Club Car DS (48V), Precedent, Onward, Tempo, Transporter, Villager, and Carryall; Yamaha Drive (G29), Drive2, Drive2 QuieTech, and UMAX; and E-Z-GO TXT (48V), RXV, Express, Freedom RXV, and Valor.
If your cart isn't listed or you're unsure, contact us with your cart's year, make, and model before ordering.
How do I know if my cart is 48V?
The easiest way is to count your existing batteries and multiply by their individual voltage. Six 8V batteries = 48V. Eight 6V batteries = 48V. You can also check the nameplate on your cart's motor or look up your cart's model year — most Club Car, Yamaha, and E-Z-GO carts built after the mid-2000s are 48V.
Still not sure? Contact us and we'll help you confirm.
How far will the 160Ah take me on a single charge?
Up to 70 miles under normal conditions. Actual range depends on terrain, passenger and cargo weight, temperature, tire pressure, and driving style. Flat neighborhood or course use with two passengers will land toward the higher end. Hills, heavy loads, and cold temperatures reduce range.
How long does it take to charge?
A full charge from near-empty typically takes 4–6 hours with the included high-speed charger. Partial charges are completely safe — unlike lead-acid, LiFePO4 does not require a full cycle and is not damaged by topping off regularly.
What's the difference between the Standard Kit and Professional Kit?
The Standard Kit includes the battery, charger, SOC meter, Bluetooth receiver, mounting bracket, connectors, and tie straps. The Professional Kit adds everything needed for a complete installation: a 400A heavy-duty solenoid, 2× 40" 2AWG installation cables, 30-amp voltage reducer, AC hardwire port, DECO cover plate, lighted extension cord, and a lead battery removal strap — 14 items total.
If your cart's solenoid and wiring are in good shape, the Standard Kit is sufficient. For first-time lithium conversions or carts with older wiring, the Professional Kit is the cleaner choice.
What is the heated version and do I need it?
The heated version includes internal battery heating that keeps cells at an optimal operating temperature in cold weather. LiFePO4 batteries can lose capacity in temperatures below freezing and should not be charged below 34°F without a heating system. If you use your cart in winter or store it in an unheated space in a cold climate, the heated version is recommended. For year-round warm climates, the standard (non-heated) version is sufficient.
Do I need to bypass the OBC (On-Board Computer)?
It depends on your cart's age. Carts built before the mid-1990s used resistor-based speed control and have no OBC — no bypass needed. Carts from the mid-1990s through approximately 2014 have an OBC that is designed for lead-acid charging profiles and must be bypassed when switching to lithium. Newer carts with factory lithium systems or smart charger setups vary — if you're unsure, contact us with your cart's year and model.
The Professional Kit includes an owner's manual that covers the OBC bypass procedure. Bolt Energy also provides step-by-step installation videos at boltenergyusa.com.
Does this battery require any maintenance?
No. LiFePO4 batteries are completely maintenance-free. No watering, no equalization charges, no terminal cleaning. The sealed IP66-rated enclosure protects against dust and water.
Can I use my existing charger?
The kit includes a waterproof high-speed charger sized for the 160Ah battery — we recommend using it. Standard lead-acid chargers have different charge profiles and are not compatible with LiFePO4 chemistry. Using a non-compatible charger can damage the battery and void the warranty.
How difficult is the installation?
Most owners complete the install in 2–4 hours using basic hand tools. The Professional Kit includes an owner's manual with step-by-step instructions, and Bolt Energy provides installation videos at boltenergyusa.com. If you'd prefer to have a shop handle it, Bolt's dealer locator can help you find a local installer.
Have questions before you start? Contact us — we can help confirm fitment, kit selection, and walk through any questions before you buy.
What is the warranty?
The Bolt Energy 160Ah carries a manufacturer warranty. Register your battery at boltenergyusa.com within 30 days of purchase using your battery's serial number. Keep your invoice — it establishes your purchase date. For warranty claims after purchase, contact Bolt Energy directly at info@boltenergyusa.com or (727) 955-4955.
What if I have more questions before I order?
Contact us — we're happy to help with fitment questions, kit selection, or anything else before you buy. If your question is about a warranty claim or a technical issue after purchase, contact Bolt Energy directly.
