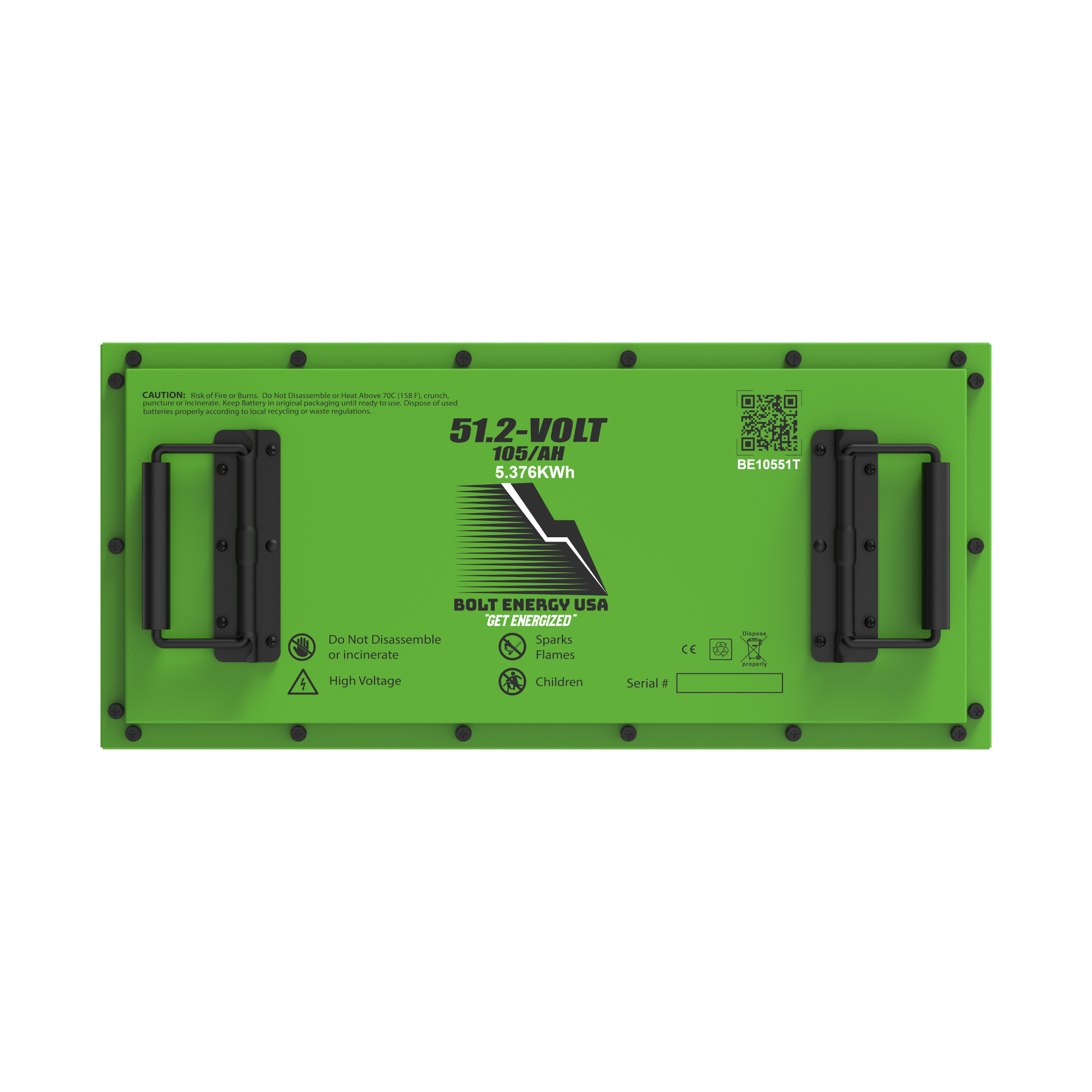

Bolt Energy 48V Lithium Golf Cart Battery - 105AH "THIN" front view

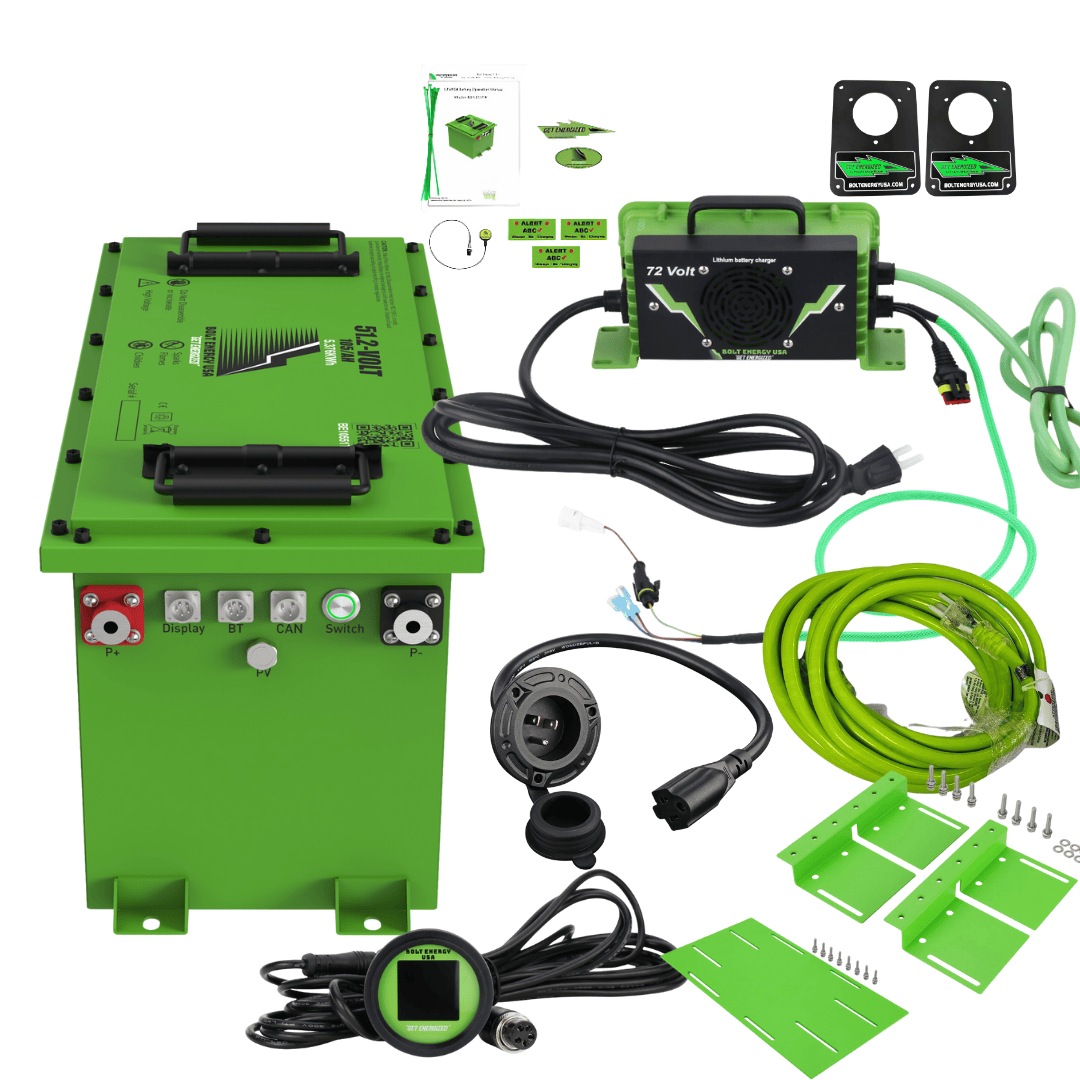

48V Lithium Golf Cart Battery Standard Kit with Charger and Installation Hardware - Bolt Energy USA

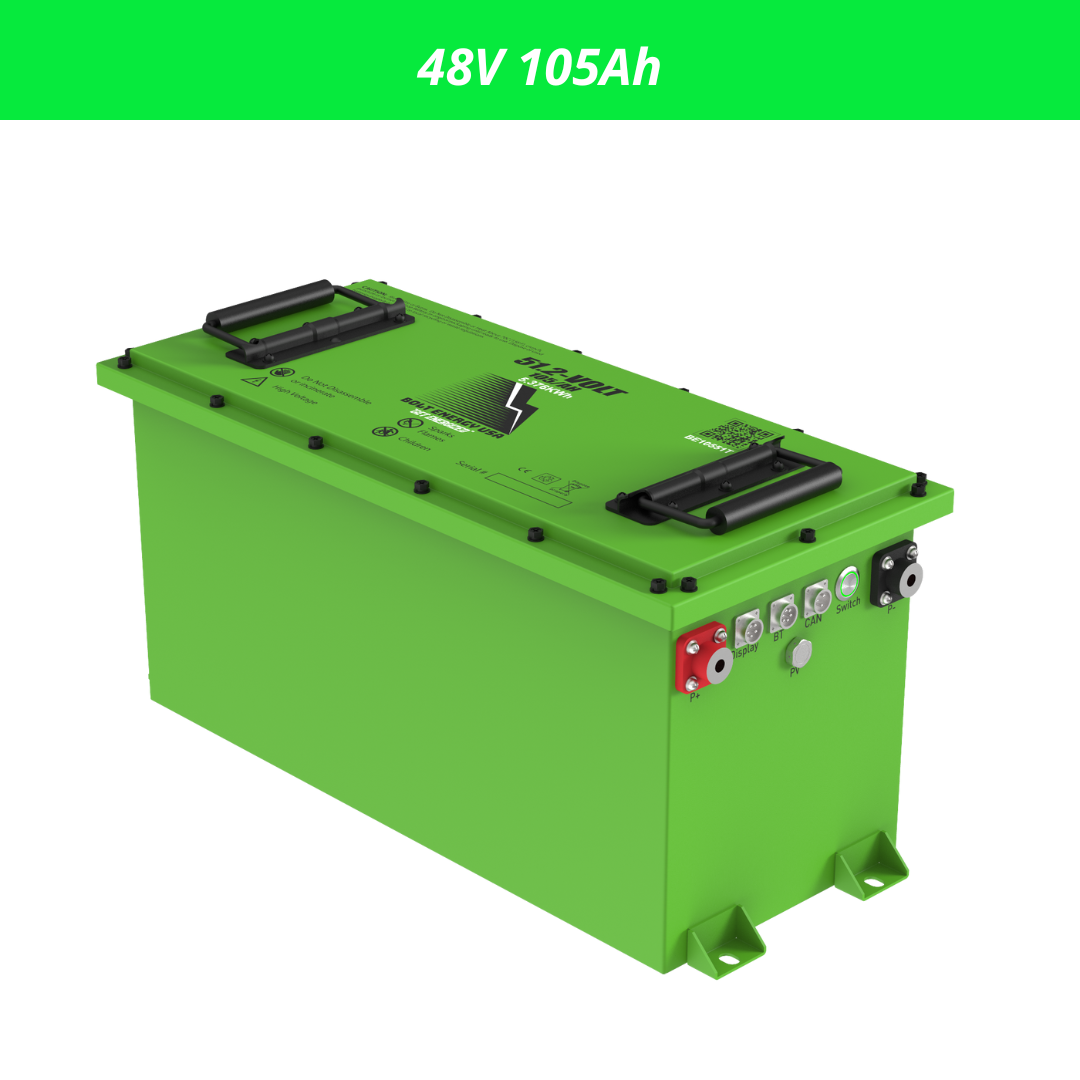

Bolt Energy 48V Lithium Golf Cart Battery Professional Kit - 105AH side view

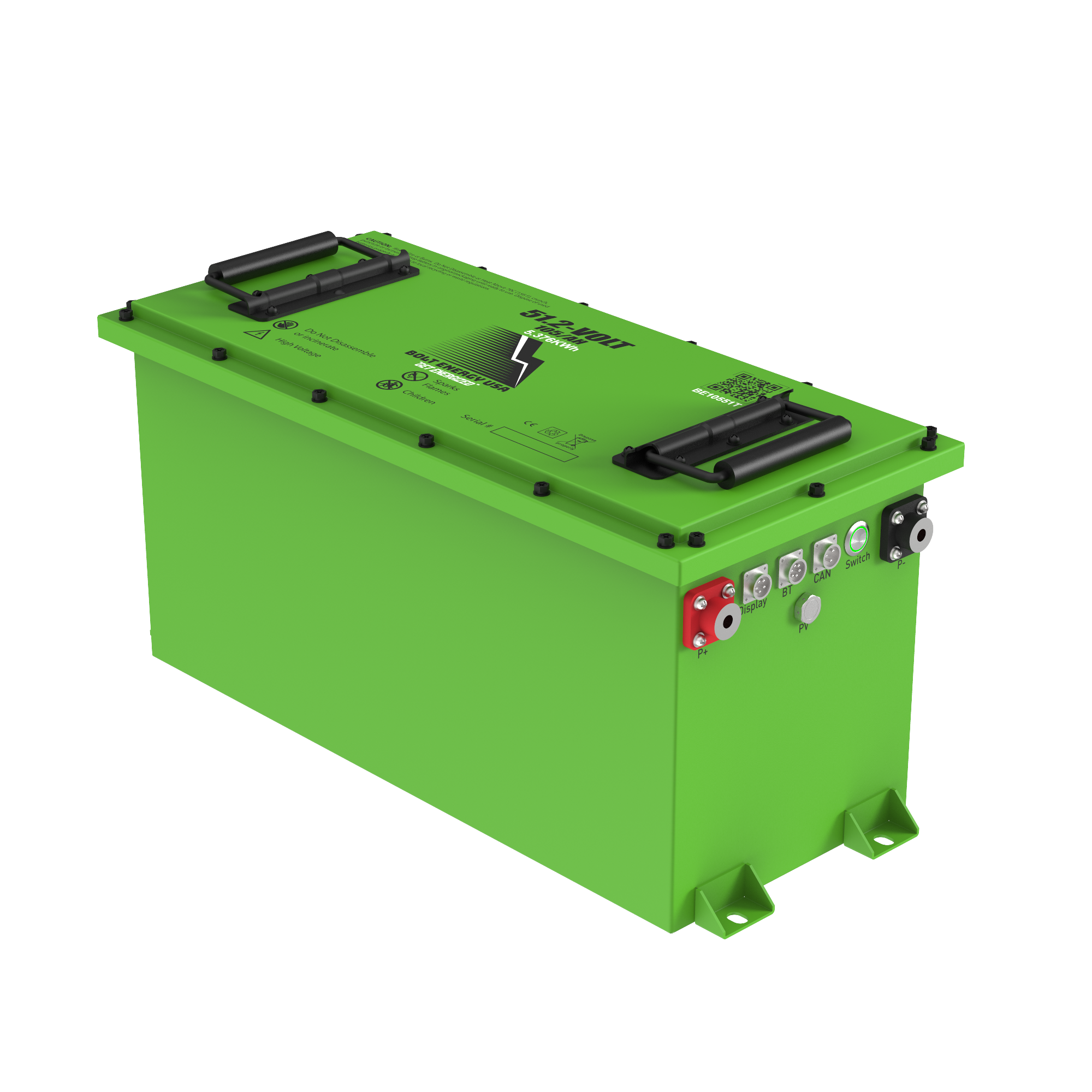

Bolt Energy 48V Lithium Golf Cart Battery Professional Kit - 105AH "THIN" Design
Bolt Energy 48V Lithium Golf Cart Battery Professional Kit - 105AH "THIN" Dimensions

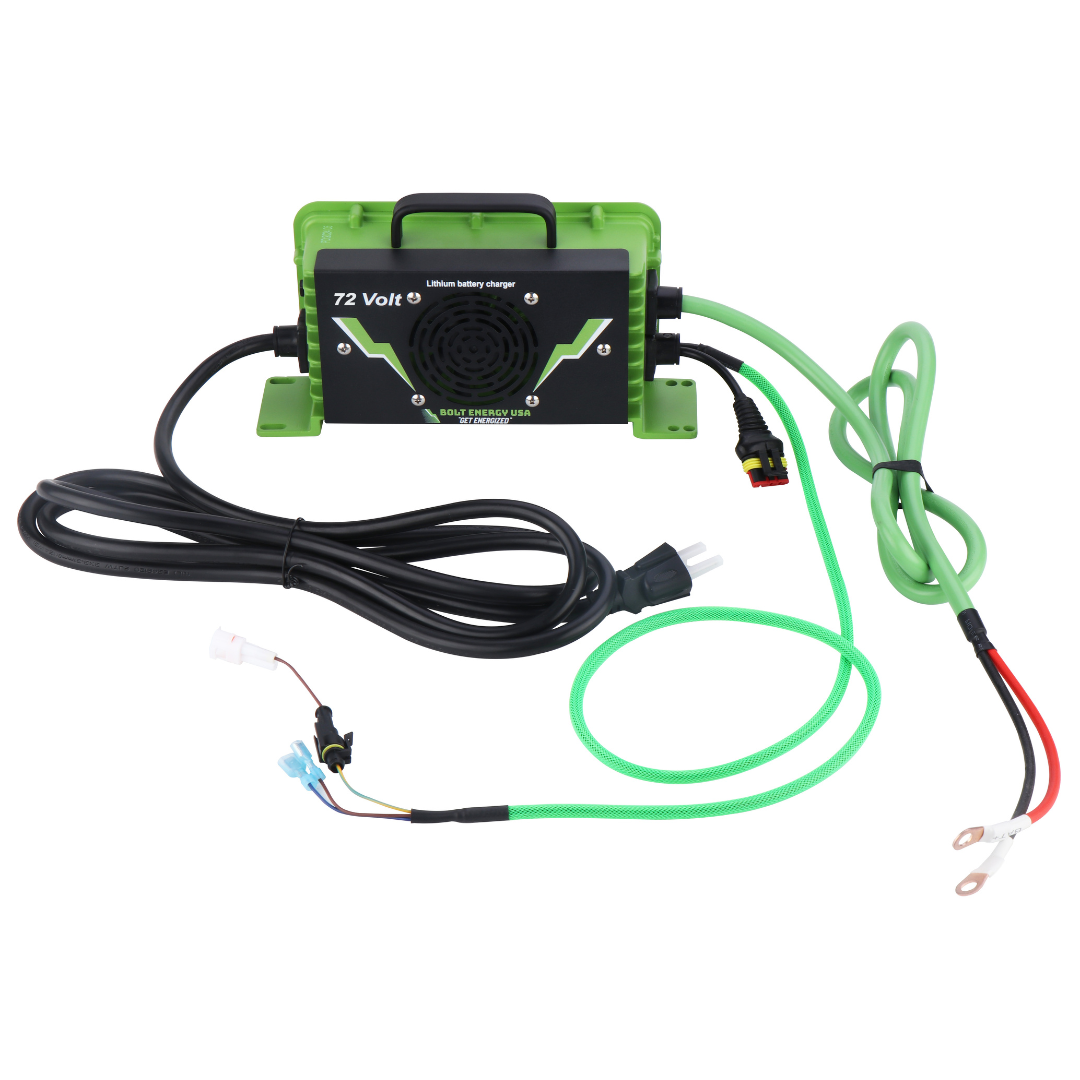

Bolt Energy 48V Lithium Golf Cart Battery - 105AH "THIN" Charger
AC Hardwire PORT

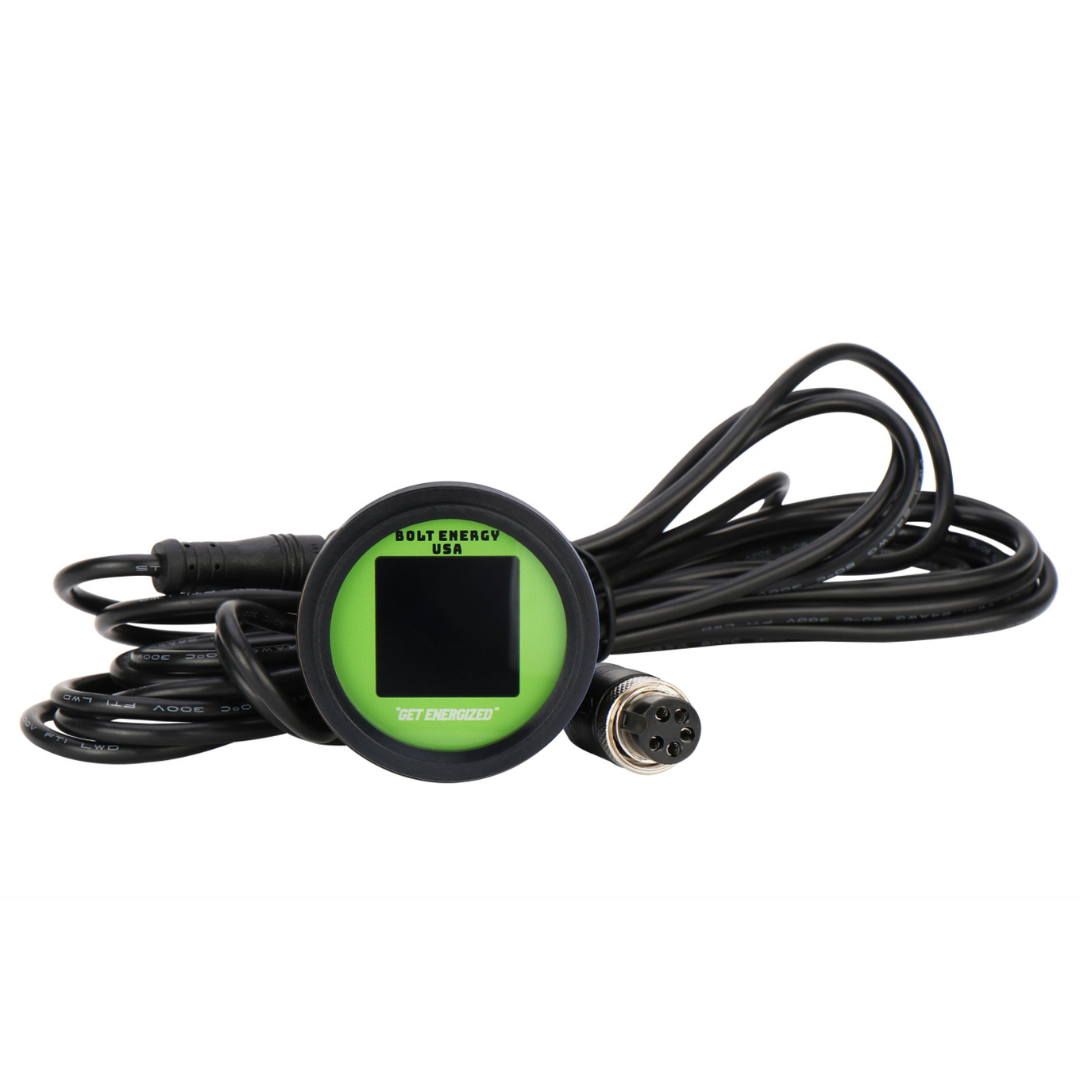

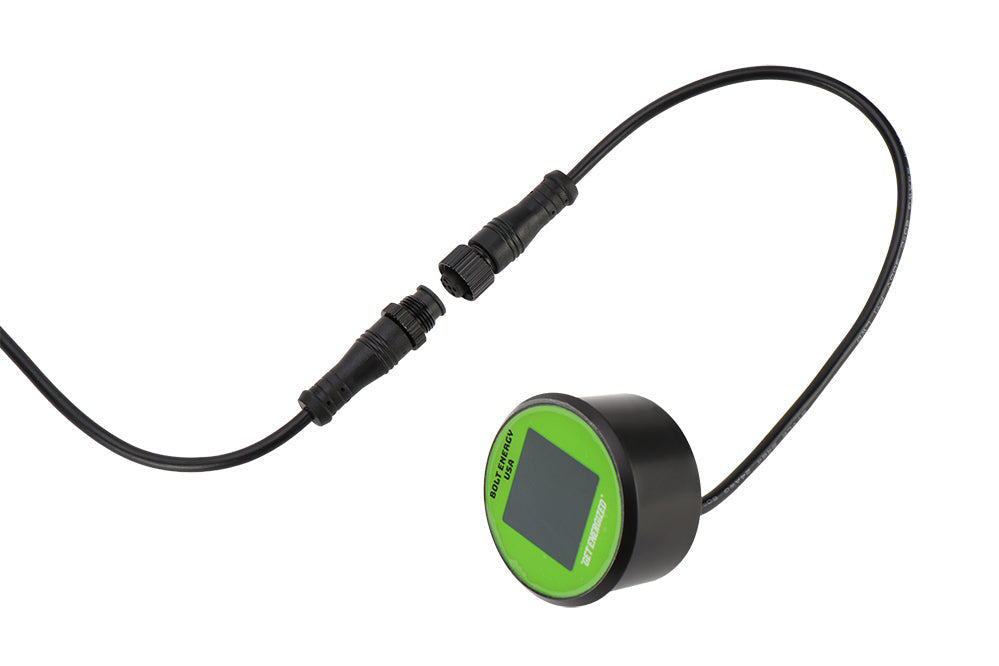

SOC (state of charge meter) wire connector

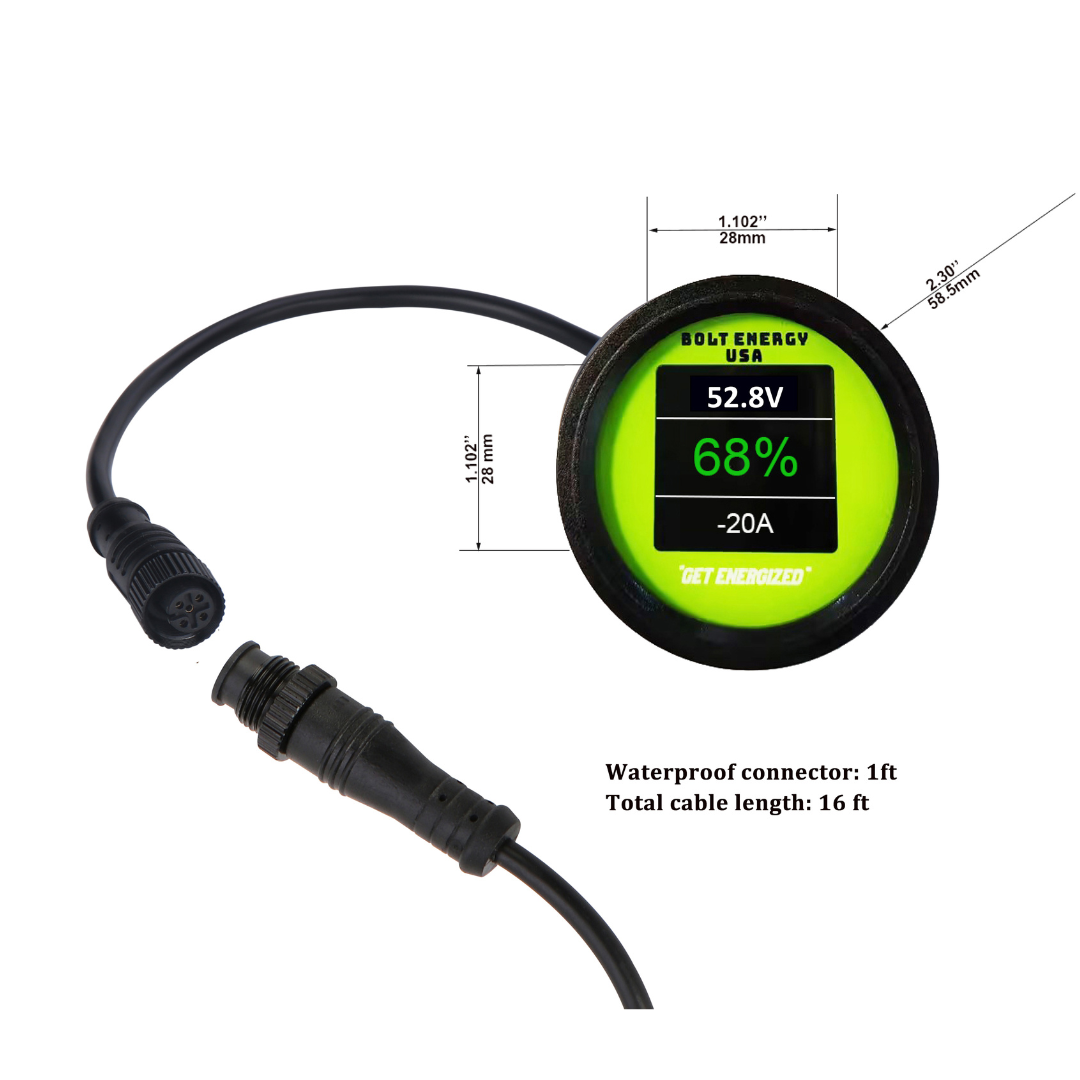

Waterproof connector dimension

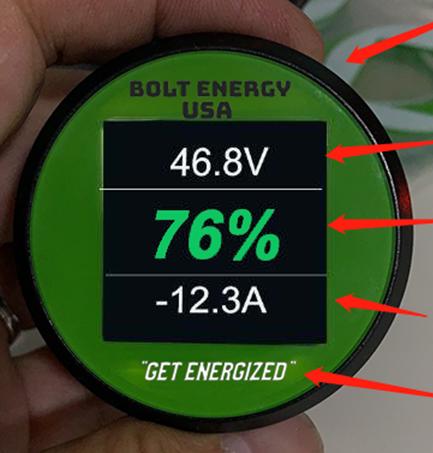

State charge meter screen

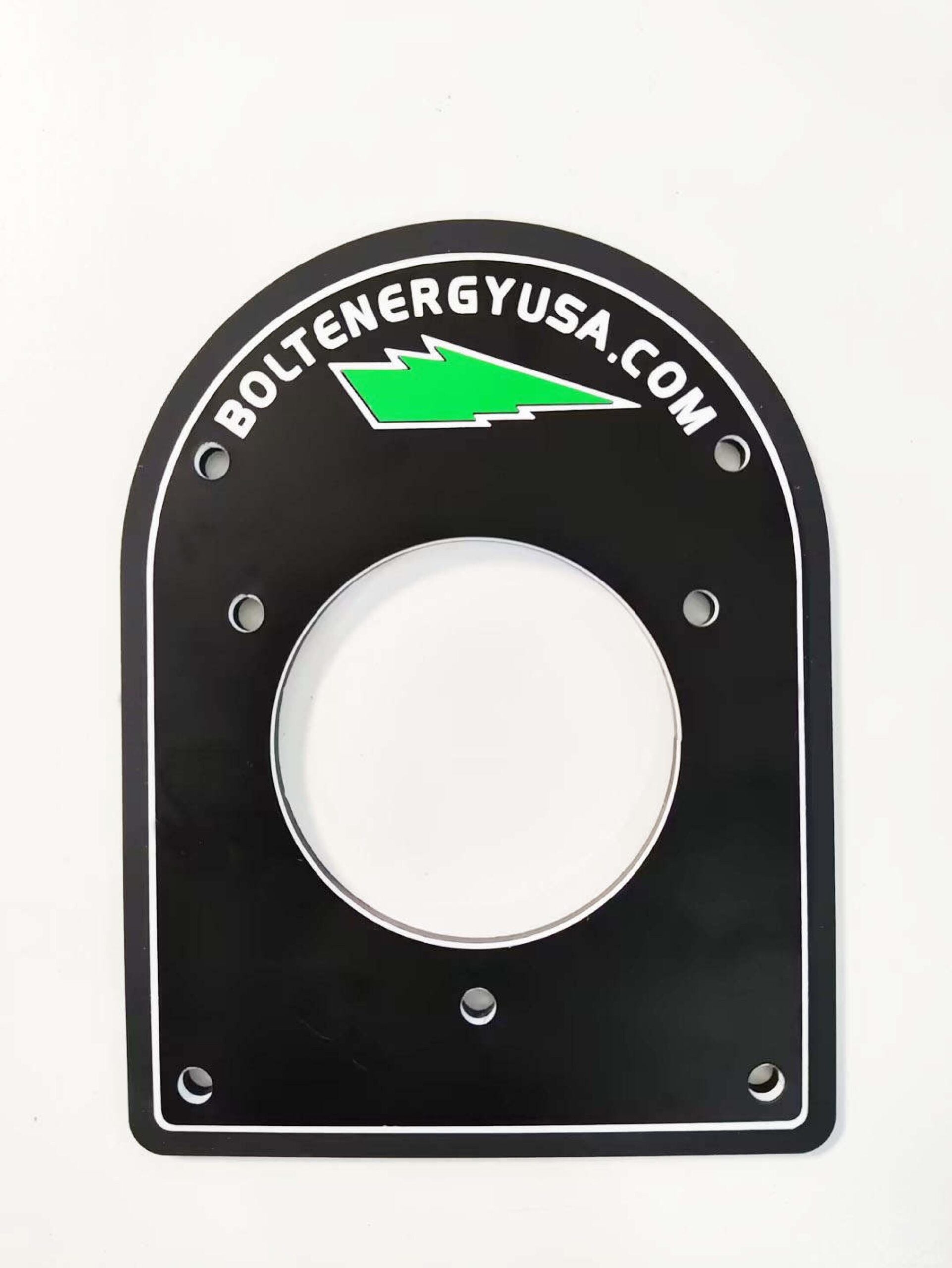

AC Hardwire deco plate front view

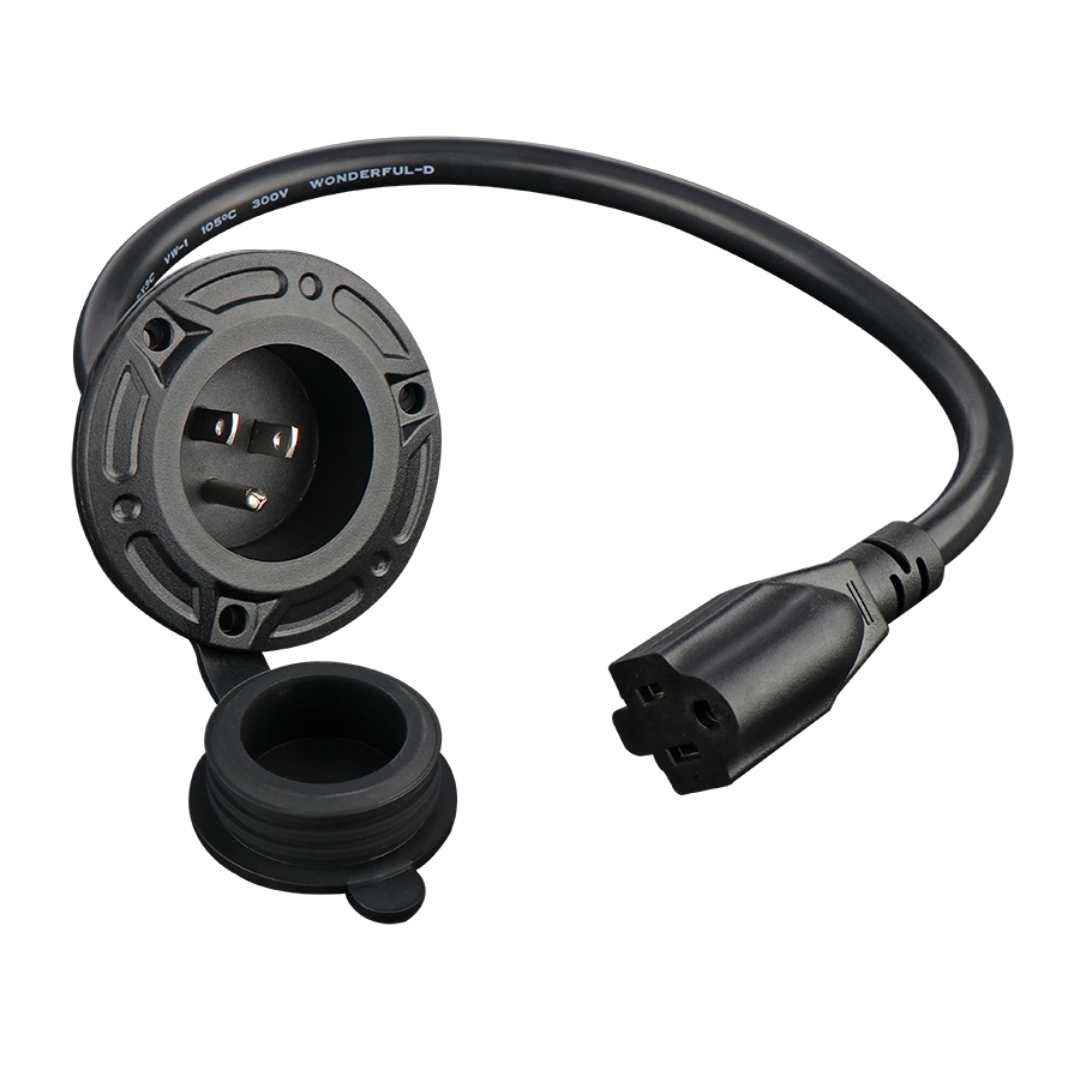

AC Hardwire

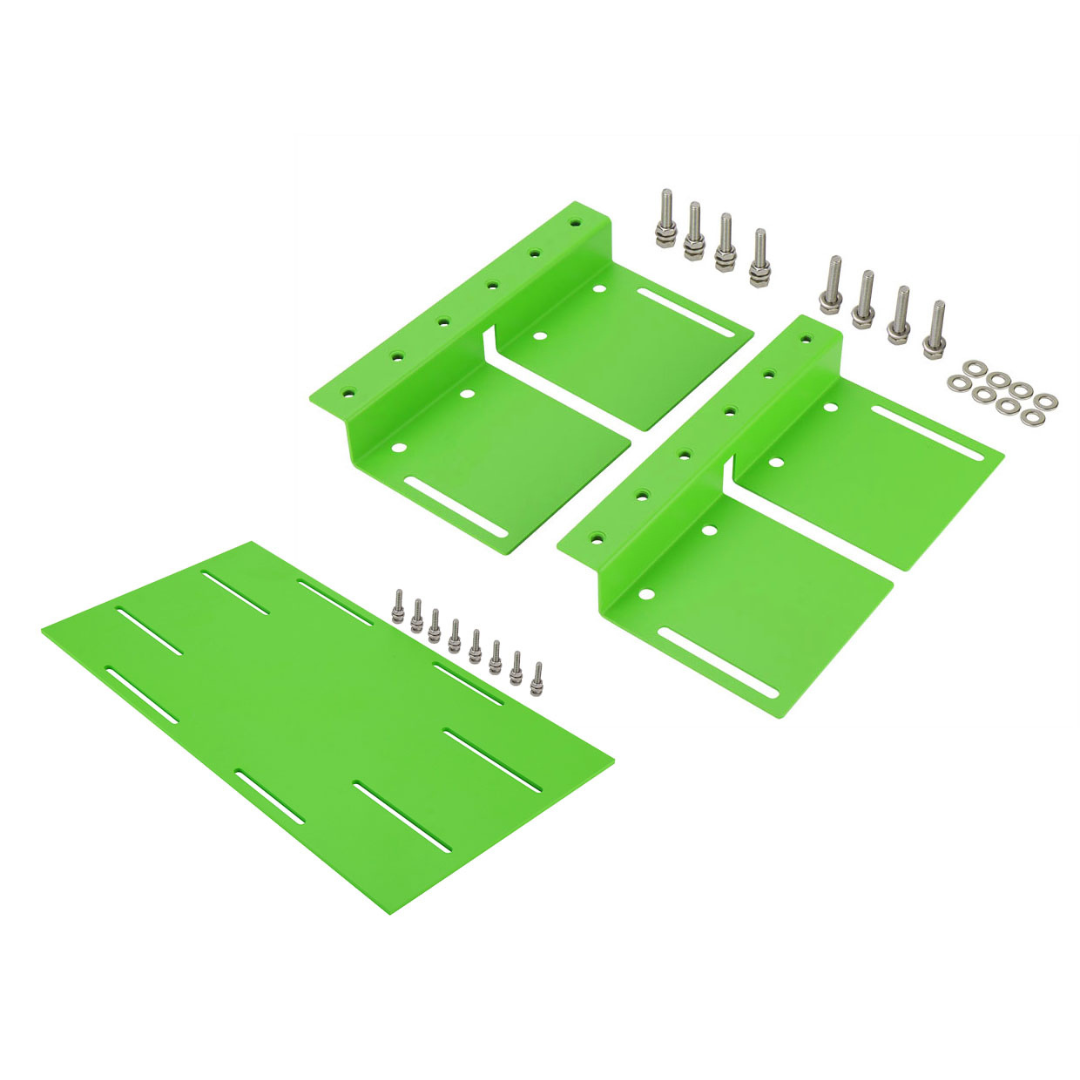

Bracket with nut and bolts for 48V lithium battery

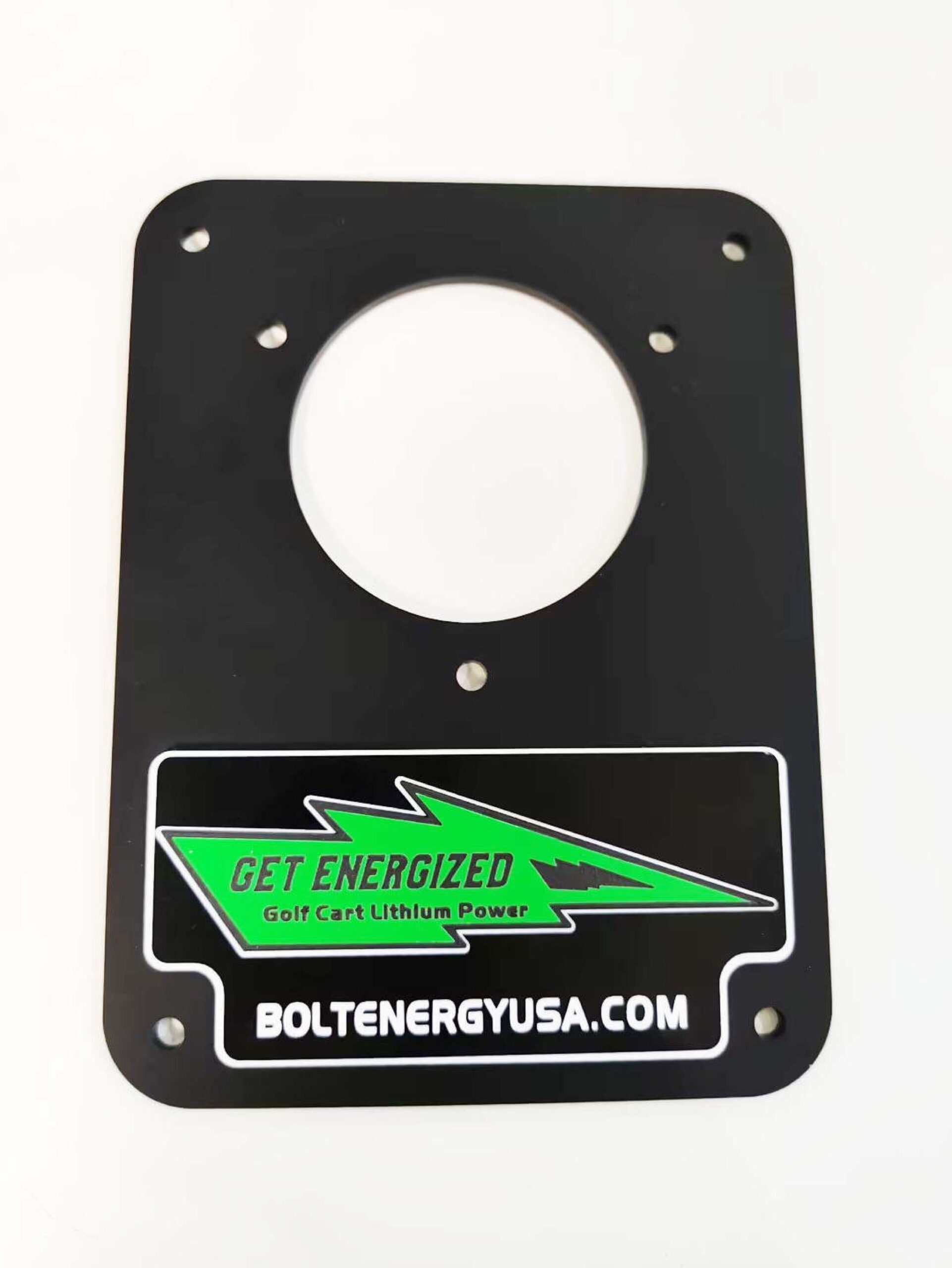

DECO cover plate

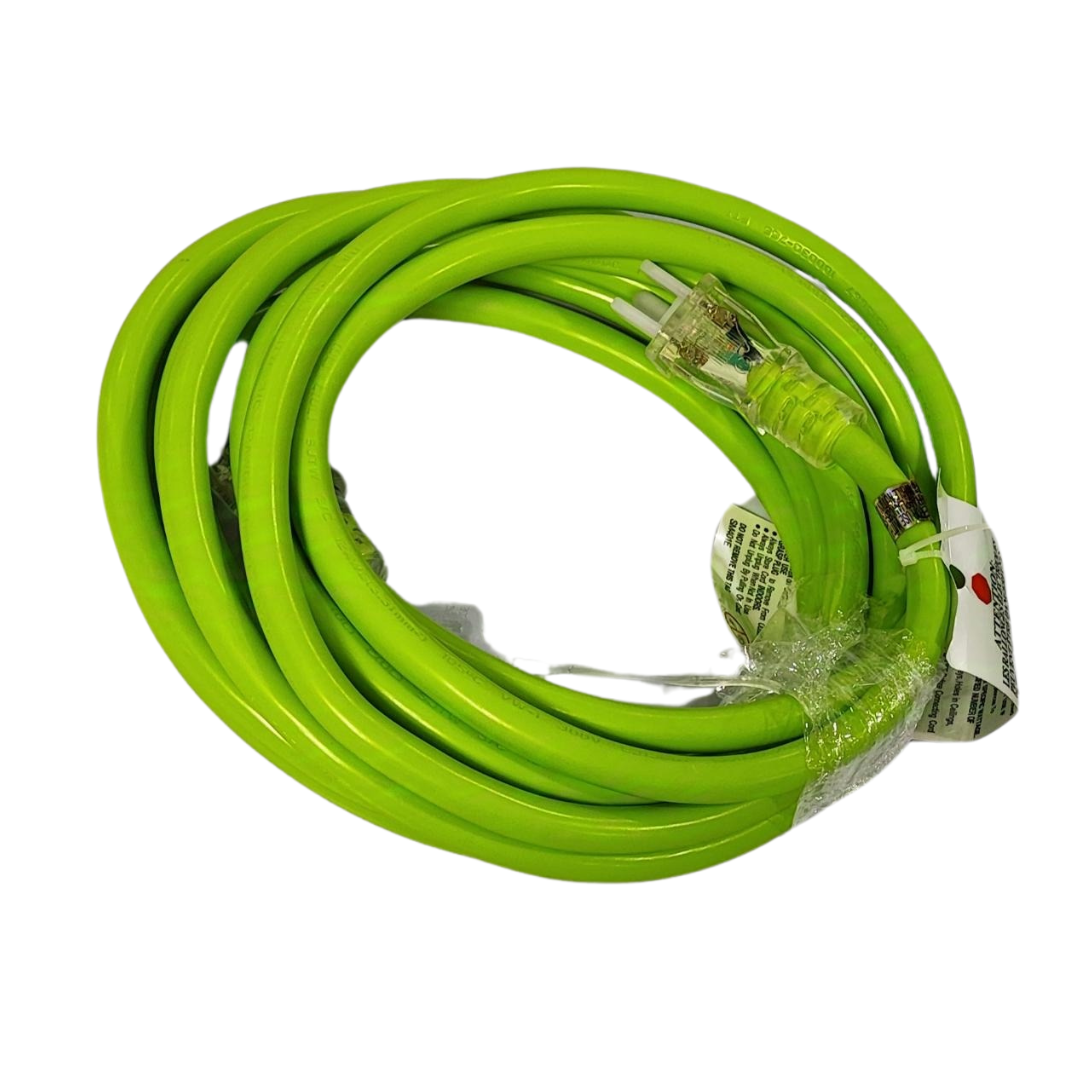

15' extension cord for 48v lithium battery
Roll over image to zoom in Click on image to zoom
48V lITHIUM battery for Golf Carts and a complete converter kitBolt Energy 48V Lithium Golf Cart Battery - 105AH "THIN" ports side viewBolt Energy 48V Lithium Golf Cart Battery - 105AH "THIN" front view48V Lithium Golf Cart Battery Standard Kit with Charger and Installation Hardware - Bolt Energy USABolt Energy 48V Lithium Golf Cart Battery Professional Kit - 105AH side viewBolt Energy 48V Lithium Golf Cart Battery Professional Kit - 105AH "THIN" DesignBolt Energy 48V Lithium Golf Cart Battery Professional Kit - 105AH "THIN" DimensionsBolt Energy 48V Lithium Golf Cart Battery - 105AH "THIN" ChargerAC Hardwire PORTSOC (state of charge meter) wire connectorWaterproof connector dimensionState charge meter screenAC Hardwire deco plate front viewAC HardwireBracket with nut and bolts for 48V lithium batteryDECO cover plate15' extension cord for 48v lithium battery

Bolt Energy 48V 105Ah Thin LiFePO4 Golf Cart Standard Kit

Bolt Energy
Logo
Authorized Dealer - Full Warranty Included

SKU BE10551T-THIN-Standard

For 48V Golf Carts
Bluetooth Monitoring app
Compatible with Club Car, EZGO and Yamaha
Price:
$2,395.00

Shipping calculated at checkout

Stock:
In stock (10 units), ready to be shipped

📦 Fast 5-7 Day Delivery

🚚 Free Shipping

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Safety Notice

  • 38.3 CERTIFIED LITHIUM BATTERY
  • 18+ only

Read User Manual & Safety Sheet before installation

Support Icon

Need Help?

Our experts are here to help you find the lithium battery for your needs.

Call Us Live Chat

Product Resources

Bolt Energy 48V 105Ah THIN LiFePO4 Golf Cart Standard Kit

The Bolt Energy 48V 105Ah THIN LiFePO4 Golf Cart Standard Kit (nominal 51.2V) provides a 48V lithium golf cart battery system for select golf carts, including Club Car, EZGO, and Yamaha. Includes components for installation.

Features of the 48V THIN LiFePO4 Golf Cart Battery

  • 51.2V 105Ah LiFePO4 battery with Bluetooth monitoring and state-of-charge meter
  • Waterproof 48V golf cart battery charger
  • Installation kit with 6 ring terminal connectors, 10-10" tie straps, and mounting hardware
  • Includes installation manual for setup

The THIN battery has a battery management system (BMS), 3,000–5,000 cycle lifespan, 250A continuous discharge, and up to 50-mile range per charge, depending on usage, terrain, and conditions.

Golf Cart Compatibility

Compatible with select 48V golf cart models, including:

  • Club Car DS
  • Club Car Precedent
  • Club Car Tempo
  • Club Car Onward
  • EZGO TXT
  • EZGO RXV
  • Yamaha G1-G22 Series
  • Yamaha G29/Drive
  • Yamaha Drive2

Check your golf cart's manual to confirm compatibility with 48V systems before purchase.

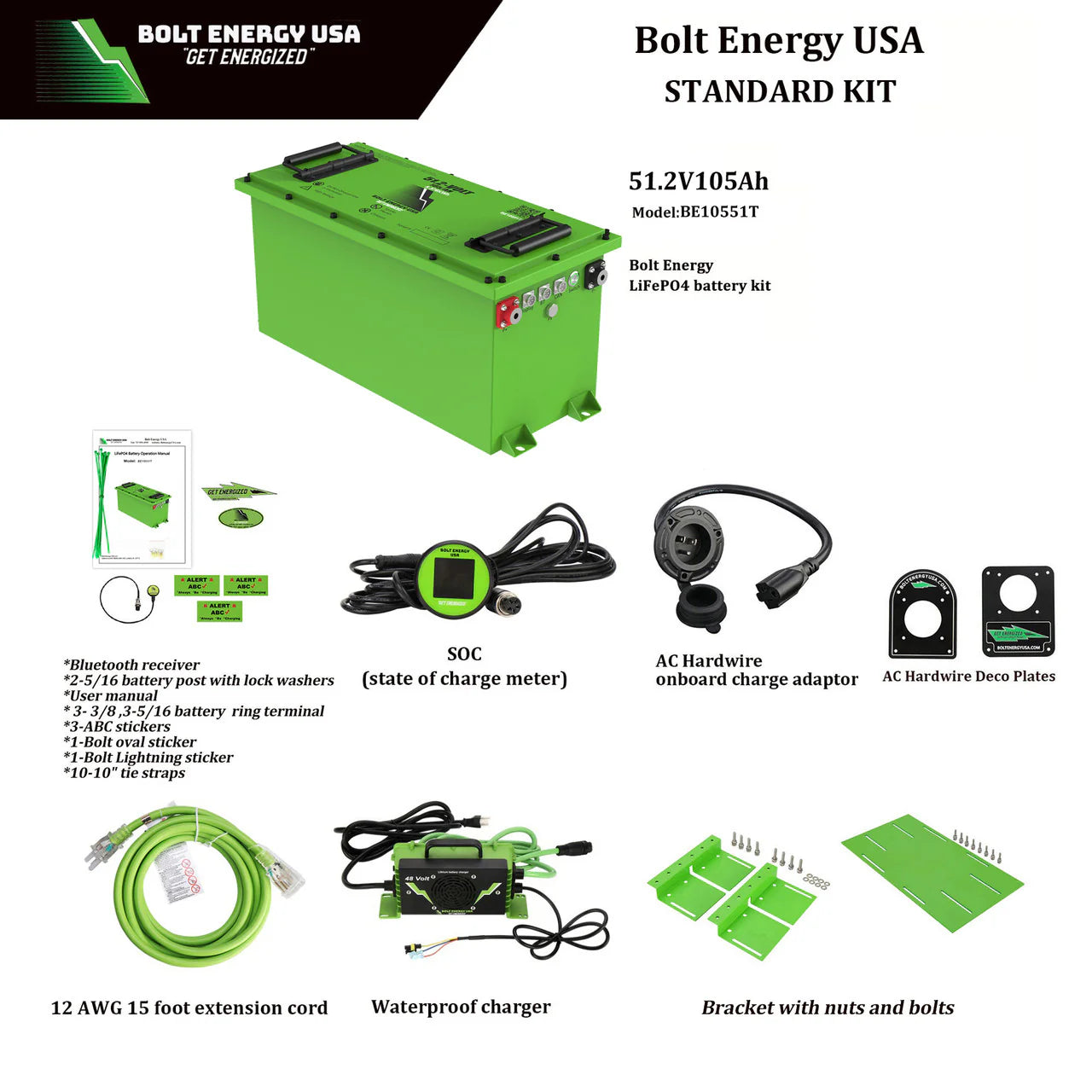

Included in the Standard Kit

  • 51.2V 105Ah THIN LiFePO4 Golf Cart Battery
    Core component for 48V lithium golf cart battery system
  • Waterproof 48V Golf Cart Battery Charger
    Designed for efficient charging of 48V LiFePO4 batteries
  • Bluetooth Receiver & State-of-Charge Meter
    Monitor battery status in real-time
  • Installation Manual
    Step-by-step setup instructions
  • Installation Hardware Kit
    Includes 6-3/8" battery ring terminal connectors, 10-10" tie straps, mounting brackets, nuts, and bolts
  • Bolt Energy USA Sticker
    Branding for your golf cart

Technical Specifications

Mechanical Specifications

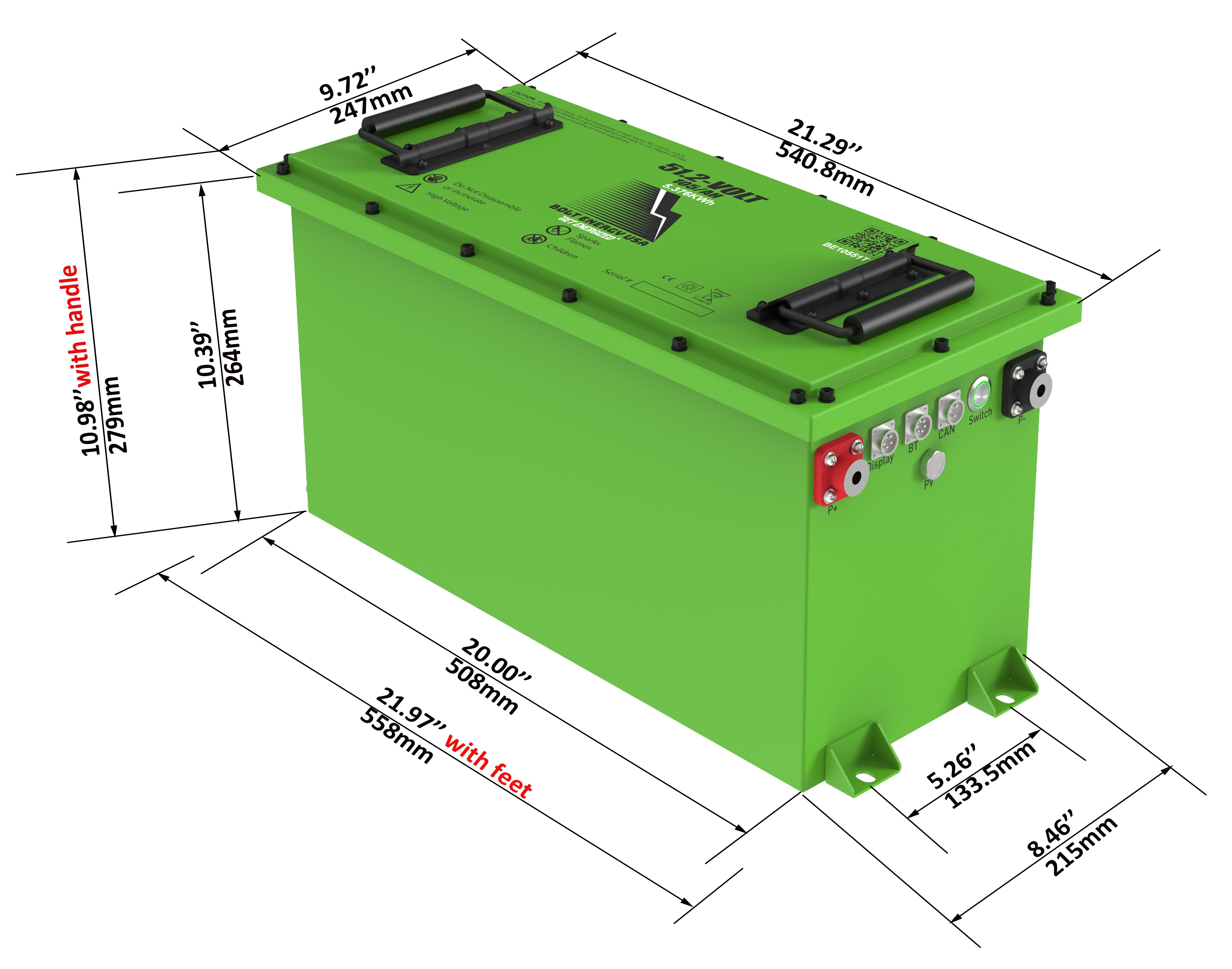

Dimensions (L x W x H) 20″ x 8.43″ x 10.65″
Weight 105lbs (47.63kg)
Terminal Type M8*1.5*25mm
Cell Configuration 1P16S
Case Material Powder Coated Steel
Enclosure Protection Designed with IP66 Standard
Cell Type – Chemistry Prismatic- LiFePO4
Discharge Specifications
Maximum Continuous Discharge Current 250A
Peak Discharge Current 520A ± 15.6A (30S)
BMS Discharge Current Cut-Off 260 A ± 7.8A (50S)
520A ± 15.6A (30S)
BMS Discharge Voltage Cut-Off 40V
Recommended Low Voltage Disconnect 48.0V
BMS Reconnect Voltage 41.6V
Discharge Temperature -4 to 149°F (-20 to 65°C)
Electrical Specifications
Nominal Voltage 51.2V
Working Voltage 43.2 – 58.4V
Recommended Voltage 48.0V – 57.0V
Nominal Capacity 105Ah
Energy 5,376Wh
Capacity @ 25A 252 min
Efficiency 0.99
Self Discharge <3% per Month
Charge Specifications
Recommended Charge Current 5 – 52A
Maximum Input Current 350A
Charge Current Cut-Off 375A
BMS Charge Voltage Cut-Off 58.5V
Reconnect Voltage <58.5V
Charging Temperature Range 34°F to 140°F (0-60°C)
Communication
Bluetooth Bluetooth receiver
