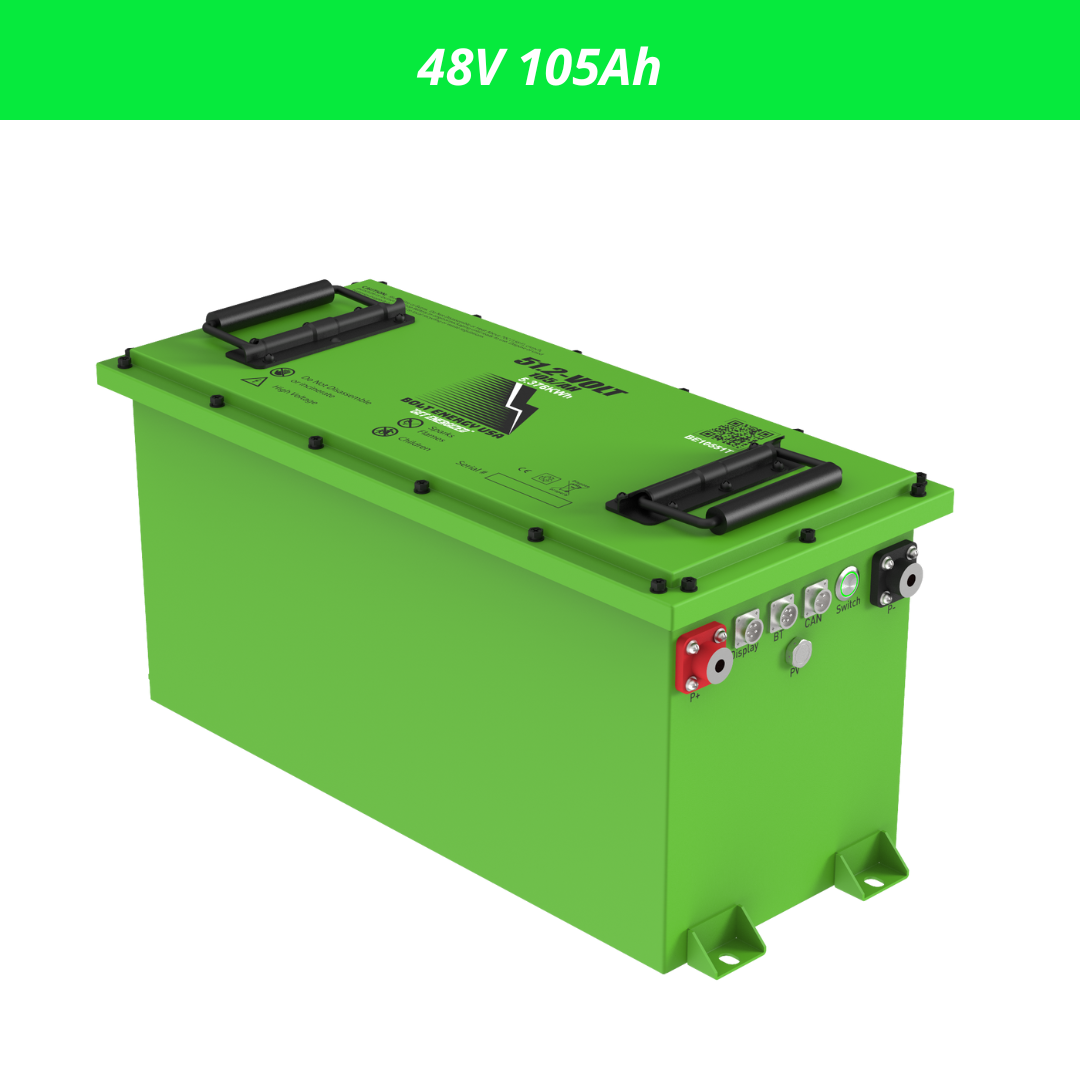

The Bolt Energy 48V 105Ah "Thin" Lithium Professional Kit is a complete drop-in lithium conversion system engineered for 48-volt golf carts that use a long, narrow battery tray the same layout found in the E-Z-GO TXT and dozens of carts that copied that design. Everything you need to remove your old lead-acid batteries and run a clean lithium setup arrives in one box, ready to install.
If your cart has a narrow tray and you have been dealing with lead-acid batteries checking water levels, worrying about slow charging, watching your speed drop on hills this kit is built to solve all of that in a single afternoon.
Why the "Thin" Format Matters
Most lithium batteries are built in a square or compact shape. That works fine for some carts but if your battery bay follows the standard E-Z-GO TXT-style layout (long and narrow, roughly 22 inches wide), a square pack requires extra brackets, drilling, and tray modification just to fit.

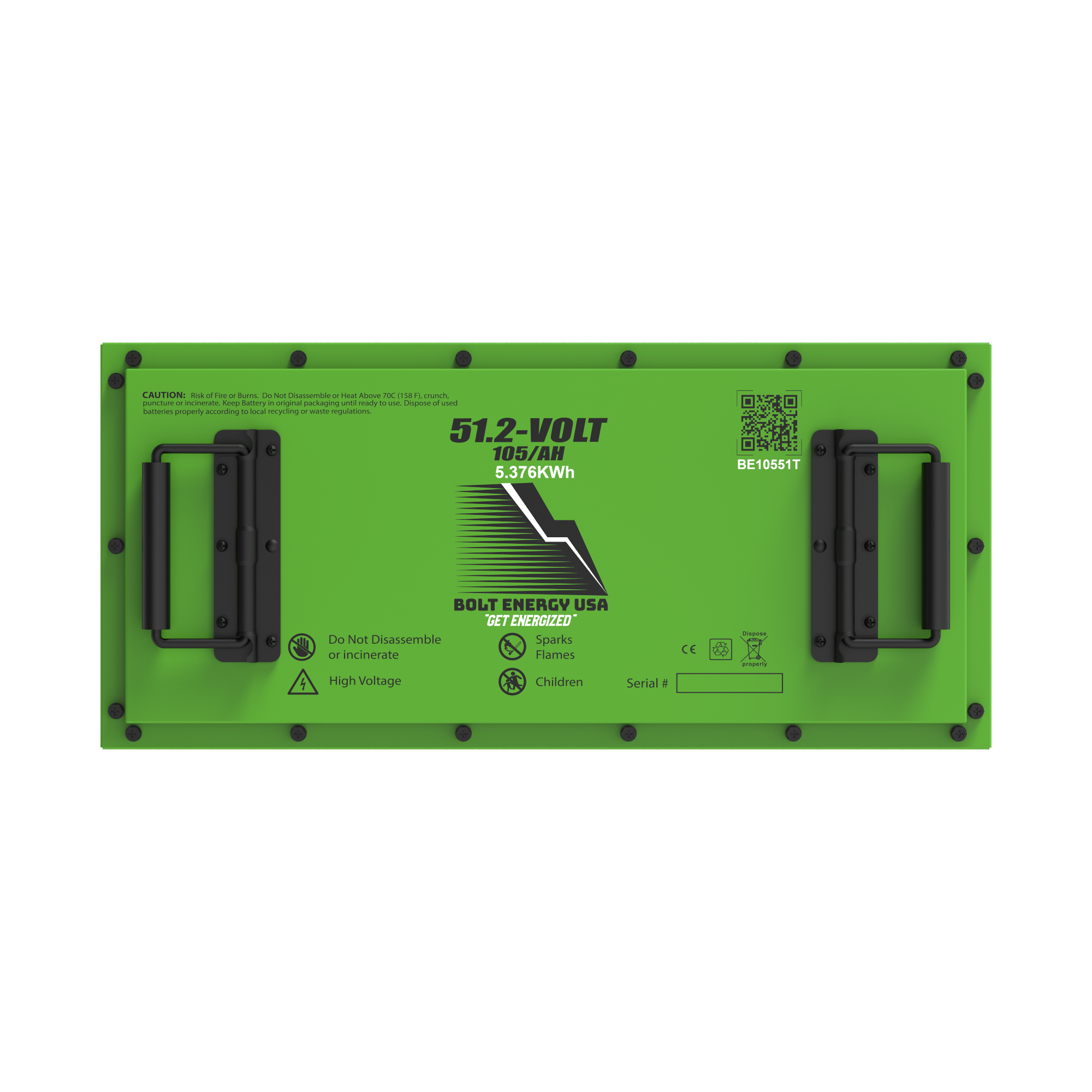

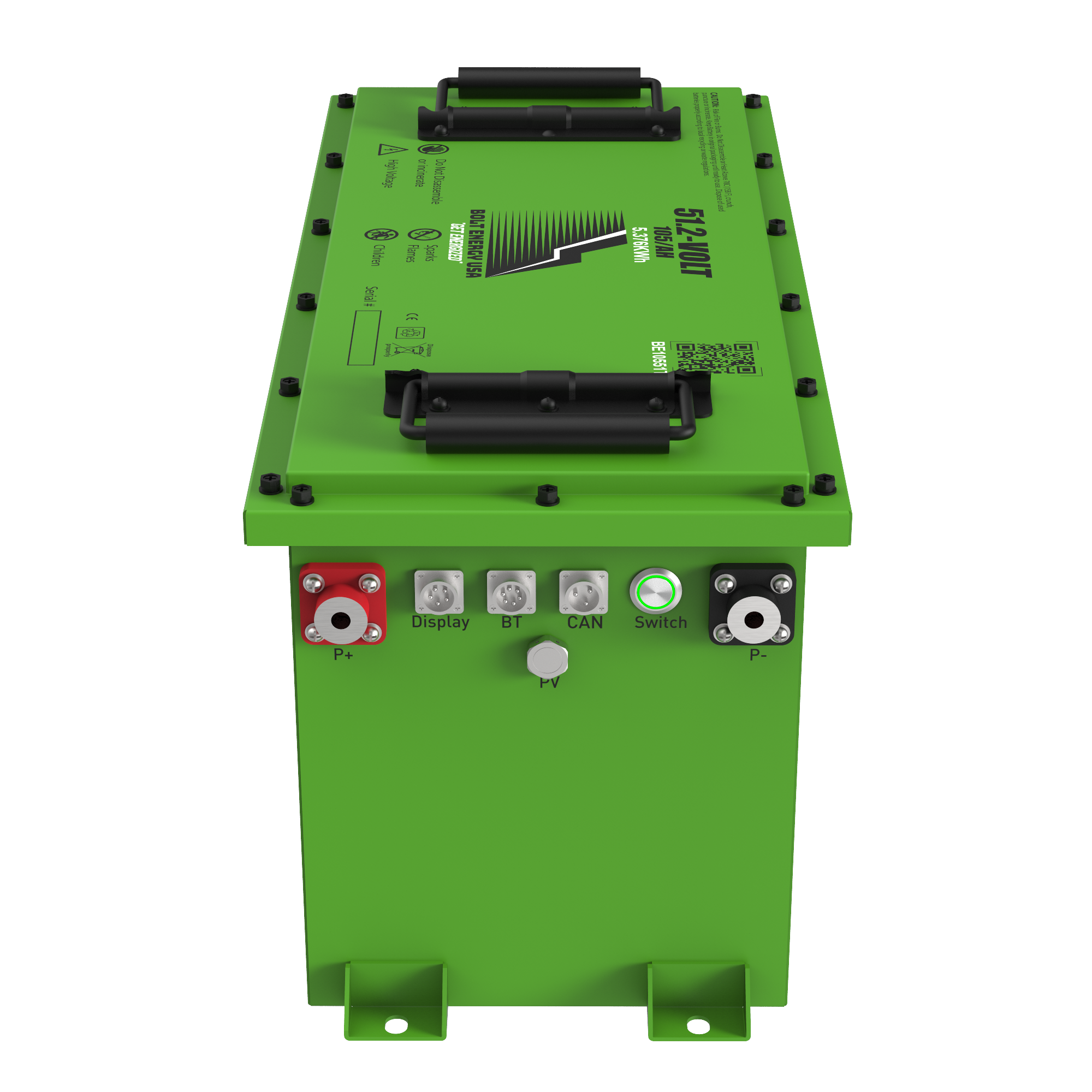

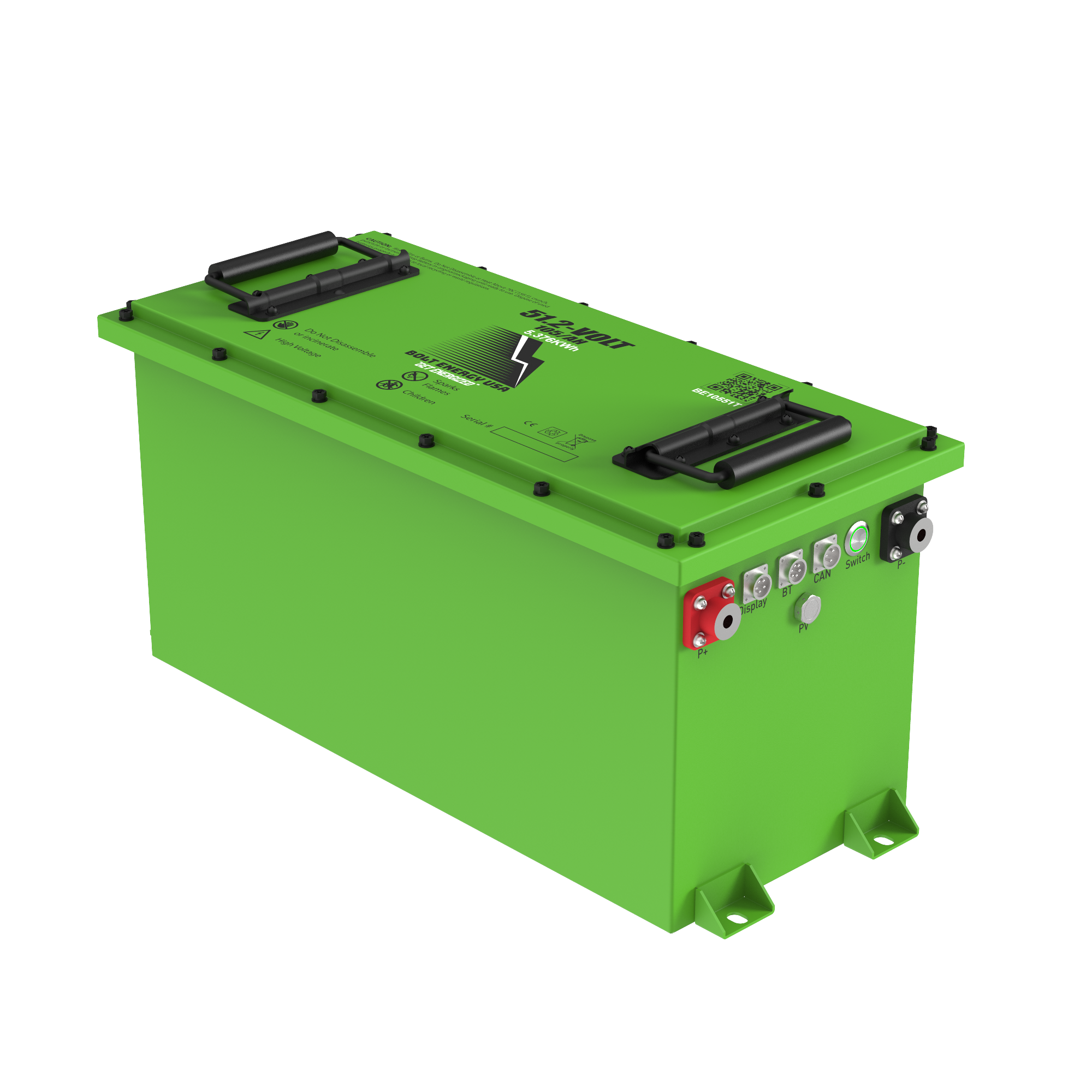

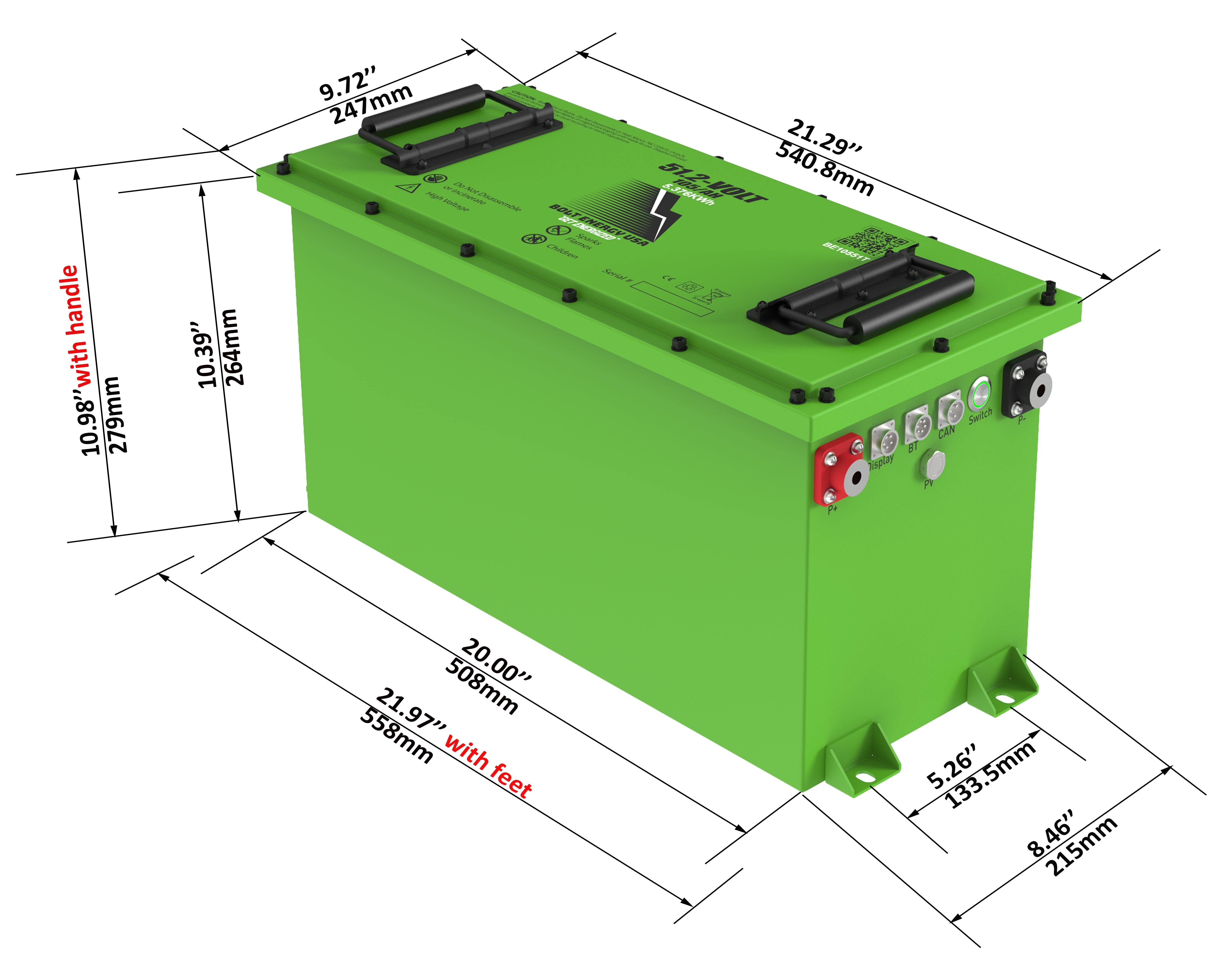

The Thin measures 20" L × 8.43" W × 10.65" H. It is sized to sit naturally in that tray without extra fabrication. In most compatible carts, you drill 4 holes, bolt the battery down, connect the cables, and you are done. No bracket kits. No tray cutting. That means less time in the driveway and a cleaner, more secure final install.
What Changes When You Switch to Lithium
Customers who make this switch consistently notice the same things on their first drive:
-
More torque from the start. Lead-acid batteries lose voltage as they discharge. LiFePO4 chemistry holds voltage steady through the charge cycle, which means your cart pulls as hard at 30% charge as it does at 100%.
-
Noticeably lighter cart. A typical 48V lead-acid set weighs 350 to 450 lbs. The Thin weighs 105 lbs. That weight reduction improves handling, reduces tire wear, and gives the motor less to work against on hills.
-
Longer run time per charge. At 5,376Wh of usable energy, most cart owners report 20 to 50 miles of real-world range depending on load, terrain, and accessories.
-
Faster charging. The included waterproof high-speed charger fills the pack significantly faster than typical lead-acid chargers. No watering, no equalizing, no maintenance charge cycles.
-
Zero water maintenance. LiFePO4 cells are sealed. There is nothing to check, fill, or clean.

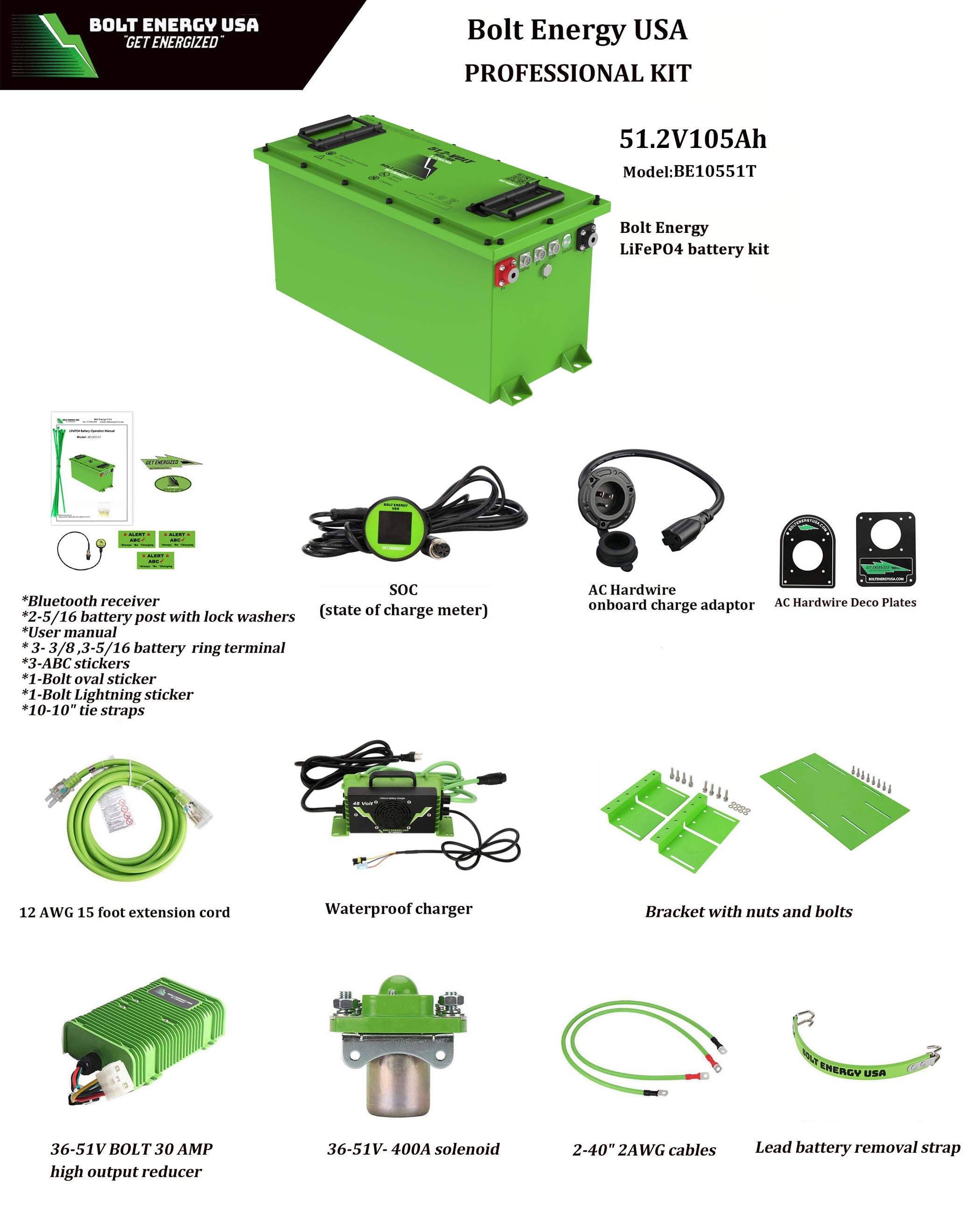

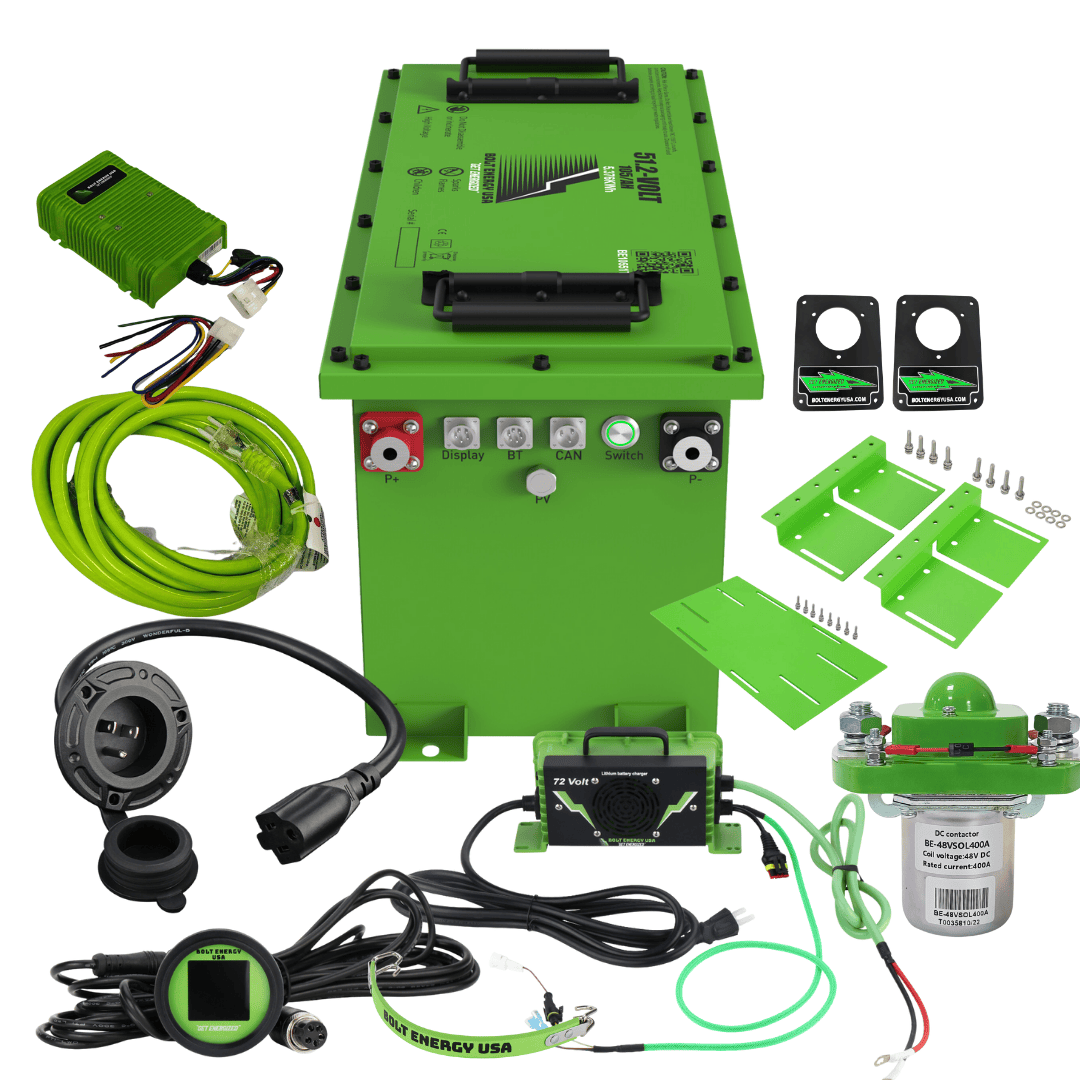

What You Receive in the Professional Kit
This is a complete conversion kit. You are not buying a bare battery and sourcing hardware separately. The Professional Kit includes 14 items:
- 51.2V 105Ah Thin LiFePO4 lithium battery

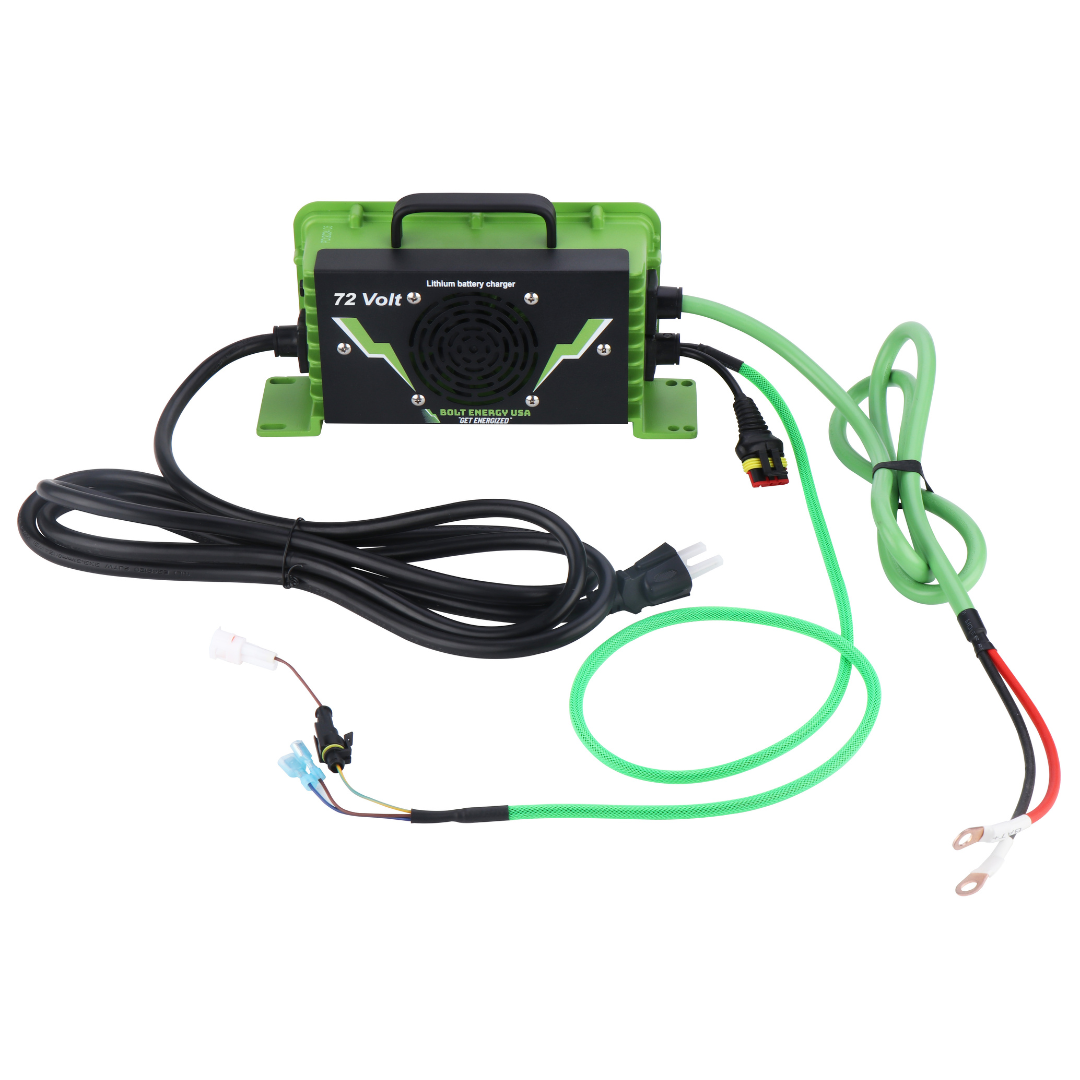

- Waterproof high-speed charger
- Bluetooth receiver for smartphone monitoring

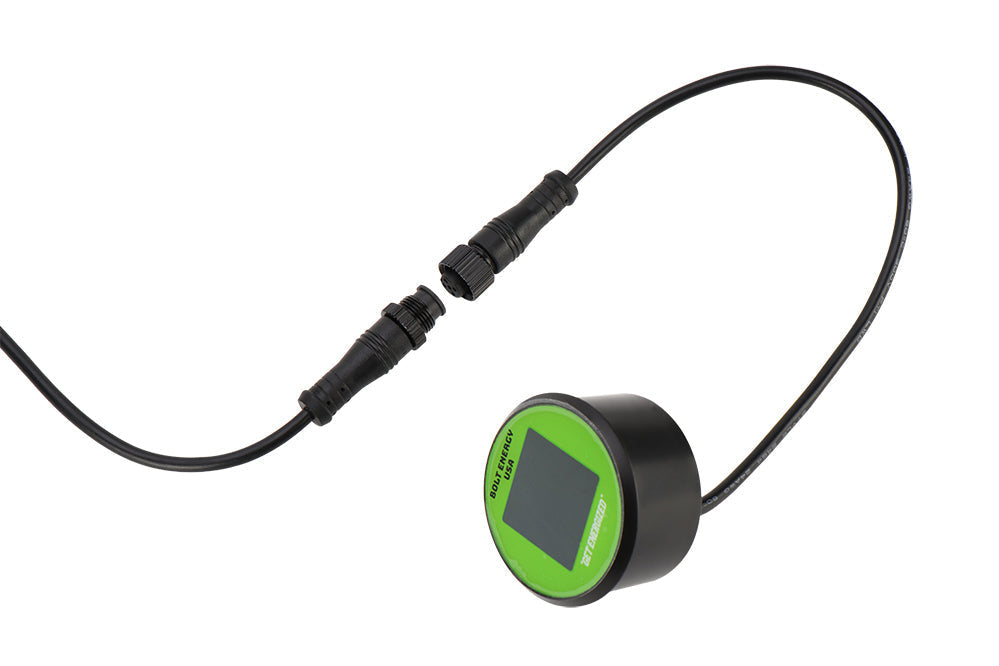

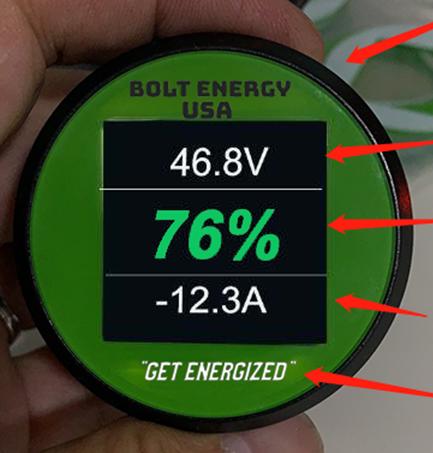

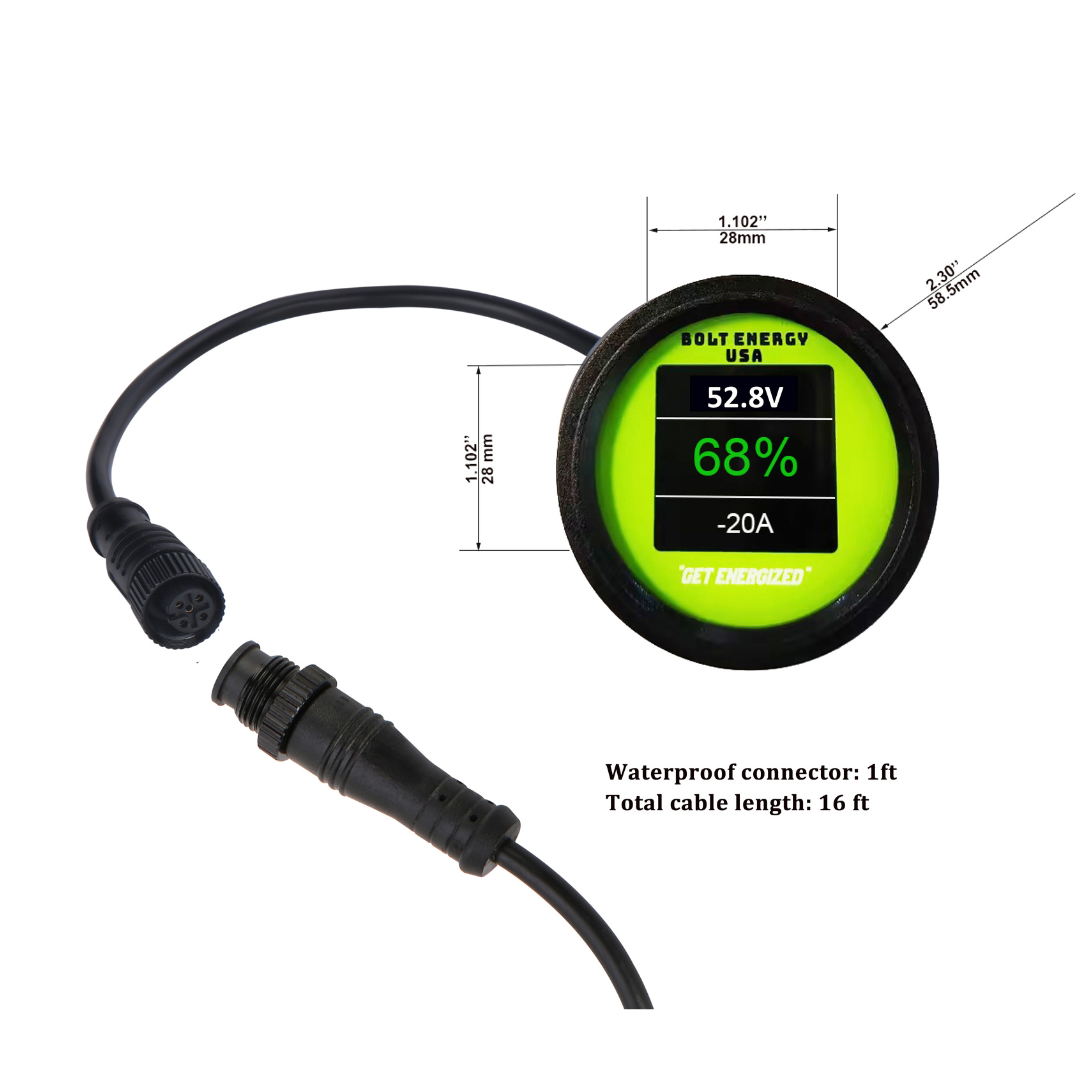

- Smart SOC state-of-charge meter (shows remaining charge at a glance)

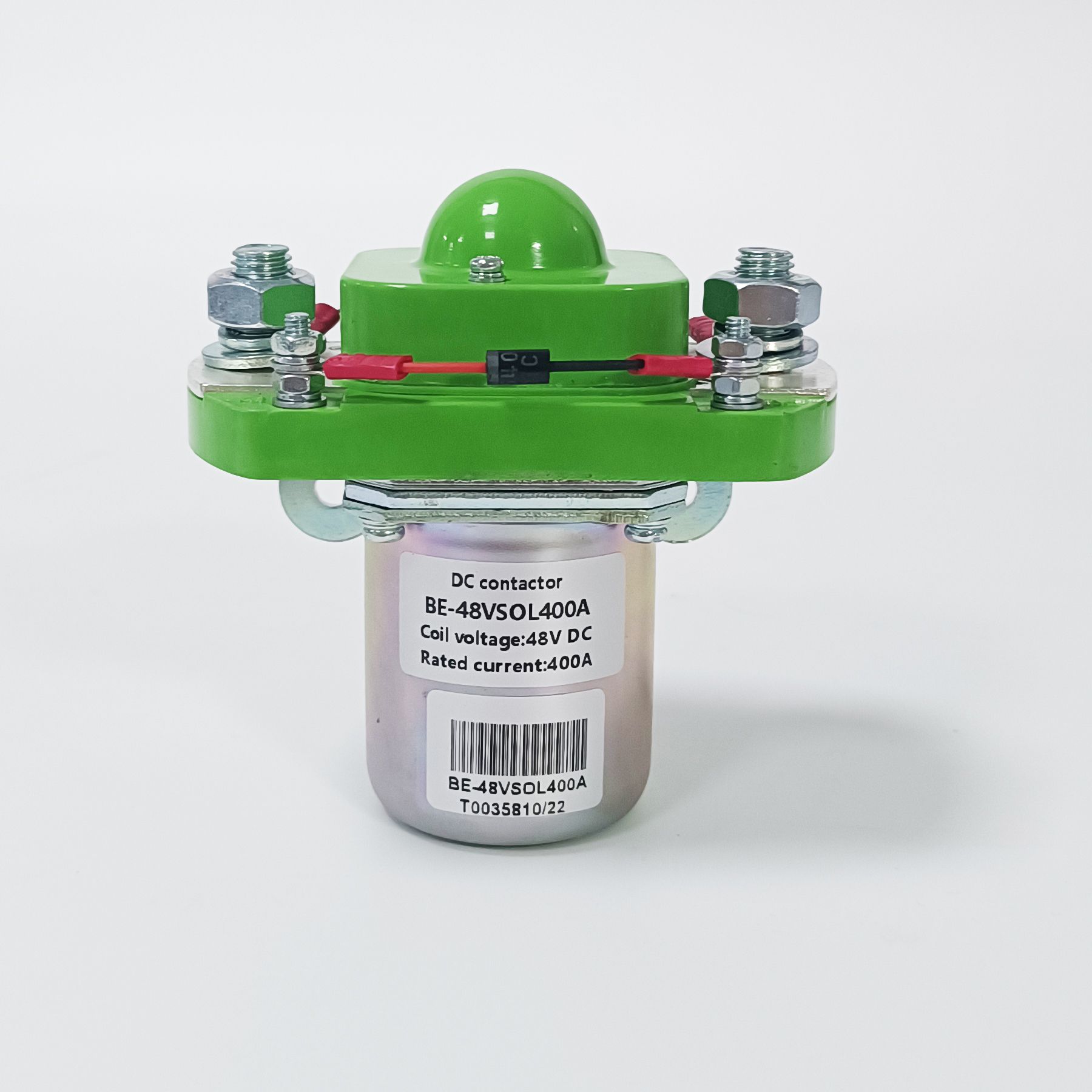

- 400A heavy-duty solenoid

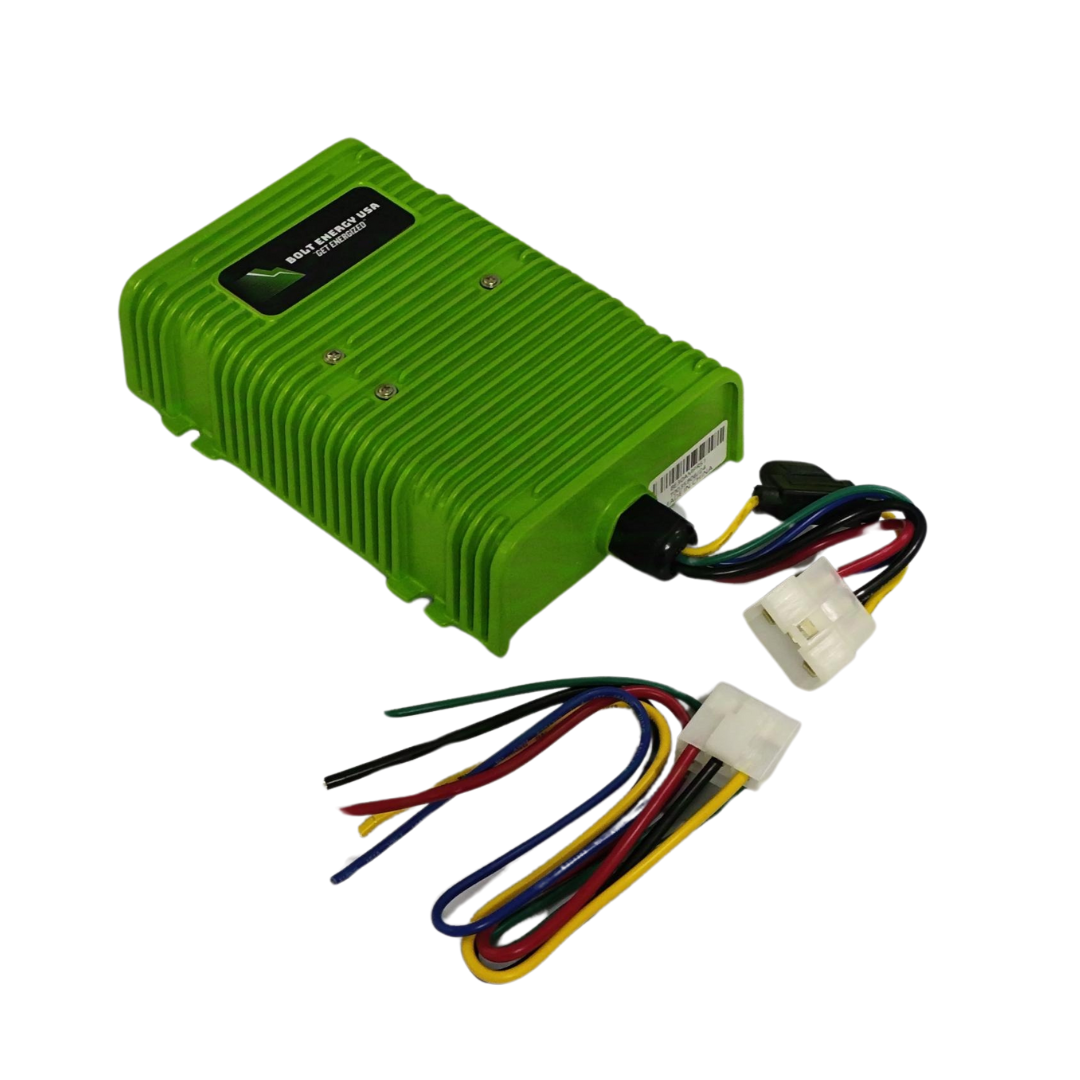

- 30-amp voltage reducer (powers 12V accessories)

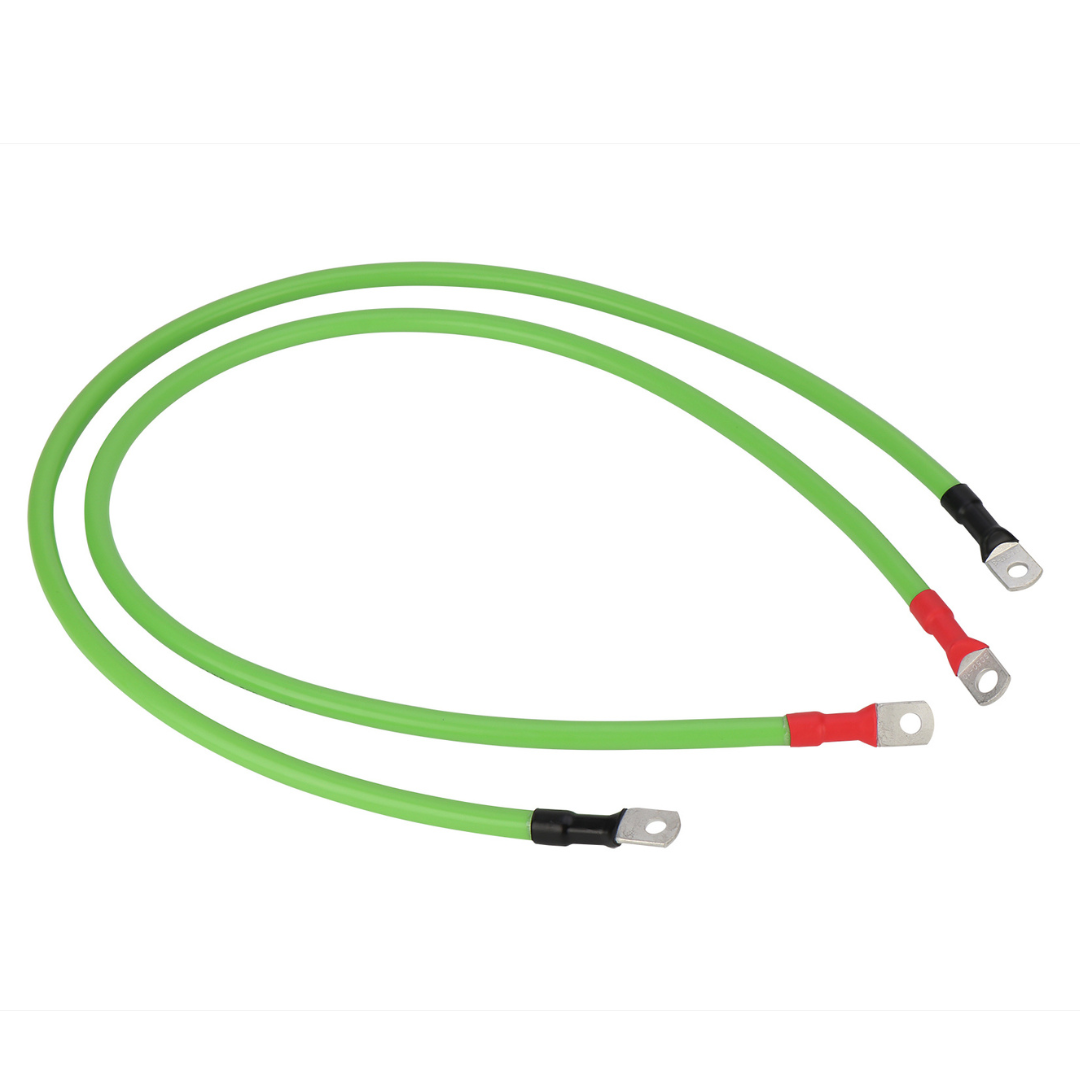

- 2 × 40" 2AWG premium installation cables

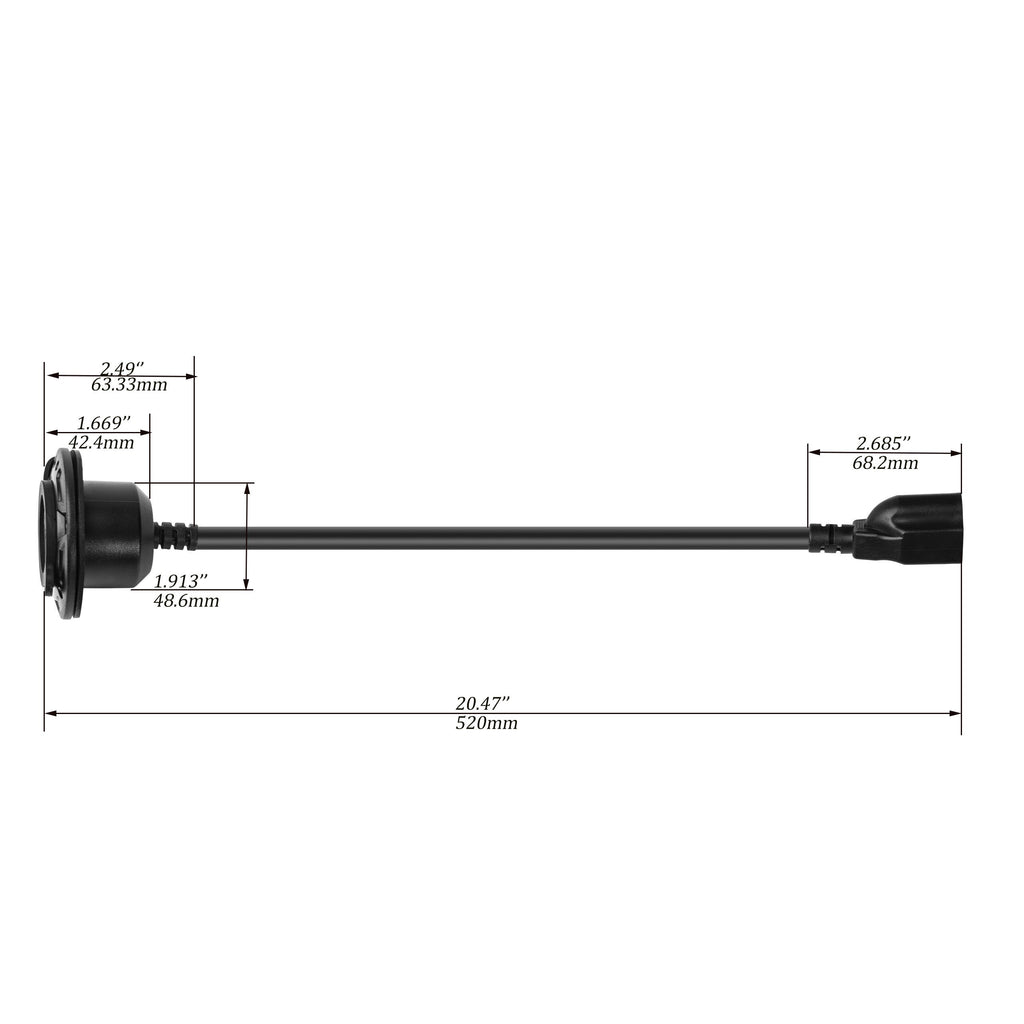

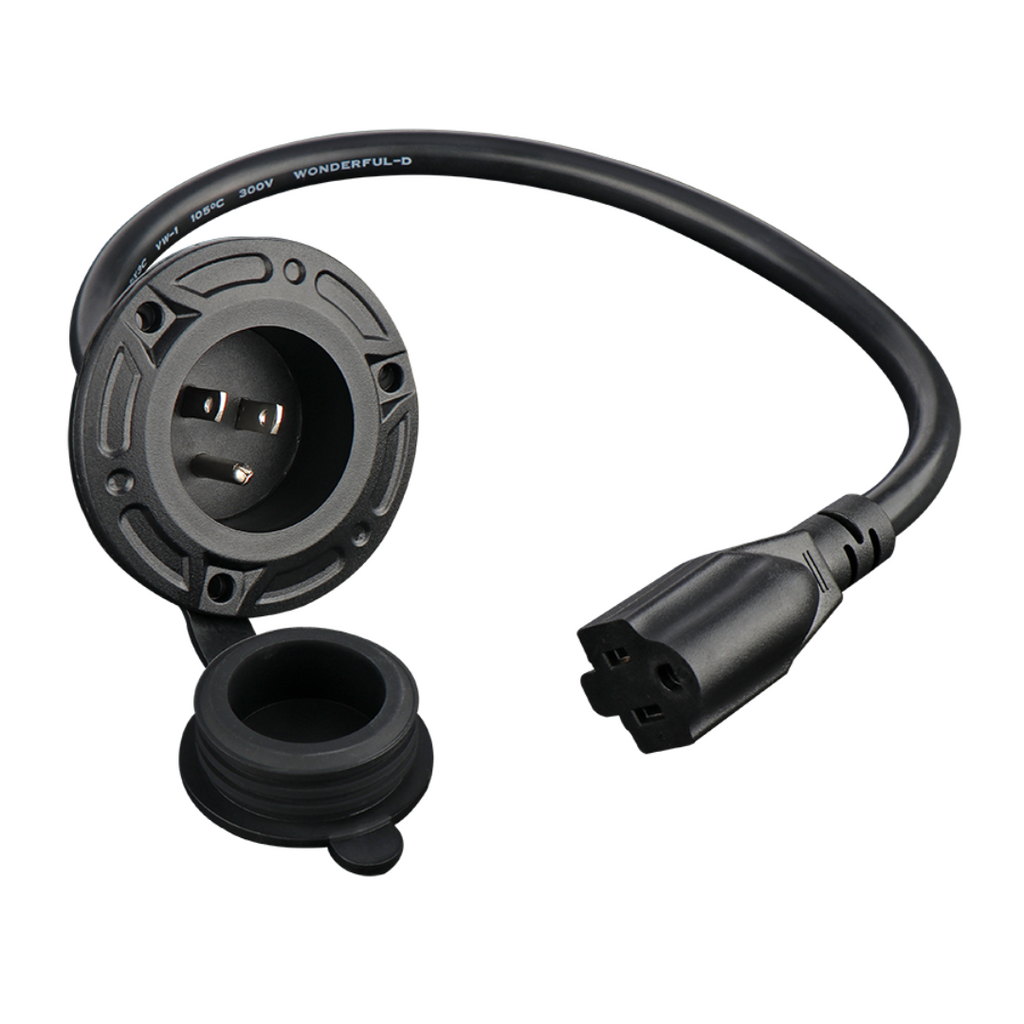

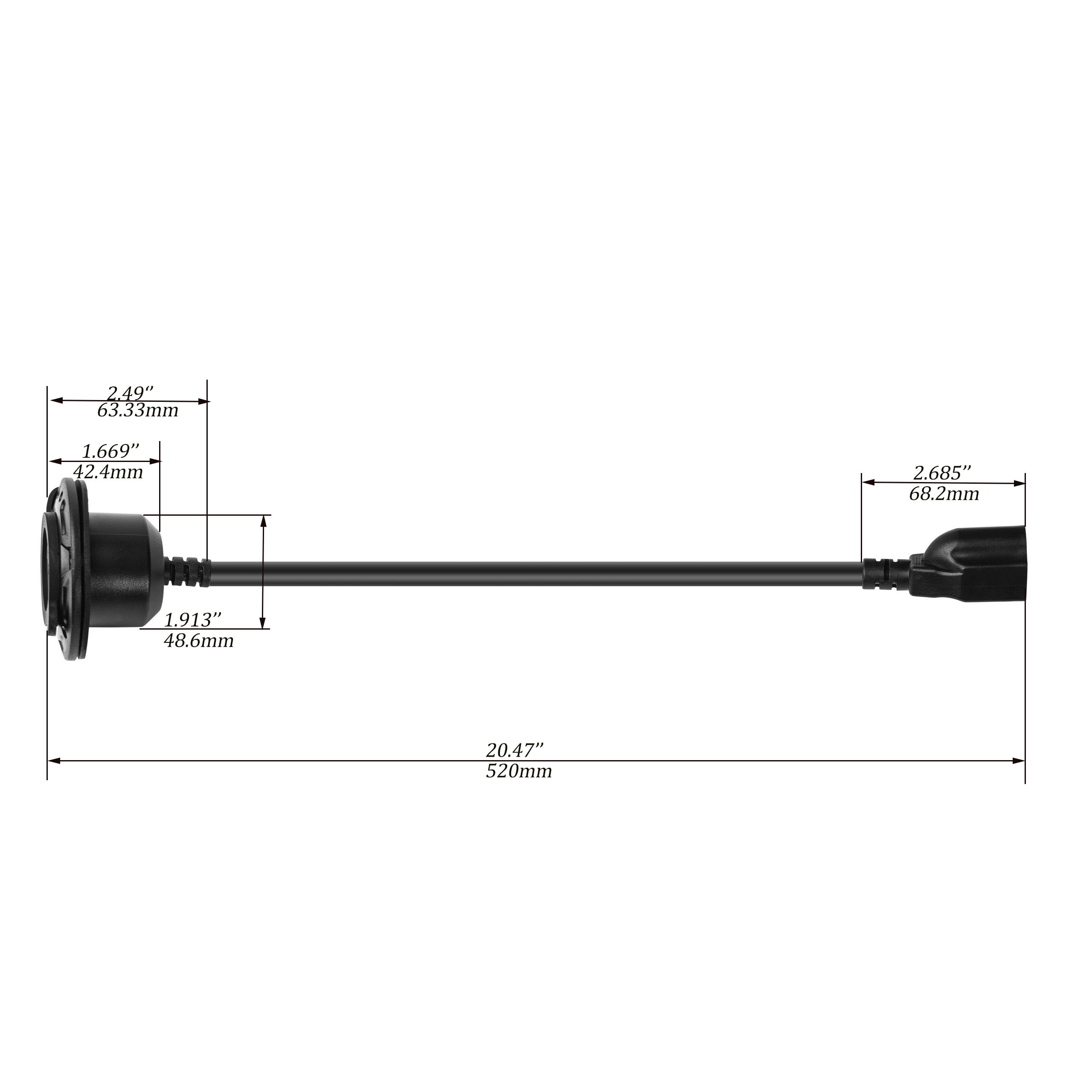

- AC hardwire port

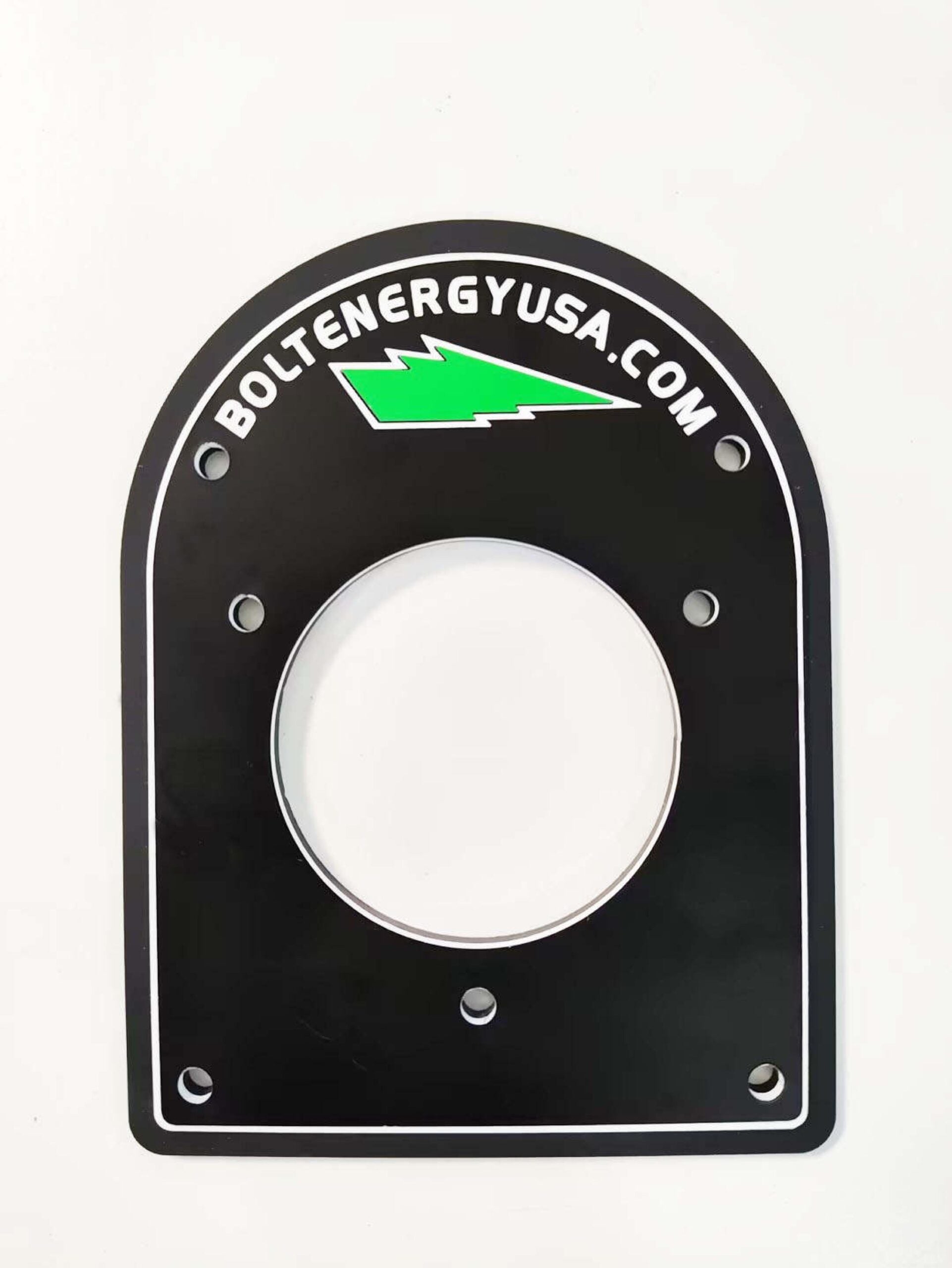

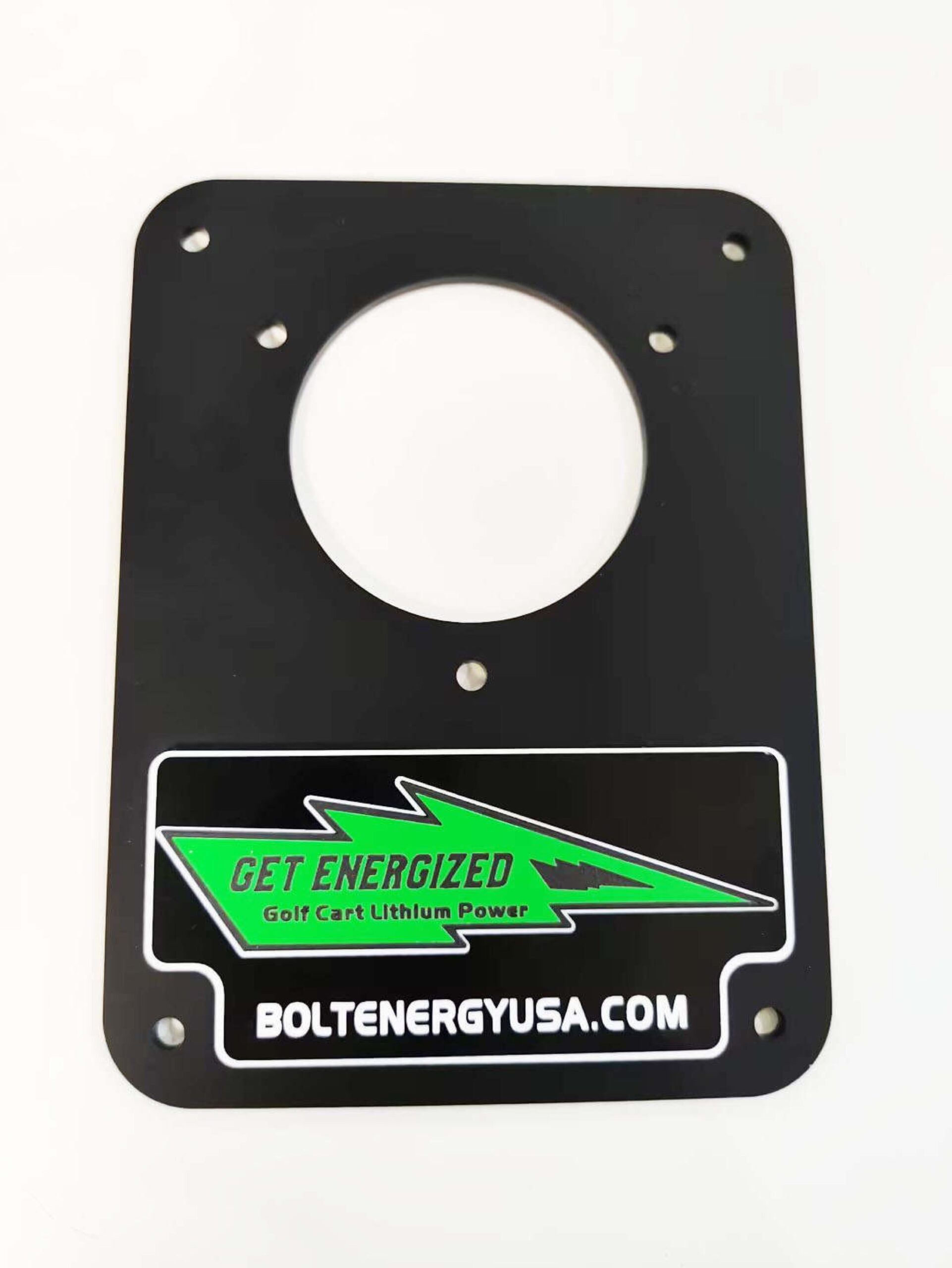

- DECO cover plate (universal fit or Club Car version)

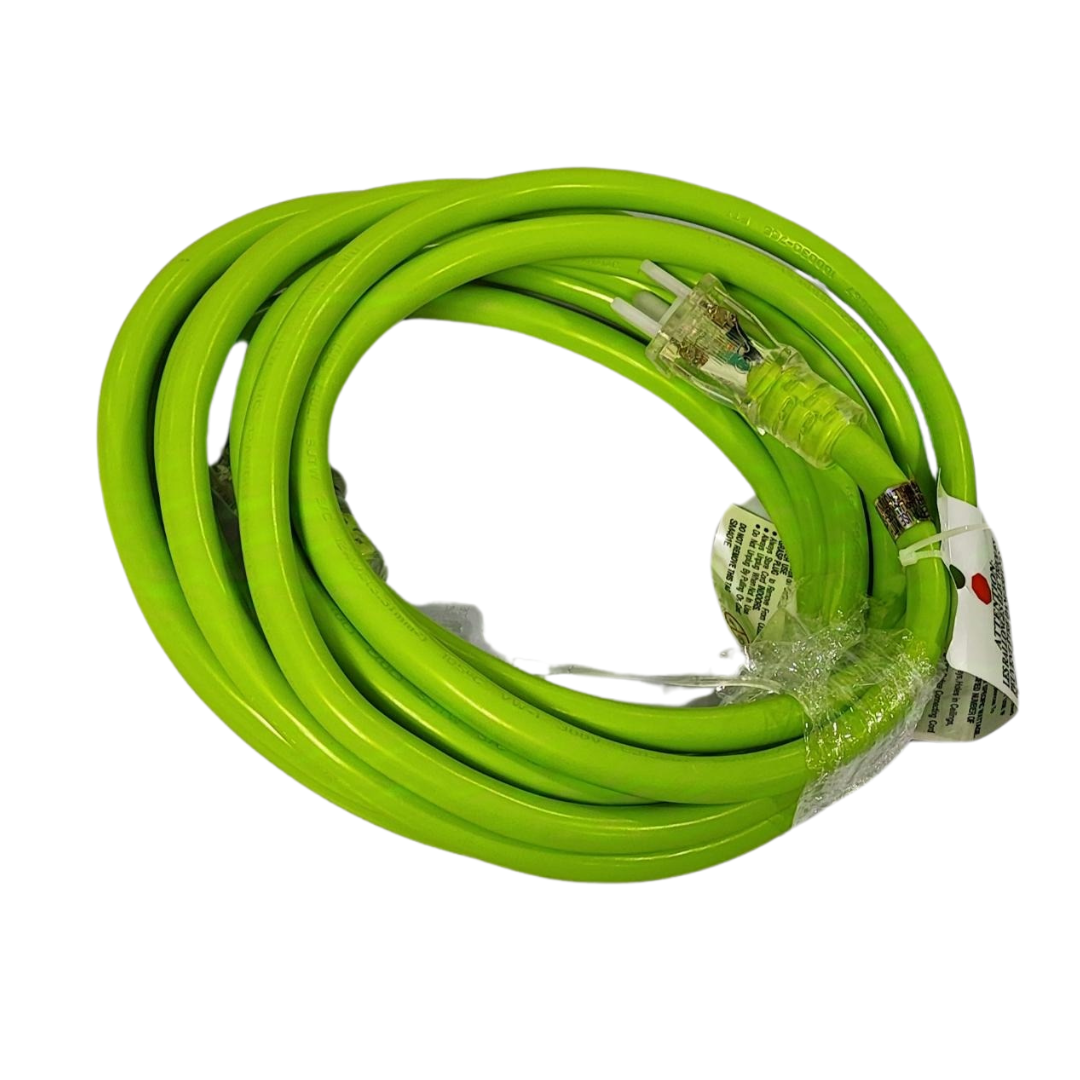

- 15ft 12-AWG lighted extension cord
- Mounting bracket, nuts, and bolts
- 6 × 3/8" battery ring terminal connectors
- 10 × 10" tie straps

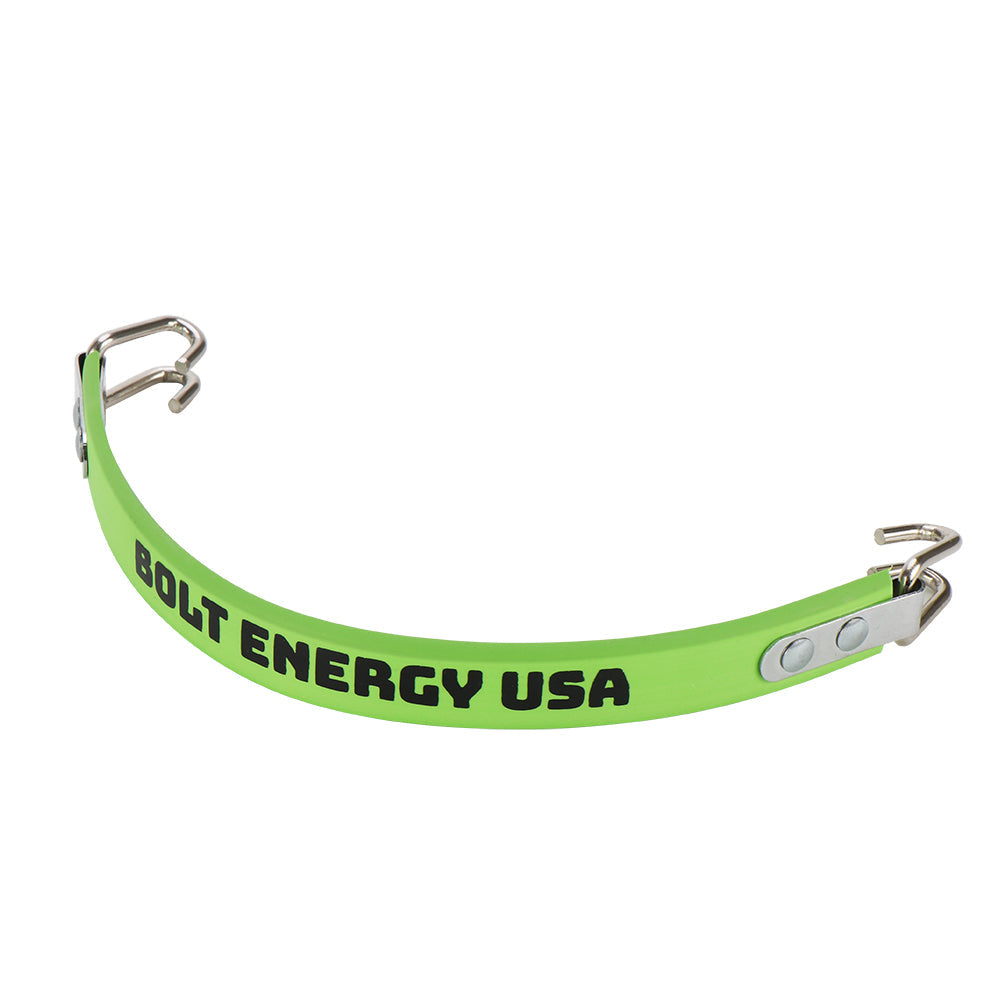

- Lead battery removal strap and printed installation manual
The voltage reducer is included specifically so your existing 12V accessories lights, horn, USB ports, sound systems continue to work without additional wiring.
Cold Weather Option Available
Standard lithium batteries should not be charged below 34°F (1°C). If you store your cart in an unheated garage or use it in cold-weather months, the Heated version of the Thin is available. It brings cell temperature up automatically before accepting a charge, so you can plug in safely even when temperatures drop below freezing.
Warranty Coverage
This battery is covered by a 12-year limited warranty from Bolt Energy USA: 6 years of full replacement coverage followed by 6 years of prorated coverage. Register your battery on the Bolt Energy USA website within 30 days of purchase to activate the warranty. US-based technical support is available by phone and handled by actual golf cart technicians, not a general call center.
Bolt Energy USA is manufactured and supported in Largo, Florida. Every unit is connected to diagnostic software for firmware verification and full functionality testing before it ships.
LiFePO4 Prismatic Cell Chemistry
Lithium Iron Phosphate (LiFePO4) is a chemically stable lithium cell type. It does not produce the thermal runaway risk associated with other lithium chemistries. The cells hold a flat discharge curve, meaning your cart maintains consistent power throughout the charge cycle rather than slowing down as the battery depletes.
250A Continuous / 520A Peak BMS
The built-in Battery Management System handles 250A of continuous discharge and a 520A peak burst (30 seconds). This is important for carts with upgraded controllers, heavy accessory loads, lifted setups, or regular use carrying multiple passengers. The BMS also provides automatic protection against overcharge, over-discharge, short circuit, and temperature extremes.
Narrow Tray Fitment | Drop-In for TXT-Style Bays
At 20" × 8.43" × 10.65", the Thin is dimensioned for the E-Z-GO TXT standard tray and the many brands that use the same 22-inch-wide tray layout. In most of these carts, the battery drops in, you drill 4 holes, bolt it down, and connect cables. Compatible with approximately 90% of 48V golf cart applications.

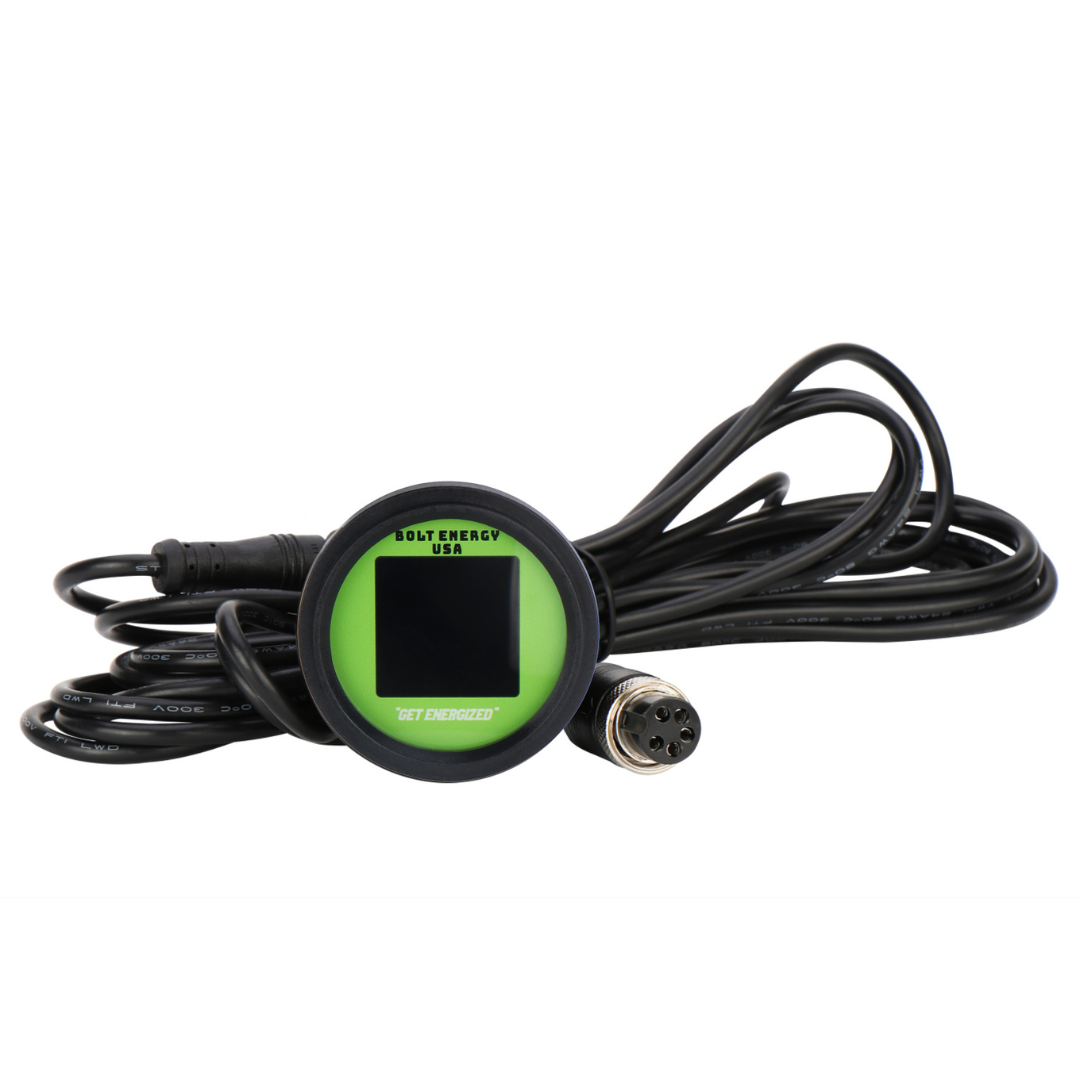

Bluetooth Monitoring and SOC Meter

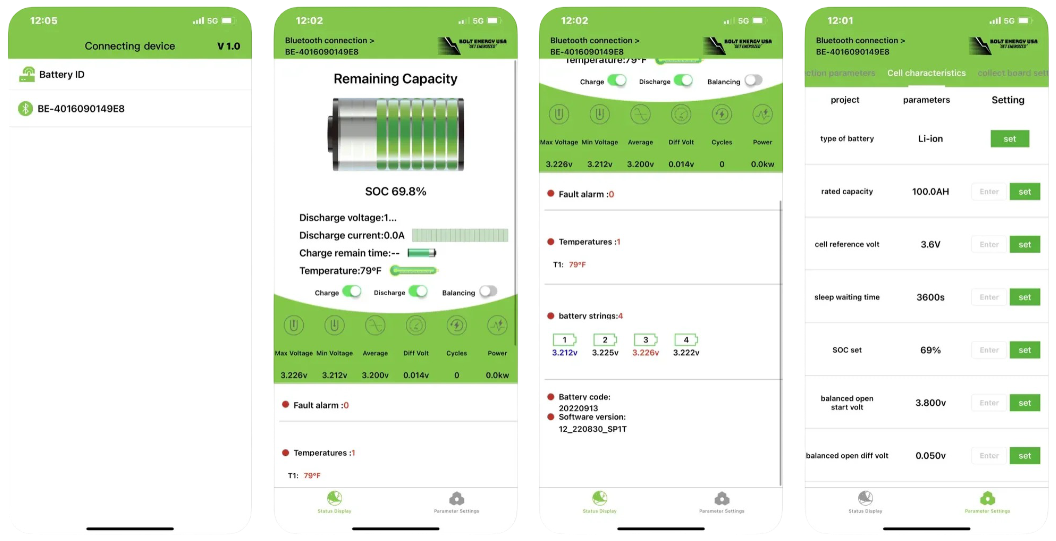

The included Bluetooth receiver connects to the Bolt Energy smartphone app, giving you real-time visibility into charge level, cell health, temperature, and system status. The SOC meter mounted on the cart provides a physical readout so you can check remaining charge without opening an app. If a problem develops, the Bluetooth diagnostic data helps technicians identify the issue before the battery even leaves your property.
IP66 Enclosure Rating
The powder-coated steel case is built to the IP66 standard, meaning it is protected against dust and water jets from any direction. Golf carts are used in rain, washed down, driven through puddles the IP66 rating ensures the battery internals stay protected in real outdoor conditions.
Zero Maintenance Operation
No water to add. No terminals to clean. No equalization charges. No specific storage discharge levels to manage. Plug it in when you are done driving. The BMS handles cell balancing automatically. Self-discharge is less than 3% per month, so the battery holds its charge during storage without attention.
Approximately 3,000 Charge Cycles
At one full charge cycle per day, 3,000 cycles equals roughly 8 to 10 years of use. Typical golf cart owners charge every few days, which stretches that lifespan further. Lead-acid batteries generally last 3 to 5 years with proper maintenance less with neglect.
Heated Version Available for Cold Climates
An integrated heating element activates automatically when temperatures drop below freezing, warming the cells to a safe charging temperature before accepting current. This allows safe charging in conditions that would damage a standard lithium pack. Recommended for carts stored in unheated spaces or used year-round in northern climates.
Factory Tested Before Shipment

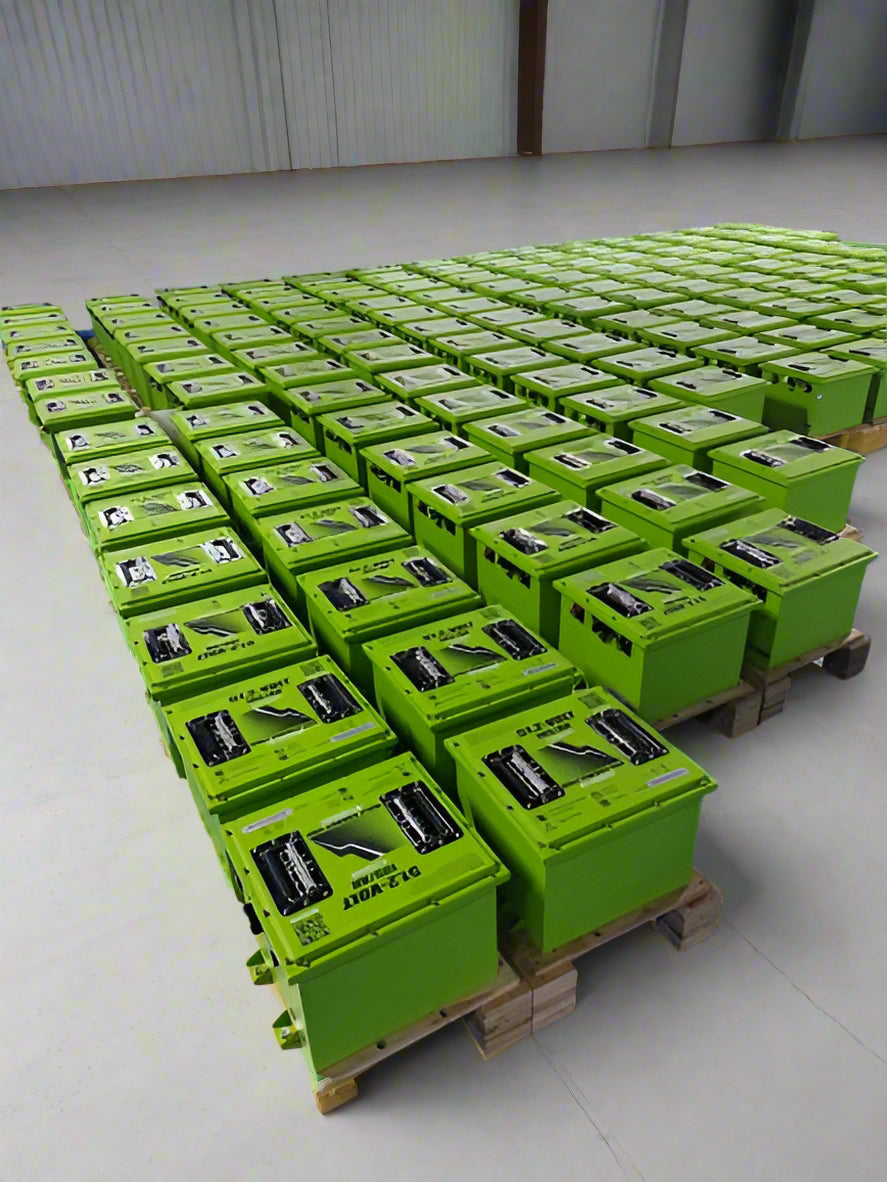

Bolt Energy connects each battery to diagnostic software for firmware verification and full functionality testing before the unit ships. This is not a random sample test every individual battery is tested. Units that do not pass specifications are not shipped.
12-Year Limited Warranty
6 years of full replacement coverage and 6 years of prorated coverage. Warranty support is handled by US-based golf cart technicians at Bolt Energy USA. Register your battery at BoltEnergyUSA.com within 30 days of purchase to activate coverage. For full details read the "Warranty Tab"
Compatible cart brands include: E-Z-GO TXT, E-Z-GO RXV, Club Car DS, Club Car Precedent, Club Car Tempo, Club Car Onward, Yamaha G1–G22, Yamaha G29/Drive, Yamaha Drive2, Bad Boy Buggies, Bintelli, Coleman, Advanced EV, EPIC, Evolution, Elite, GEM Cars, ICON, Kandi, Madjax X-series, Navitas Storm, Nivel X-series, Titan, Tomberlin, Trojan EV, Vivid, and additional 48V platforms. Contact us to confirm fitment for your specific model.
Will this battery fit my golf cart? +
The Thin is designed for carts with a long, narrow battery bay specifically the E-Z-GO TXT-style tray layout, which measures approximately 22 inches wide. This tray format is used by E-Z-GO TXT, E-Z-GO RXV (metal tray version), Club Car DS, Yamaha G19 - G22, Bad Boy Buggies, Navitas-chassis carts, Polaris Ranger EV, and many others. It fits approximately 90% of 48V golf cart applications. To confirm fitment, measure your battery compartment (length, width, and height) and compare against the Thin dimensions of 20" × 8.43" × 10.65". If you are unsure, contact us before ordering.
How far will I get on a full charge? +
Real-world range depends on several factors: total passenger and cargo weight, terrain (flat vs. hilly), tire size and pressure, driving speed, and how many accessories (lights, audio, USB) are drawing power. Most customers running a standard 4-passenger cart on flat ground report 30 to 50 miles per charge. Heavily modified carts or hilly terrain may produce 20 to 30 miles.
Do I need a special charger for this battery? +
Yes. LiFePO4 batteries require a lithium-compatible charger your existing lead-acid charger is not suitable and should not be used. The Professional Kit includes a waterproof high-speed charger designed specifically for this battery. If you already own a lithium-compatible 48V charger from a reputable brand, contact us to confirm compatibility before using it.
Will my 12V accessories still work after the conversion? +
Yes. The Professional Kit includes a 30-amp voltage reducer, which converts the 48V battery output down to 12V to power your existing accessories lights, horn, USB ports, stereo, and similar items. This is pre-wired in the kit. No additional converter purchase is required.
What is the difference between the Standard Kit and the Professional Kit? +
Both kits include the same 51.2V 105Ah Thin battery. The Professional Kit adds the 400A heavy-duty solenoid, 30-amp voltage reducer, 2 × 40" 2AWG premium installation cables, and the lead battery removal strap. These components are needed if your cart's existing electrical hardware is being replaced or upgraded alongside the battery. If your cart already has a compatible solenoid and wiring infrastructure in good condition, the Standard Kit may be sufficient. Contact us if you are unsure which kit is right for your situation.
Can I charge this battery in cold weather? +
The standard Thin battery should not be charged below 34°F (1°C). Charging below this temperature can damage lithium cells. If you store your cart in an unheated garage or use it during winter months where temperatures drop below freezing, the Heated version of the Thin is the appropriate choice. The heated model uses an integrated element to warm the cells before accepting a charge, allowing safe charging in below-freezing conditions.
How long does installation take? +
Most installations take 1 to 3 hours for a person with basic mechanical ability. The kit includes a printed installation manual with step-by-step instructions. The Thin format is specifically designed to minimize installation complexity in TXT-style tray carts in most cases, no tray modification or bracket fabrication is needed. Installation videos are also available on the Bolt Energy USA website.
What does the warranty cover and how do I register? +
The warranty covers manufacturing defects for 12 years from the shipment date: the first 6 years as full replacement and years 7 through 12 as prorated coverage. It does not cover physical damage from accidents, water submersion beyond IP66 rating, or use with incompatible chargers. To activate warranty coverage, register your battery at BoltEnergyUSA.com within 30 days of purchase using your battery serial number. Warranty claims are handled by US-based technicians at Bolt Energy USA headquarters in Largo, Florida. Read "Warranty Tab"
How does this battery handle a cart with an upgraded controller or lift kit? +
The Thin's BMS is rated for 250A continuous and 520A peak discharge. This output level supports most performance controller upgrades up to the 400 - 500A range. If your cart runs a high-output controller above that range, contact us before purchasing to confirm compatibility. Lifted carts with larger tires draw more power on acceleration and hills the 105Ah capacity and 520A peak rating are designed to handle those demands without voltage sag.
Is this battery safe? Will it catch fire or explode? +
LiFePO4 is a chemically stable lithium chemistry. Unlike lithium cobalt oxide or lithium polymer cells (common in consumer electronics and power tools), LiFePO4 does not have the thermal runaway vulnerability associated with those chemistries. The cells do not release flammable gas during normal operation. The BMS provides additional protection against overcharge, over-discharge, short circuit, and temperature extremes. Proper use meaning a compatible charger, correct installation, and storage within rated temperature ranges is required to maintain those safety characteristics.
