BigBattery 48V Lithium Battery EAGLE 2 KIT - 4-Battery System
Upgrade your vehicle with the BigBattery 48V EAGLE 2 Kit, a complete 6.52 kWh lithium battery solution designed for golf carts, RVs, marine applications, UTVs, and industrial equipment. This comprehensive kit provides a direct replacement for traditional T-105 lead-acid batteries, delivering enhanced performance across multiple applications.
The EAGLE 2 features IP67-rated casing for comprehensive protection against dust, water, and other contaminants. With advanced LED capacity meter on top of each unit and CANBus communication support, you'll have complete battery status monitoring.
Designed for all seasons, the EAGLE 2's advanced BMS supports a wide temperature operating range, and its self-heating function enables reliable cold weather charging. Suitable for golf carts, recreational vehicles, marine systems, and industrial applications.
Key Advantages of the EAGLE 2 Kit
-
Extended Operational Lifespan: 10+ years service life with 4,000-6,000 charge cycles
-
Zero Maintenance: No water additions or acid checks required
-
Lightweight Design: Significantly lighter than lead-acid batteries for improved performance
-
Faster Charging: Reduced charging time compared to traditional batteries
Features
IP67 Protection Rating
Complete protection against dust and water immersion up to 1 meter.
Automatic Self-Heating
Optimal performance in cold weather conditions.
CANBus Communications
Advanced monitoring and control capabilities.
LED SoC Indicator
Easy-to-read battery level monitoring.
Technical Specifications (Single Battery)
Basic Specifications
kWh Capacity
1.63kWh (6.52kWh total for 4-battery kit)
Ah Capacity
32Ah (128Ah total for 4-battery kit)
Electrical Specifications
Charging Voltage Range
55.6 - 58V
Operating Voltage Range
48 - 58.8V
Low Voltage Cutoff
48 - 50.8V
BMS Cutoff Range
42 - 47V
Performance Specifications
Max Continuous Discharge
60A (per battery)
Max Continuous Power
3072W (per battery)
Peak Discharge Current
200A (Max 3 seconds per battery)
Max Charge Current
30A (per battery)
Temperature Specifications
Charge Temperature Range
-4°F - 131°F (-20°C - 55°C)
Discharge Temperature Range
-4°F - 140°F (-20°C - 60°C)
Optimal Discharge Temperature
59°F - 95°F (15°C - 35°C)
Storage Temperature Range
23°F - 95°F (-5°C - 35°C) (Max 3 months)
32°F - 77°F (0°C - 25°C) (Max 12 months)
Physical Specifications
Weight (per battery)
38 lb (17.2 kg)
Dimensions (per battery)
10.2"W × 7.1"D × 10.8"H (260 × 180 × 274 mm)
Protection Rating
IP67 / NEMA 6
Max Connections
Up to (10) Parallel

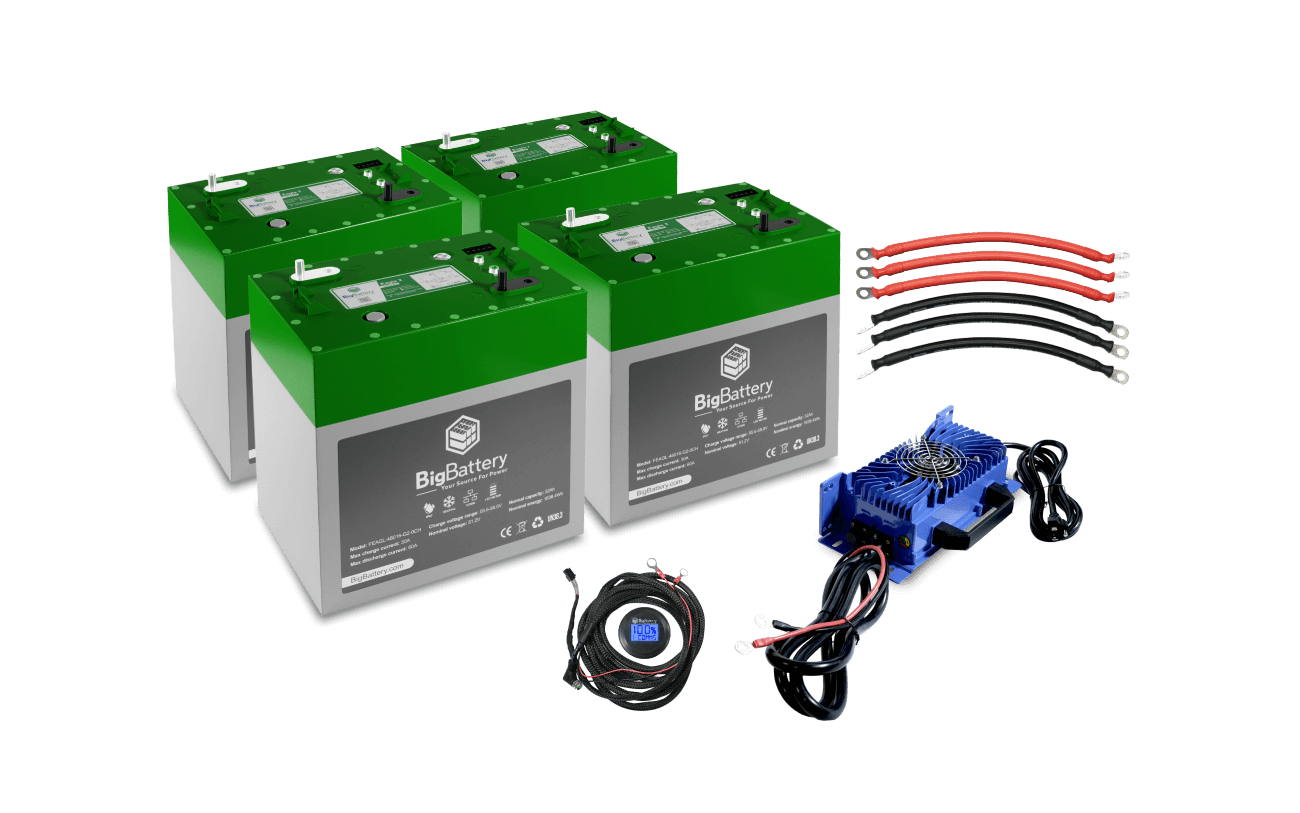

Included Components
-

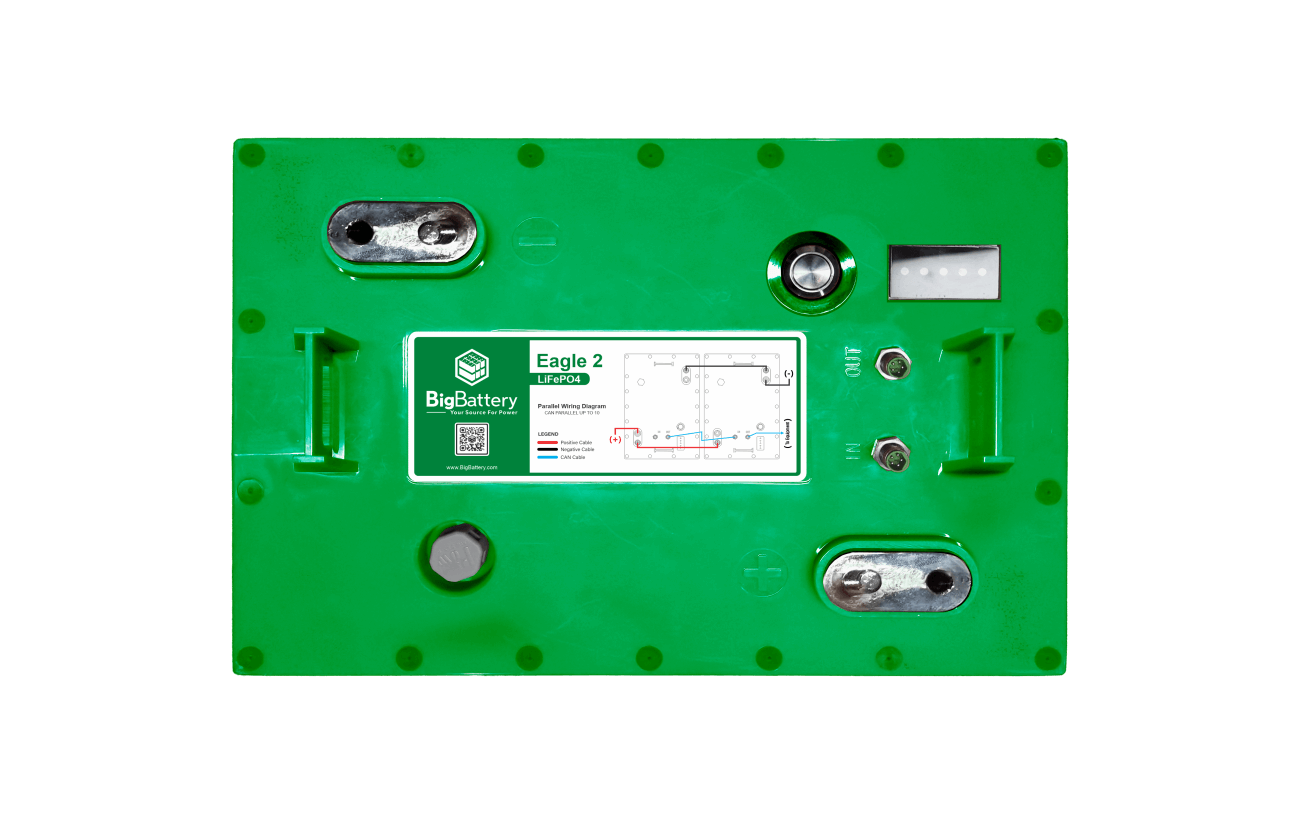

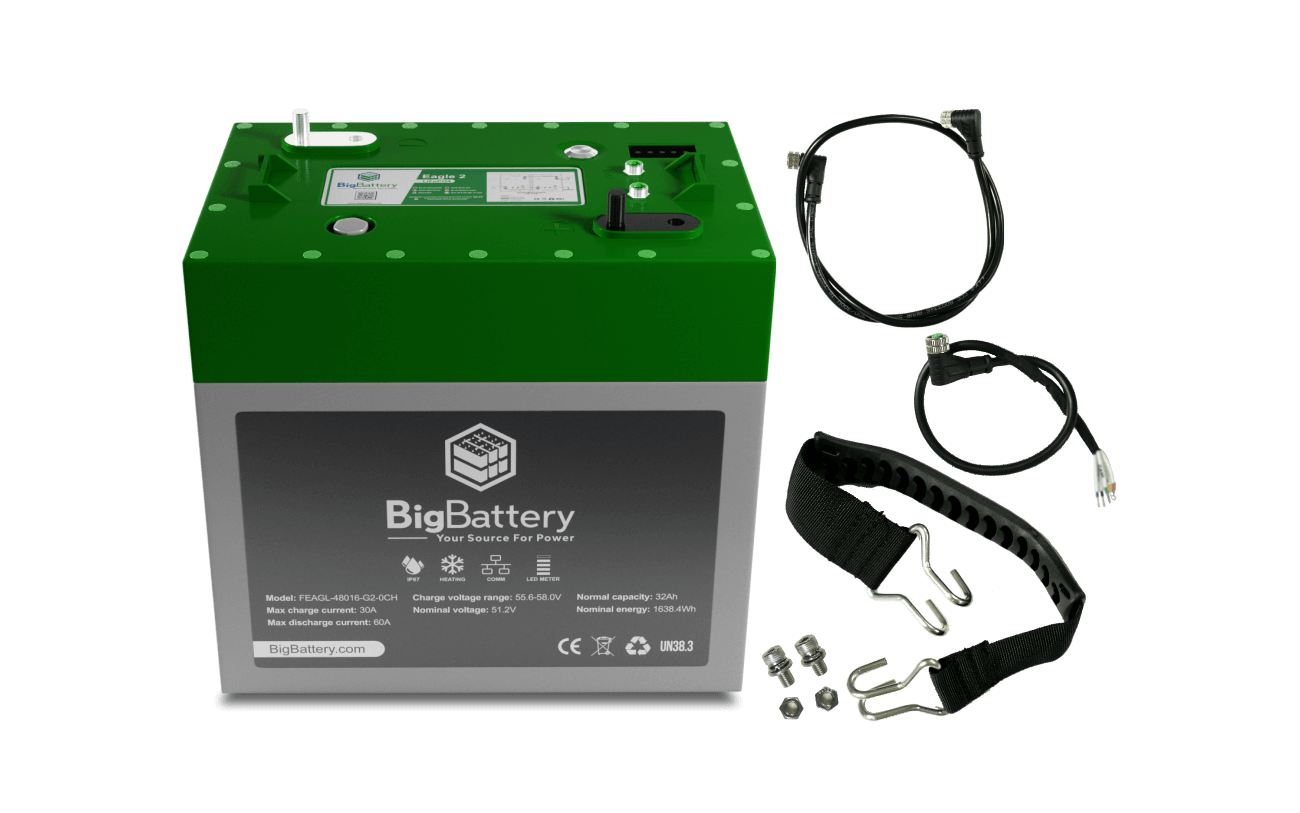

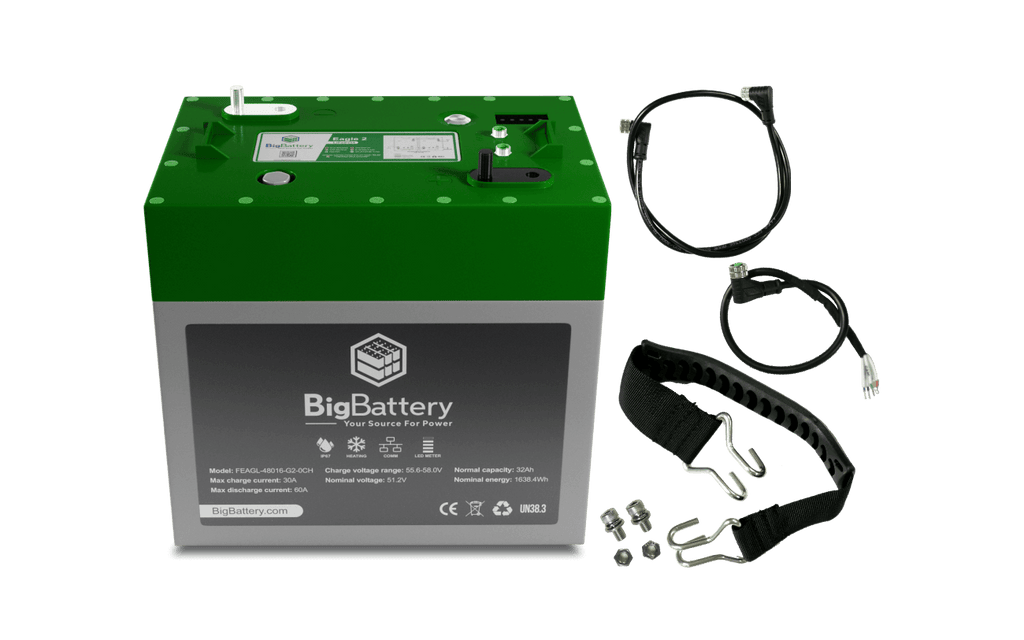

4 × 48V EAGLE 2 Batteries
Model: FEAGL-48016-G2-0CH
-

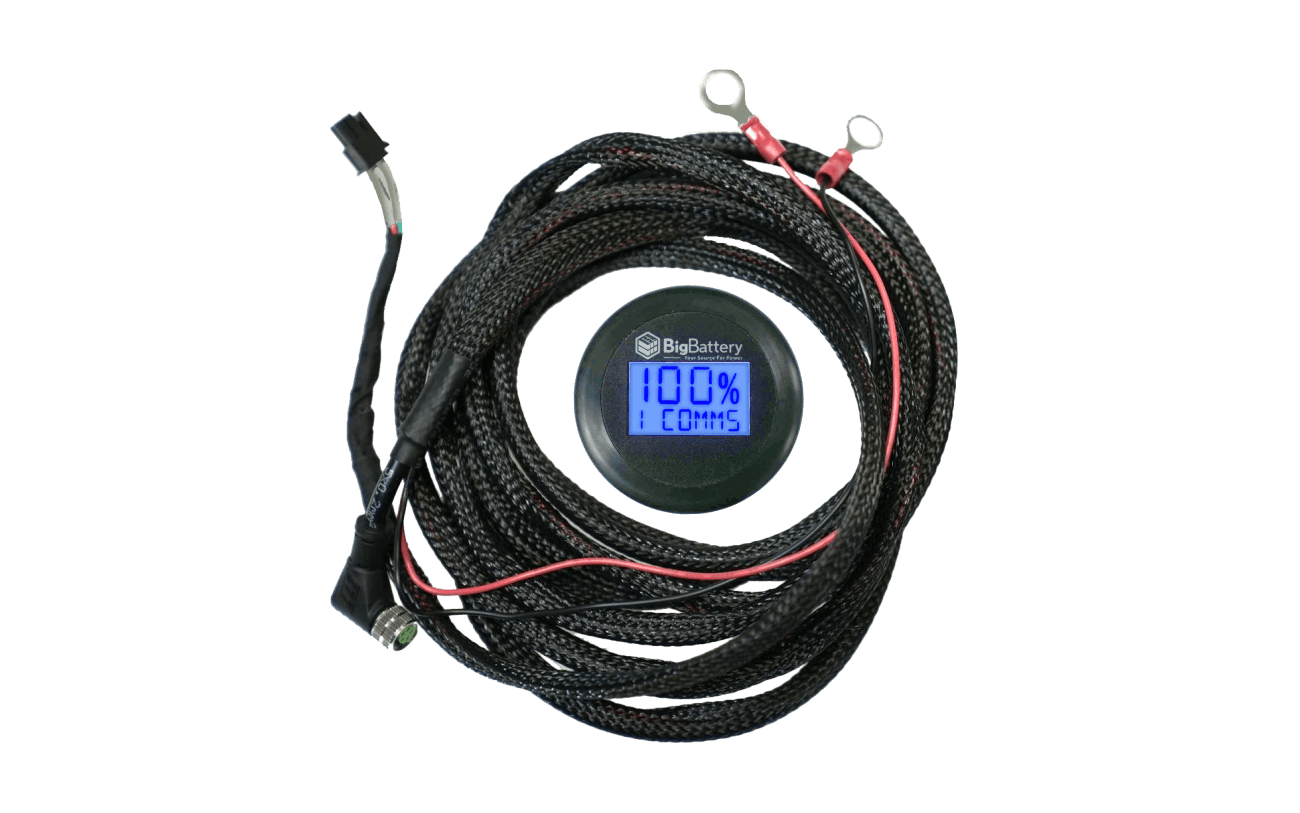

1 × EAGLE 2 COMM SOC Meter
Model: MTR107
-

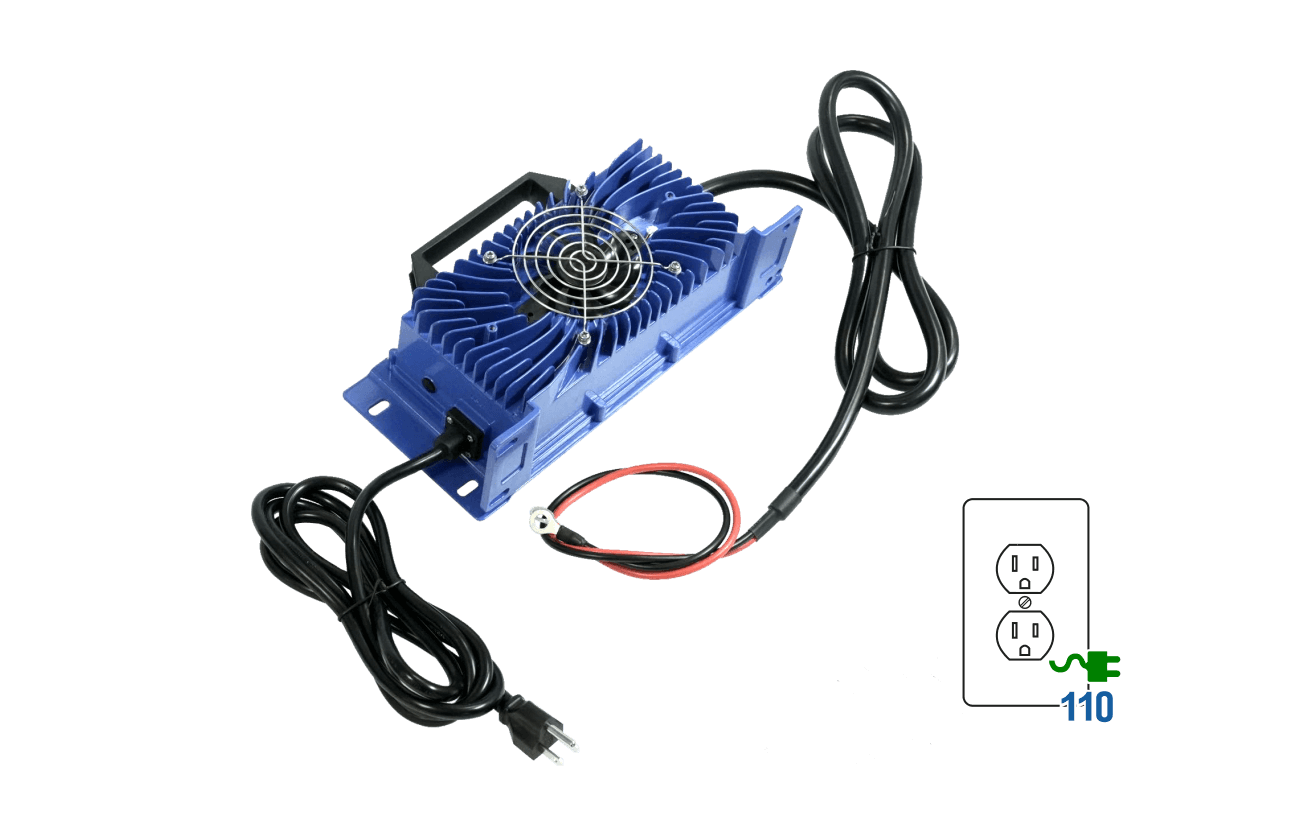

1 × 48V Charger
110V AC 20A IP65 Blue Charger (PWS053)
-

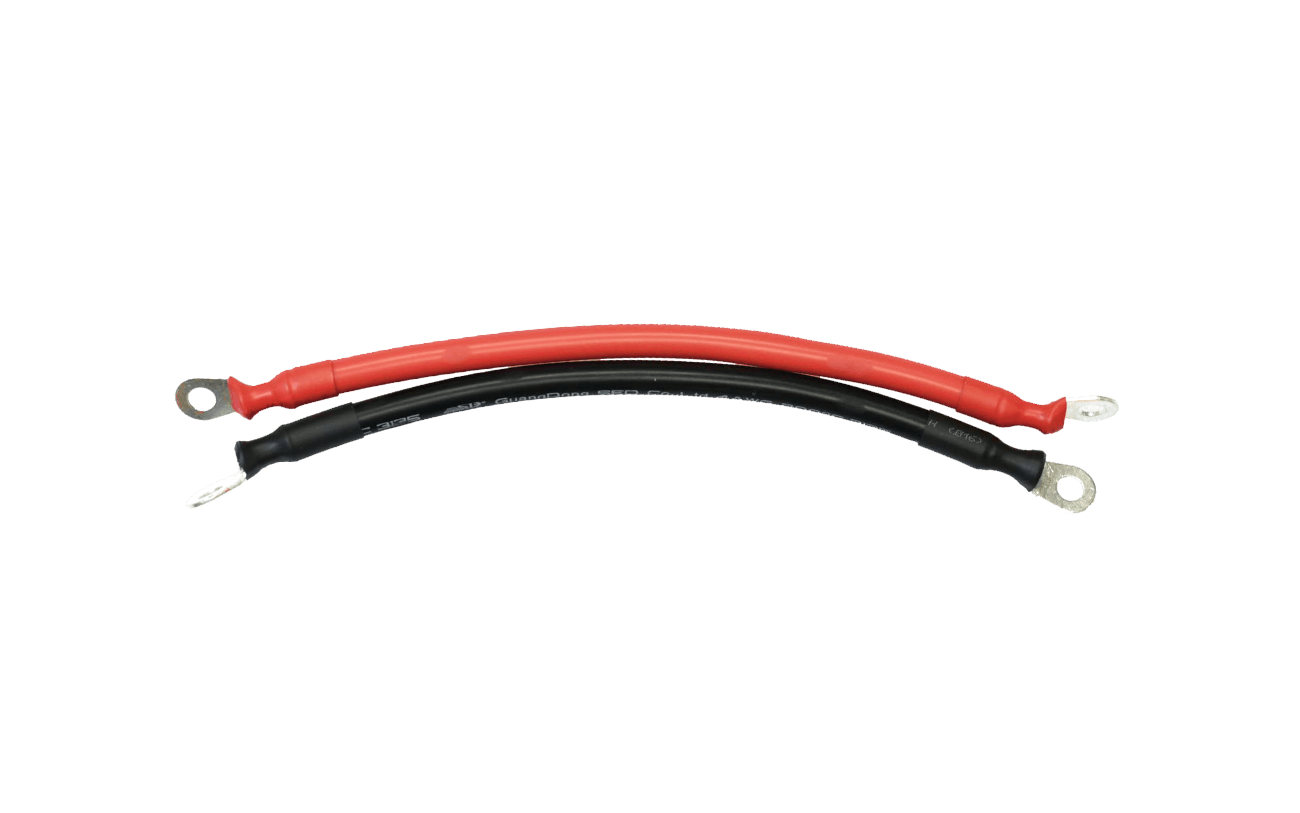

Connection Cables
3 × 4AWG Black & 3 × 4AWG Red (11" Ring to Ring)
Compatible Applications
Recreational Vehicles
- Golf Carts
- Utility Carts
- 48V UTVs & LSVs
RV & Camping
- RVs (Class A, B, & C)
- Camper Vans
- Emergency Power
Marine Applications
- Electric Boats
- Marine Electronics
- Boat House Systems
Industrial & Commercial
- Light Industrial Equipment
- Material Handling
- Backup Power Systems
Battery Management System Features
Protection Systems
- Overcharge protection
- Over-discharge protection
- Short circuit protection
- Temperature protection
Monitoring Features
- Real-time voltage monitoring
- Current monitoring
- Temperature tracking
- State of charge display
Communication
- CANBus protocol support
- System integration ready
- Remote monitoring capability
- Diagnostic information
Cold Weather Operation
- Self-heating technology
- Wide temperature range
- Cold weather charging
- Temperature management
Installation Information
This kit provides a direct T-105 replacement solution for multiple applications including golf carts, RVs, marine systems, UTVs, and industrial equipment. The system includes all necessary components for installation and monitoring.
- Professional installation recommended for warranty coverage
- Complete installation hardware included
- No battery tray modifications required for T-105 applications
- Compatible with standard 48V charging systems
- Comprehensive installation guide provided
Safety Certifications
This battery system meets the following safety and compliance standards:
- CE Certificate - European Conformity
- EMC Certificate - Electromagnetic Compatibility
- UN38.3 Certificate - Battery Transport Safety
