48V 2X EAGLE 2 KIT - BigBattery LiFePO4 Battery System
Upgrade your vehicle with BigBattery's 48V battery conversion kit for golf carts, RVs, UTVs, marine applications, and industrial equipment. The EAGLE 2 48V lithium battery system delivers reliable performance with 3.26 kWh of LiFePO4 power. Designed for multiple applications including golf carts, recreational vehicles, marine use, and industrial equipment, this complete 48 volt battery solution features Tier 1 LFP cells in a compact, GC2 form factor.
This 48V lithium battery system serves as a direct replacement for traditional T-105 lead-acid batteries, making installation straightforward in golf carts, utility vehicles, 48V UTVs, LSVs, boats, RVs, and industrial applications. The EAGLE 2 reduces vehicle weight without requiring battery tray modifications. Compatible with standard 48V battery chargers, this complete conversion kit includes everything needed for installation.
Features advanced battery management system with built-in LED capacity monitoring and CANBus communication. Suitable for golf carts, recreational vehicles, marine applications, and industrial equipment, the EAGLE 2 kit delivers professional-grade performance with zero maintenance requirements.
Advanced Features & Benefits
-

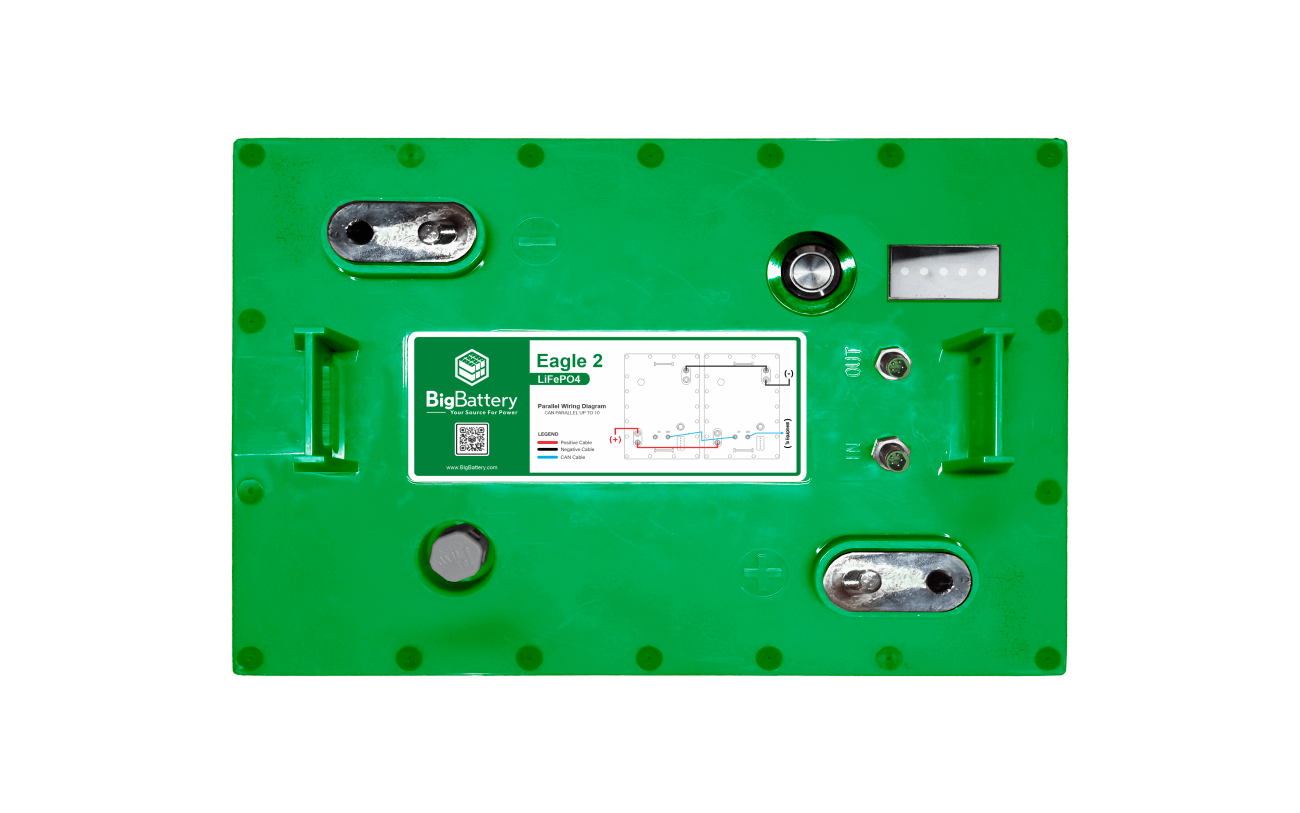

Advanced Monitoring System: LED capacity meter on battery top and external capacity meter for continuous system monitoring
-
Weather Protection: IP67-rated casing provides comprehensive protection against dust, water, and contaminants
-
All-Season Performance: Advanced BMS supports wide temperature range operation with self-heating function for cold weather charging
Lithium Battery Advantages
-
Extended Lifespan: Lithium batteries provide significantly longer service life compared to lead acid batteries
-
Zero Maintenance: No water addition required, no acid spills, odors, or corroded terminals
-
Lightweight Design: Lithium batteries are significantly lighter than lead acid, providing extended run time and improved vehicle handling
-
Faster Charging: Lithium batteries charge faster than lead acid systems, with no memory effect
Features
Smart Technology
- Built-in LED capacity meter
- External capacity meter included
- CANBus communication protocols
- Advanced BMS protection
All-Weather Protection
- IP67 waterproof rating
- Self-heating technology
- Advanced temperature management
- Dust and debris protected
Easy Installation
- Direct T-105 replacement
- No tray modifications needed
- Complete mounting hardware
- Plug-and-play design
Technical Specifications (Single Battery)
Basic Specifications
kWh Capacity
1.63kWh (3.26kWh total for 2-battery kit)
Ah Capacity
32Ah (64Ah total for 2-battery kit)
Electrical Specifications
Charging Voltage Range
55.6 - 58V
Operating Voltage Range
48 - 58.8V
Low Voltage Cutoff
48 - 50.8V
BMS Cutoff Range
42 - 47V
Performance Specifications
Max Continuous Discharge
60A
Max Continuous Power
3072W
Peak Discharge Current
200A (Max 3 seconds)
Temperature Specifications
Charge Temperature Range
-4°F - 131°F (-20°C - 55°C)
Discharge Temperature Range
-4°F - 140°F (-20°C - 60°C)
Optimal Discharge Temperature
59°F - 95°F (15°C - 35°C)
Storage Temperature Range
23°F - 95°F (-5°C - 35°C) (Max 3 months)
32°F - 77°F (0°C - 25°C) (Max 12 months)
Physical Specifications
Weight
38 lb (17.2 kg) per battery
Dimensions
10.2"W × 7.1"D × 10.8"H (260 × 180 × 274 mm)
Protection Rating
IP67 / NEMA 6
Max Connections
Up to (10) Parallel

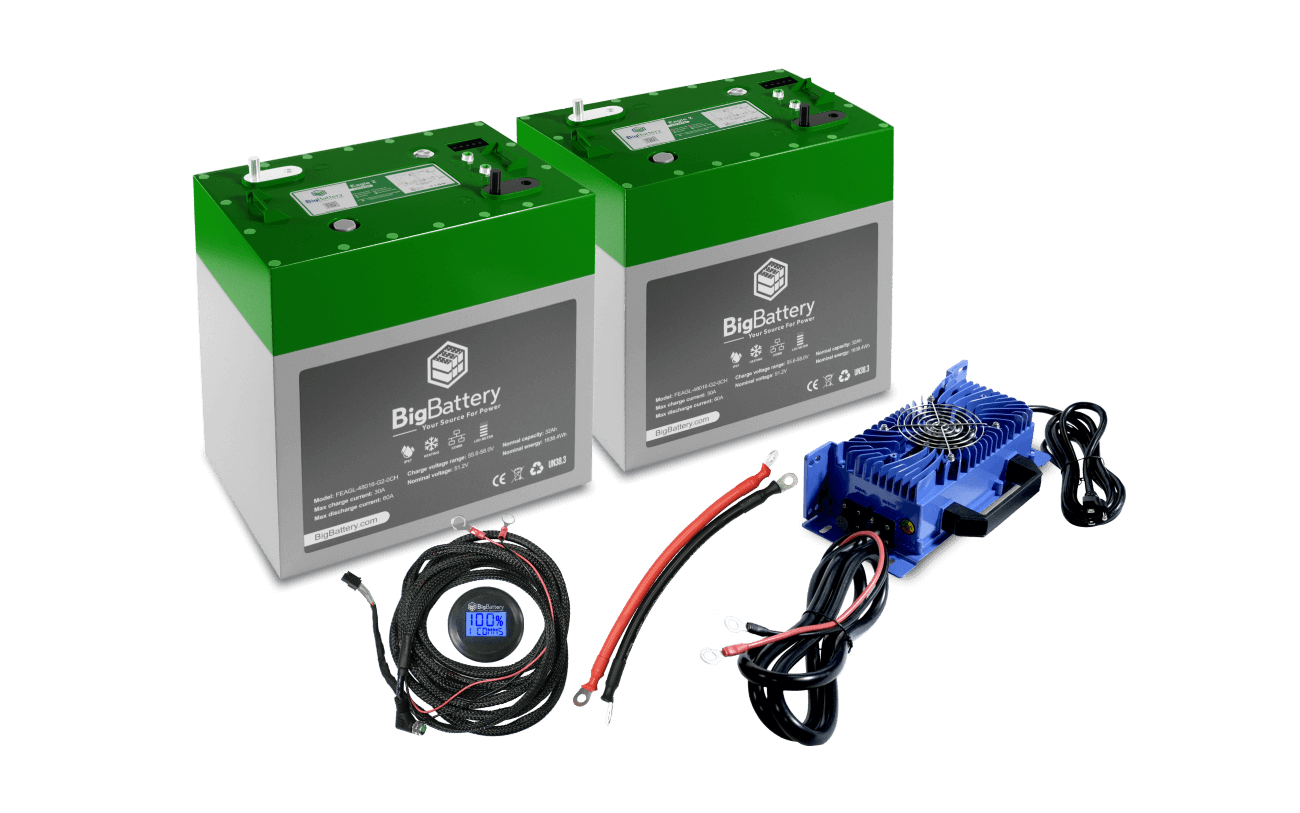

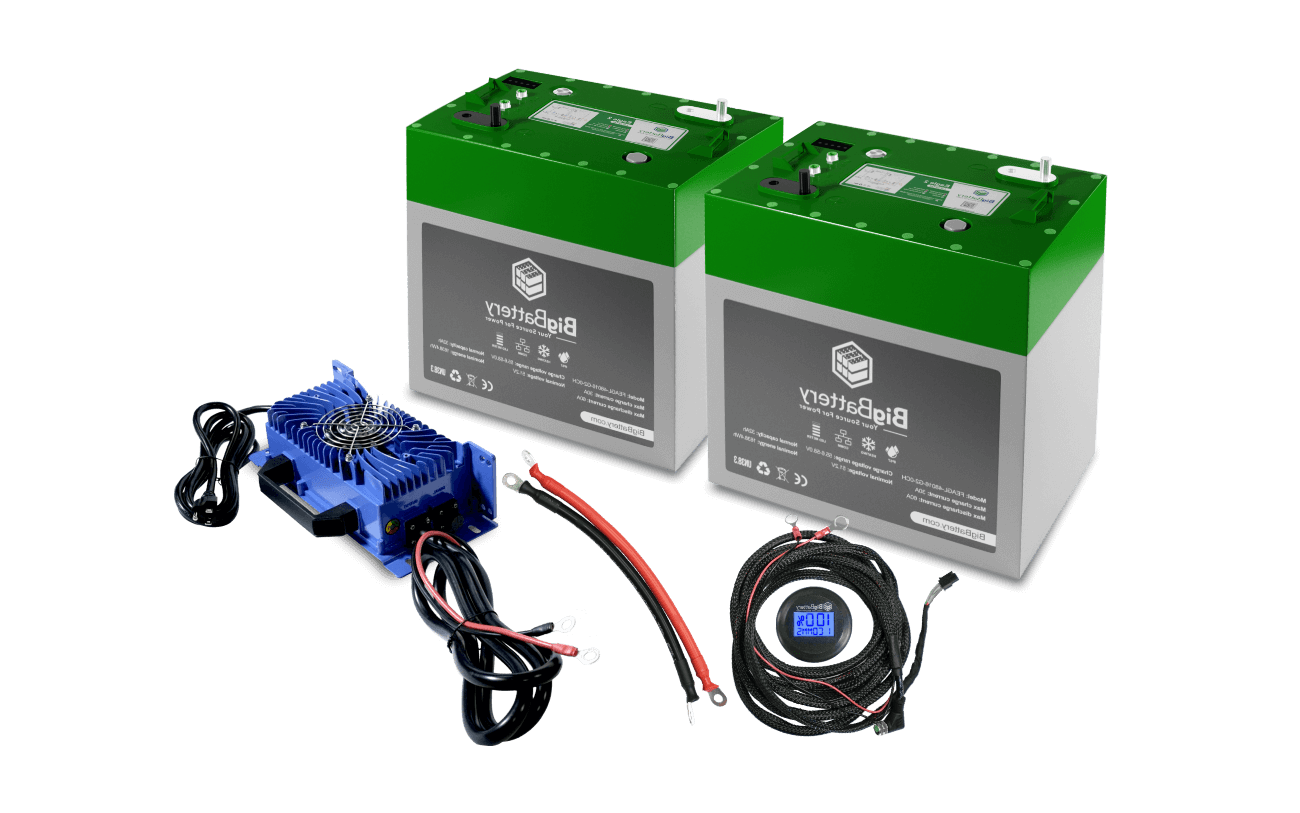

What's Included
-

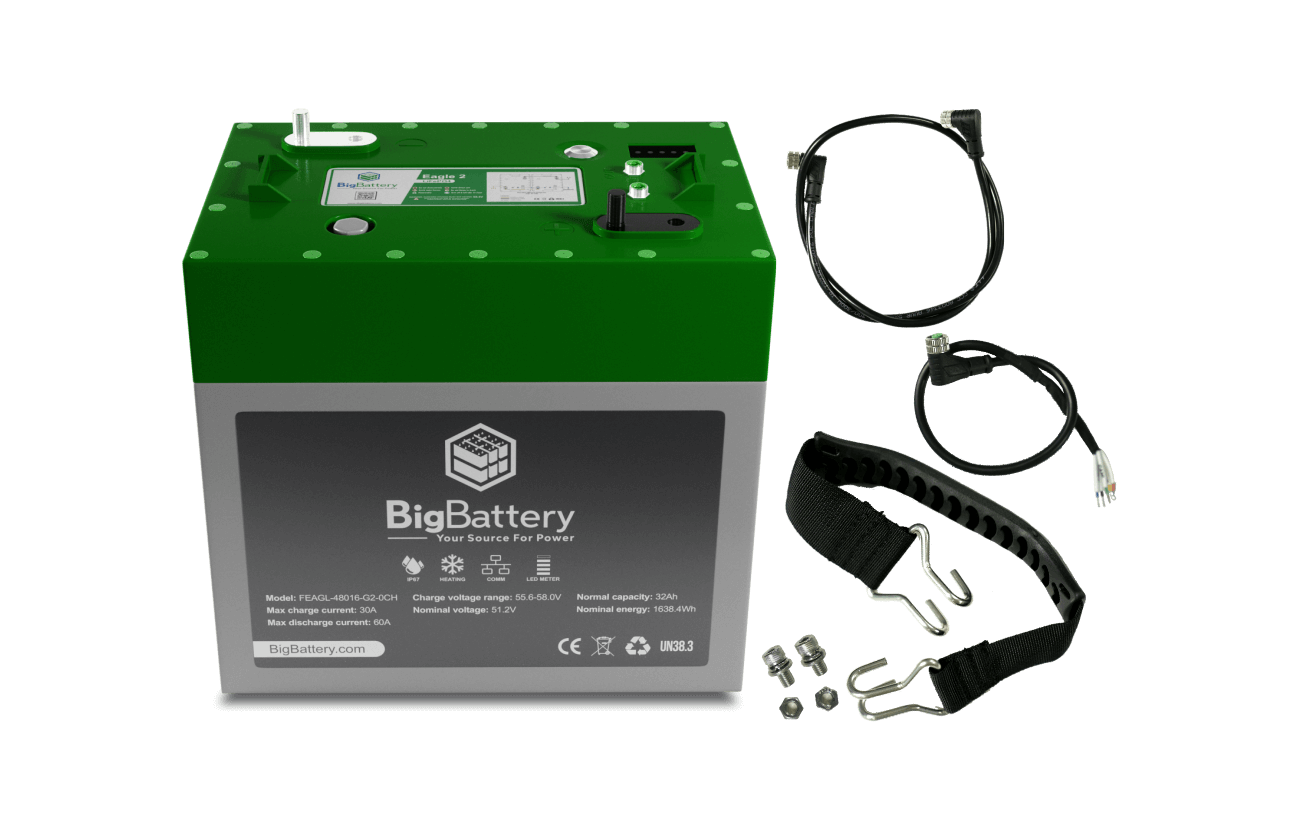

2 × 48V EAGLE 2 – LiFePO4 – 32Ah – 1.63kWh
Part Number: FEAGL-48016-G2-0CH
-

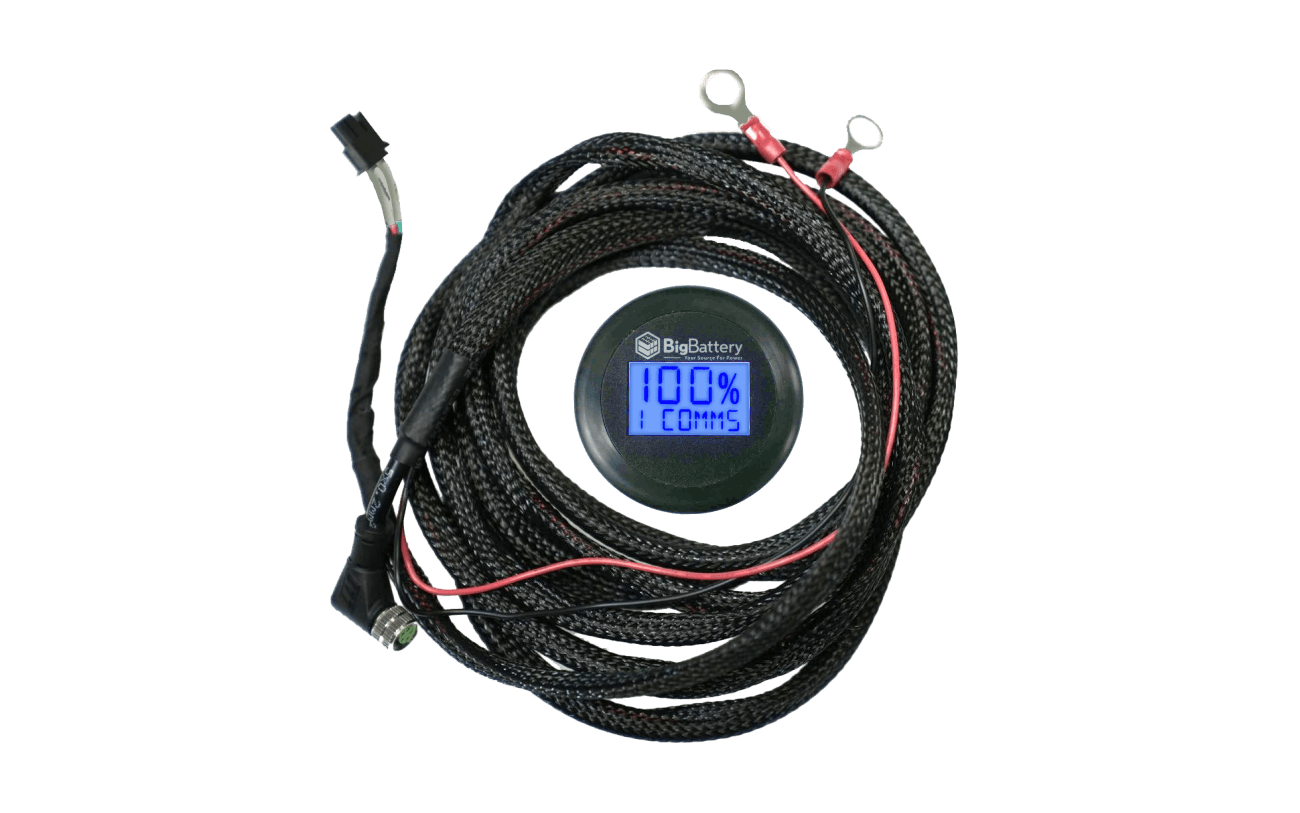

1 × EAGLE 2 COMM SOC Meter
Part Number: MTR107
-

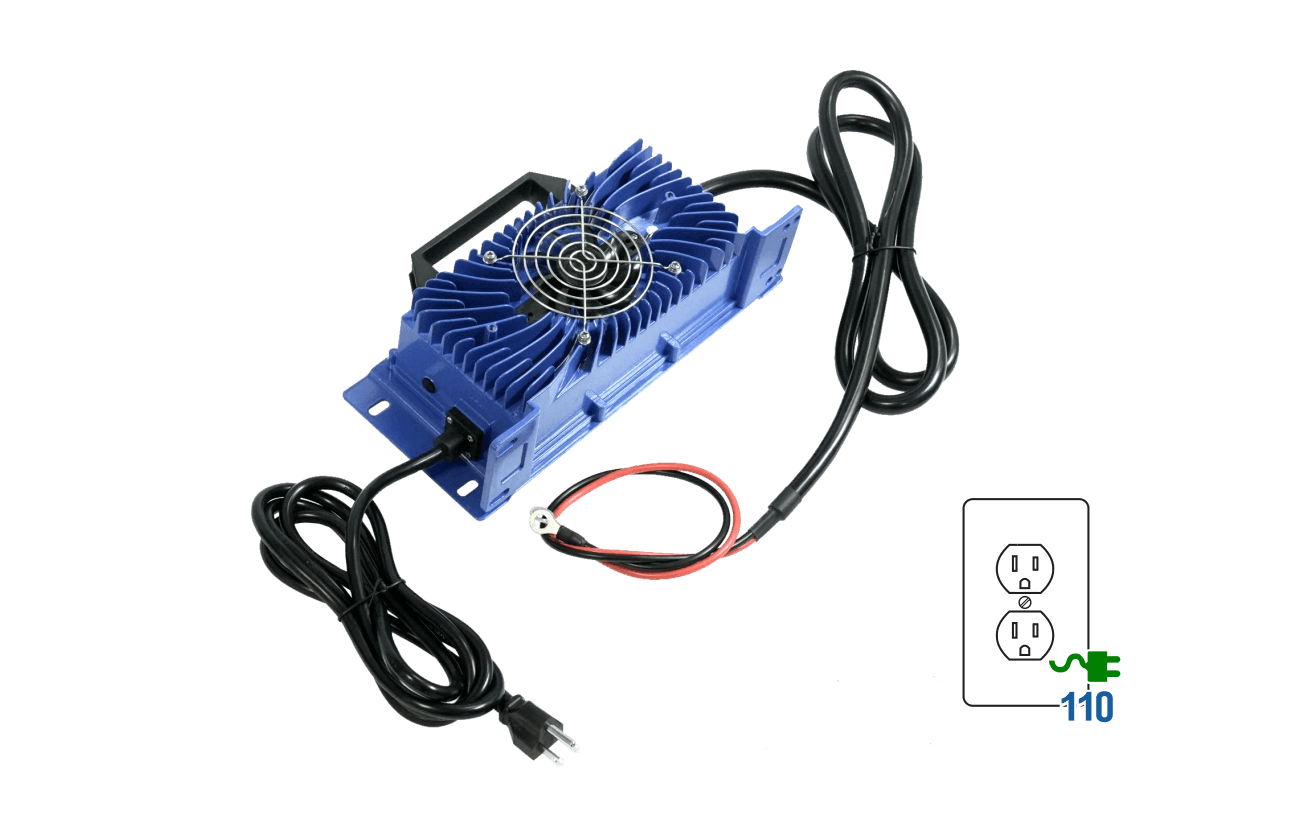

1 × 48V 110V AC 20A IP65 Blue Charger
Part Number: PWS053
-

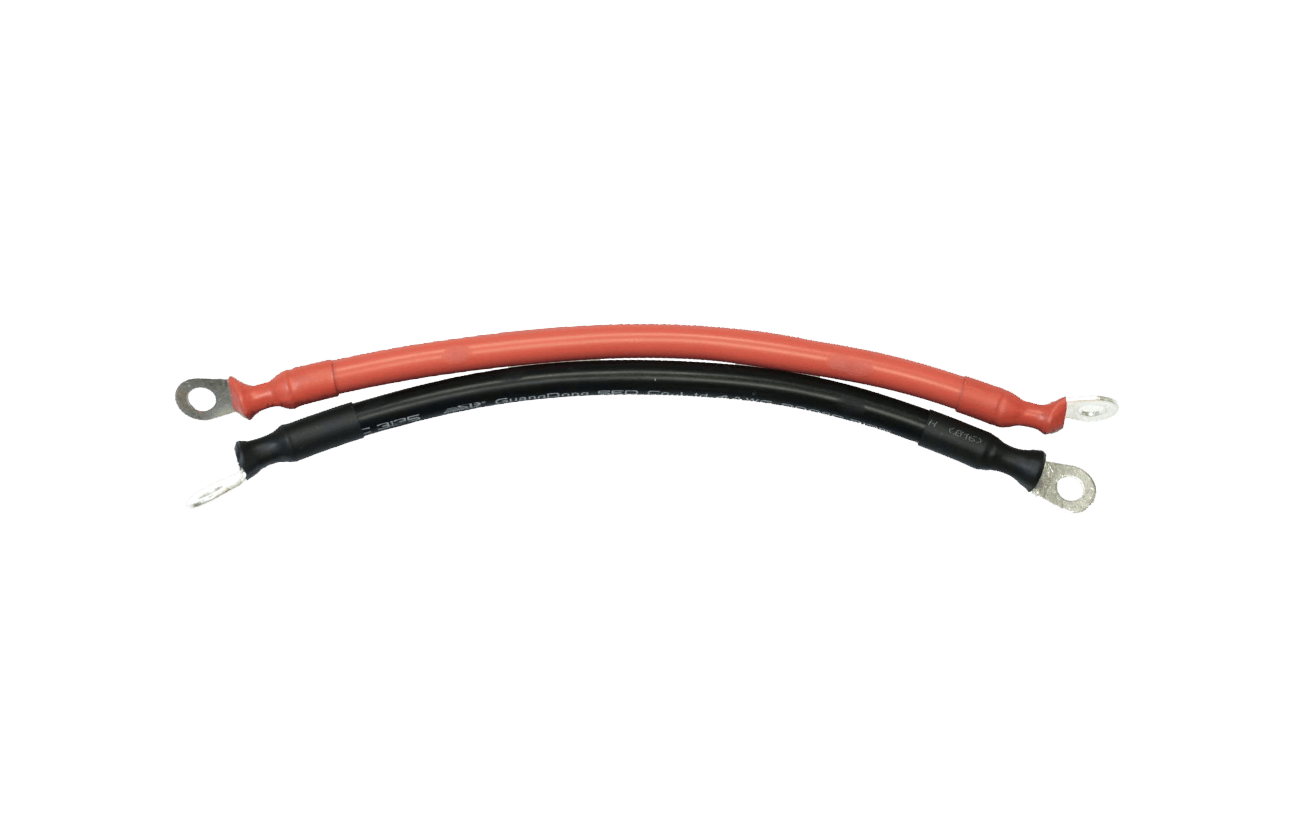

1 × 4AWG Black Cable with 11 inches Ring to Ring Terminal
Part Number: CBL080
-
1 × 4AWG Red Cable with 11 inches Ring to Ring Terminal
Part Number: CBL081
Compatible Applications
Recreational Vehicles
- Golf Carts
- Utility Carts
- 48V UTVs & LSVs
RV & Camping
- Class A, B, & C RVs
- Camper Vans
- Tow-Behind Trailers
Industrial & Emergency
- Light Industrial Equipment
- Emergency Power Systems
- Mobile Backup Power
Marine Applications
- Electric Boats
- Marine Electronics
- Boat House Systems
Safety Certifications
This battery system meets the following safety and compliance standards:
- CE Certificate - European Conformity
- EMC Certificate - Electromagnetic Compatibility
- UN38.3 Certificate - Battery Transport Safety
Installation Information
Professional installation is recommended for optimal performance and warranty coverage. The kit includes comprehensive installation guides and all necessary hardware for T-105 replacement applications.
