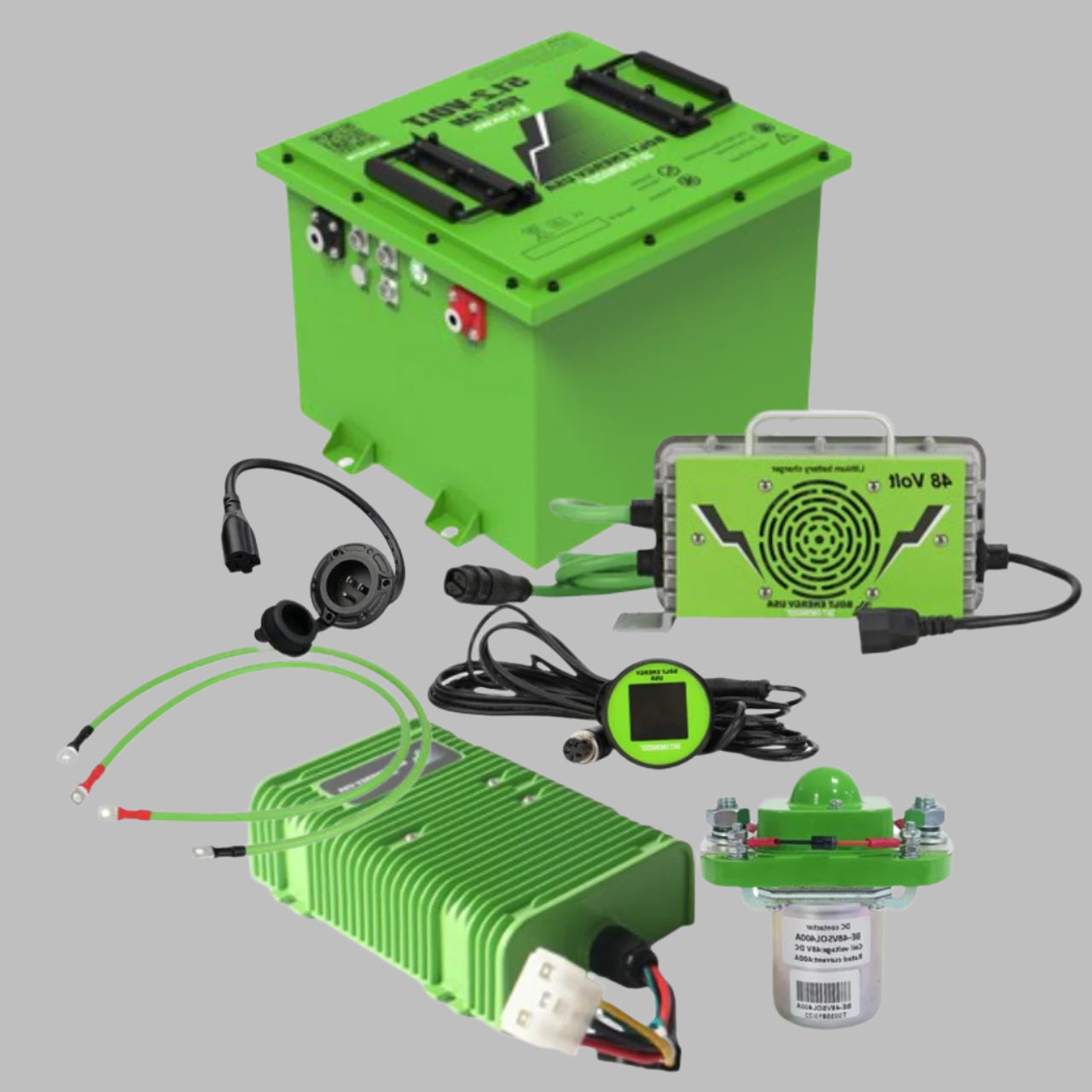

Bolt Energy 48V Lithium Golf Cart Battery Kit (105AH)

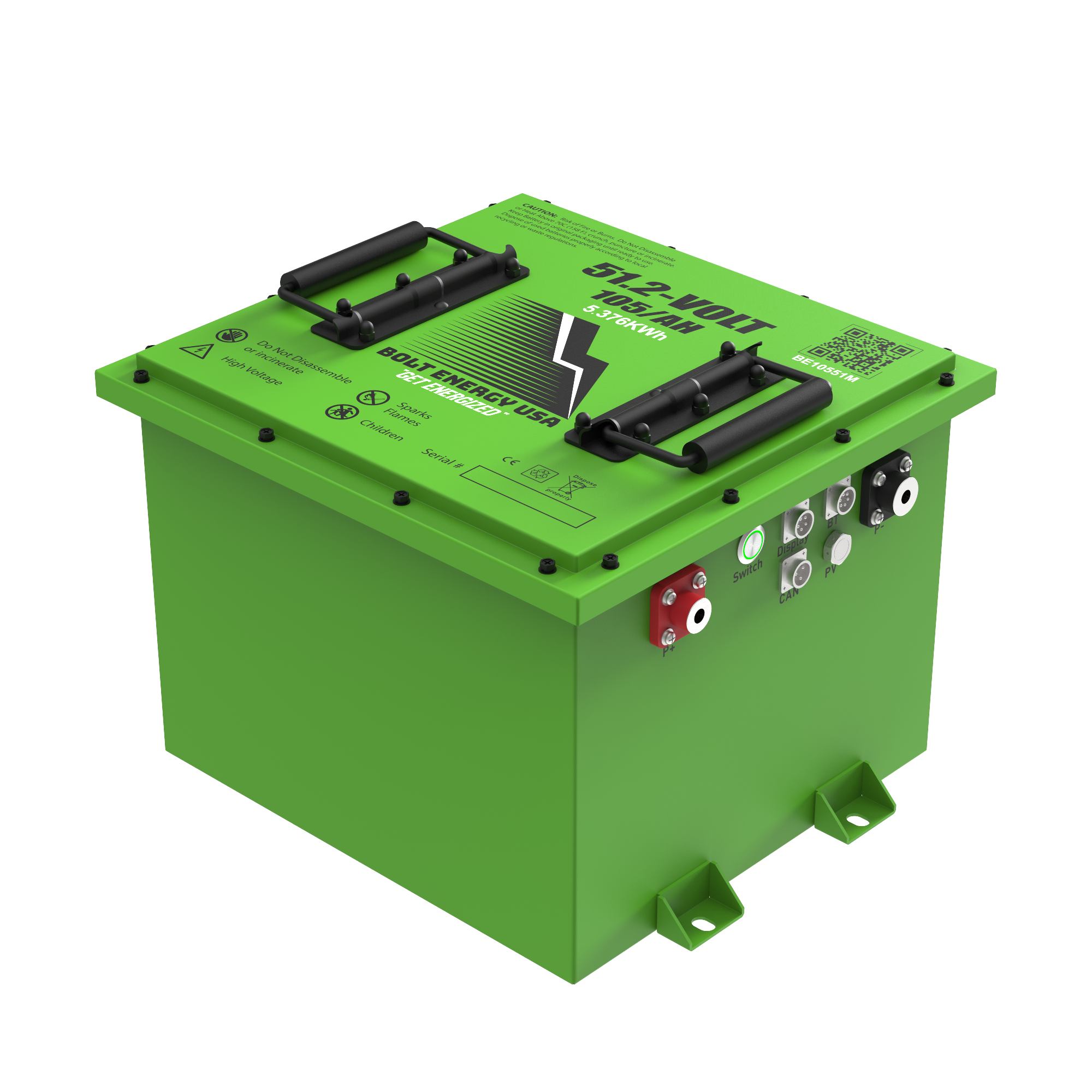

Bolt Energy 48V Lithium Golf Cart Battery (105AH) Mini
Bolt Energy 48V Lithium Golf Cart Battery (105AH) Specs
Bolt Energy 48V Lithium Golf Cart Battery Bundle

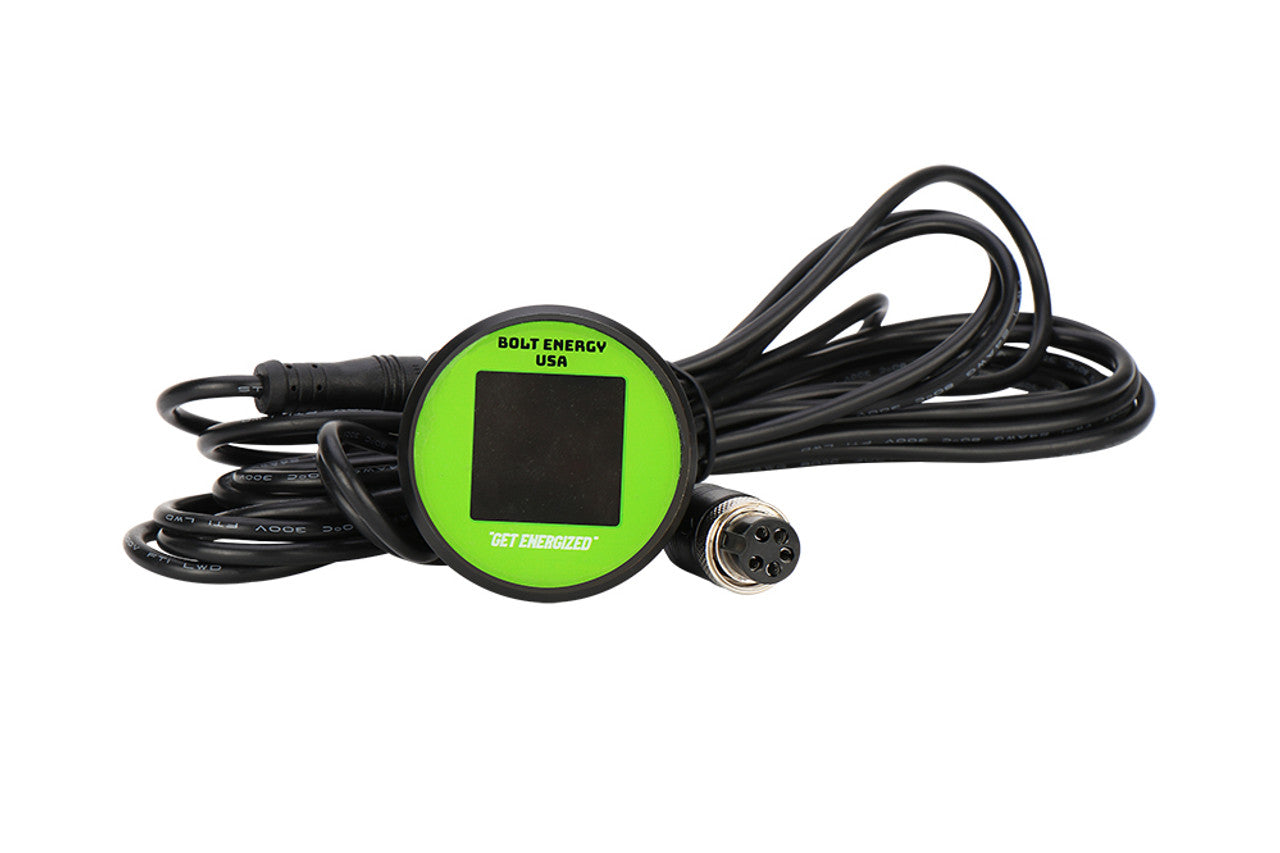

Bolt energy state of charge meter
Roll over image to zoom in Click on image to zoom
Bolt Energy 48V Lithium Golf Cart Battery Kit (105AH) Bolt Energy 48V Lithium Golf Cart Battery (105AH) MiniBolt Energy 48V Lithium Golf Cart Battery (105AH) SpecsBolt Energy 48V Lithium Golf Cart Battery BundleBolt energy state of charge meter

Bolt Energy 48V Lithium Golf Cart Battery Mini 105AH | Professional Converter Kit

Bolt Energy
Logo
Authorized Dealer - Full Warranty Included

SKU BE10551M-Pro-K

For 48V Golf Carts
Complete Conversion Kit
Bluetooth Monitoring App
Price:
$2,595.00

Shipping calculated at checkout

Stock:
In stock (10 units), ready to be shipped

📦 Fast 5-7 Day Delivery

🚚 Free Shipping

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Safety Notice

  • 38.3 CERTIFIED LITHIUM BATTERY
  • 18+ only

Read User Manual & Safety Sheet before installation

Support Icon

Need Help?

Our experts are here to help you find the lithium battery for your needs.

Call Us Live Chat

Product Resources

Bolt Energy 48V 105Ah LiFePO4 Lithium Golf Cart Battery - Professional Conversion Kit for Club Car, EZGO, Yamaha

Upgrade your golf cart with the Bolt Energy 48V 105Ah LiFePO4 Lithium Golf Cart Battery, a complete 48V lithium golf cart battery conversion kit. This 48V LiFePO4 golf cart battery system (nominal 51.2V) delivers reliable power and is compatible with many 48V golf cart systems, including Club Car, EZGO, and Yamaha.

Key Features of the 48V Lithium Golf Cart Battery

  • 51.2V 105Ah LiFePO4 battery with Bluetooth monitoring and state-of-charge (SOC) meter
  • Waterproof high-speed 48V golf cart battery charger with AC hardwire port
  • Complete installation kit with 6 ring terminal connectors, 2-40" 2AWG cables, and mounting hardware
  • Heavy-duty components including a 48V-400A solenoid and 30 amp reducer
  • Easy setup with 10 tie straps, lead-acid battery removal strap, and detailed manual

This 48V LiFePO4 golf cart battery features BMS technology, offering a 3,000–5,000 cycle lifespan, 250A continuous discharge, and a 25–50 mile range per charge, depending on usage and conditions.

Designed for seamless upgrades, this golf cart lithium battery conversion kit provides everything needed to replace lead-acid batteries, ensuring efficient power and low maintenance for your golf cart.

Compatible Golf Cart Brands

Compatible with many 48V golf cart systems, including:

  • Advanced EV
  • Bad Boy Buggy
  • Bintelli
  • Club Car DS
  • Club Car Precedent
  • Coleman
  • EZGO TXT
  • EZGO RXV
  • Elite
  • EPIC
  • Evolution
  • GEM Cars
  • ICON
  • Kandi
  • Madjax X-series
  • Navitas Storm
  • Nivel X-series
  • Titan
  • Tomberlin
  • Trojan EV
  • Vivid
  • Yamaha
  • And More

Please verify compatibility with your specific golf cart model before purchasing.

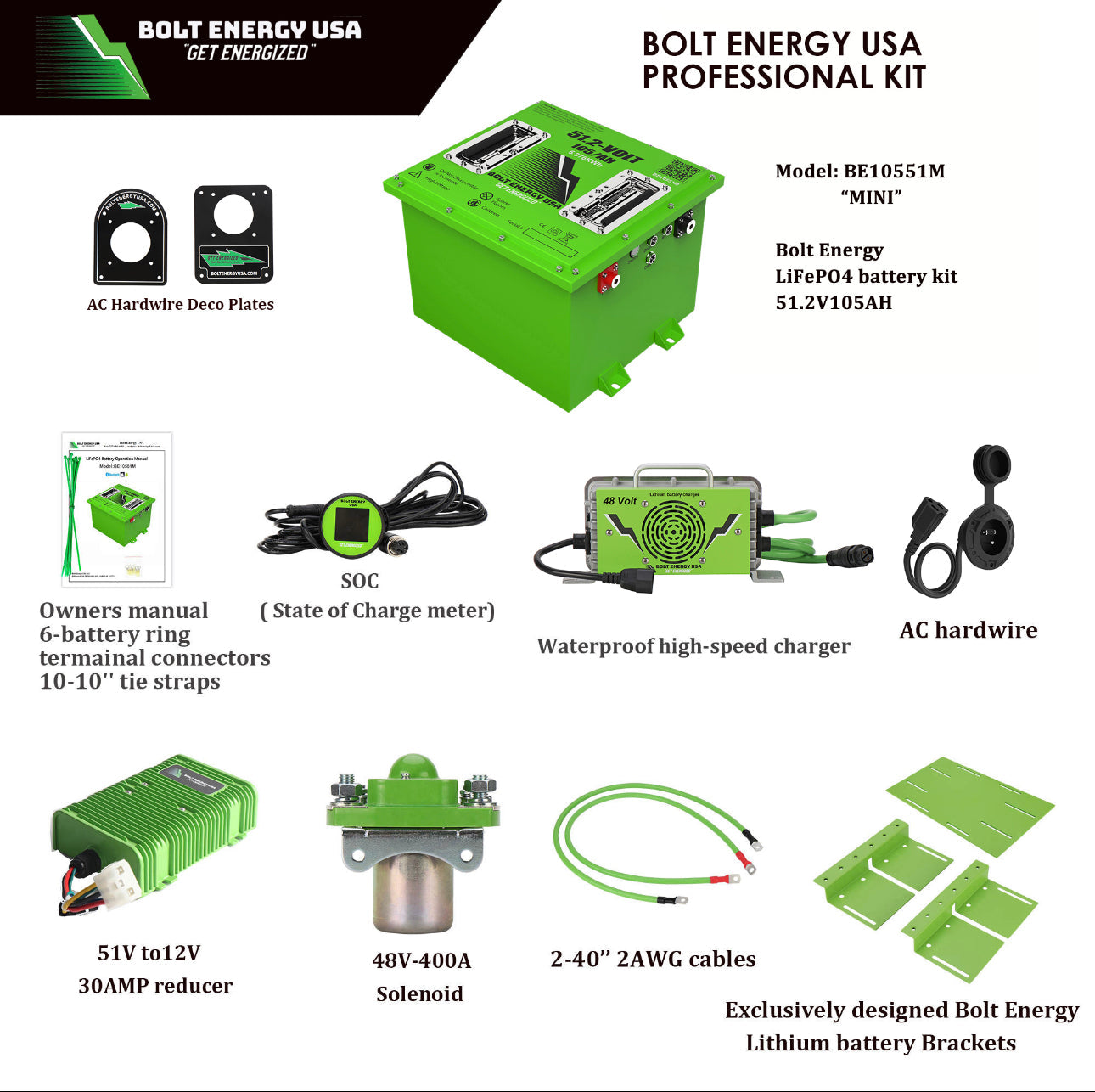

What's Included in the Conversion Kit

  • 51.2V 105Ah LiFePO4 Lithium Golf Cart Battery
  • Waterproof 48V golf cart battery charger
  • Bluetooth receiver
  • State-of-charge (SOC) meter
  • Owner's manual with installation instructions
  • 6-3/8 battery ring terminal connectors
  • 10-10″ tie straps
  • Bolt Energy USA sticker/s
  • Mounting brackets, nuts, and bolts
  • AC hardwire port
  • DECO cover plate (universal or Club Car)
  • 30 amp reducer
  • 2-40″ 2AWG cables
  • 48V-400A solenoid
  • Lead-acid battery removal strap
  • 10-Year Limited Warranty

Technical Specifications

MECHANICAL SPECIFICATIONS
Dimensions (L x W x H) 12.8″ x 12.01″ x 10.42″
Weight 100.8lbs (45.7kg)
Terminal Type M8*1.5*25mm
Cell Configuration 1P16S
Case Material Powder Coated Steel
Enclosure Protection Designed with IP66 Standard
Cell Type – Chemistry Prismatic- LiFePO4
DISCHARGE SPECIFICATIONS
Maximum Continuous Discharge Current 250A
Peak Discharge Current 520A ± 15.6A (30S)
BMS Discharge Current Cut-Off 260 A ± 7.8A (50S)
520A ± 15.6A (30S)
BMS Discharge Voltage Cut-Off 40V
Recommended Low Voltage Disconnect 48.0V
BMS Reconnect Voltage 41.6V
Discharge Temperature -4 to 149°F (-20 to 65°C)
ELECTRICAL SPECIFICATIONS
Nominal Voltage 51.2V
Working Voltage 43.2 – 58.4V
Recommended Voltage 48.0V – 57.0V
Nominal Capacity 105Ah
Energy 5,376Wh
Capacity @ 25A 252 min
Efficiency 0.99
Self Discharge <3% per Month
CHARGE SPECIFICATIONS
Recommended Charge Current 5 – 52A
Maximum Input Current 350A
Charge Current Cut-Off 375A
BMS Charge Voltage Cut-Off 58.5V
Reconnect Voltage <58.5V
Charging Temperature Range 34°F to 140°F (0-60°C)
COMMUNICATION
Bluetooth Bluetooth receiver
CAN CAN port for testing battery
