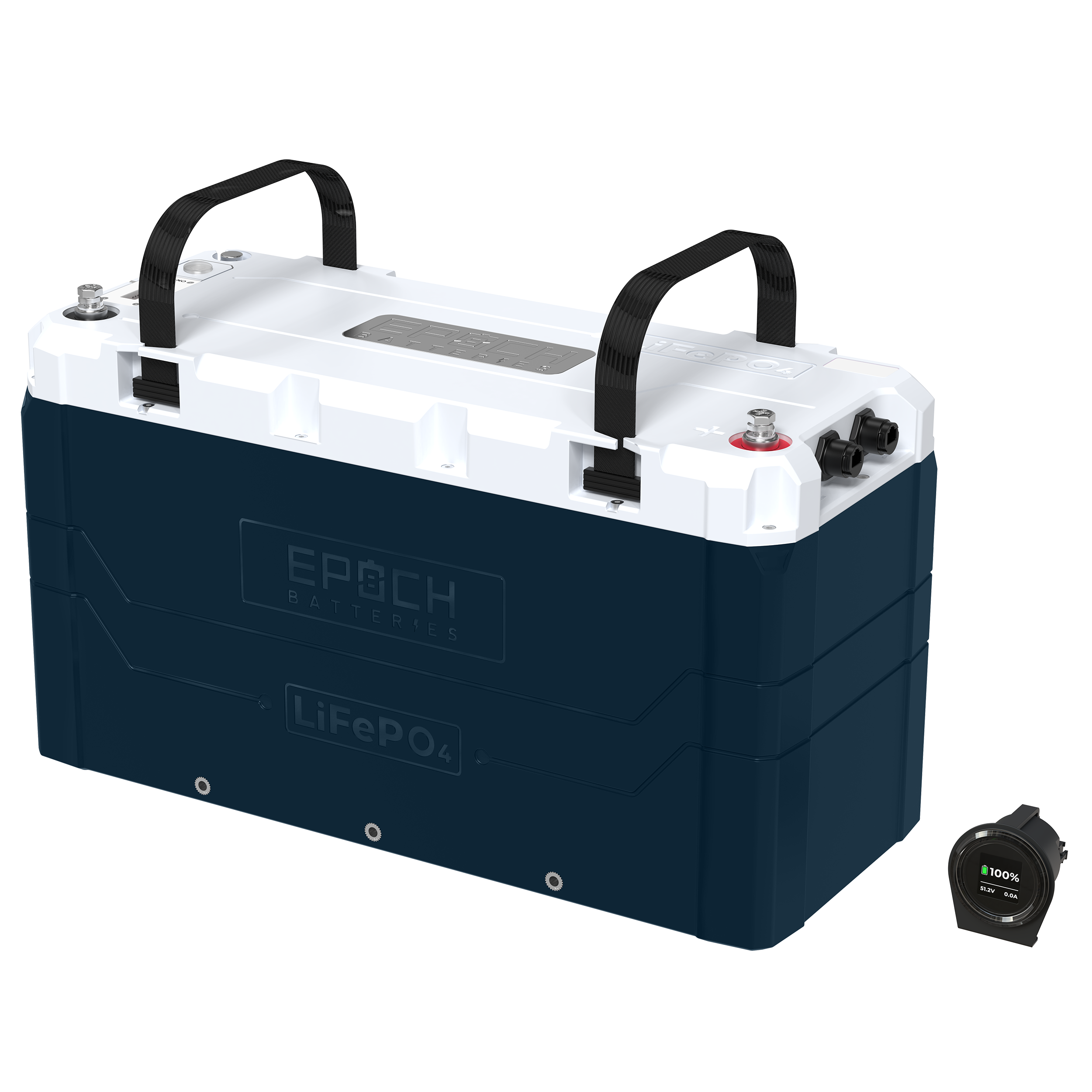

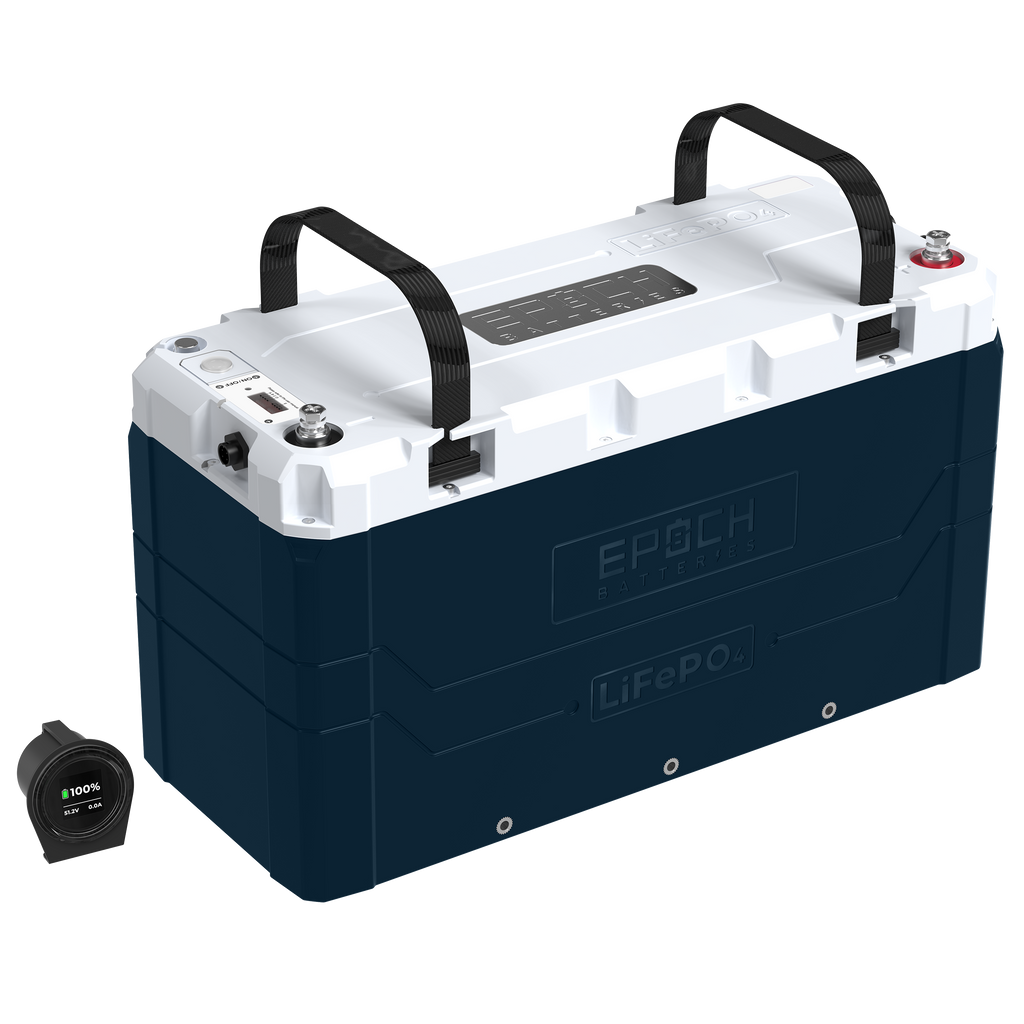

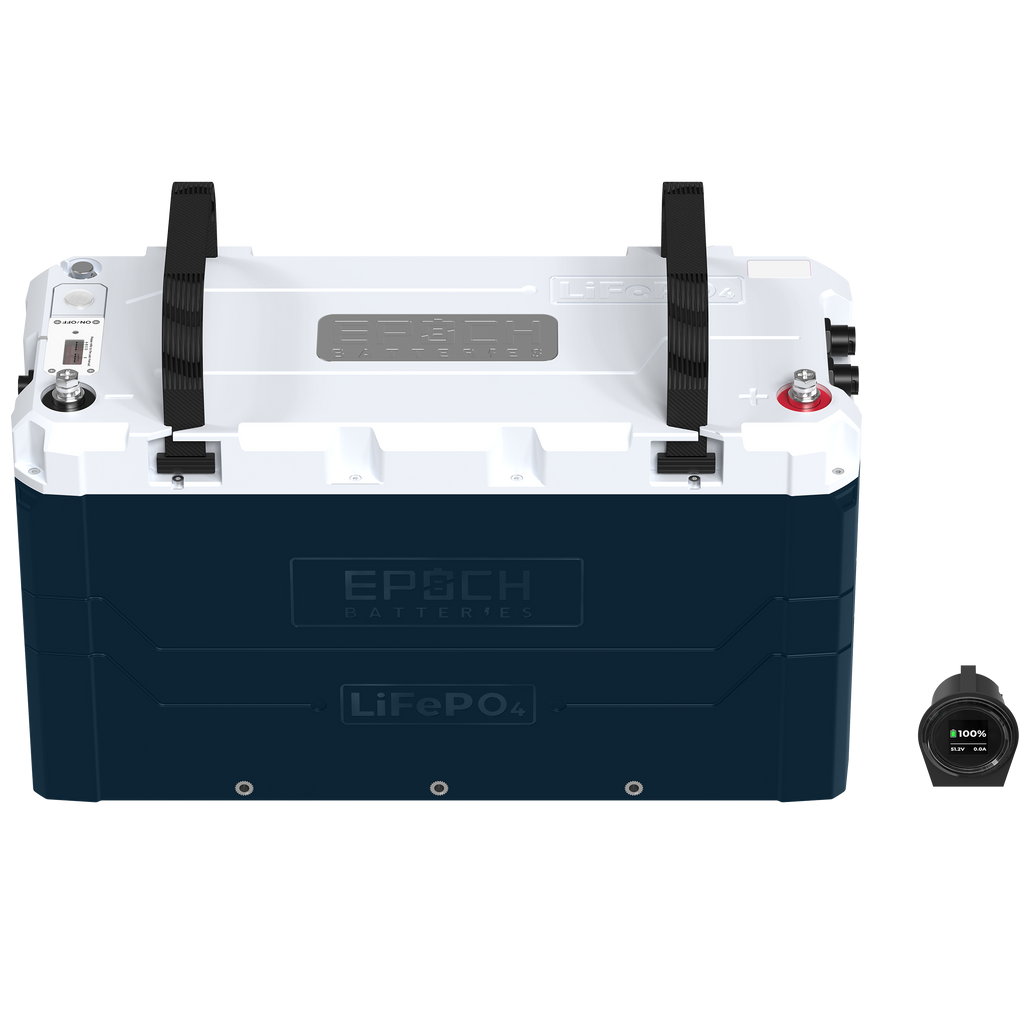

The Epoch 12V 460Ah V2 Elite Series (Model C12460A) is a Lithium Iron Phosphate (LiFePO4) battery system manufactured by Epoch Batteries. We are an authorized dealer of Epoch Batteries products. This battery provides 460Ah of capacity at 12.8V nominal voltage (5.888kWh total energy) and is designed for RV, marine, and off-grid solar energy storage applications.

This V2 model includes an integrated heating system for cold-weather charging, Bluetooth 4.0 connectivity for wireless monitoring, and CAN bus communication for compatibility with Victron Energy systems.

Technical Specifications

• Manufacturer: Epoch Batteries
• Model Number: C12460A
• Product Specification: 12.8V 460Ah 5.888kWh
• Chemistry: Lithium Iron Phosphate (LiFePO4)
• Cell Configuration: 4S2P (4 cells in series, 2 in parallel)
• Rated Voltage: 12.8V (Cell: 3.2V)
• Rated Capacity: 460Ah (Cell: 230Ah)
• Standard Capacity: 5.888kWh @ 0.5C, 25°C
• Maximum Voltage: 14.6V (Cell: 3.65V)
• Minimum Voltage: 10V (Cell: 2.5V)
• Dimensions: 20.86" L × 8.65" W × 12.06" H (529.8mm × 219.8mm × 306.3mm)
• Weight: 88 lbs (40kg ±2kg)
• Maximum Continuous Discharge Current: 230A @ 25°C, SOC 50%, BOL
• Maximum Discharge Current (Peak): 500A @ 30 seconds, 25°C, SOC 50%, BOL
• Continuous Charging Current: 230A @ 25°C, SOC 50%, BOL
• Maximum Charging Current (Peak): 400A @ 5 seconds, 25°C, SOC 50%, BOL
• Charging Temperature (without heating): 0°C to 55°C (32°F to 131°F)
• Charging Temperature (with heating active): -20°C to 55°C (-4°F to 131°F)
• Discharge Temperature: -20°C to 55°C (-4°F to 131°F)
• Storage Temperature (short-term, within 1 month): -20°C to 55°C (-4°F to 131°F)
• Storage Temperature (long-term, within 1 year): 0°C to 35°C (32°F to 95°F)
• Cycle Life: >3,500 cycles @ 25°C, 0.5C charge, 1C discharge, DOD 70% (SOC 0-100%)
• End of Life Capacity: 70% remaining capacity (per manufacturer warranty terms)
• Self-Discharge Rate: Maximum 3% per month @ SOC 100%, 25°C, BOL
• Working Range of SOC: 0% to 100%
• SOC at Shipment: 30% ±3%
• Communication Protocols: Bluetooth 4.0 + CAN Bus (Victron compatible)

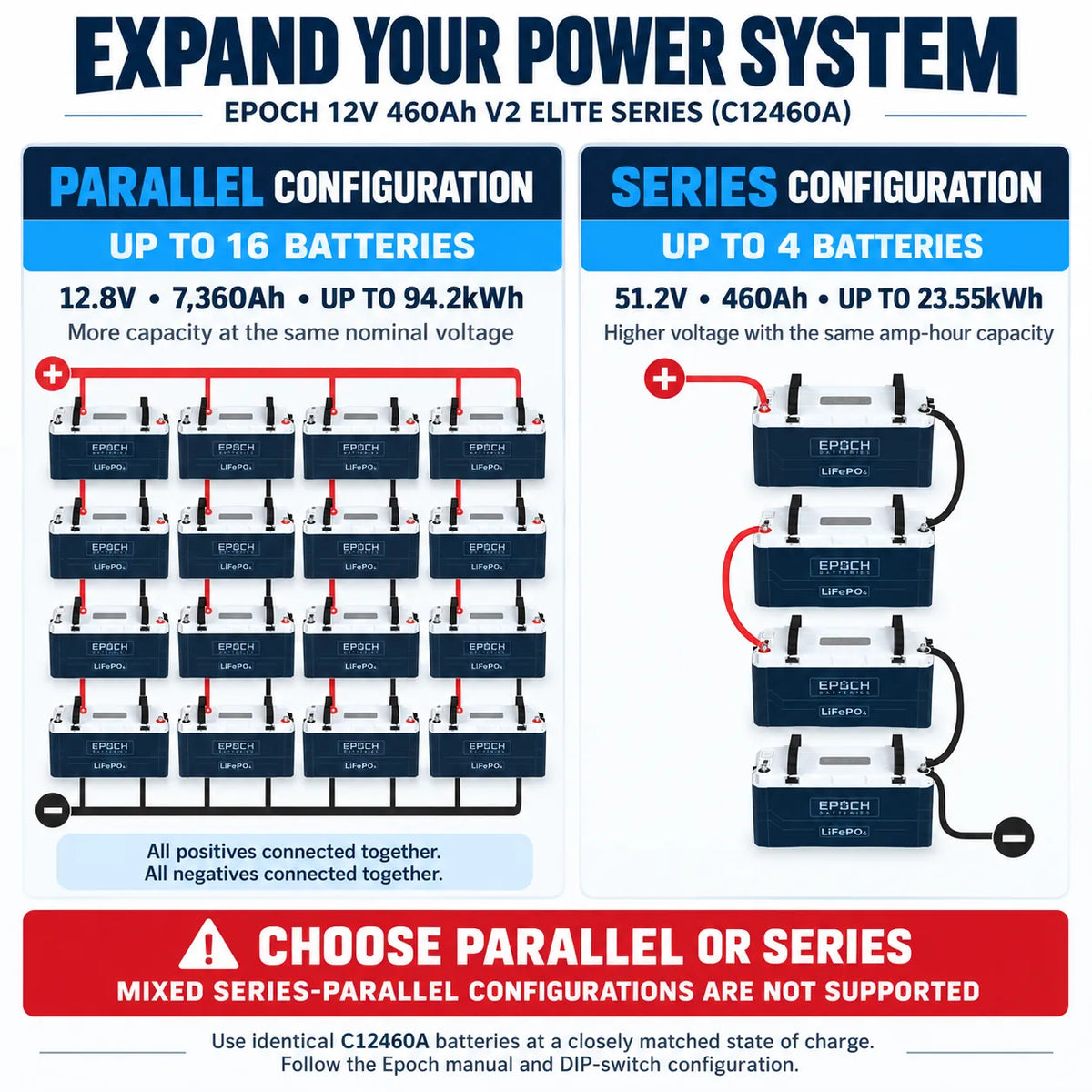

• Parallel Configuration: Supports 4 strings or 16 batteries in parallel (maximum 88kWh total system)
• Cooling Mode: Natural (passive) convection
• Ingress Protection: IP65 (dust-tight and protected against water jets)
• Certifications: UL1642, UL1973, U9540A, IEC 62619:2017, RoHS, GBT, UL60691 (internal fuse)
• UL Listing Status: In process (per manufacturer documentation)

V2 Model Improvements

According to Epoch Batteries documentation, the V2 model includes the following updates from the previous version:

• Enhanced Victron Communication: Refined high voltage alarm handling for improved system monitoring and control
• Increased Parallel Capacity: Supports up to 16 batteries in parallel (increased from 4 battery limit in previous version), allowing system capacities up to 88kWh (7,360Ah)
• Component Upgrades: UL60691-certified internal fuse; battery cells meet UL1642, UL1973, U9540A, IEC 62619:2017, and RoHS standards
• Bluetooth App Enhancement: Unified dashboard allows monitoring of all connected batteries (up to 16) from single mobile application interface
• Over-the-Air (OTA) Updates: Battery Management System (BMS) firmware can be updated remotely via manufacturer's mobile application

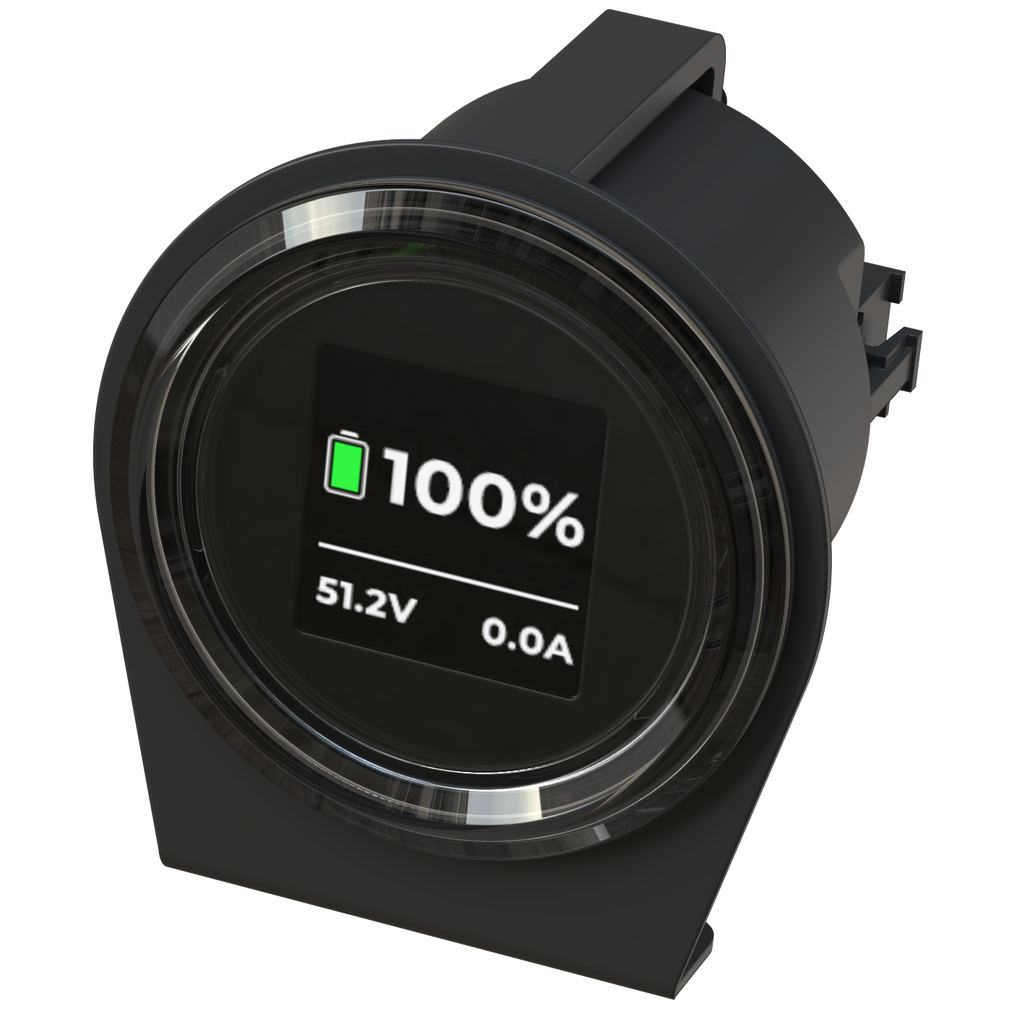

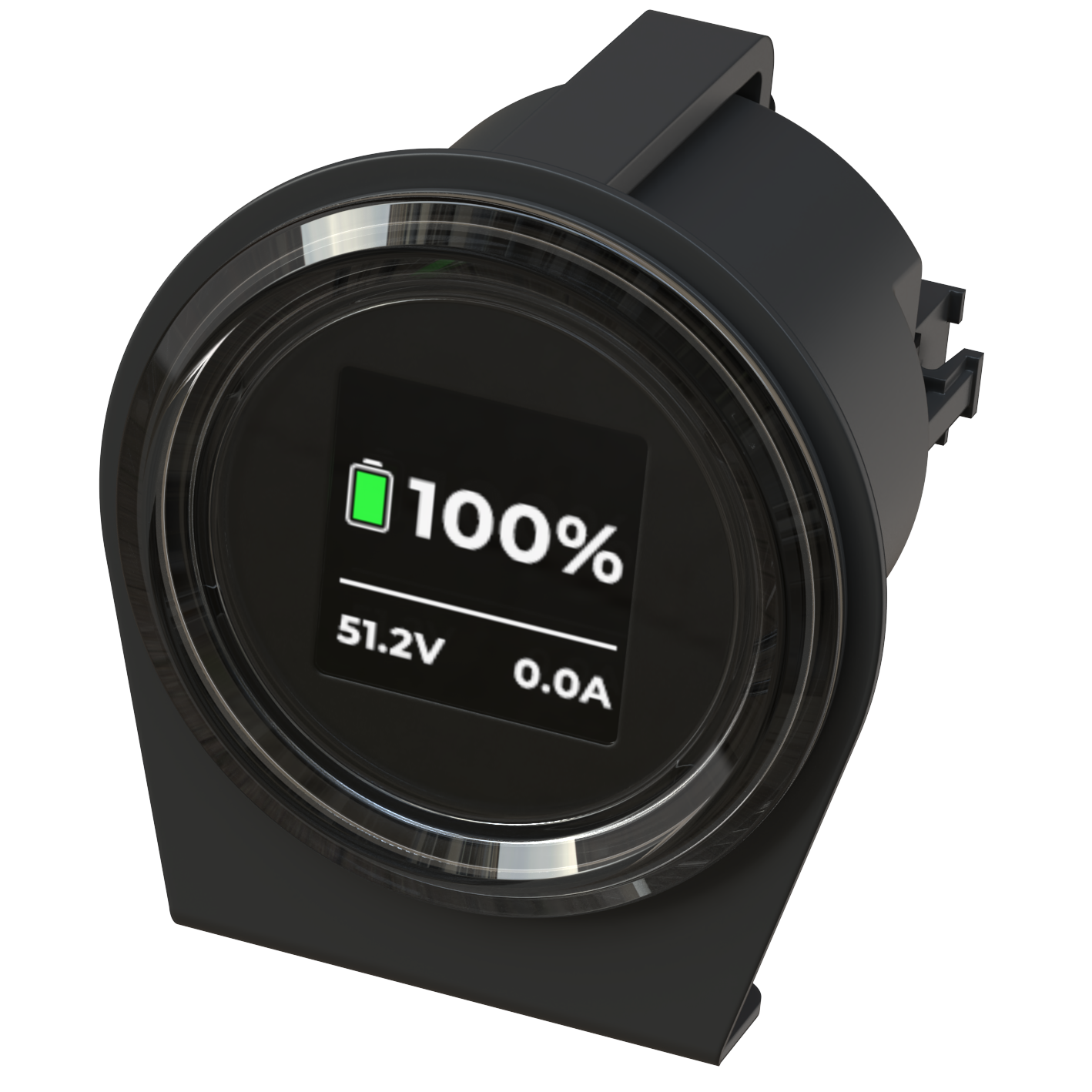

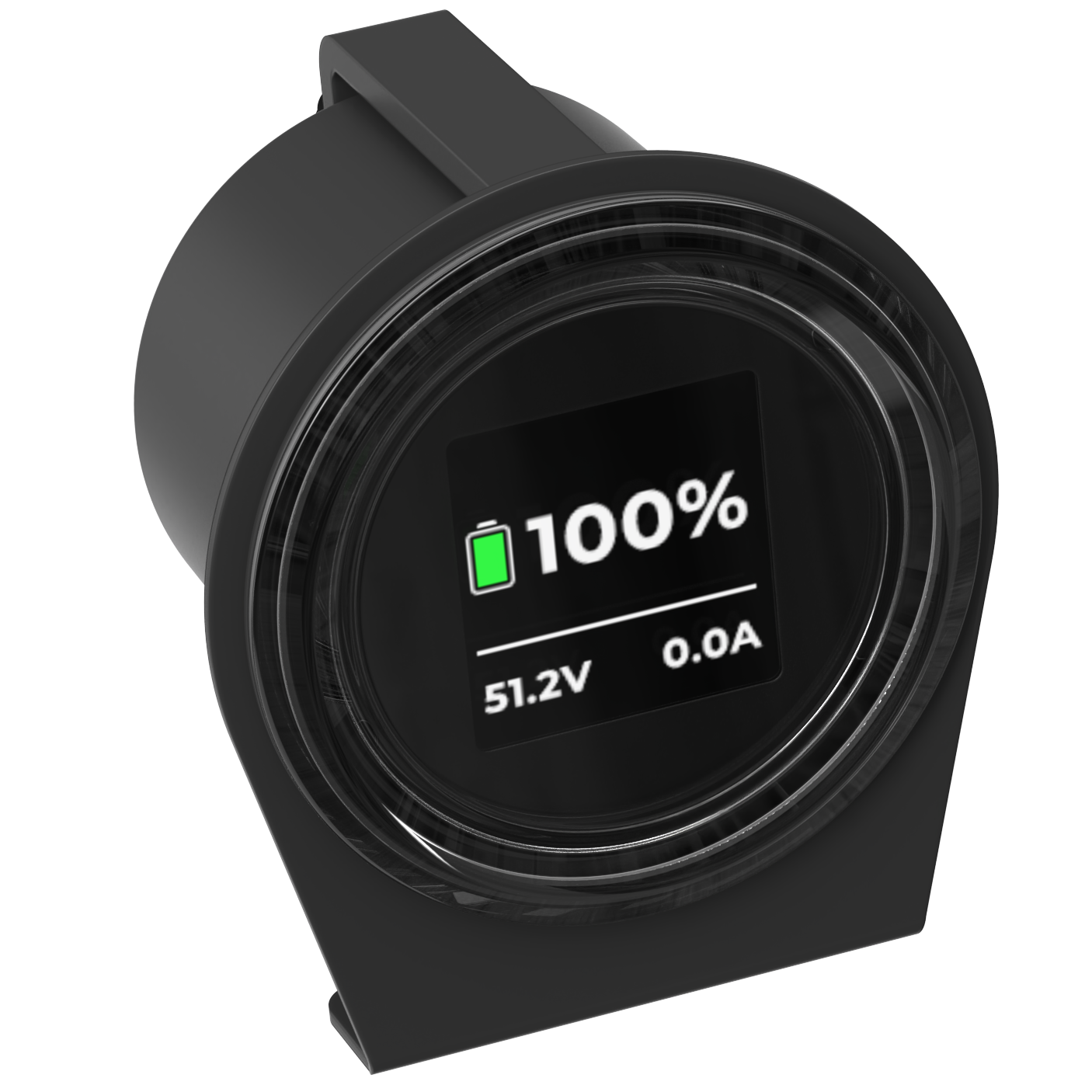

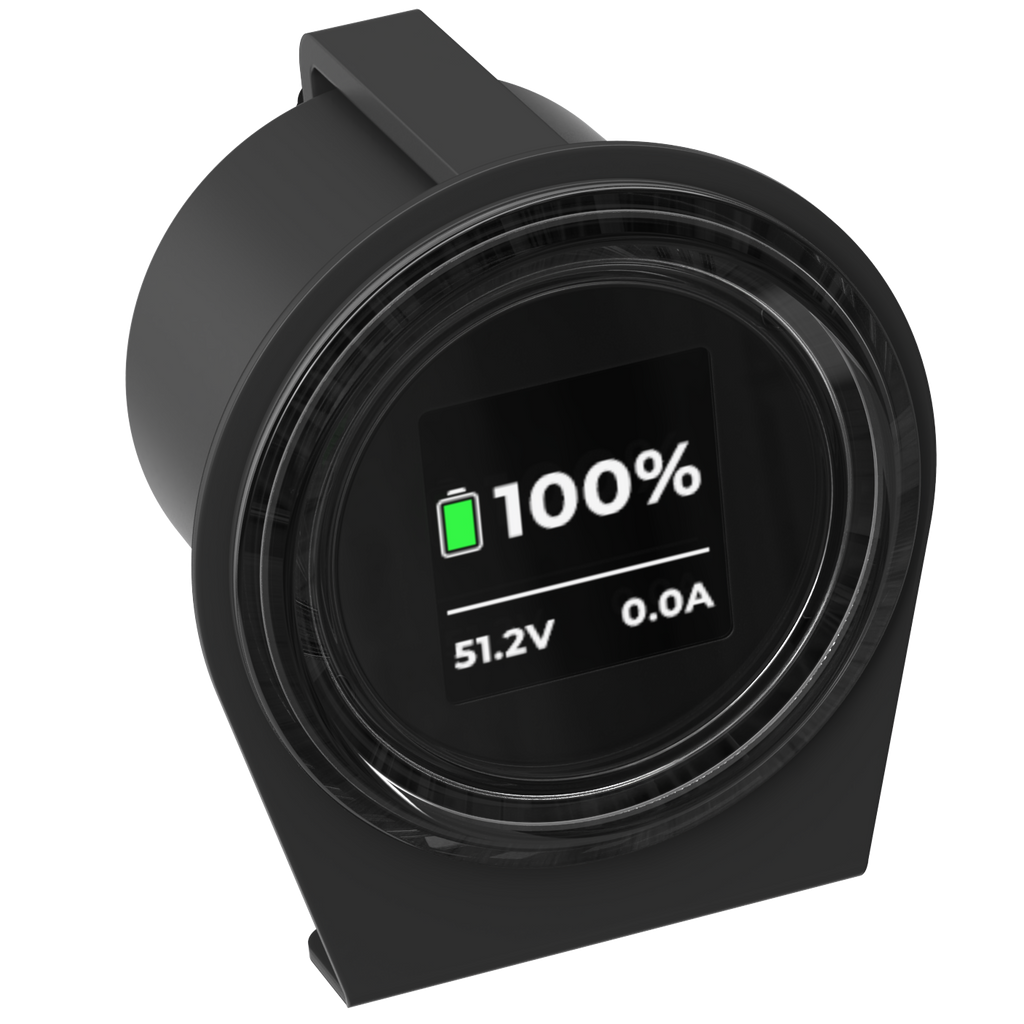

• Upgraded Battery Gauge: Displays State of Charge (SOC), voltage, current flow, and alarm alerts with improved detail compared to 10-segment gauge in previous version

Features & Battery Management System

This battery includes the following manufacturer-specified features:

• Integrated Heating System: Enables charging in temperatures from -20°C to 55°C (-4°F to 131°F) when heating function is active
• Bluetooth 4.0 Connectivity: Wireless monitoring and control via Epoch Batteries mobile application
• CAN Bus Communication: Compatible with Victron Energy Cerbo GX, Ekrano GX, and Cerbo Mk2 devices using VE.CAN protocol at 500 KBPS LV
• Battery Management System (BMS): Monitors and protects against over-charge, over-discharge, over-current, short circuit, and temperature extremes
• Cell Balancing: BMS actively monitors and balances individual cell voltages during charging process
• Scalable Design: Connect up to 16 batteries in parallel using RJ45 communication cables with daisy-chain configuration
• IP65 Rating: Dust-tight enclosure with protection against water jets from any direction (per IEC 60529 standard)
• Natural Cooling: Passive convection cooling system requires no fans or active thermal management

Recommended Charge Settings

For Non-Victron Systems (per Epoch Batteries specifications):

• Absorption Voltage: 14.2V
• Absorption Time: Minimum 15 minutes per battery in parallel configuration
• Float Voltage: 13.5V
• Equalization: Disabled/Off (not applicable for LiFePO4 chemistry)
• Temperature Compensation: None (not required for LiFePO4 chemistry)

For Victron Energy Systems Setup:

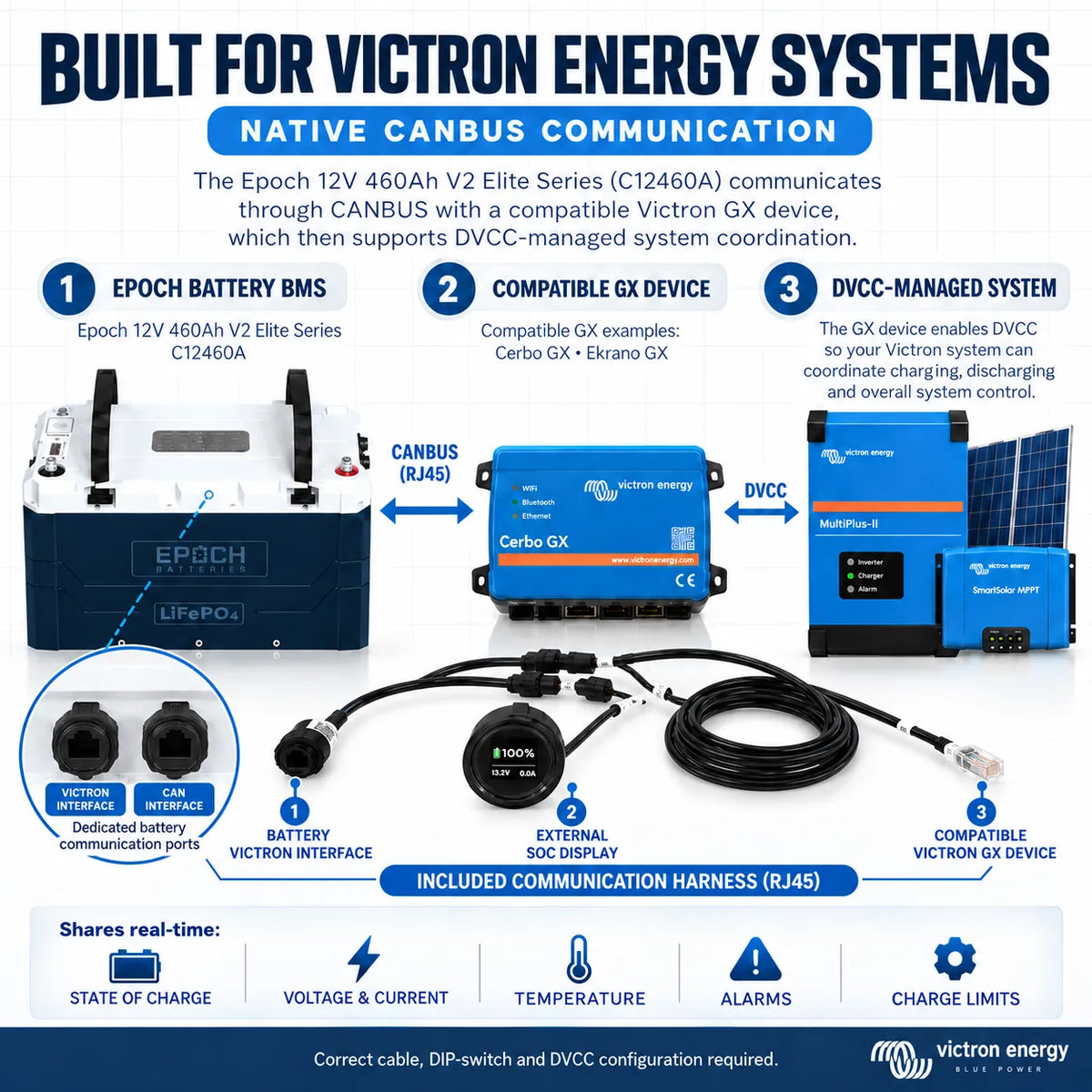

Physical Connection Procedure:

• Connect waterproof bung to master battery blue communication port
• Connect RJ45 cable from master battery black port to first slave battery blue port
• Continue daisy-chain connection using RJ45 cables (black port to next battery's blue port) for up to 16 batteries
• Configure DIP switches according to manufacturer installation manual
• Connect grey RJ45 cable to Cerbo GX or Ekrano GX BMS CAN port
• For Cerbo Mk2: Connect grey RJ45 cable to VE.CAN1 or VE.CAN2 port and set VE.CAN port speed to 500 KBPS LV in Victron settings

Victron System Configuration Steps:

• Verify Epoch battery appears in device list on Victron GX display
• Select battery device and navigate to Details screen
• Confirm "Modules Online" count matches number of installed batteries
• Verify total Ah capacity equals 460Ah multiplied by number of batteries installed
• Enable DVCC (Distributed Voltage and Current Control) in Victron settings
• Set "Controlling BMS" parameter to Epoch
• Set "Battery Monitor" parameter to Epoch
• Verify "External Control" appears on inverter tile during charging (not during inverting)
• System will automatically cycle between 14.2V absorption voltage and 13.5V float voltage
• Recommended Backup: Manually program 14.2V absorption and 13.5V float voltages in MultiPlus, Quattro, and all other charge sources as backup parameters in case of CAN communication loss

Note: Epoch Batteries continues to refine and improve CAN communication protocols. Refer to latest manufacturer documentation for updates.

Compatibility

Victron Energy Systems:

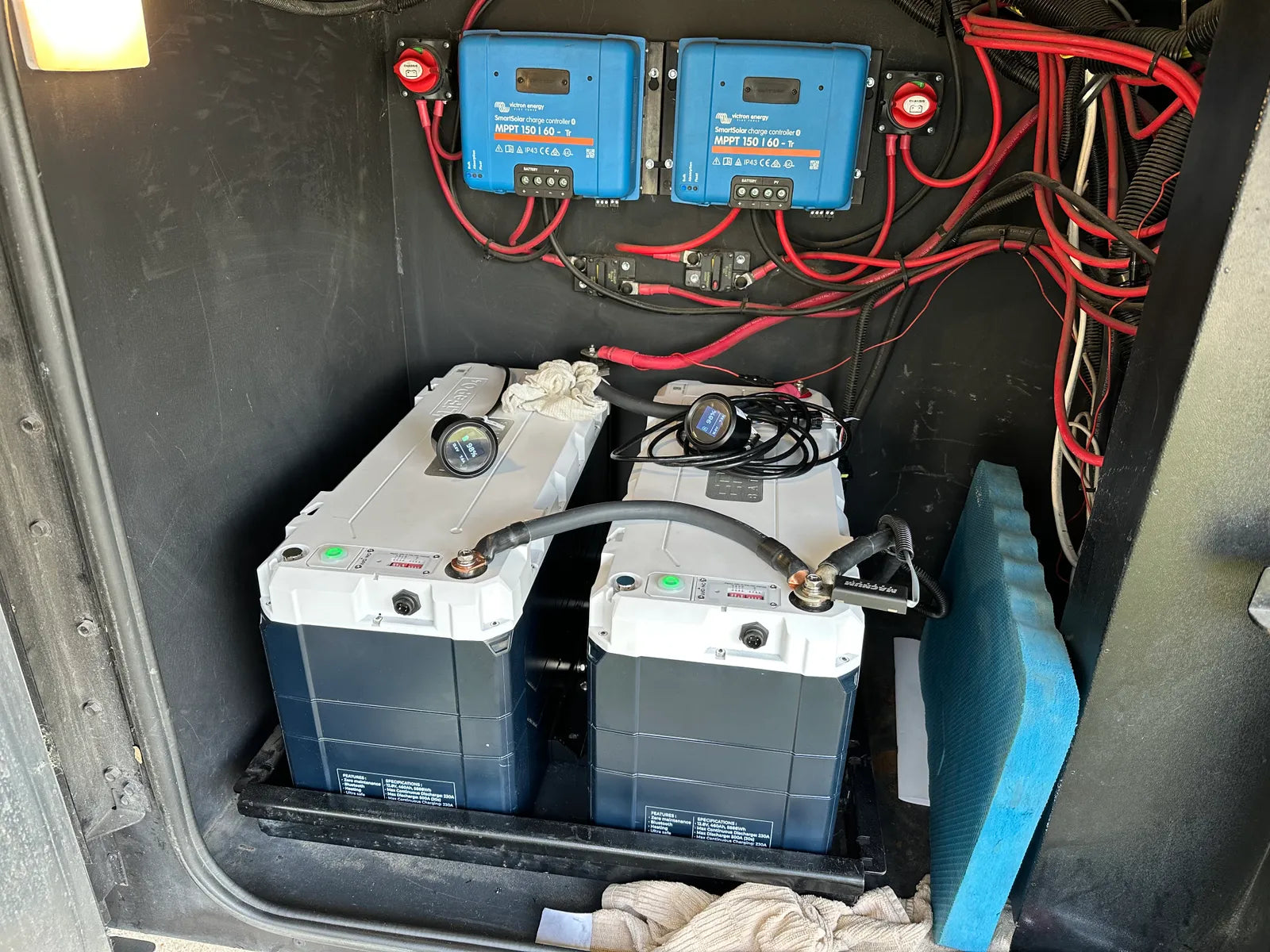

This battery is compatible with Victron Energy equipment including Cerbo GX, Ekrano GX, Cerbo Mk2, MultiPlus and Quattro inverter/chargers, and Victron charge controllers that support external BMS control via VE.CAN protocol.

Non-Victron Systems:

This battery can be used with other 12V lithium-compatible inverters, inverter/chargers, and charge controllers that support the manufacturer's recommended charge voltage parameters (14.2V absorption, 13.5V float). Verify your equipment supports lithium battery profiles before purchase.

Applications

This battery is suitable for the following applications per manufacturer specifications:

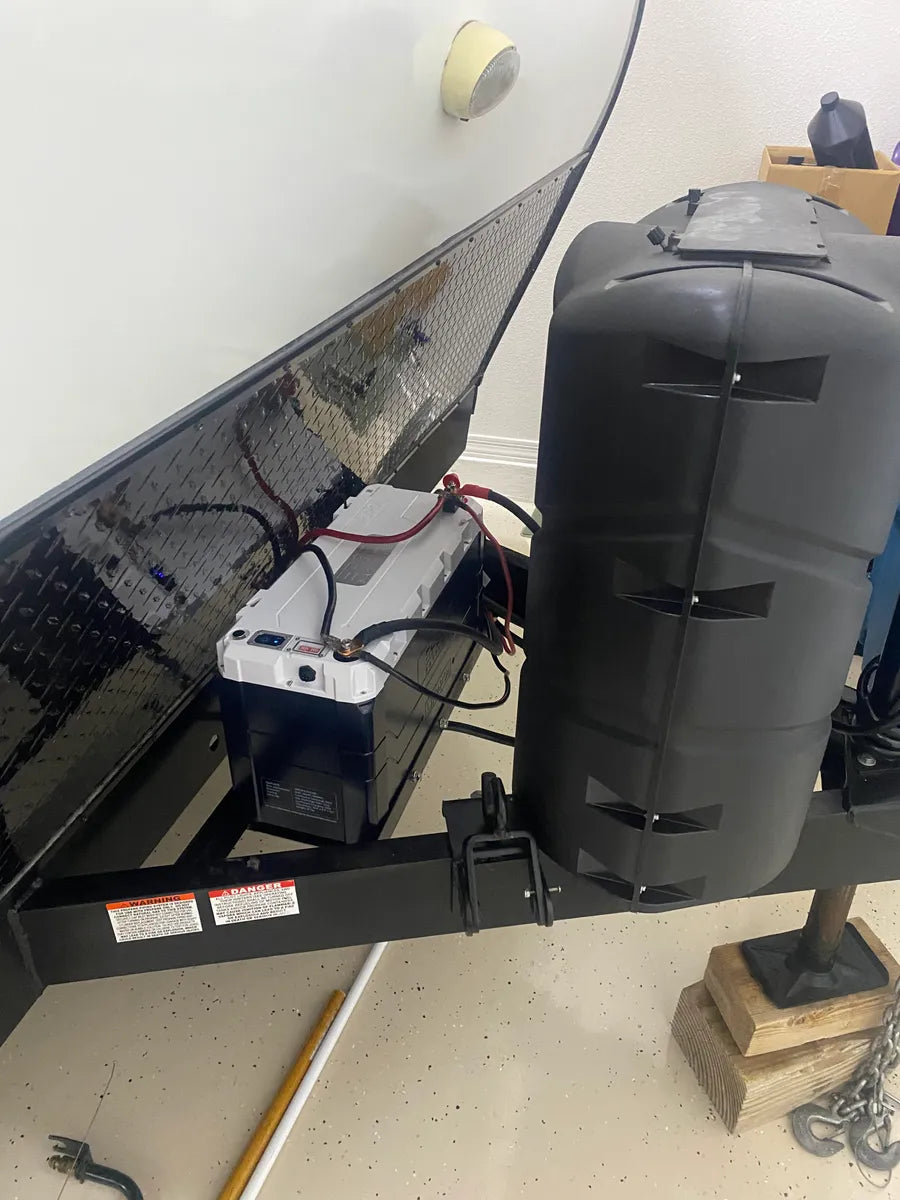

• Recreational Vehicles (RV): House battery banks for motorhomes, camper vans, travel trailers, and fifth wheels requiring 12V DC power systems
• Marine Applications: Onboard power for sailboats, yachts, and powerboats (IP65 rating provides protection against water exposure)
• Off-Grid Solar Energy Storage: Battery banks for residential and commercial solar systems, supporting configurations from single battery (5.888kWh) up to 16 batteries in parallel (88kWh total)
• Backup Power Systems: Emergency power for homes, commercial facilities, telecommunications equipment, and other applications requiring 12V DC power storage

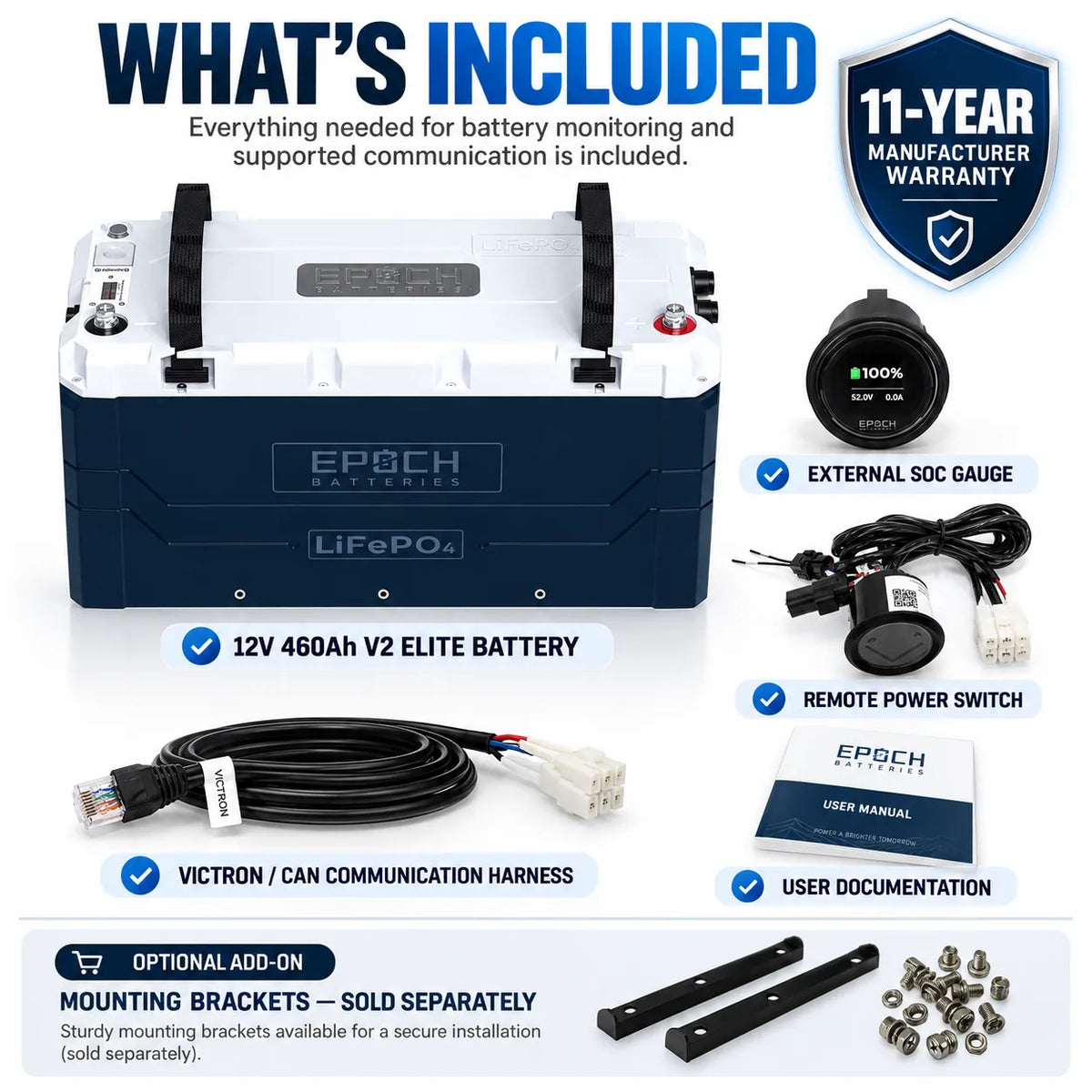

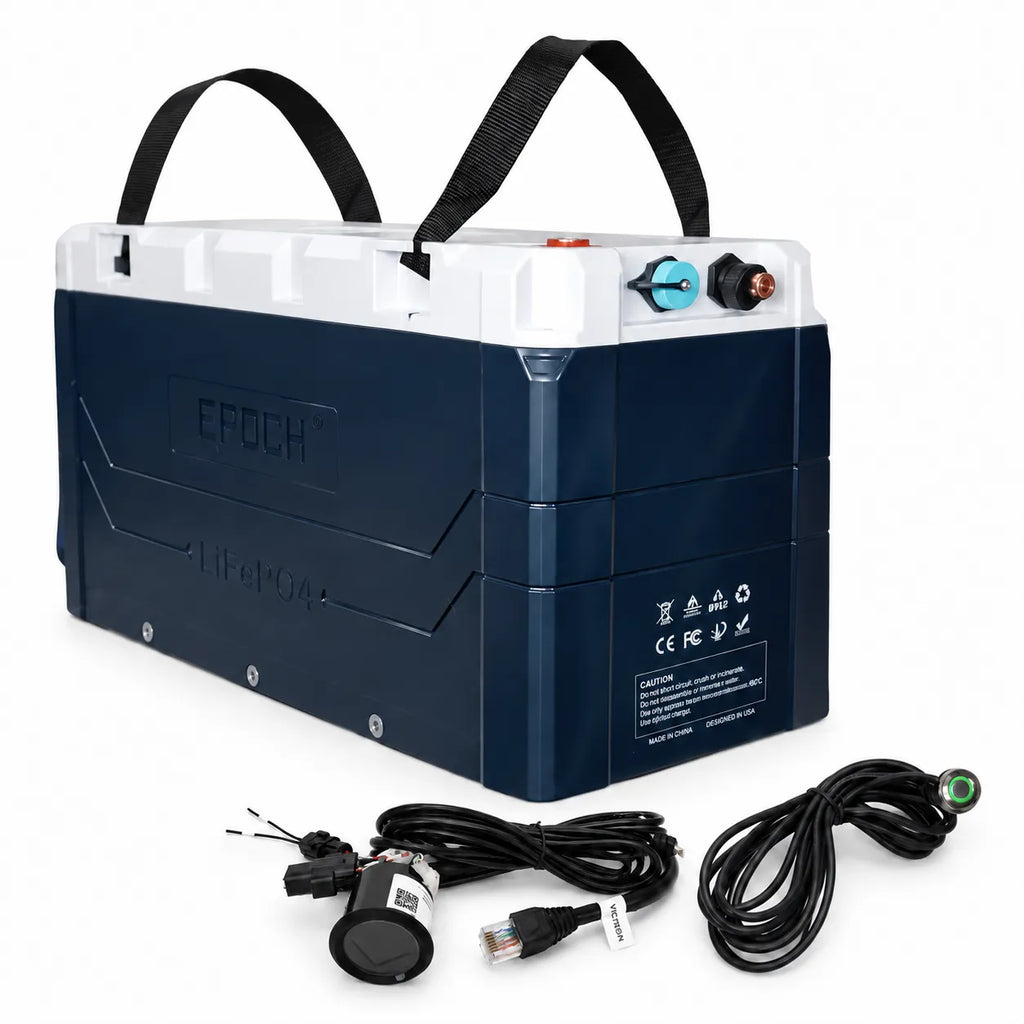

What's Included

• Epoch C12460A 12V 460Ah V2 Elite Series LiFePO4 Battery (1 unit)
• RJ45 communication cables for parallel battery connection
• Extension cables for CAN communication
• Waterproof port plugs
• User manual and installation guide


Important Note: We are an authorized dealer of Epoch Batteries. This battery is covered by Epoch Batteries' manufacturer warranty. Complete warranty details and manufacturer contact information are available in the Warranty tab above. The manufacturer's technical datasheet is also available in the Resources section of this product page.
