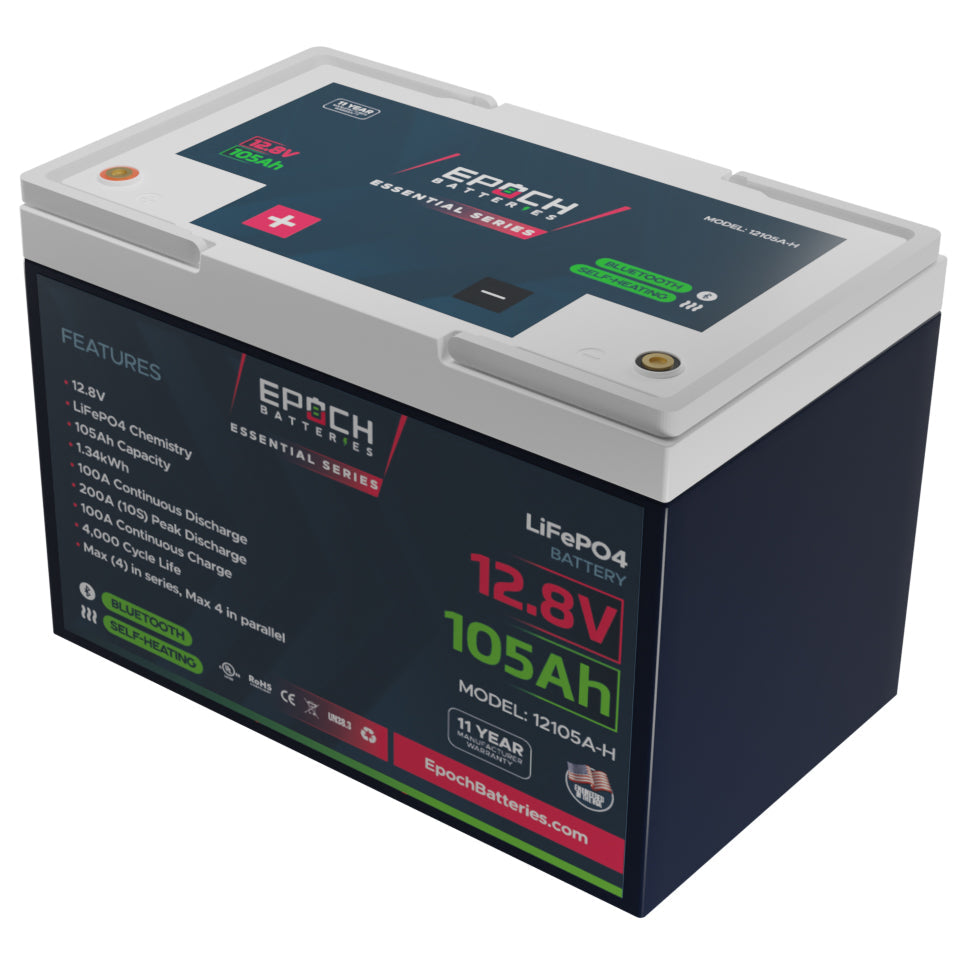

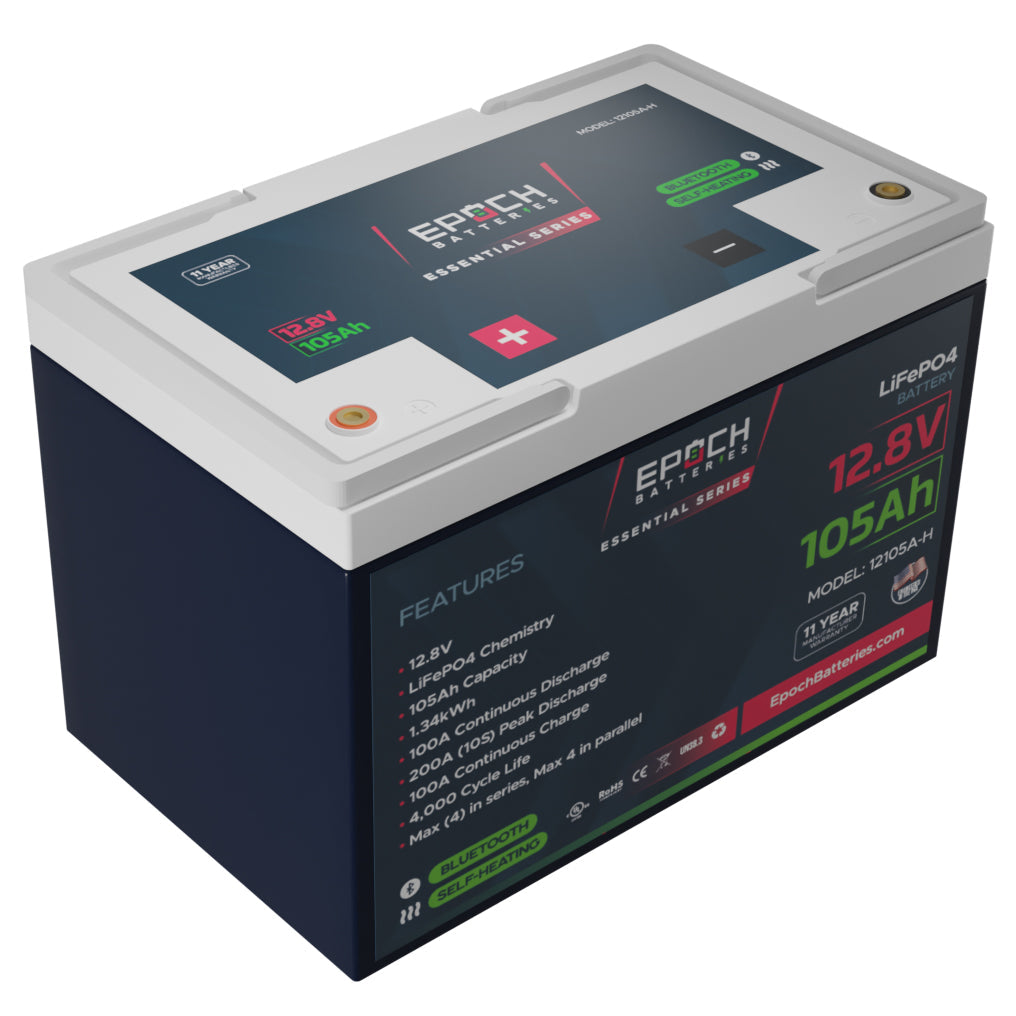

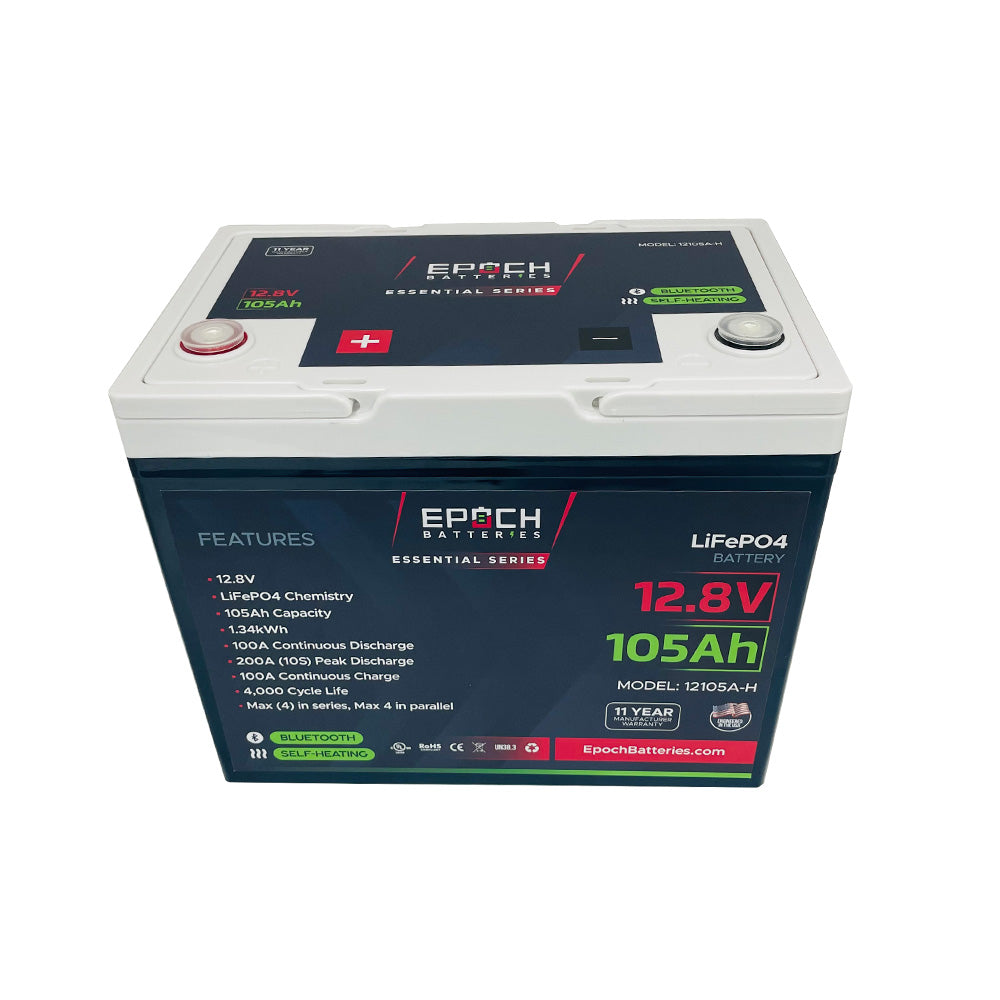

Epoch 12V 105Ah Essential Series LiFePO4 Battery - Group 24 with Bluetooth and Heating
Power Solution for RV, Marine, and Solar Applications
Experience reliable power in various weather conditions with our Group 24 LiFePO4 battery featuring built-in heating and Bluetooth monitoring. Suitable for RVs, boats, trolling motors, and off-grid solar systems.
Key Features
-
Self-Heating Technology: Built-in heating pads allow charging in temperatures as low as -4°F (-20°C), ensuring reliable performance in cold weather conditions
-
Bluetooth Monitoring: Real-time battery monitoring through the Epoch Batteries app for iOS and Android devices
-
Group 24 Size: Drop-in replacement for lead-acid batteries with standard Group 24 dimensions
-
105Ah Deep Cycle Capacity: Provides consistent power for extended periods with over 4,000 cycle life
-
LiFePO4 Chemistry: Safety, stability, and longevity compared to traditional battery types
-
Smart Battery Management System: Built-in protection against overcharge, over-discharge, short circuit, and temperature extremes
-
Maintenance-Free Operation: No regular maintenance required for hassle-free use
Technical Specifications
| Specification |
Value |
| Nominal Voltage |
12.8V |
| Capacity |
105Ah |
| Chemistry |
LiFePO4 (Lithium Iron Phosphate) |
| Dimensions (L x W x H) |
10.25" x 6.75" x 9" (260 x 171 x 229mm) |
| Weight |
22.1 lbs (10kg) |
| Max Continuous Discharge |
105A |
| Max Charge Current |
100A (200A for 10 seconds) |
| Operating Temperature |
-4°F to 140°F (-20°C to 60°C) |
| Charging Temperature |
-4°F to 131°F (-20°C to 55°C) with heating |
| Series/Parallel Connections |
Max 4 in series, Max 4 in parallel |
| Cycle Life |
4,000+ cycles at 80% DOD |
| Communication |
Bluetooth, CAN bus, RS485 |
| IP Rating |
IP54 |
Applications

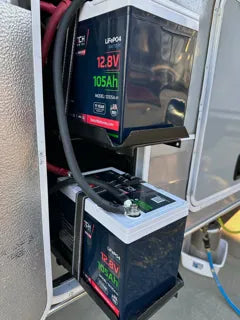

RV and Motorhome Power
Suitable for house batteries in RVs and motorhomes. The heated design ensures reliable operation during winter camping, while Bluetooth monitoring lets you track power usage from inside your vehicle.

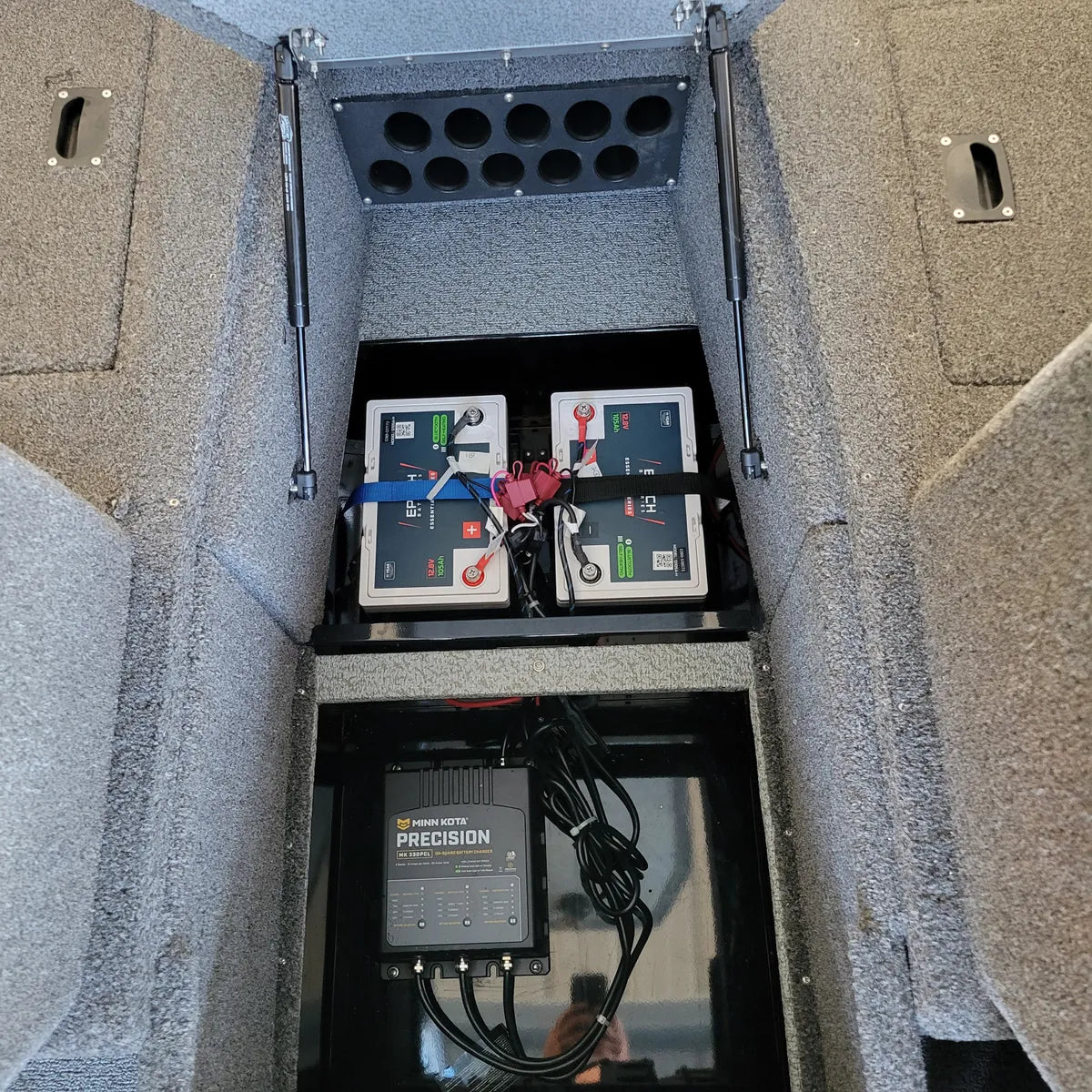

Marine and Trolling Motors
Suitable for marine applications including trolling motors, fish finders, and onboard electronics. The Group 24 size fits standard marine battery boxes and provides consistent power for all-day fishing.
Solar Energy Storage
Works well for off-grid solar systems and backup power. Store excess solar energy during the day and use it at night. The long cycle life makes it cost-effective for daily cycling applications.
Off-Grid Cabins
Reliable power source for remote cabins and off-grid installations. The cold weather performance ensures year-round operation in harsh conditions.
Cold Weather Performance
Heating Technology: The integrated heating system automatically activates when temperatures drop below 32°F (0°C), allowing the battery to charge safely in freezing conditions. This makes it suitable for winter RVing, ice fishing, and cold climate applications where traditional batteries have limitations.
Bluetooth Monitoring
Monitor your battery's performance in real-time using the Epoch Batteries app. Track voltage, current, temperature, state of charge, and cycle count directly from your smartphone or tablet. The app provides alerts for low voltage, high temperature, and other important conditions.
Safety Features
-
Overcharge Protection: Prevents damage from excessive charging voltage
-
Over-discharge Protection: Automatically disconnects at low voltage to preserve battery life
-
Short Circuit Protection: 600A protection at 500μs response time
-
Temperature Management: High and low temperature disconnects protect the cells
-
Current Limiting: Prevents damage from excessive current draw
Installation and Compatibility
This Group 24 battery is designed as a direct replacement for lead-acid batteries in most applications. The standard Group 24 dimensions ensure compatibility with existing battery boxes and mounting systems. Terminal type is M8 with recommended torque of 20-35Nm.
Important: Always verify that your charging system is compatible with LiFePO4 batteries and can be programmed for the correct voltage settings. Consult your charger's manual or manufacturer if unsure.
Recommended Charging Settings
| Setting |
Value |
| Bulk/Absorption Voltage |
14.2V - 14.6V |
| Float Voltage |
13.4V - 13.8V |
| Equalization |
14.4V or Disabled |
| Temperature Compensation |
Disabled |
| Recommended Charge Rate |
50A (50% of capacity) |
| Absorption Time |
30 minutes for parallel connections |
Why Choose LiFePO4 Over Lead-Acid
-
Longer Lifespan: 4,000+ cycles vs 300-500 for lead-acid
-
Lighter Weight: 22 lbs vs 60+ lbs for equivalent lead-acid
-
Faster Charging: Can accept higher charge currents for quicker recharging
-
Deeper Discharge: Use 80-90% of capacity vs 50% for lead-acid
-
No Maintenance: No water to add or terminals to clean
-
Better Performance: Maintains voltage throughout discharge cycle
Package Contents
- Epoch 12V 105Ah Essential Series LiFePO4 Battery
- User Manual and Installation Guide
- Warranty Information
Note: This battery is designed for deep cycle applications and is not suitable for engine starting. Always follow proper installation procedures and safety guidelines. Professional installation is recommended for complex systems.
