If your 48V EZGO TXT or Express is still running on six 8-volt lead-acid batteries, this Eco Battery 48V Lithium Battery Bundle (51.2V nominal) replaces the entire pack with one Gen3 LiFePO4 lithium battery. You get rid of battery watering, acid corrosion, and hundreds of pounds of lead, and you get a complete, cart-specific kit to do the conversion.
Choose the capacity that fits how you ride:
-
48V 105Ah Skinny (SKU B-3281): 5.3 kWh, 113 lb. A slim 9.75-inch-wide case that installs in the stock TXT battery tray. Eco Battery estimates about 54 holes of golf plus the drive to and from the course per charge, depending on terrain. A strong fit for most stock carts.
-
48V 160Ah (SKU B-3285): 8.1 kWh, 165 lb. The highest total kWh in Eco Battery's 48V lineup, with about 50% more stored energy than the 105Ah. Includes a replacement TXT battery tray. Built for maximum range and for modified carts with lift kits, oversized tires, extensive lighting, and upgraded stereos.
Both bundles include a CAN-communicating 15A charger, a 12V converter for lights and accessories, a CAN LCD state-of-charge meter, an EZGO TXT-specific charge port, mounting hardware, a remote wake-up button, and an extension cord.
Both batteries use Eco Battery's in-house Gen3 Battery Management System (BMS), are available in standard or heated versions, and are backed by Eco Battery's Limited Lifetime Warranty when registered within 60 days of purchase.
These 48V lithium bundles are for 48V lead-acid carts. If your cart has six 6-volt batteries (36V), see the Fitment tab before ordering.
Upgrade Benefits
Here is what changes when you move your TXT or Express from lead-acid to Eco Battery lithium.
-
No more maintenance. No water filling, no acid spills, and no corroded terminals or battery tray.
-
One battery instead of six. A single lithium battery replaces the six-battery lead-acid pack, with fewer cables and connections to check.
-
A lighter cart. Eco Battery lists lithium at about one-third the weight of lead-acid.
-
Longer battery life. Eco Battery rates its lithium at about 3X the life expectancy of lead-acid, backed by a Limited Lifetime Warranty.
-
Flexible charging. Lithium accepts partial "opportunity" charging throughout the day without the degradation seen in lead-acid.
-
Know your exact charge level. The included CAN LCD meter shows state of charge at a glance.
-
Worry-free storage. The battery can sit for extended periods without charging, and Power Save Mode reduces drain when the cart is parked.
-
Keep your lights and accessories. The included DC-DC 12V converter powers headlights, taillights, and other 12V accessories.
-
Room for upgrades. Both batteries are rated for 250A continuous and 600A peak (5 seconds) discharge, supporting stock and modified carts.
| What changes |
Stock lead-acid pack |
Eco Battery 48V lithium |
| Batteries in the cart |
Six 8V batteries |
One 48V battery (51.2V nominal) |
| Routine maintenance |
Watering and terminal cleaning |
None required |
| Charge level display |
Varies by cart |
CAN LCD state-of-charge meter |
| Charger |
Lead-acid charger |
15A CAN lithium charger (included) |
| Warranty |
Varies by brand |
Limited Lifetime (registration required) |
Compare Variants
Which capacity is right for you?
-
Choose the 105Ah Skinny if your cart is stock or lightly modified, you mostly ride around the neighborhood or golf course, and you want the lighter battery that installs in the stock tray.
-
Choose the 160Ah if you want the longest range between charges, or your cart has a lift kit, oversized tires, a rear seat, extensive lighting, or an upgraded stereo.
|
48V 105Ah Skinny |
48V 160Ah |
| Bundle SKU |
B-3281 |
B-3285 |
| Stored energy |
5.3 kWh |
8.1 kWh |
| Weight |
113 lb |
165 lb |
| Width |
9.75 in |
12.125 in |
| Mounting |
Stock TXT tray with included hardware |
Included Eco Battery replacement TXT tray |
| Estimated charge time from empty (15A) |
About 7 hours |
About 10.5 hours |
| Estimated charge time from 50% (15A) |
About 3.5 hours |
About 5.3 hours |
| Best for |
Stock and lightly modified carts |
Maximum range and heavily modified carts |

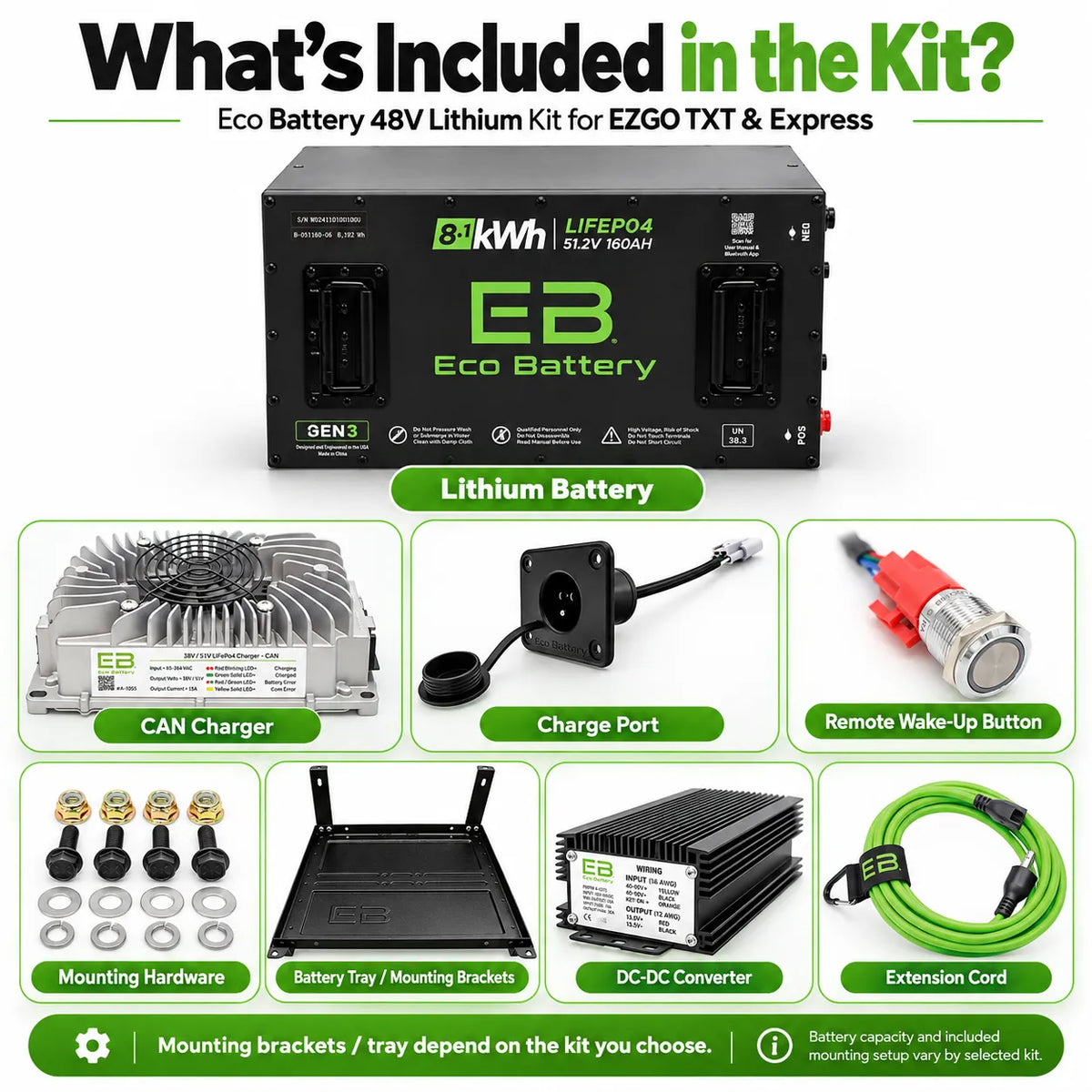

What's included
| Component |
105Ah Skinny |
160Ah |
| Gen3 LiFePO4 battery |
A-051105-03 (51V 105Ah Skinny) |
A-051160-06 (51V 160Ah) |
| A-1055 38V-51V 15A CAN Charger |
Included |
Included |
| A-1272 DC-DC 12V Converter (40V-90V input) |
Included |
Included |
| A-3109 CAN LCD SOC Meter |
Included |
Included |
| A-4022 Eco Battery Charge Port, EZGO TXT |
Included |
Included |
| A-8003 Battery Mounting Hardware, 5/16 in |
Included |
Included |
| A-8112 Eco Battery Replacement Tray, EZGO TXT |
Not included |
Included |
| A-4220 Remote Button Battery Wake-Up Kit |
Included |
Included |
| A-4401-240 EB Extension Cord |
Included |
Included |
Features
-
Gen3 LiFePO4 battery: 48V (51.2V nominal) with Grade A prismatic lithium iron phosphate cells, in 105Ah (5.3 kWh) or 160Ah (8.1 kWh). Benefit: a stable, safe chemistry built for daily cart use.
-
Cart-specific install kit: EZGO TXT charge port, mounting hardware, and (160Ah) a replacement TXT tray. Benefit: a clean, OEM-style finished install.
-
Gen3 BMS: Designed by Eco Battery's U.S.-based engineering team, with short circuit, over current, over charge, over discharge, high and low temperature, and freeze charge protection. Benefit: the battery only operates within its designed limits.
-
CAN communication: The battery, charger, and meter communicate over CAN. Benefit: safer charging and accurate state-of-charge readings.
-
High discharge capability: 250A continuous, 550A for 10 seconds, 600A for 5 seconds on both variants. Benefit: supports stock and modified carts, including hills.
-
Remote wake-up button: Included with both bundles. Benefit: wake the battery without reaching under the seat.
-
Power Save Mode: Automatic and adjustable power-off timers. Benefit: reduces battery drain during storage.
-
EB Power app: Monitor voltage, current, temperature, and state of charge, and apply Gen3 firmware updates. Benefit: keep your battery current and see how it is performing.
-
IP67 powder-coated steel case: Benefit: a rugged, sealed enclosure for outdoor cart use.
-
Standard or heated models: The heated version warms itself before charging below 32°F. Benefit: charge in cold climates without waiting for warmer weather.
Fitment
Compatible carts
- EZGO TXT 48V electric with a lead-acid pack of six 8-volt batteries
- EZGO Express S4 / L4 48V electric with a lead-acid pack (TXT platform, 2012-2019)
How to confirm your cart is 48V: Count the batteries and read their labels. Six 8-volt batteries = 48V (compatible). Six 6-volt batteries = 36V (not compatible as a direct swap).
Not compatible without additional parts
- 36V EZGO TXT carts: a 48V lithium battery requires a full 48V conversion, including a controller, solenoid, and charger rated for 48V. Eco Battery offers a separate 38V bundle for stock 36V TXT carts.
- Carts with factory lithium (EZGO ELiTE): these are not lead-acid conversions and require a factory lithium replacement kit.
- 2020 and newer Express models with 72V lead-acid or ELiTE lithium systems.
Installation notes: The factory charge port is replaced with the included Eco Battery charge port. The small drive-off protection wire from the factory port must be connected to the battery positive terminal so the controller can operate. The 105Ah Skinny mounts in the stock tray by drilling four 1/4-inch holes and securing it with the included 5/16-inch hardware. The 160Ah mounts on the included replacement tray. If you are not comfortable with electrical work, use a professional installer.
Specifications
| Specification |
48V 105Ah Skinny |
48V 160Ah |
| Brand |
Eco Battery |
Eco Battery |
| Bundle SKU |
B-3281 |
B-3285 |
| Battery Part Number |
A-051105-03 (Gen3) |
A-051160-06 (Gen3) |
| System Voltage / Nominal Voltage |
48V / 51.2V |
48V / 51.2V |
| Nominal Capacity |
105Ah |
160Ah |
| Energy Capacity |
5.3 kWh |
8.1 kWh |
| Max Continuous Discharge |
250A |
250A |
| Max Discharge (10 seconds) |
550A |
550A |
| Max Discharge (5 seconds) |
600A |
600A |
| Cell Chemistry |
LiFePO4 |
LiFePO4 |
| Cell Type / Count |
Prismatic / 16 |
Prismatic / 32 |
| Cell Configuration |
1P16S |
2P16S |
| Weight |
113 lb (51.25 kg) |
165 lb (74.84 kg) |
| Dimensions (L x W x H) |
22 x 9.75 x 10.43 in |
22 x 12.125 x 10.625 in |
| Charging Temperature |
32°F and above (standard model) |
32°F and above (standard model) |
| Discharge Temperature |
-4°F to 140°F |
-4°F to 140°F |
| Shell Type |
Powder-coated steel |
Powder-coated steel |
| IP Rating |
IP67 |
IP67 |
| Communication |
CAN |
CAN |
| Charger |
15A CAN (included) |
15A CAN (included) |
| Model Options |
Standard or Heated |
Standard or Heated |
| Warranty |
Battery: Limited Lifetime (Gen3, registration within 60 days required). Charger: 2 years. Accessories: 1 year. |
FAQ
Will this fit my EZGO TXT or Express?
Both variants fit 48V EZGO TXT carts and 48V Express S4 / L4 carts (2012-2019) that use a lead-acid pack of six 8-volt batteries. Count your batteries to confirm: six 8-volt batteries means 48V.
Is this a 48V or 51V battery?
Both. It is a 48V-class lithium battery for 48V golf carts. 51.2V is its nominal voltage: LiFePO4 cells run at 3.2V each, and 16 cells in series equal 51.2V. That is why 48V lithium golf cart batteries are often labeled 51V. It replaces a 48V lead-acid pack of six 8-volt batteries.
Should I choose the 105Ah or the 160Ah?
The 105Ah Skinny (5.3 kWh, 113 lb) suits most stock and lightly modified carts and installs in the stock tray. The 160Ah (8.1 kWh, 165 lb) stores about 50% more energy and is the better choice for maximum range or carts with lift kits, oversized tires, rear seats, extensive lighting, or upgraded stereos.
Can I use this in a 36V TXT?
Not as a direct swap. A 36V cart (six 6-volt batteries) needs a full 48V conversion, including a 48V-rated controller and solenoid. Eco Battery offers a separate 38V bundle for stock 36V TXT carts.
Why won't my cart move after installing the battery?
The most common cause is the drive-off protection wire from the factory charge port. It is the smallest of the three wires on the port and needs constant power for the controller to function. Eco Battery's install guide connects it to the battery positive terminal with a 5/16-inch ring terminal.
Can I keep using my lead-acid charger?
No. Eco Battery batteries are designed to work with Eco Battery chargers. Third-party chargers or battery tenders may cause damage and will void the warranty. The correct 15A CAN charger is included with both variants.
How long does it take to charge?
Using Eco Battery's formula (capacity divided by charger amps) with the included 15A charger: the 105Ah takes about 7 hours from empty and 3.5 hours from 50%; the 160Ah takes about 10.5 hours from empty and 5.3 hours from 50%.
How far can I drive on a charge?
Eco Battery estimates about 54 holes of golf plus the drive to and from the course for a 105Ah battery. The 160Ah stores about 50% more energy for longer range. Actual range depends on terrain, load, tires, and driving style.
Will my headlights and accessories still work?
Yes. The included DC-DC 12V converter powers 12V lights and accessories from the lithium battery.
Do I need to replace my battery cables?
Replace any cables that show age or corrosion. Eco Battery highly recommends larger cables if your cart has bigger tires, extra seats, a higher-amp controller, a larger motor, or anything else that increases amp draw.
Can I charge in cold weather?
The standard model will not accept a charge when its internal temperature is below 32°F. This protects the cells. The heated model warms itself automatically below 32°F before charging resumes.
Should I leave the charger plugged in?
It is fine to leave it plugged in if you will use the cart soon, which gives the BMS time to balance the cells. If you won't use the cart for a few days, disconnect the charger.
How do I store the cart for the off-season?
Charge the battery above 50%, unplug the charger, and turn the battery off. Charge at least once every six months, store above -4°F, and fully charge before use to recalibrate the state of charge reading.
Can I pressure wash the battery?
No. High-pressure washing can damage the battery and is not covered under warranty. Clean it with a damp rag only, and never use chemicals.
Can I wire batteries in parallel or series?
Eco Battery batteries can be wired in parallel using Eco Battery's parallel wiring diagram. They should not be wired in series. Confirm your cart can support a parallel setup before purchasing.
What is the warranty?
Gen3 batteries carry a Limited Lifetime Warranty. The battery must be registered within 60 days of purchase with proof of purchase; otherwise coverage defaults to 1 year. The charger has a 2-year warranty and accessories have a 1-year warranty. Warranties are non-transferable.
How is the battery shipped?
Both batteries exceed parcel weight limits and ship by LTL freight.
