This charger is designed for 12V lithium iron phosphate (LiFePO4) batteries with a capacity of 100 amp hours (Ah) or more. It is calibrated for Dakota Lithium LiFePO4 batteries but will work with any 12V LiFePO4 battery from other manufacturers, as long as the battery is rated at 100Ah or higher and can accept a 50-amp charge rate. It is not compatible with lead-acid, AGM, gel, or SLA batteries. Using it on those battery types can cause damage.

Dakota Lithium does not recommend using this charger on batteries under 100Ah. At 50 amps, the charge rate would be too high relative to the battery's capacity, which accelerates cell wear and reduces overall cycle life. For smaller batteries, Dakota Lithium offers 3A, 10A, and 20A charger models that are more appropriate.

Divide your battery's amp-hour (Ah) rating by 50 to get an approximate charge time in hours. A 135Ah battery takes approximately 2.7 hours. A 320Ah battery takes approximately 6.4 hours. A 560Ah battery takes approximately 11.2 hours. These are estimates; actual times vary depending on the battery's starting state of charge and temperature.

Dakota Lithium's laboratory testing found that the longest battery lifespan occurs at a charge rate of 0.3C or lower, meaning the charger's amp rating should ideally be one-third or less of the battery's Ah capacity. For a 135Ah battery that is approximately 45A, so this charger is close to the optimal range for that size. LiFePO4 batteries can be safely charged at up to 1C (a full charge in one hour), but doing so consistently will reduce total cycle count over time. For most users, a charge time of 3 to 10 hours provides a practical balance of speed and longevity.

LiFePO4 batteries require a charge voltage of 14.4V for a standard 12V configuration. Many lead-acid chargers charge to a different voltage and use algorithms designed for a different chemistry. Using a lead-acid charger on a LiFePO4 battery may undercharge or overcharge the cells over time, reducing capacity and shortening the battery's lifespan. This charger outputs the 14.4V profile Dakota Lithium recommends.

Dakota Lithium batteries include a Battery Management System (BMS) that protects cells from overcharging, over-discharging, short circuits, and excessive current draw. If the BMS shuts the battery down as a protective measure, the battery may appear completely unresponsive. Connecting this charger sends a low-level signal to the BMS that initiates a restart sequence, bringing the battery back online without requiring a separate reset tool.

This charger carries an IP67 rating, which means it is fully dust-tight and protected against water immersion to a depth of 1 meter for up to 30 minutes. It can handle rain, spray, splash, and the wet conditions common in marine and outdoor environments. It is designed for permanent onboard installation in those conditions. Terminals and connections should still be kept as clean and dry as practical to prevent corrosion over time.

The charger stops delivering current when the battery reaches full charge and the indicator turns green. Dakota Lithium recommends disconnecting the charger when charging is complete rather than leaving it connected indefinitely. The Anderson plug makes this straightforward: plug in to charge, unplug when done.

Charging LiFePO4 batteries below 32°F (0°C) is not recommended unless the battery includes an internal heating system. Charging a very cold lithium cell can damage the anode material and reduce capacity over time. Dakota Lithium offers batteries with Internal Even-Heat Technology, such as the DL+ 12V 135Ah and DL+ 12V 320Ah, that allow for safe cold-weather charging. If your battery does not have internal heating, bring it above freezing before connecting the charger.

Yes. The charger accepts 100–240V AC input at 50 or 60Hz, which covers the standard household current used in North America, Europe, Australia, and most other regions. A plug adapter for different outlet formats may be needed, but no voltage converter is required.

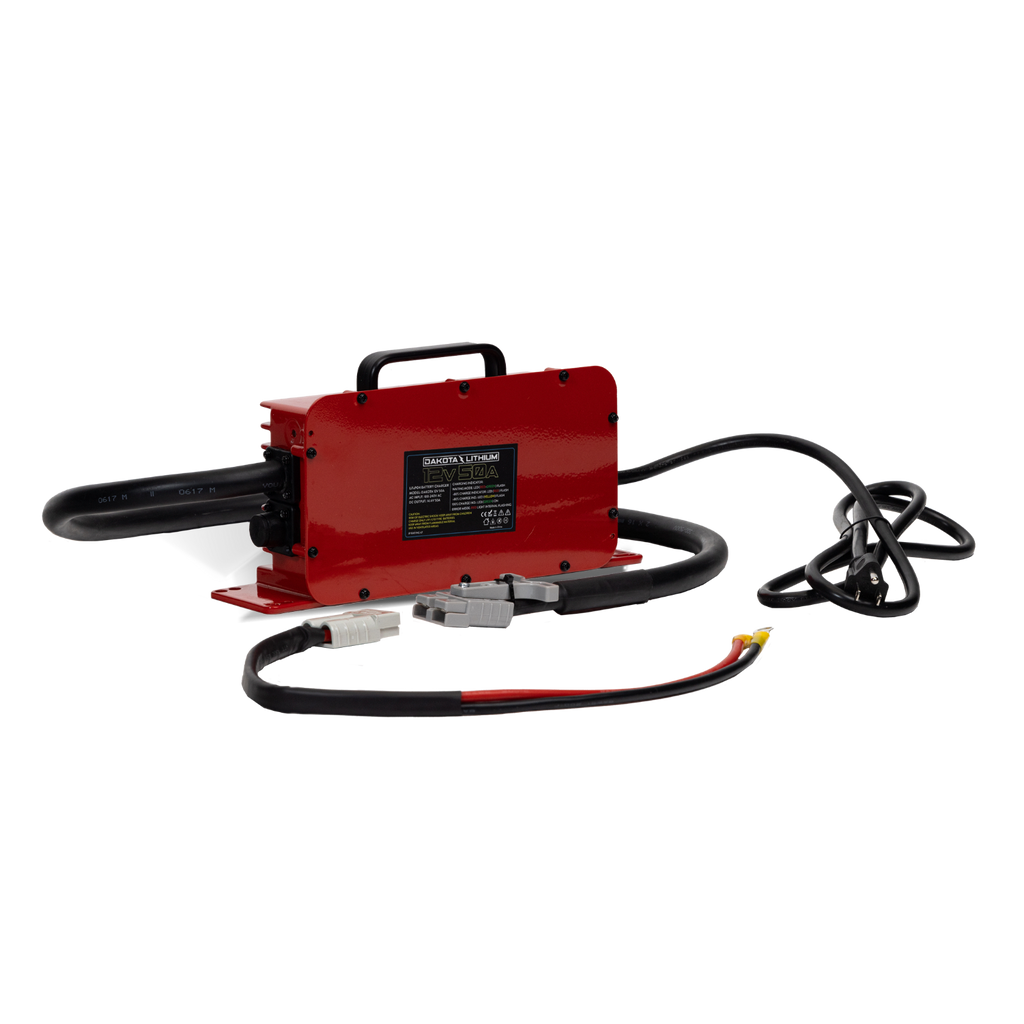

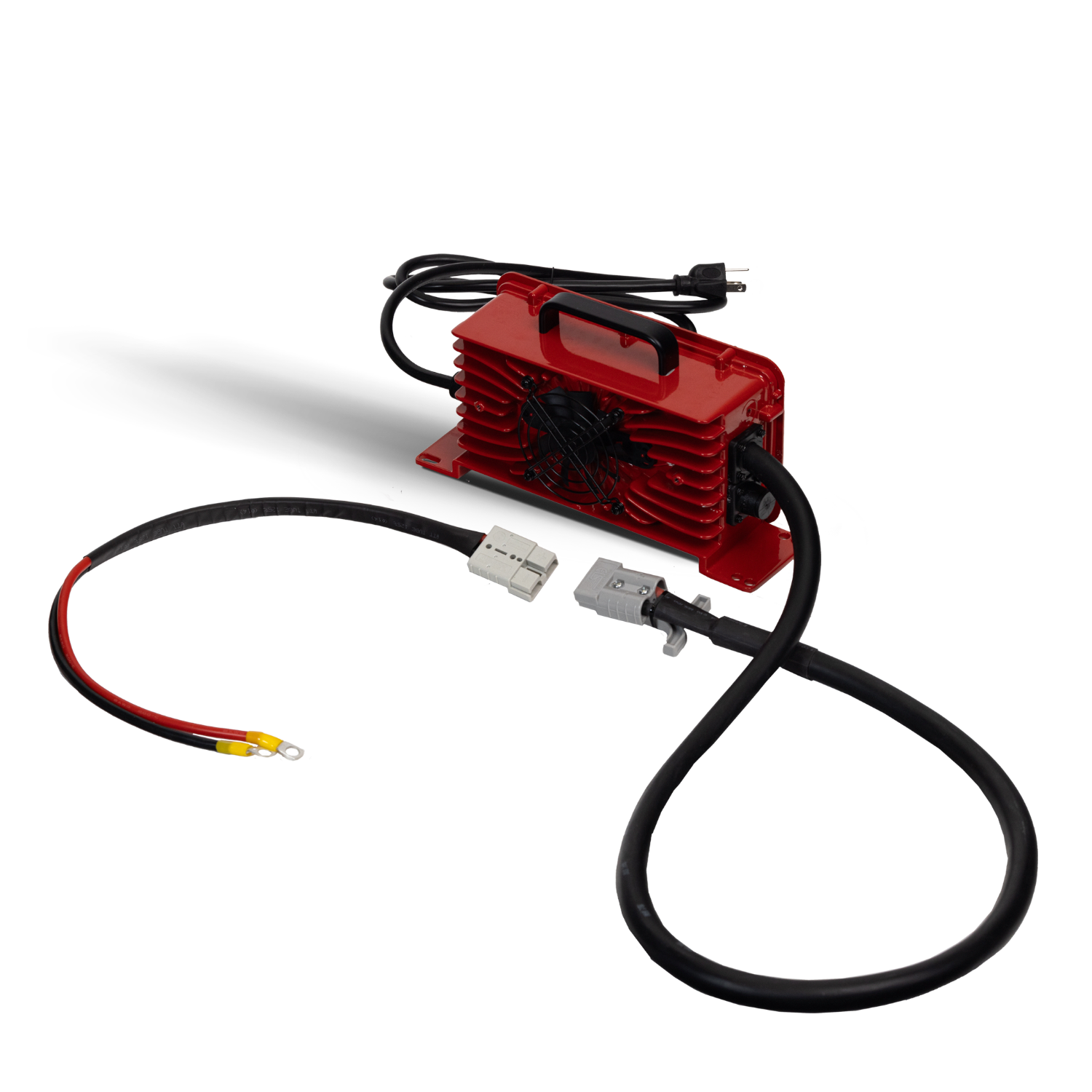

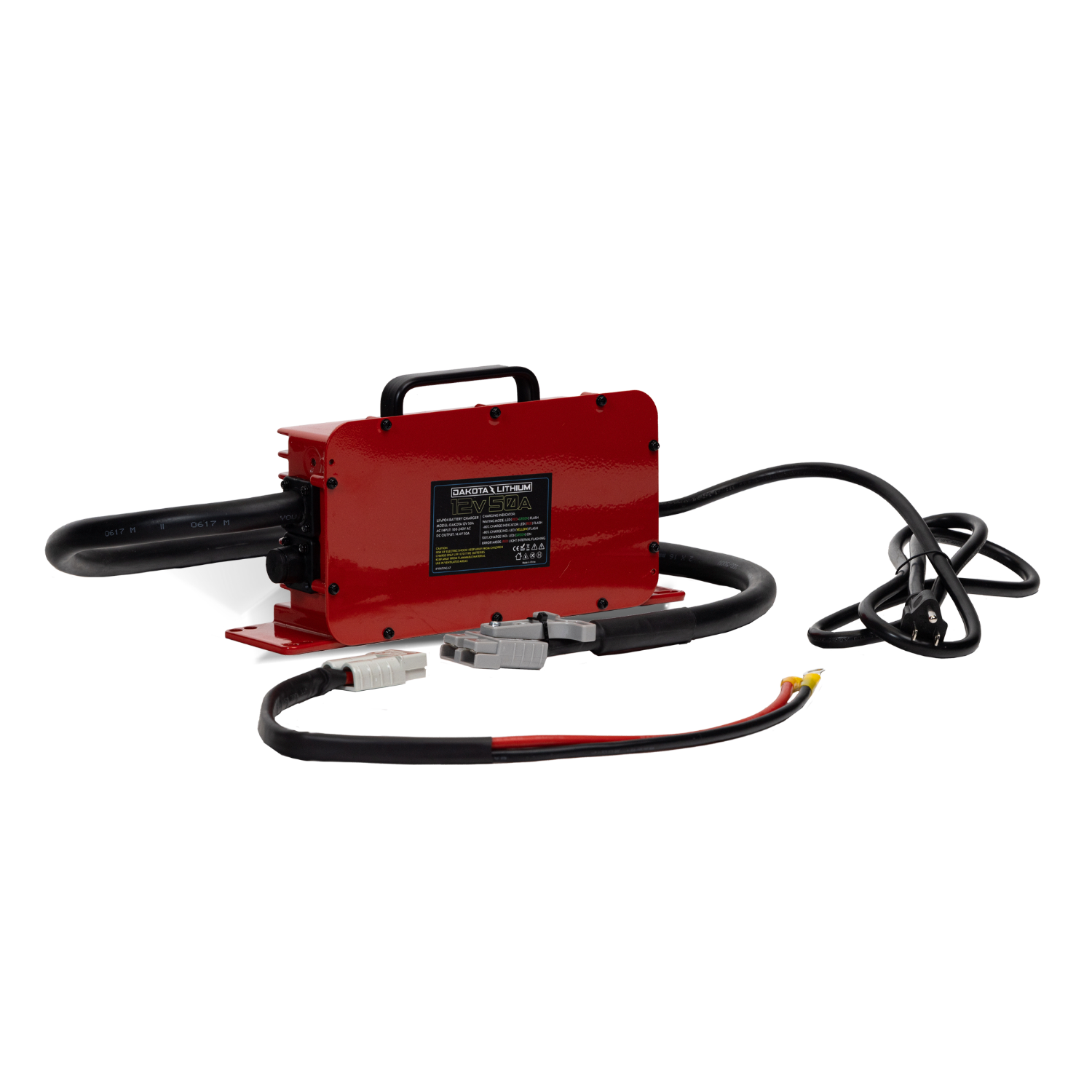

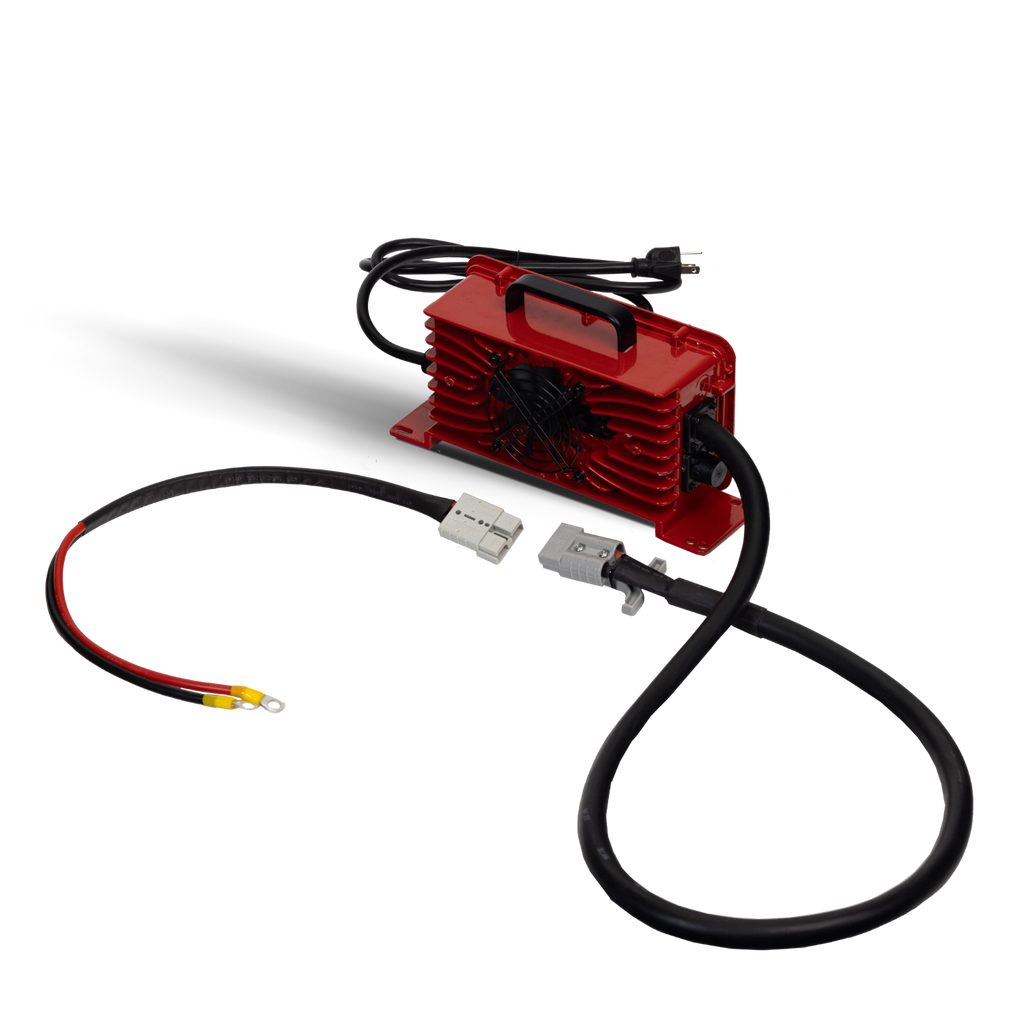

The charger ships with the charging unit (Anderson SB50 plug pre-installed) and a free Anderson plug wiring kit that includes ring terminals. The ring terminals are attached permanently to your battery cables. The charger then connects and disconnects via the Anderson plug each time you charge.

The charger has a two-color LED indicator. When actively charging, the light is red. When the battery reaches full charge, the light switches to green. At that point the charger can be disconnected.

Yes, as long as the battery is a 12V lithium iron phosphate (LiFePO4) type with a capacity of 100Ah or more and can accept a 50-amp charge input. The 14.4V output follows the standard LiFePO4 charge profile used by most LFP battery manufacturers. Always verify your battery manufacturer's recommended charge voltage before using any third-party charger.

Dakota Lithium's testing found the optimal charge rate for maximum cycle life is 0.3C or lower, meaning the charger's amp rating should be one-third or less of the battery's Ah capacity. For a 135Ah battery, that would be a 45A charger or smaller. This 50A charger is close to that threshold for a 135Ah battery and falls well within it for 320Ah and larger banks. For users whose priority is maximum cycle life over a 135Ah battery, the 20A model would be a more conservative option.
