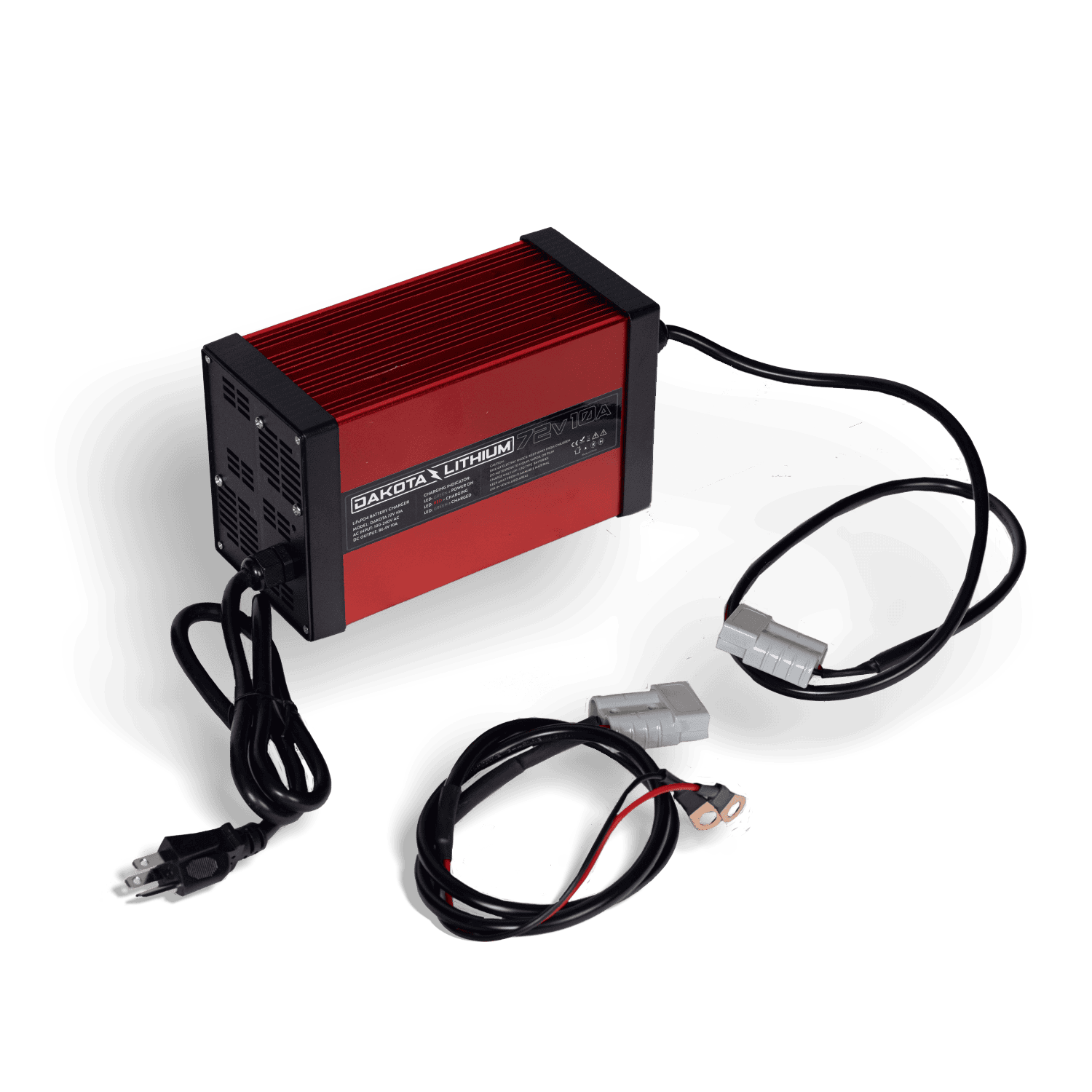

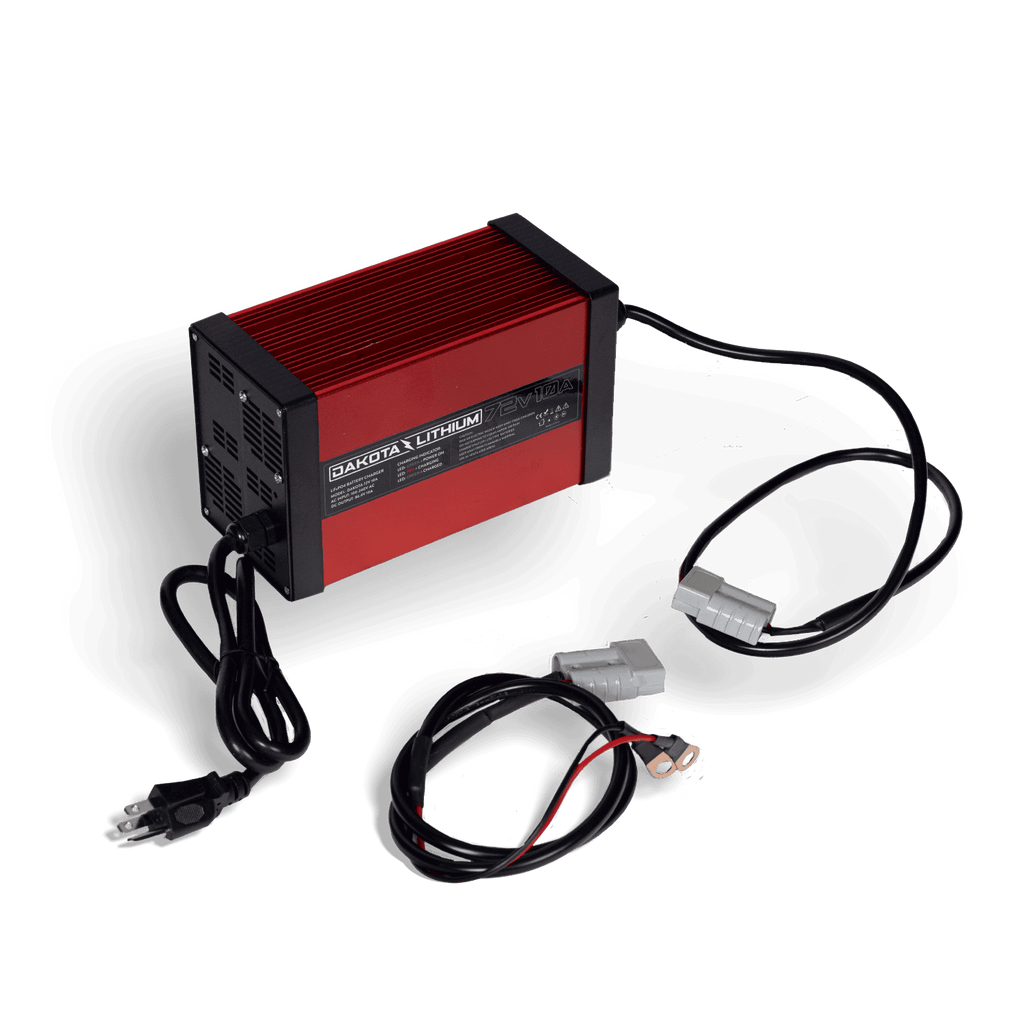

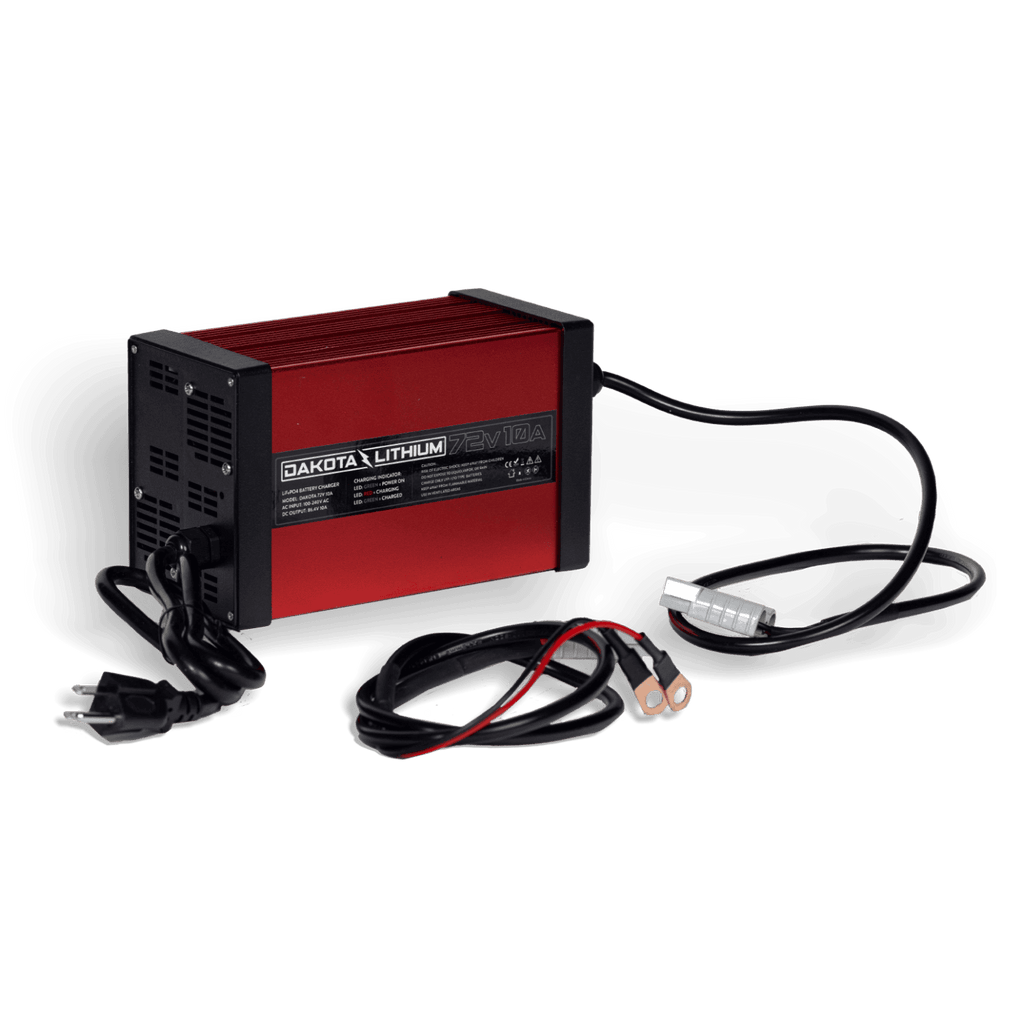

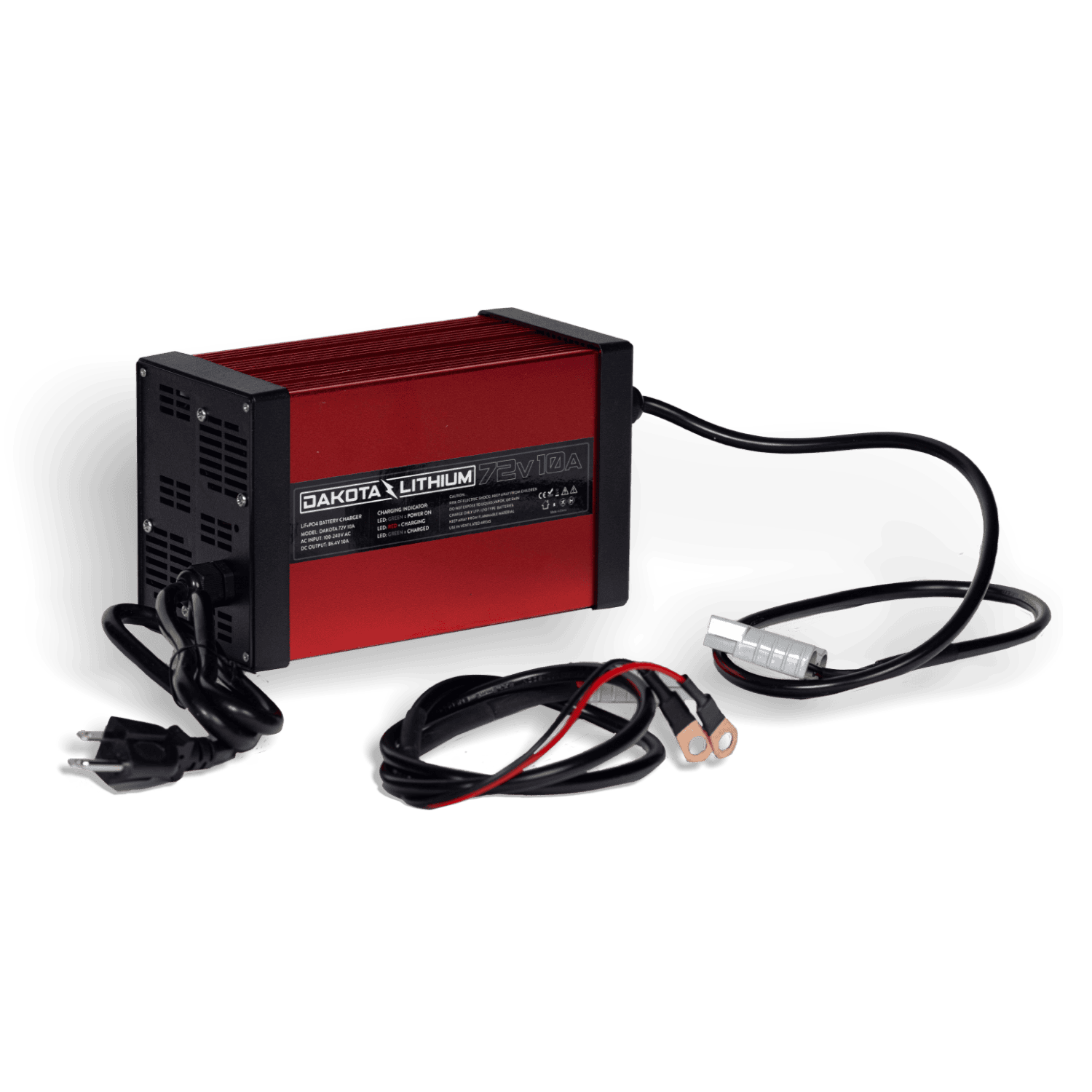

Dakota Lithium 72V 10A LiFePO4 Battery Charger
Dakota Lithium 72V 10A LiFePO4 Battery Charger
Roll over image to zoom in Click on image to zoom
Dakota Lithium 72V 10A LiFePO4 Battery ChargerDakota Lithium 72V 10A LiFePO4 Battery Charger

Dakota Lithium 72V 10A LiFePO4 Battery Charger

Dakota Lithium
Logo
Authorized Dealer - Full Warranty Included

SKU UF72V10A

Price:
$299.00

Shipping calculated at checkout

Stock:
In stock (10 units), ready to be shipped

📦 Fast 5-7 Day Delivery

🚚 Free Shipping

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa
Support Icon

Need Help?

Our experts are here to help you find the lithium battery for your needs.

Call Us Live Chat

Smart charger for 72V lithium golf cart batteries and electric vehicle applications

72V
Output Voltage
10A
Charging Current
5.5 hrs
55Ah Charge Time
86.4V
Max Charge Voltage

This 72V 10-amp lithium battery charger is designed for LiFePO4 golf cart batteries and electric vehicle applications. Compatible with Dakota Lithium 72V batteries and other 72V lithium systems with 10Ah+ capacity. Features smart charging technology and Anderson SB50 quick-connect terminals for charging.

Charging Time Calculator
Formula: Battery Ah capacity ÷ 10A = Charge time in hours
Examples: 55Ah battery = 5.5 hours | 110Ah battery = 11 hours | 30Ah battery = 3 hours

Technical Specifications

Input Voltage 100-240V AC, 50/60Hz (Universal)
Output Voltage 86.4V DC (72V nominal)
Charging Current 10 Amperes
Battery Compatibility 72V LiFePO4/LFP batteries (10Ah minimum capacity)
Connector Type Anderson SB50 with ring terminals
Case Material High-tensile aluminum for heat dissipation
Charging Algorithm Smart CC/CV with BMS communication
LED Indicators Red (charging) / Green (complete)
Operating Temperature 32°F to 104°F (0°C to 40°C)
Cooling Passive aluminum heat sink design
Protection Features Over-voltage, over-current, short circuit, reverse polarity
Certification UL Listed, FCC compliant

Features

  • LiFePO4 Charging
    Designed for lithium iron phosphate batteries. Uses proper voltage profile (86.4V) for 72V LiFePO4 systems to maximize battery life and performance.
  • Smart BMS Communication
    Charger will restart or "wake up" a Dakota Lithium BMS that has turned off a battery due to short circuit or excessive amp draw. Simply connect the charger to the battery to initiate a restart.
  • Anderson SB50 Quick Connect
    Anderson SB50 connections make it easy to connect your charger to the battery. Install the ring terminals using the bolts on your terminals. Bolt black to your black terminal. Red to your red terminal. Do not short circuit. Connect charger via Anderson plug when charging needed.
  • Universal Input Voltage
    100-240V AC input works worldwide. Suitable for home, workshop, or travel use. Built-in power factor correction for operation.
  • Aluminum Heat Dissipation
    High-tensile aluminum case provides cooling during charging. Ensures consistent performance and extends charger lifespan.
  • Visual Charging Status
    Red light on the charger will turn on when charging. Light turns green when the battery is full. Clear visual indicators eliminate guesswork about charging progress.

Compatible Applications

Designed for 72V lithium battery systems:

  • Golf Cart Batteries: Club Car, EZGO, Yamaha, Star EV 72V lithium systems
  • Marine Applications: 72V electric outboard motor batteries
  • Electric Vehicles: Neighborhood electric vehicles (NEV), utility carts
  • Solar Storage: 72V LiFePO4 battery banks for solar systems
  • Industrial Equipment: 72V electric forklifts, floor scrubbers

Charging Guidelines

Charging Practices
Standard Charging: 3-10 hour charge times provide maximum battery lifespan
Fast Charging: Dakota Lithium batteries support up to 1C charging (1-hour) when needed
Longevity Tip: For maximum cycle life, use charger with amp rating ≤ 1/3 of battery Ah capacity
Important Compatibility Note

For 72V Lithium Batteries: We recommend you use a LiFePO4 compatible charger. 72V chargers for lead acid batteries may work, but will decrease performance and lifespan of the battery. This charger is designed for lithium systems.

Installation and Setup

Terminal Installation: Install ring terminals on battery posts (black to negative, red to positive). Ensure tight connections and proper polarity to prevent damage.

Charging Process: Connect Anderson plug to battery, plug charger into AC outlet. Red LED indicates charging in progress. Green LED indicates charging complete and battery is ready for use.

Safety Features: Built-in protection against over-voltage, over-current, short circuit, and reverse polarity connection. Automatic shut-off when charging is complete.
