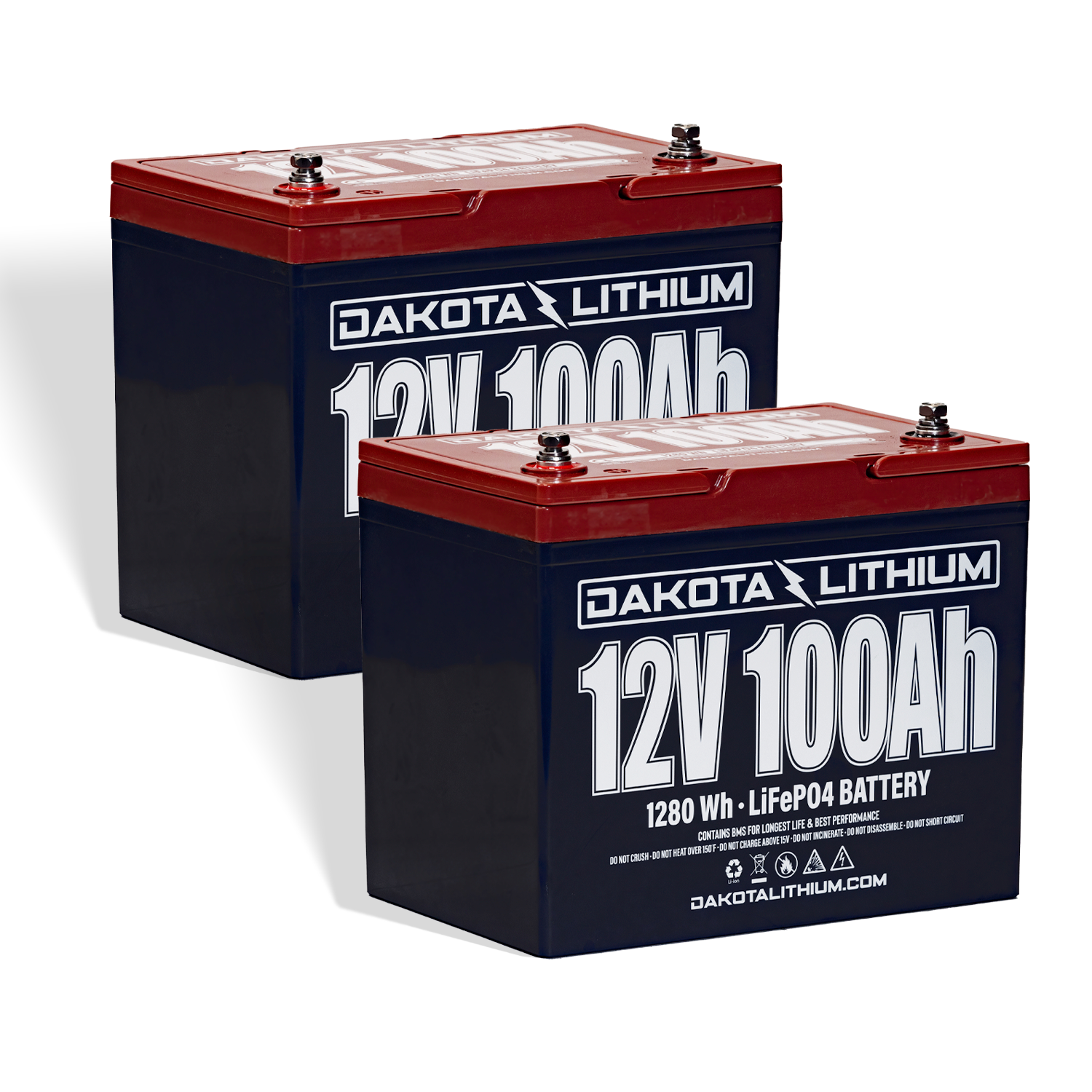

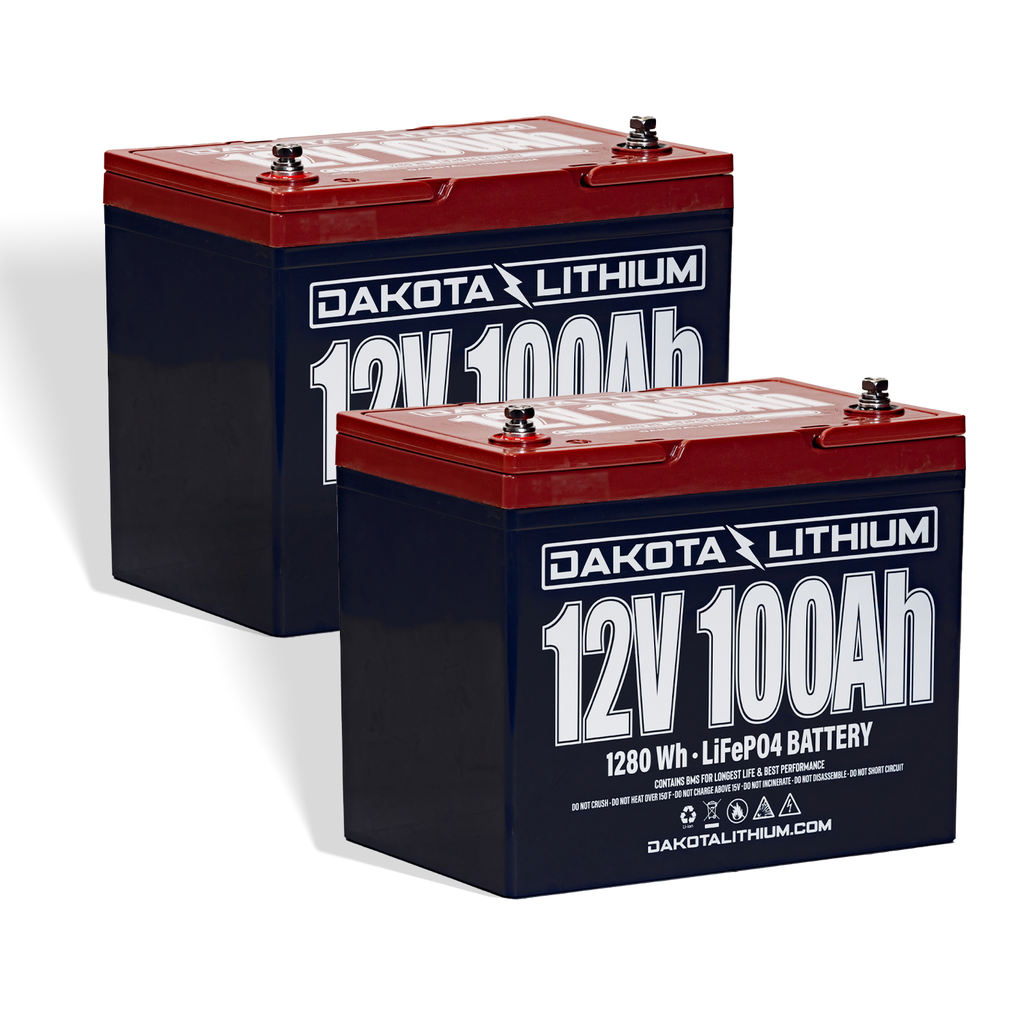

Two Dakota Lithium batteries on a white background

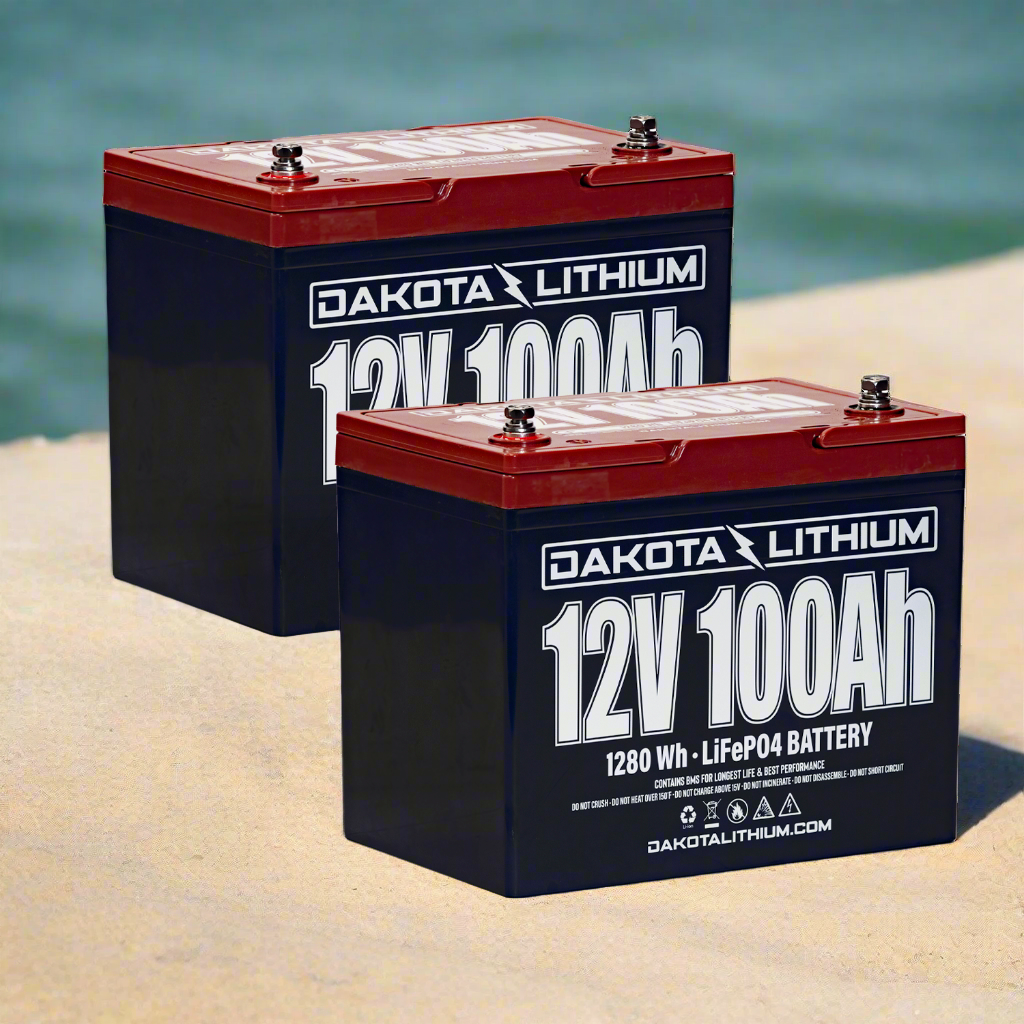

Two Dakota Lithium batteries for trolling on a sandy surface with water in the background
Roll over image to zoom in Click on image to zoom
Two Dakota Lithium batteries on a white backgroundTwo Dakota Lithium batteries for trolling on a sandy surface with water in the background

Dakota 24V 100Ah Marine Battery Set - LiFePO4 Deep Cycle Lithium

Dakota Lithium
Logo
Authorized Dealer - Full Warranty Included

SKU 224V100

Great for RVs, trolling motors, and solar
24V high-thrust trolling motors, built for long days on the water
Internal Even-Heat Technology
BMS Protection
5000+ cycles
Group 24 Battery
Price:
$1,590.00
  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Safety Notice

  • 38.3 CERTIFIED LITHIUM BATTERY
  • 18+ only

Read User Manual & Safety Sheet before installation

Support Icon

Need Help?

Our experts are here to help you find the lithium battery for your needs.

Call Us Live Chat

Product Resources

Dakota Lithium 24V 100Ah Deep Cycle Trolling Motor Battery Set

The Dakota 24V 100Ah Deep Cycle Trolling Motor Battery Set combines two DL 100Ah batteries in series for 24V operation. This 24V lithium trolling motor battery set is designed for larger 24V trolling motors and marine environments. Built with Lithium Iron Phosphate (LiFePO4) technology, this battery set provides twice the power, half the weight, and lasts 8 times longer than sealed lead acid batteries.

Dakota Lithium Advantages

  • 11-year manufacturer defect warranty
  • Up to 5,000 cycles at 80% capacity
  • 1,280 watt-hours per battery (2,560 Wh total)
  • 27.55 lbs per battery - 60% lighter than lead-acid
  • Flat voltage curve provides consistent power output
  • Active BMS protection system

Advanced Technology Features

  • LiFePO4 Technology: Lithium Iron Phosphate chemistry with flat voltage curve provides consistent power output as the battery discharges
  • Extended Lifespan: Up to 5,000 cycles at 80% capacity. Standard lead acid batteries typically provide 500 cycles
  • Temperature Range: Operating temperature range from -20°F to +120°F. Internal Even-Heat Technology helps protect the battery when charging in cold temperatures below 32°F
  • BMS Protection: Active Battery Management System handles cell balancing, low voltage cutoff, high voltage cutoff, short circuit protection and temperature protection
  • Terminal Configuration: F12 terminals with maximum torque specification of 15 ft. lbs.

Performance Benefits

  • Twice the power of sealed lead acid batteries
  • Half the weight of traditional marine batteries
  • 8 times longer lifespan than lead acid
  • Consistent power output throughout discharge cycle
  • Low self-discharge rate (3-5% per month)
  • No maintenance required

Technical Specifications

Specification Value
System Voltage 25.6V (two 12.8V batteries in series)
Capacity 100 Amp Hours (Ah)
Total Energy 2,560 Watt Hours (Wh)
Chemistry Lithium Iron Phosphate (LiFePO4)
Life Cycles 5,000 cycles at 80% capacity
Dimensions (per battery) 10.23"L x 6.60"W x 8.66"H
Weight (per battery) 27.55 lbs (12.5 kg)
Total Weight (complete set) 55.1 lbs (25 kg)
Terminal Type F12 terminals (max torque 15 ft. lbs.)
Operating Temperature -20°F to +120°F (-29°C to +49°C)
Maximum Continuous Discharge 100A
Maximum Pulse Discharge 200A (10 seconds)
Maximum Charge Rate 50A maximum
Recommended Charge Voltage 14V recommended, 15V maximum
Self-Discharge Rate 3-5% per month
BMS Protection Features Cell balancing, voltage cutoff, short circuit, temperature

Applications

Trolling Motor Applications

  • Larger 24V trolling motors
  • Deep cycle marine applications
  • Extended power requirements
  • Marine environments requiring reliable power

Performance Specifications

  • 100A maximum continuous discharge
  • 200A maximum pulse (10 second duration)
  • Flat discharge voltage curve
  • Group 24 equivalent dimensions
  • Even-Heat Technology for cold weather protection

Charging Information

  • Charging Specifications: Maximum 50A charge rate, 14V max recommended, 15V max
  • Recommended charger: 24V 5A LiFePO4 charger (sold separate)
  • Cold weather charging protection below 32°F
  • Can be left on charger without damage
  • Even-Heat Technology for cold temperature charging protection

What's Included

  • 2x Dakota Lithium 12V 100Ah Batteries
  • Series wiring configuration for 24V operation
  • F12 terminal connections

Installation Notes

Important: This battery package is a set of 12V batteries to be wired in series for 24V operation. Professional installation recommended for optimal performance and safety.

Recommended Accessories: 24V 5A LiFePO4 charger and Connect-Ease trolling motor connection kit available separately for easy installation and quick removal for charging.
