Bolt Energy 36V 105Ah Lithium Golf Cart Battery Conversion Kit
Upgrade your golf cart with the Bolt Energy 36V 105Ah lithium golf cart battery conversion kit, designed for seamless performance in classic and modern 36V golf carts. This LiFePO4 battery offers a lightweight, maintenance-free alternative to lead-acid batteries, delivering up to 35 miles of range with a 12-year limited warranty.
Perfect for 36V Golf Cart Models
- Compatible with 36V EZGO TXT, EZGO RXV, Club Car DS, Club Car Precedent, Yamaha G1-G16, and more
- Drop-in 36V lithium battery replacement for easy upgrades
- Ideal for golf courses, residential communities, and recreational use

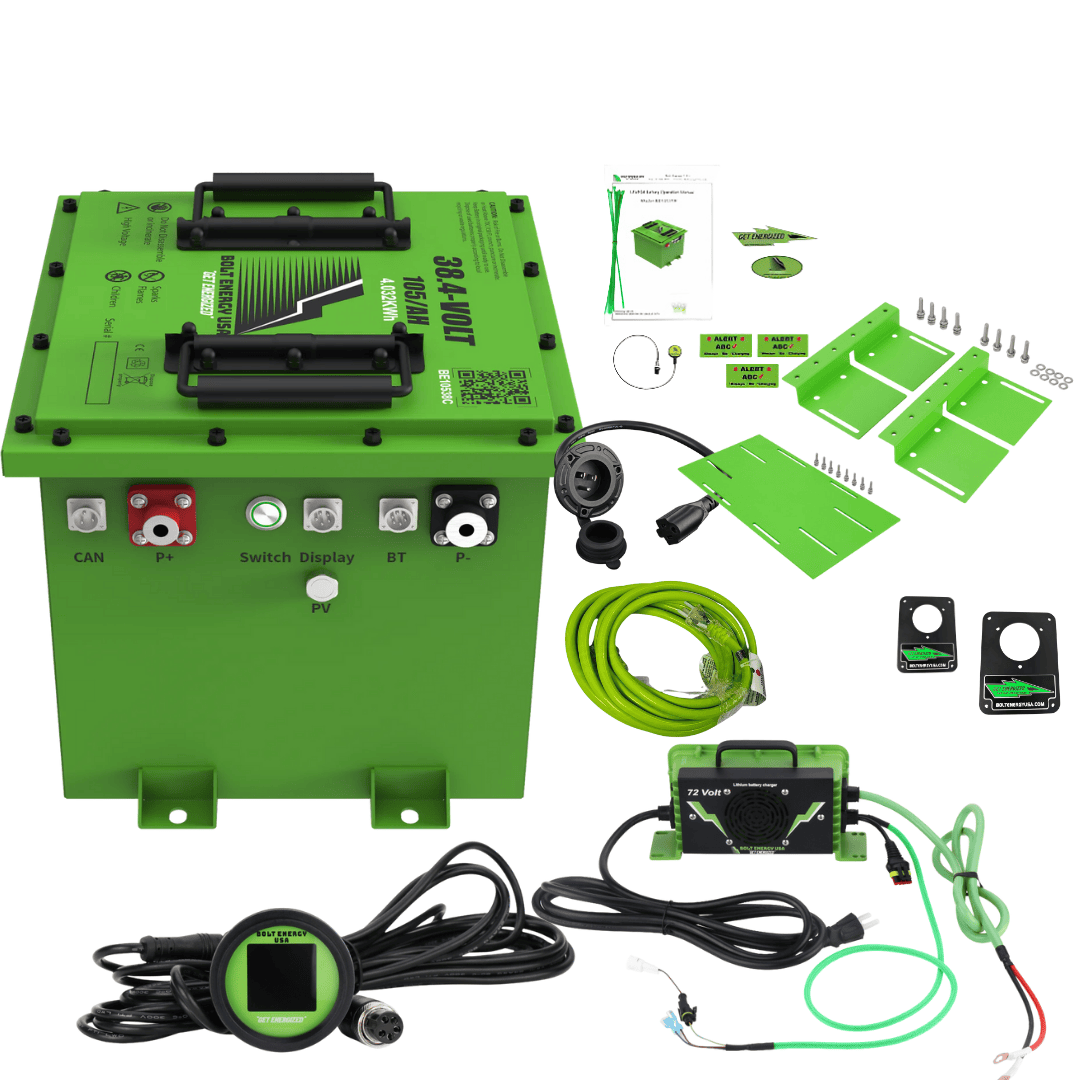

What's Included in the Kit
- 36V 105Ah LiFePO4 golf cart battery
- Onboard waterproof high-speed charger

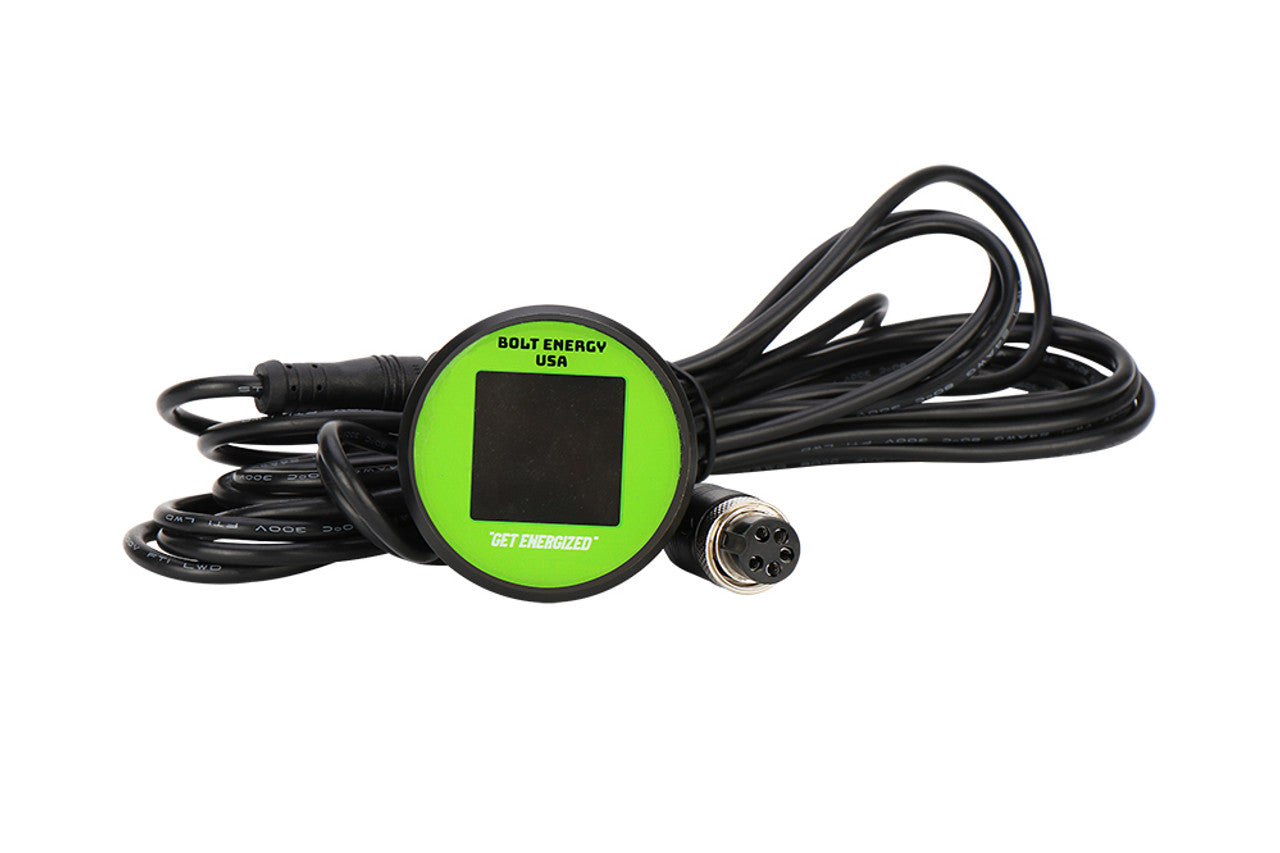

- Dashboard-mounted state of charge meter
- Bluetooth monitoring system for performance tracking
- Universal mounting hardware with brackets, nuts, and bolts

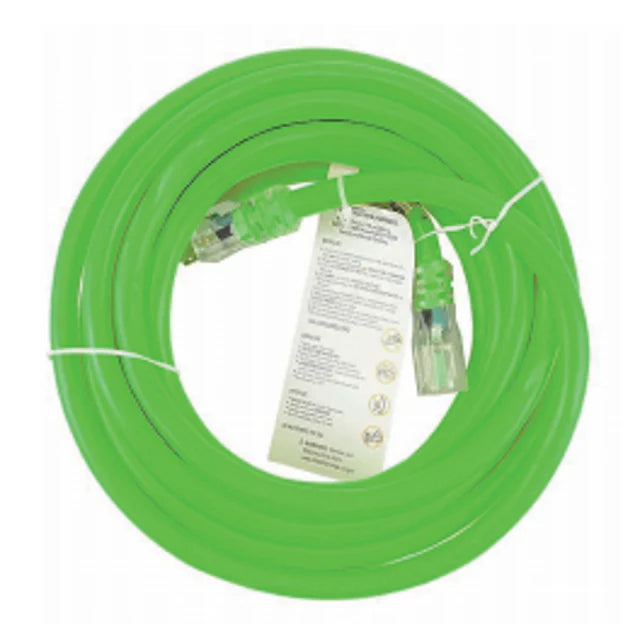

- 15 foot charging extension cord
Key Features
- Range: 15–35 miles per charge, depending on terrain and usage
- Fast charging: Full charge in 1–3 hours
- Maintenance-free: No watering or upkeep required
- Lightweight design: 50% lighter than lead-acid batteries
- Long lifespan: Over 4000 cycles
- Advanced 200A BMS for safety and reliability
Wide Compatibility
The Bolt Energy 36V lithium golf cart battery is compatible with major brands, including EZGO, Club Car, Yamaha, Bad Boy Buggy, Evolution, GEM Cars, ICON, and more. Perfect for 36V EZGO TXT lithium battery upgrades, Club Car DS lithium battery conversions, and Yamaha G1-G16 models.
Easy Installation
This 36V LiFePO4 golf cart battery conversion kit is engineered for simple, plug-and-play installation. No complex modifications are needed to upgrade from lead-acid to lithium, making it ideal for golf cart owners.
Compatible Golf Cart Models
Bolt Energy 36V lithium batteries are compatible with:
- Advanced EV
- Bad Boy Buggy
- Bintelli
- Club Car DS
- Club Car Precedent
- Coleman
- EZGO TXT
- EZGO RXV
- Elite
- EPIC
- Evolution
- GEM Cars
- ICON
- Kandi
- Madjax X-series
- Navitas Storm
- Nivel X-series
- Titan
- Tomberlin
- Trojan EV
- Vivid
- Yamaha G1-G16
Compatible with many other 36V golf carts and electric vehicles.

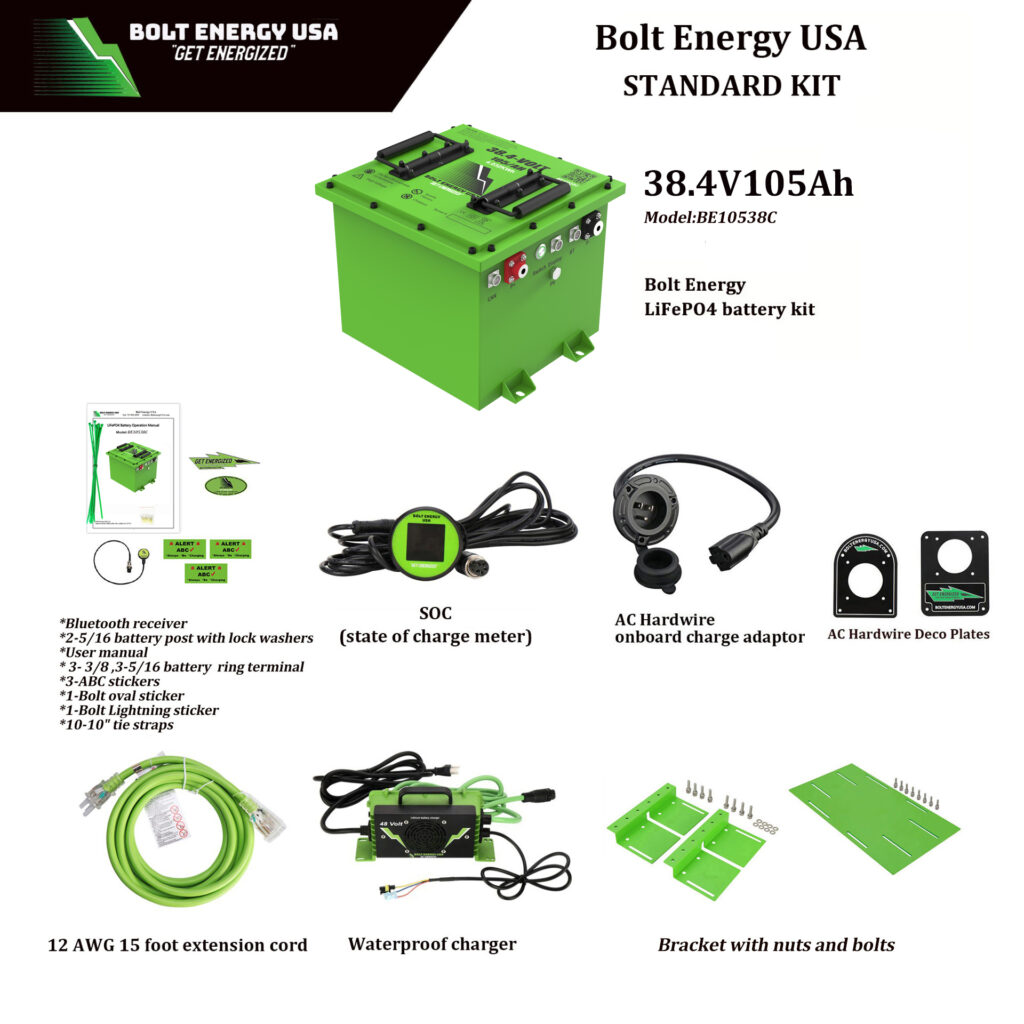

Installation Kit Includes
- 36V 105Ah LiFePO4 golf cart battery
- Bluetooth receiver for monitoring
- State of charge meter
- Owner's manual with installation instructions
- 6 battery ring terminal connectors
- 10 tie straps

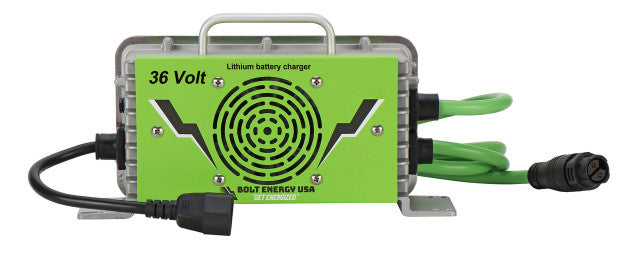

- Waterproof high-speed charger
- Mounting brackets, nuts, and bolts

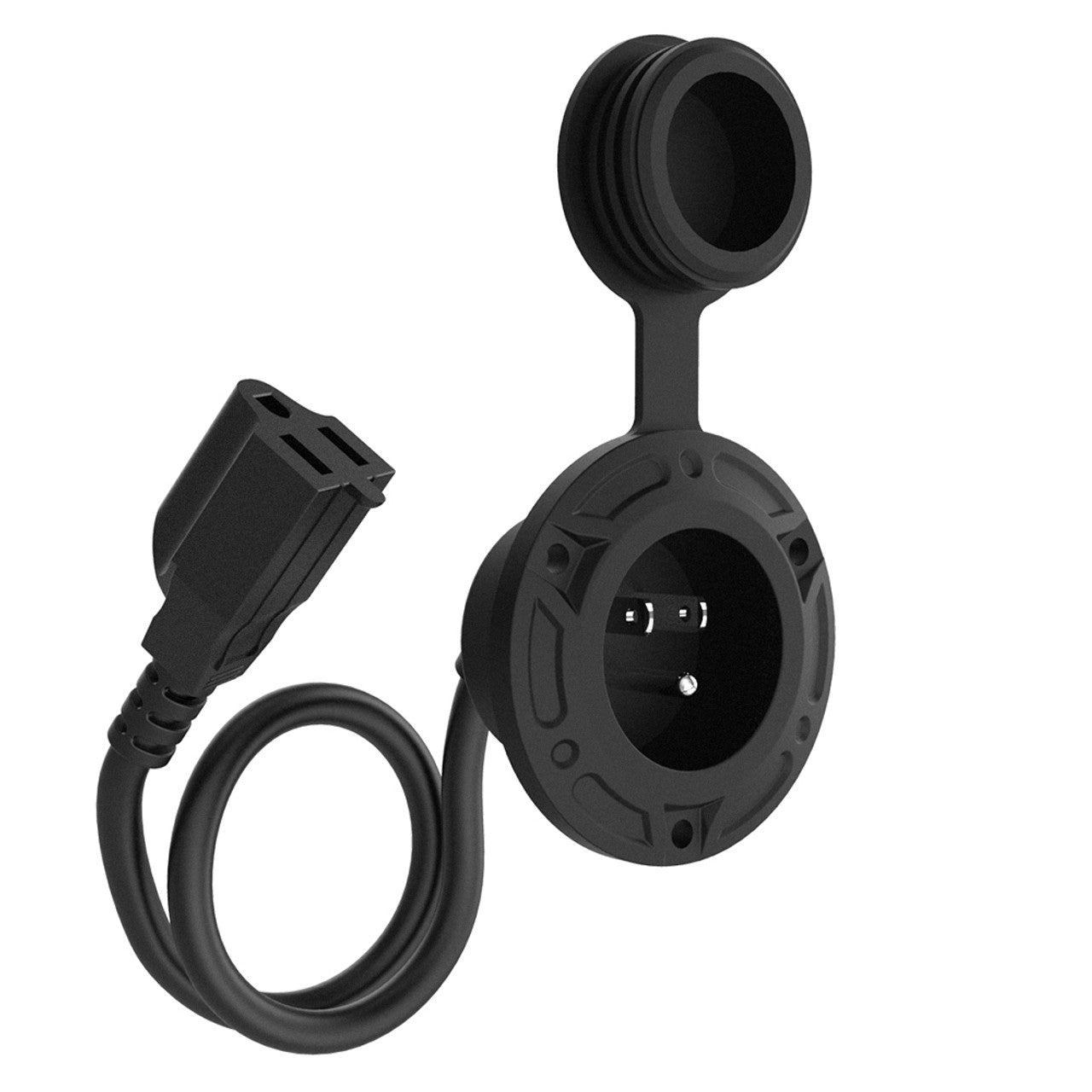

- AC hardwire port
- DECO cover plate
- AC hardwire universal or Club Car
- 15 foot extension cord
Technical Specifications
| Mechanical Specifications |

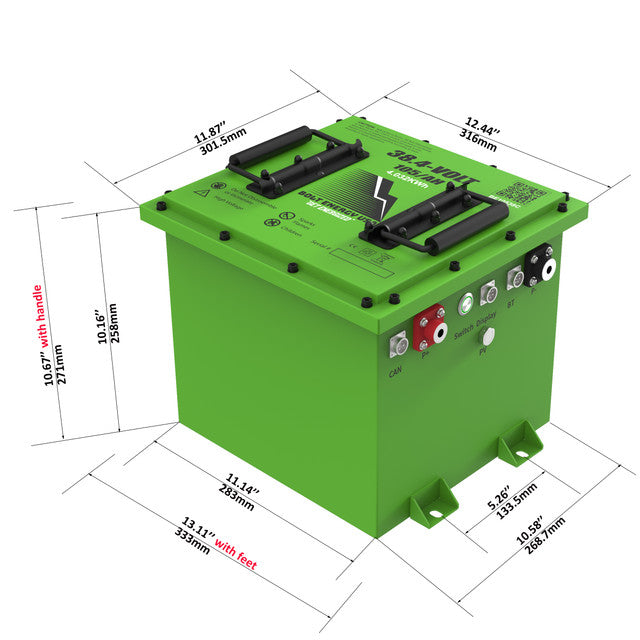

| Dimensions |
11.14″ x 10.58″ x 10.67″ |
| Weight |
77.27lbs (35.05kg) |
| Terminal Type |
M8*1.5*25mm |
| Cell Configuration |
1P16S |
| Case Material |
Powder Coated Steel |
| Enclosure Protection |
IP66 Standard |
| Cell Type – Chemistry |
Prismatic- LiFePO4 |
| Discharge Specifications |
| Maximum Continuous |
250A |
| Peak Discharge |
520A ± 15.6A (30S) |
| BMS Discharge Current Cut-Off |
260A ± 7.8A (50S), 520A ± 15.6A (30S) |
| BMS Discharge Voltage |
30V |
| Recommended Low Voltage |
36.0V |
| BMS Reconnect Voltage |
31.2V |
| Discharge Temperature |
-4 to 149°F (-20 to 65°C) |
| Electrical Specifications |
| Nominal Voltage |
38.4V |
| Working Voltage |
32.4 – 43.8V |
| Recommended Voltage |
36.0V – 42.6V |
| Nominal Capacity |
105Ah |
| Energy |
4.032KWh |
| Capacity @ 25A |
252 min |
| Efficiency |
0.99 |
| Self Discharge |
< 3% per Month |
| Charge Specifications |
| Recommended Current |
5 – 52A |
| Maximum Input Current |
350A |
| Current Cut-Off |
375A |
| BMS Voltage Cut-Off |
43.8V |
| Reconnect Voltage |
< 43.8V |
| Temperature Range |
34°F to 140°F (0-60°C) |
| Communication |
| Bluetooth |
Bluetooth receiver |
| CAN |
CAN port for testing battery |
