Voltage Specification: This battery is designed for 36-volt systems and has a nominal voltage of 38.4V (operating range: 30V - 43.8V). This is the industry standard for lithium batteries in 36V applications. Similar to how "12V" lithium batteries operate at 12.8V nominal, this "36V" battery operates at 38.4V nominal and is fully compatible with golf carts, trolling motors, and other equipment rated for 36-volt systems.

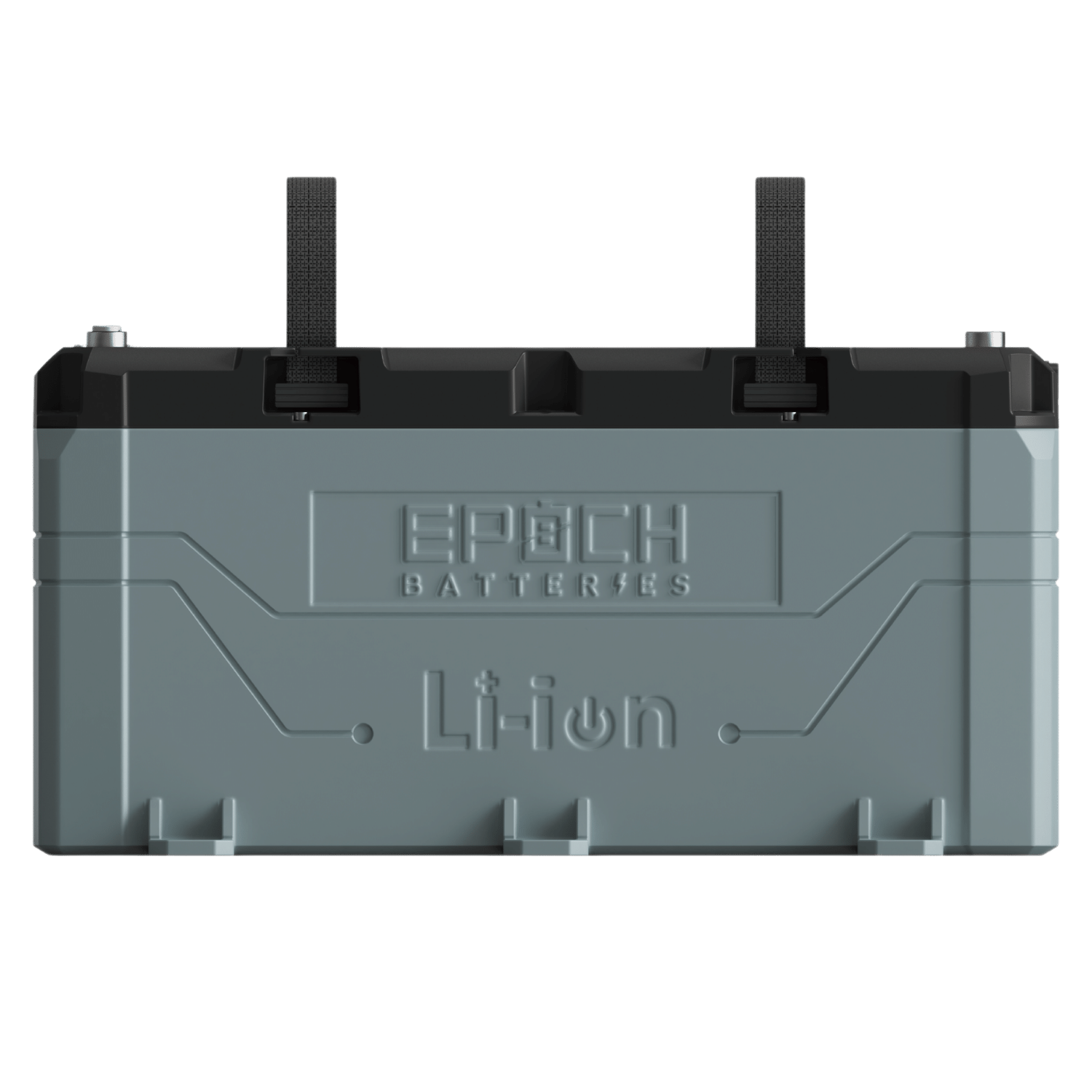

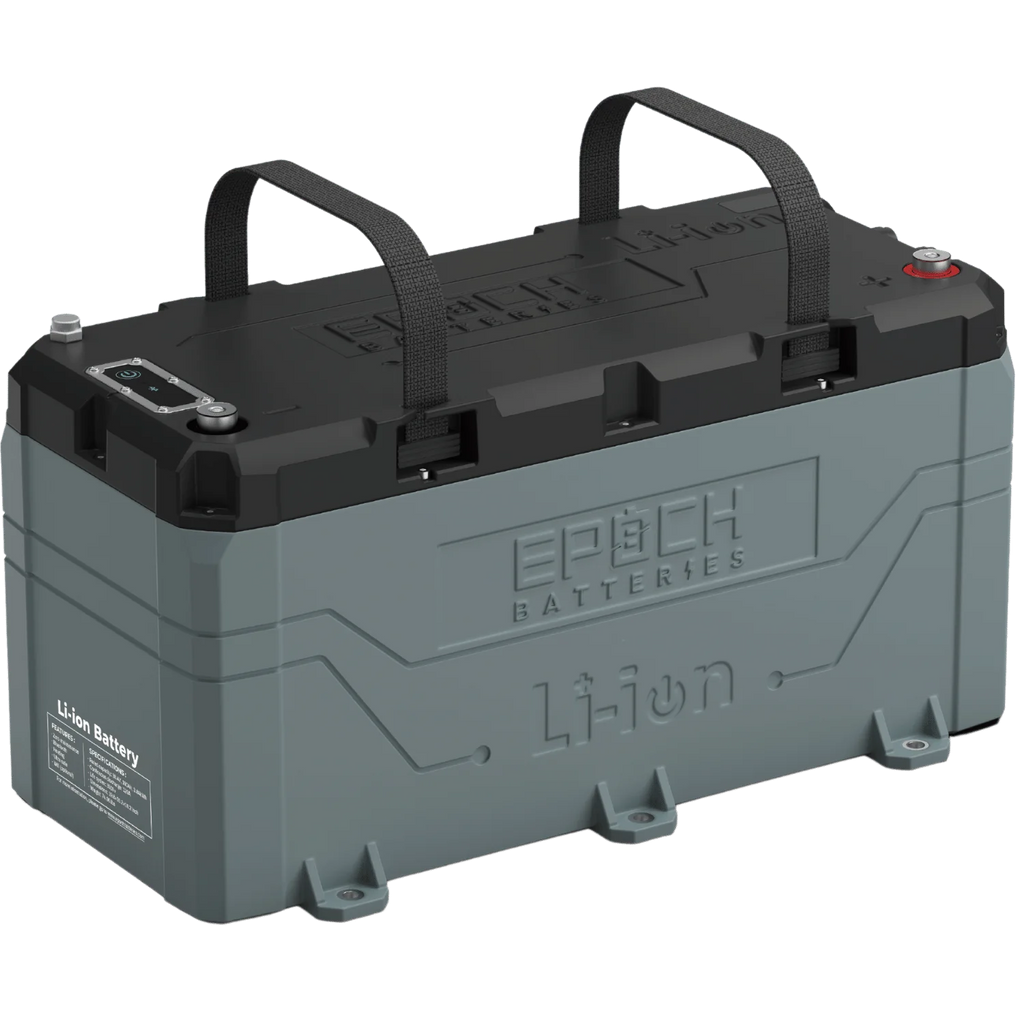

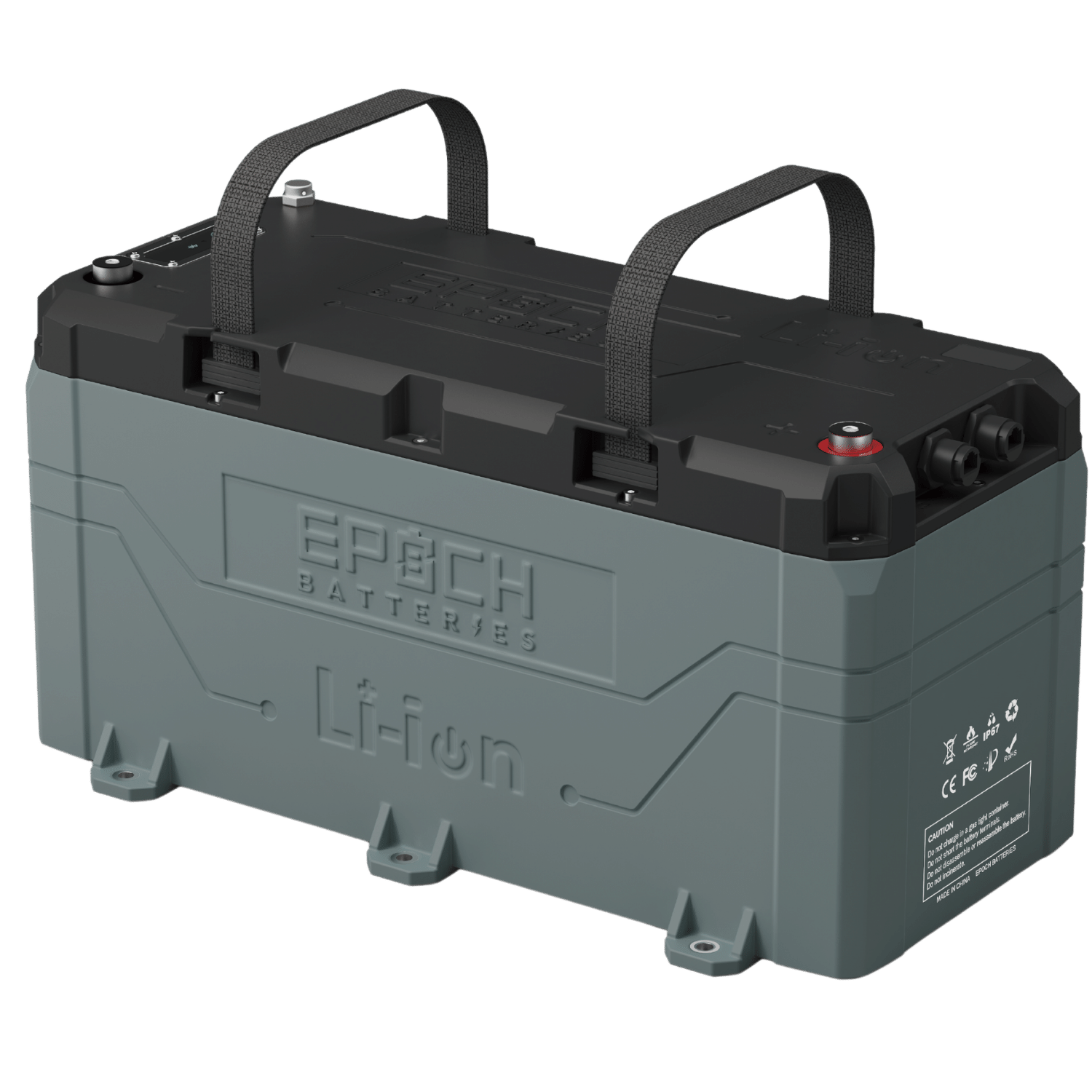

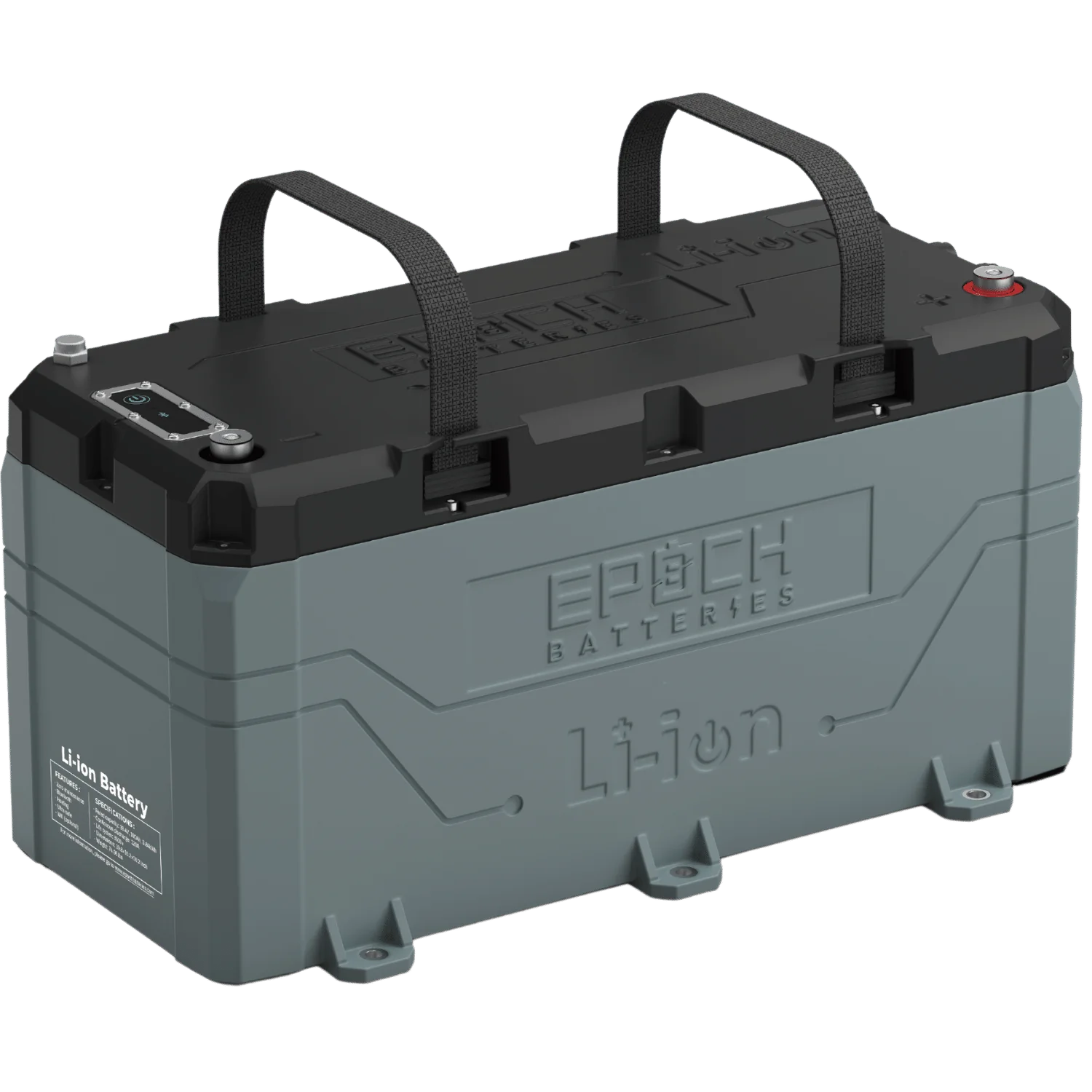

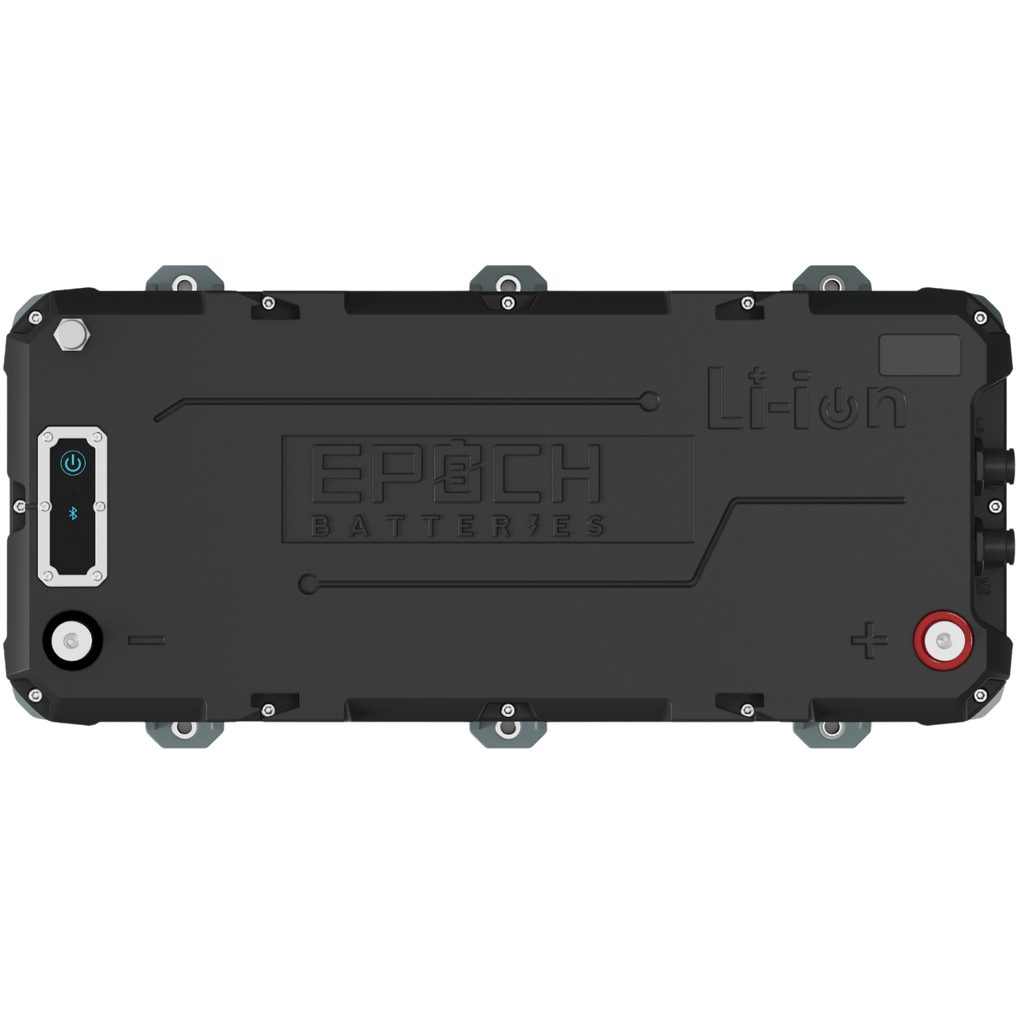

The Epoch B36100A is a 38.4V 100Ah Lithium Iron Phosphate (LiFePO4) battery manufactured by Epoch Batteries. Lithium Battery Supply is an authorized dealer of Epoch Batteries products. This battery is designed for 36-volt applications including golf carts, marine trolling motors, RVs, and off-grid solar energy systems. The battery includes built-in Bluetooth monitoring, internal self-heating capability for low-temperature charging, and IP67-rated waterproof/dustproof construction.

Technical Specifications

• Manufacturer: Epoch Batteries
• Model Number: B36100A
• Nominal Voltage: 38.4V
• Nominal Capacity: 100Ah
• Cell Configuration: 12S (12 cells in series)
• Energy Stored: 3.84kWh (3,840 Watt-hours)
• Chemistry: Prismatic LiFePO4 (Lithium Iron Phosphate)
• Operating Voltage Range: 30V - 43.8V
• Max Charge Voltage: 43.8V

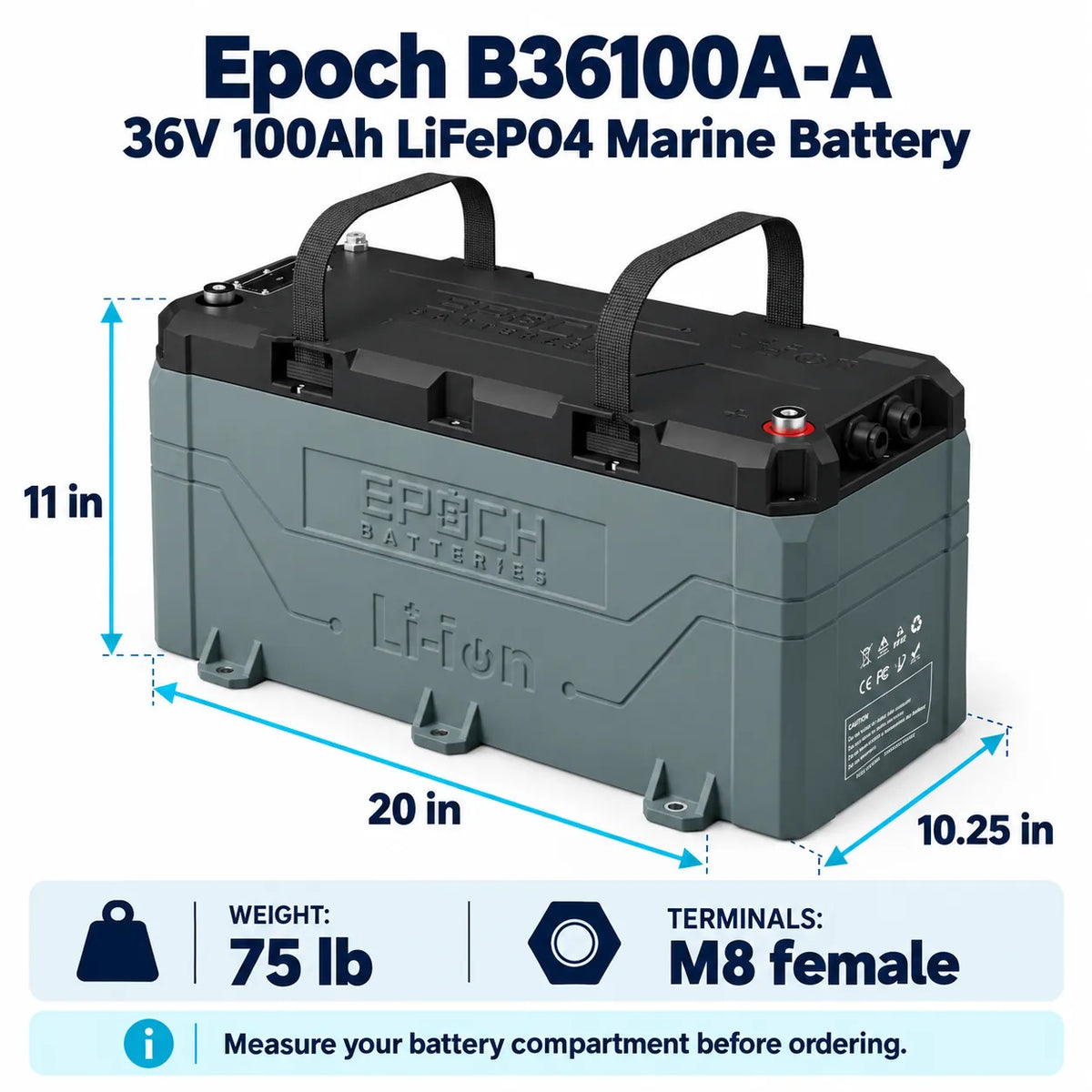

• Dimensions (L x W x H): 20" x 10.25" x 11"
• Weight: 75 lbs
• Case Material: ABS & PC blend (UL94-V0 flame rating)
• Enclosure Protection: IP67 (waterproof and dustproof)

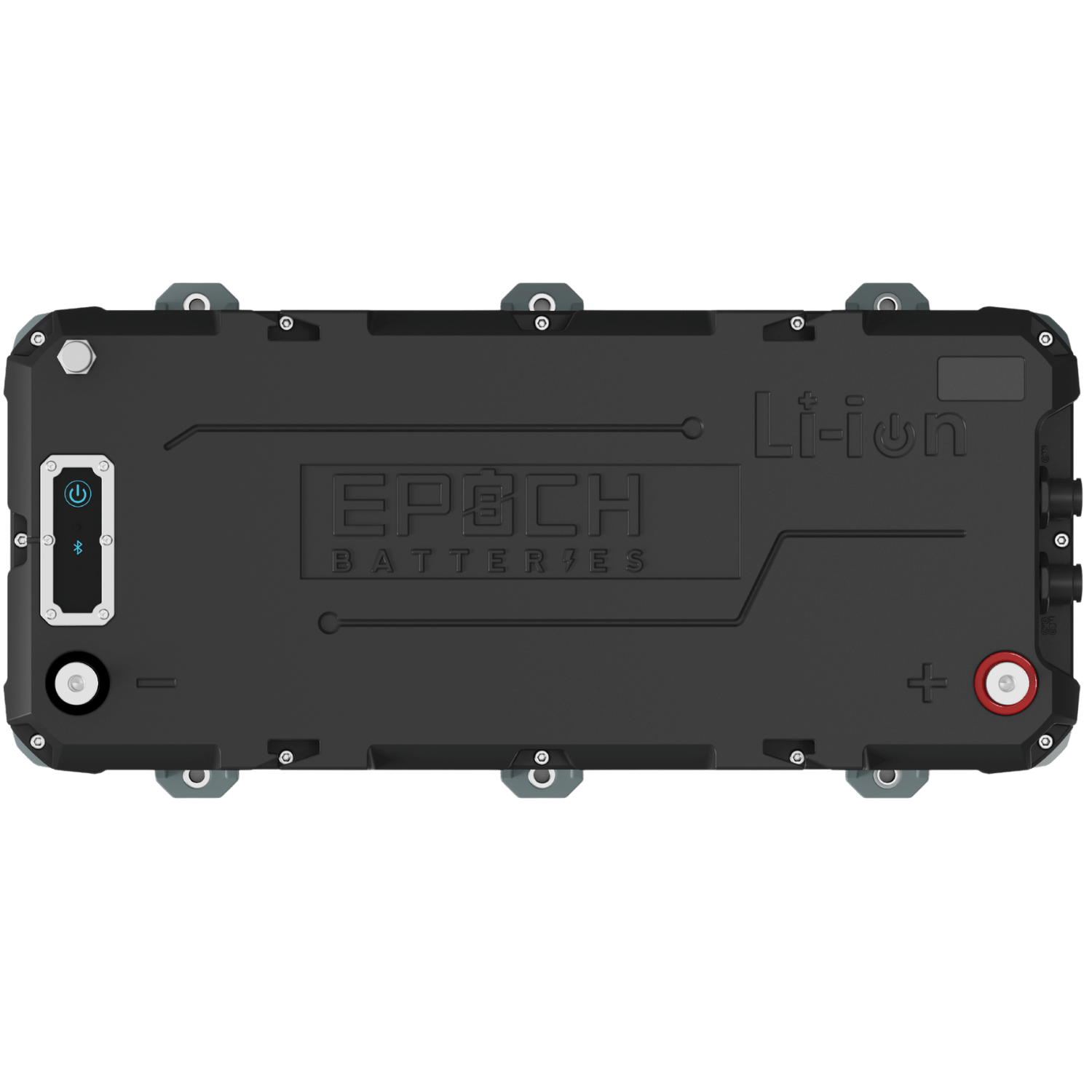

• Terminal Type: M8 Female
• Warranty: 11-year manufacturer warranty provided by Epoch Batteries

Electrical Performance Specifications

Charging Parameters:

• Max Continuous Charge Current: 100A
• Max Charge (10 Sec): 150A
• Bulk/Absorption Voltage: 42.6V - 43.2V
• Absorption End Condition: Stop when charge current ≤C/20 or 15 min max
• Float Voltage: Disabled (preferred) or 40.0V - 40.8V
• Re-bulk Voltage: 39.6V
• Temperature Compensation: 0mV/°C (none)
• Equalization: Disabled
• Battery Charge Temperature Range: 0°C (32°F) to 55°C (131°F)
• BMS High Voltage Cutoff: 43.8V
• SoC Recalibration: 43.8V

Discharge Parameters:

• Max Continuous Discharge Current: 120A
• Max Discharge (60 Sec): 200A
• Discharge Temperature Range: -20°C (-4°F) to 60°C (140°F)

Temperature Specifications

• Discharge Temperature: -20°C (-4°F) to 60°C (140°F)
• Charge Temperature: 0°C (32°F) to 55°C (131°F)
• Cell Charge Temperature: 0°C (32°F) to 55°C (131°F)
• Recommended Storage Temperature: 0°C (32°F) to 35°C (95°F)
• Reconnect Temperature: 122°F (50°C)
• Low-Temperature Charge Protection: Yes (self-heating enabled)

Safety Certifications & Compliance

• UL 1642 (Cells)
• UL 9540A (Cells)
• IEC 62619:2022
• CE, RoHS
• Shipping Classification: UN 38.3, CLASS 9

Features & Protection Systems

Built-in Battery Management System (BMS): The integrated BMS provides comprehensive protection including over-charge protection, over-discharge protection, over-current protection, short circuit protection, and high/low temperature protection. The BMS monitors individual cell voltages and temperatures to ensure safe operation.

Self-Heating System: The battery includes an internal self-heating element that enables charging in temperatures below 0°C (32°F). The heating system activates automatically when charging is attempted in cold conditions, allowing the battery to charge safely down to -20°C (-4°F) discharge temperature.

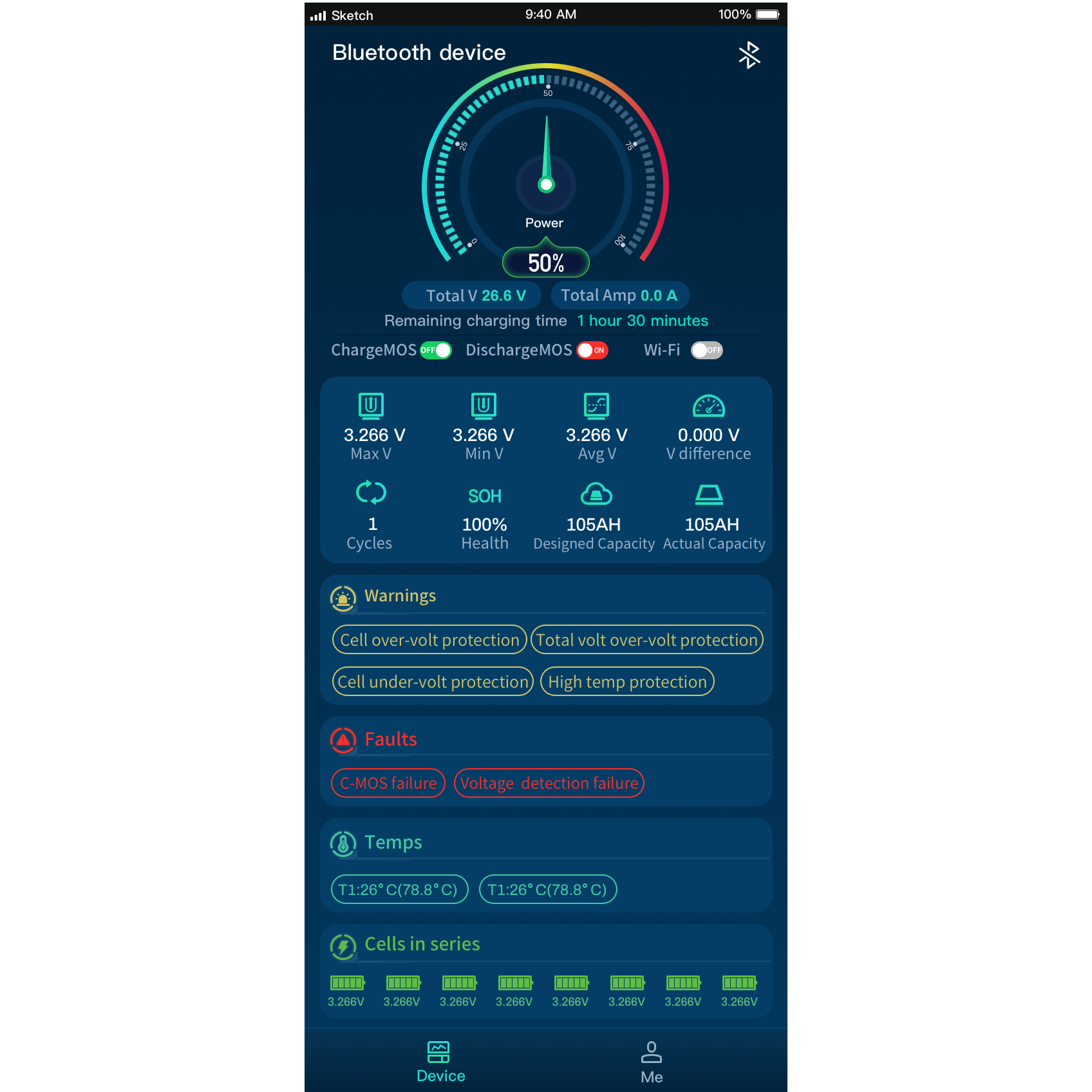

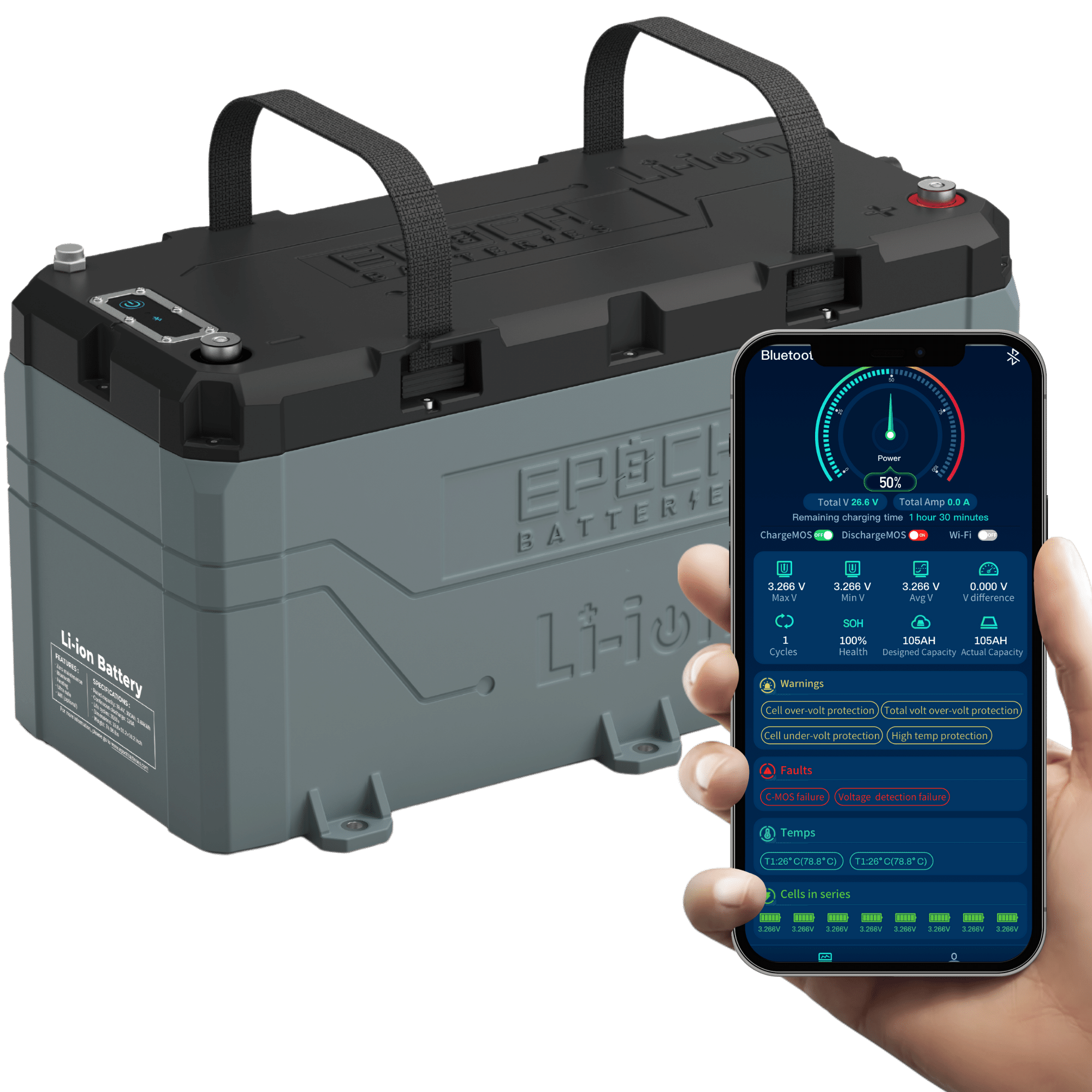

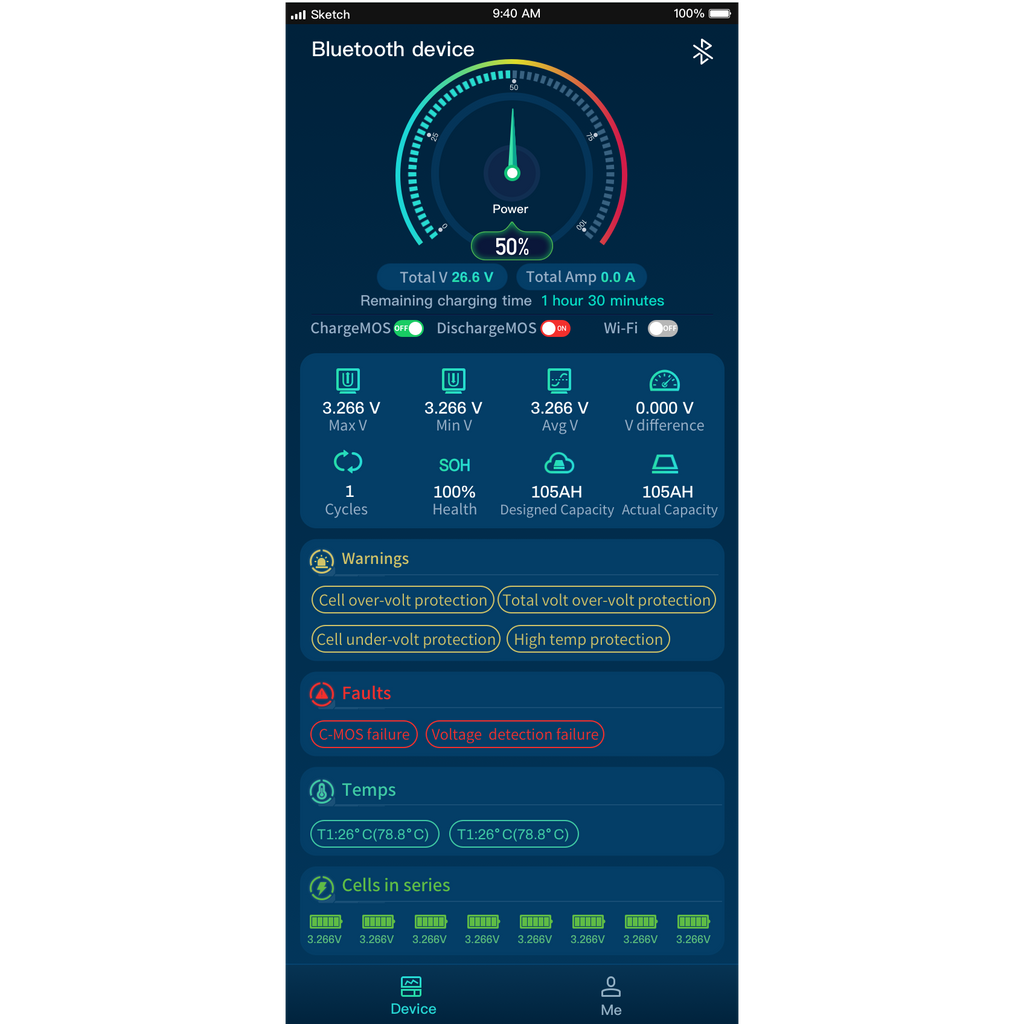

Bluetooth Monitoring: The battery includes built-in Bluetooth connectivity compatible with iOS and Android devices. The monitoring app displays real-time voltage, current, state of charge, cycle count, individual cell voltages, and temperature data.

IP67 Waterproof Rating: The battery case is rated IP67 for protection against dust ingress and temporary water immersion (up to 1 meter depth for 30 minutes), making it suitable for marine and outdoor applications per manufacturer specifications.

Connection Capabilities

• Series Connections: Max (1) in series

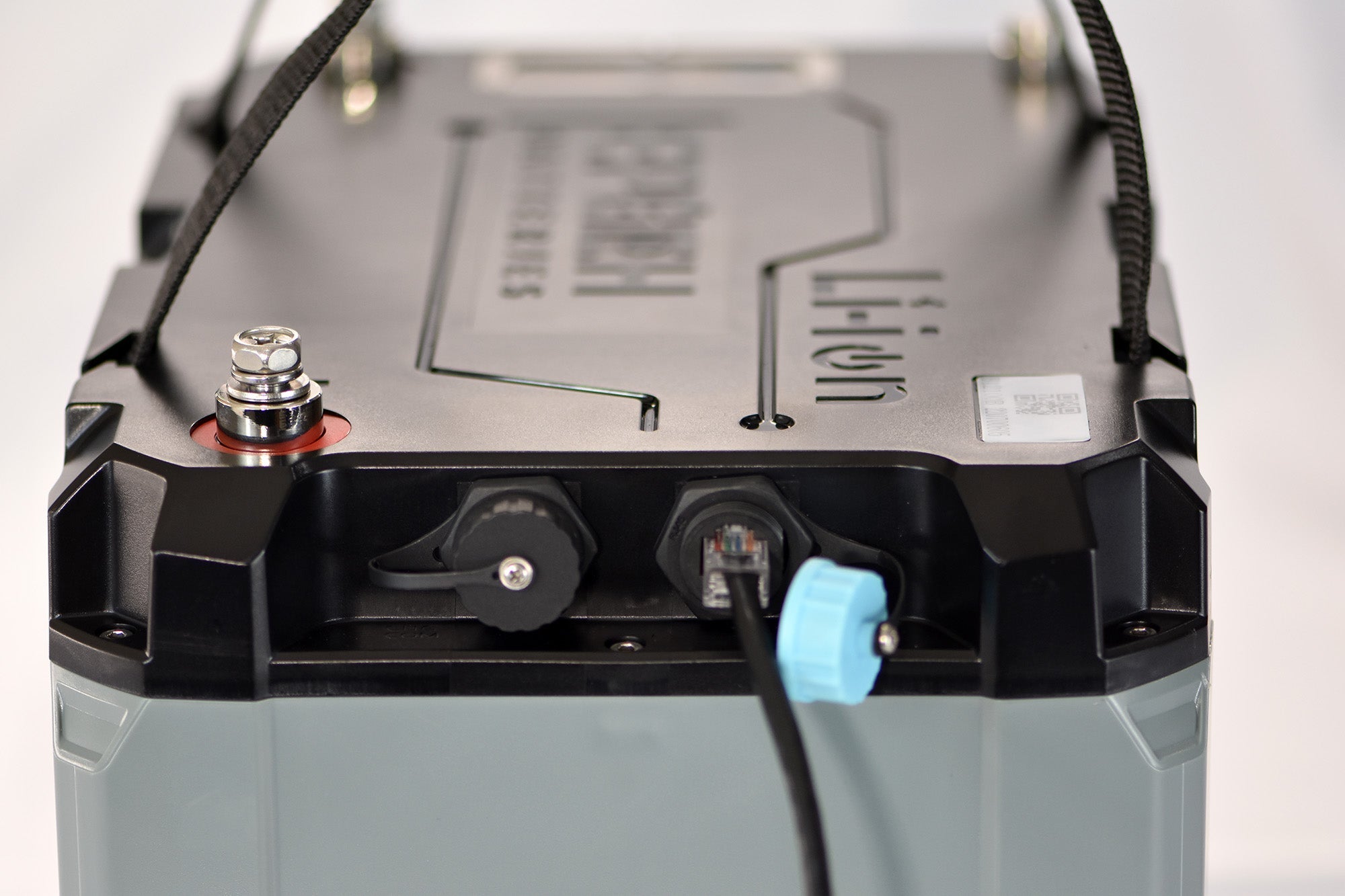

• Parallel Connections: Max (4) in parallel, Plug & Play configuration
• Maximum Bank Configuration: Up to 4 batteries in parallel for 400Ah total capacity at 38.4V nominal

Applications

According to manufacturer documentation, this 38.4V 100Ah battery is designed for the following applications:

• Golf Carts: 36-volt golf cart systems (verify compatibility with your specific golf cart model and year - consult golf cart manufacturer for voltage requirements)
• Marine Trolling Motors: 36-volt trolling motor systems with continuous draw up to 120A (verify amp draw compatibility with trolling motor specifications)
• RV Systems: 36-volt RV electrical systems and house battery banks
• Solar Energy Storage: Off-grid 36-volt solar battery banks for residential or commercial applications
• Marine Applications: 36-volt marine electrical systems with IP67 protection requirements

Important: Verify compatibility with your specific equipment before purchase. This battery operates at 38.4V nominal (30V-43.8V range), which is compatible with systems designed for 36V nominal voltage. Contact your equipment manufacturer to confirm voltage requirements and electrical specifications match this battery's output range.

Charging Settings

To properly charge this Epoch B36100A battery, verify that your charging equipment (battery charger, converter, inverter charger, solar charge controller, or DC-to-DC charger) can be programmed for the following manufacturer-specified parameters:

Important: Not all chargers support multi-stage charging or programmable settings. If your charger does not have programmable settings, verify it can be set to the Bulk/Absorption voltage range (42.6V - 43.2V) and disable float, equalization, and temperature compensation if those options are available. Consult your charger's manual or contact the charger manufacturer for programming instructions specific to lithium batteries.

What's Included

• Epoch B36100A 38.4V 100Ah LiFePO4 Battery (with built-in BMS, Bluetooth, and self-heating system)
• Bluetooth monitoring app access (iOS and Android compatible)
• Installation and user manual
• Warranty registration information

Warranty Service: The 11-year manufacturer warranty is provided and serviced by Epoch Batteries. Warranty claims and technical support are handled directly by the manufacturer. Complete warranty terms and manufacturer contact information are available in the Warranty tab above.
