If your golf cart is slowing down, dying before the round is over, or draining your weekend with battery maintenance, the Lithium Rhino 48V 120Ah conversion kit replaces your entire lead-acid battery bank with a single lithium pack that goes farther and lasts longer. It is built for owners of two- and four-passenger 48V carts who want dependable all-day range, including carts running lights, a sound system, and other accessories, or a light performance upgrade.
On a stock cart, the 120Ah pack delivers roughly 40 to 50 miles per charge, about 10 miles more than the 105Ah kit, while removing well over 100 pounds of lead-acid weight. Because it uses LiFePO4 (lithium iron phosphate) cells, the cart holds steady power and speed from a full charge down to nearly empty, instead of the slow fade lead-acid batteries are known for.
This is a complete drop-in kit. It includes the battery, a 25-amp smart charger, a 40-amp converter for your 12V accessories, mounting brackets and hardware, a dashboard LCD gauge, and everything else needed to finish the install in an afternoon. A built-in Bluetooth module connects to the free Lithium Rhino app so you can check battery health from your phone. The pack is backed by an 8-year warranty and rated for 6,000+ charge cycles, so for most owners it is a one-time upgrade.
Charging in the cold? You can upgrade to the Self-Heated version of this kit, which warms its own cells before charging in below-freezing temperatures. It is the better choice if you store or charge your cart in an unheated garage, barn, or outdoors through winter.
Features
-
Grade-A LiFePO4 prismatic cells. The pack uses lithium iron phosphate cells rated for 6,000+ charge cycles. For you, that means many years of use before you would ever think about a replacement, and a battery that stays stable and safe in daily use.
-
Flat lithium discharge curve. Voltage stays steady as the pack drains. You get the same power and speed at a low charge as at a full charge, so the cart does not bog down late in the day.
-
Smart BMS, 250A continuous / 500A peak. The built-in battery management system protects against over-charge, over-discharge, over-temperature, and short circuits, and supports strong current for better hill climbing and throttle response.
-
Bluetooth app and 4-inch LCD gauge. A dash-mounted color gauge with a secondary power button shows charge at a glance, and the free Lithium Rhino app (iOS and Android) reports live state of charge, per-cell voltage and temperature, fault alerts, and cycle history.
-
25-amp smart charger included. Recharges the pack from empty in about 5 hours, so the cart is ready between rounds or trips without an overnight wait.
-
40-amp DC converter included. Powers your 12V accessories such as lights and horn without adding a separate battery.
-

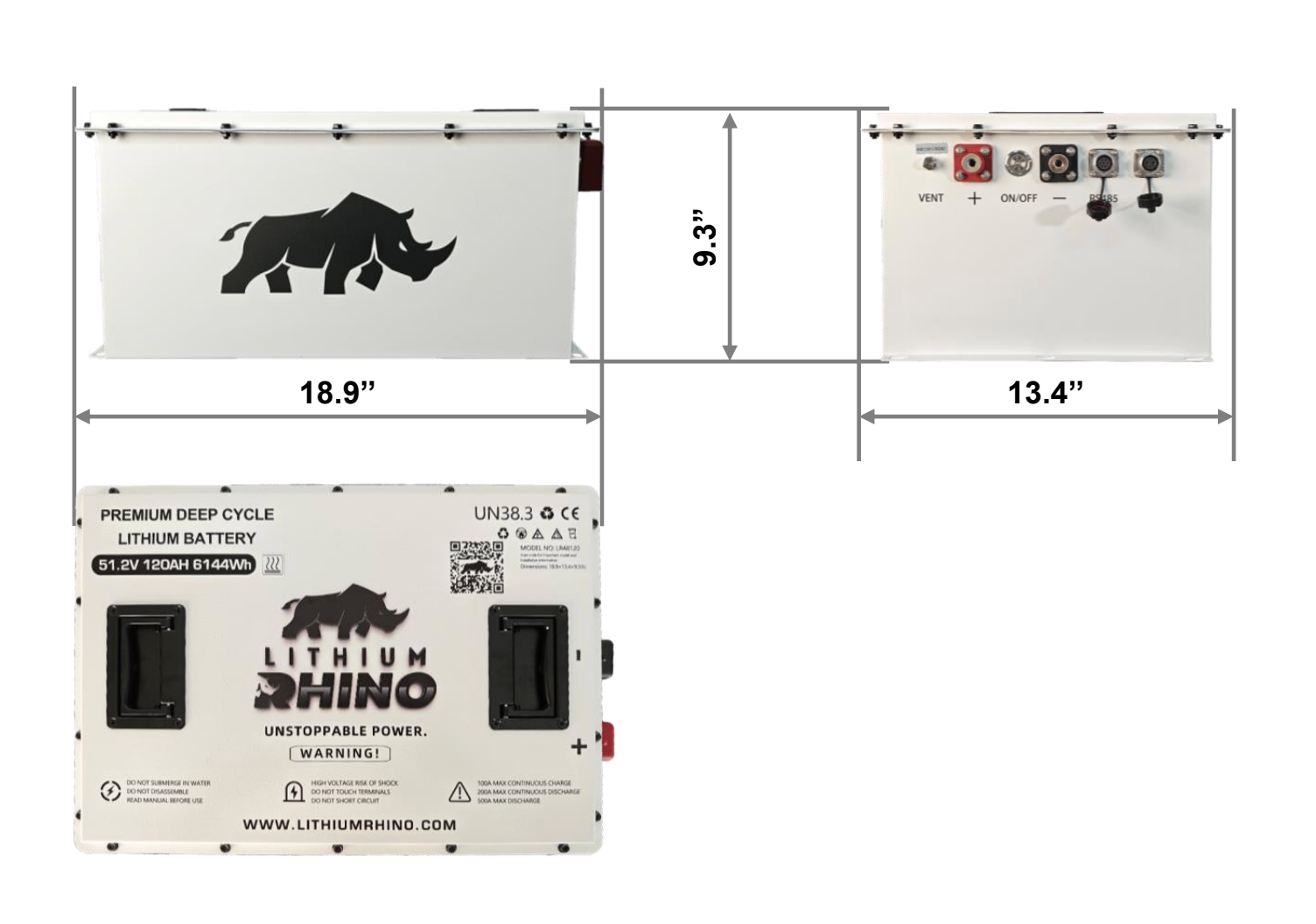

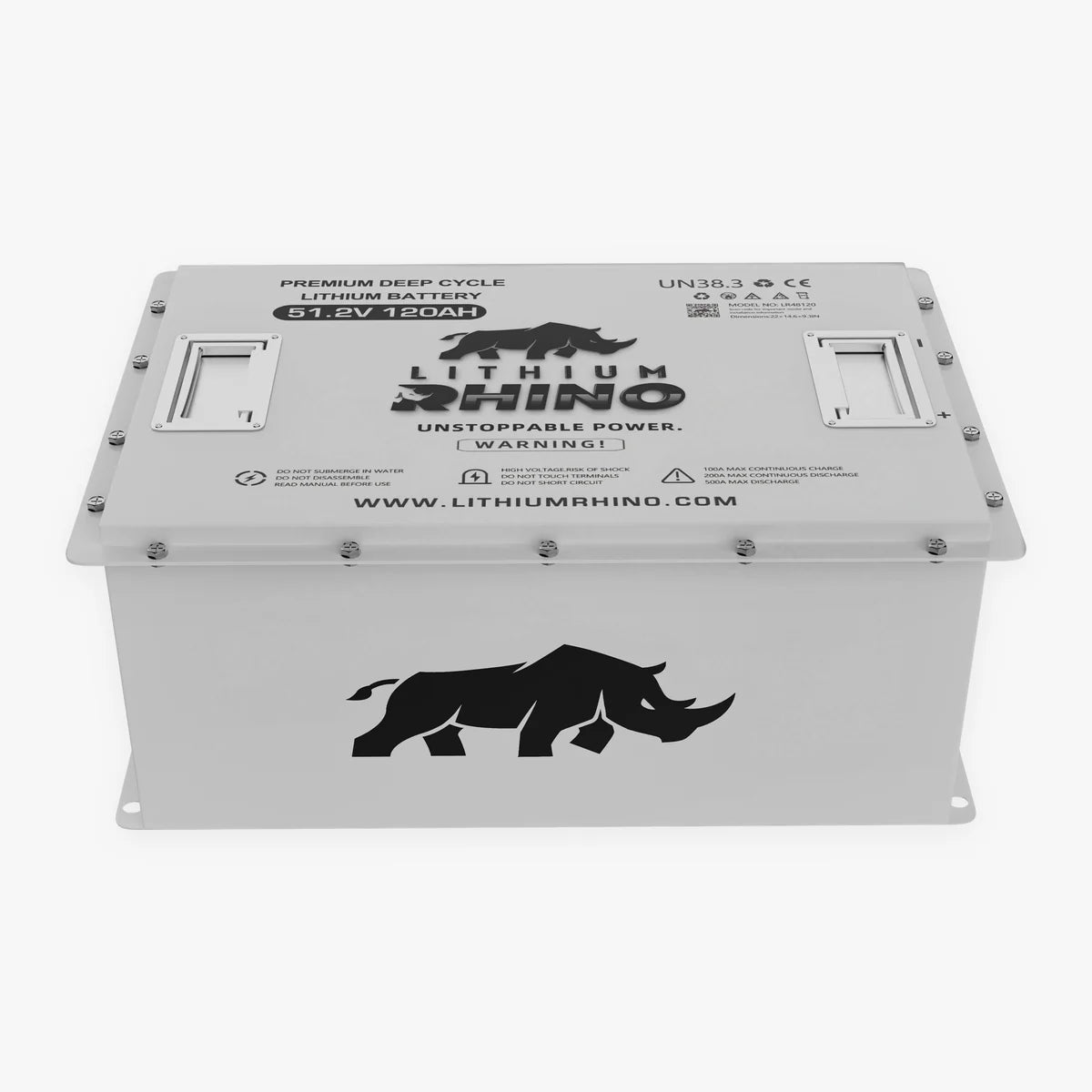

Compact metal-shell pack. At 18.9 x 13.4 x 9.3 inches and about 120 pounds, the durable metal-shell pack drops into the factory tray of most 48V carts while shedding lead-acid weight.
-
IP65 splash resistance. Rated to handle the splashes and spray of normal outdoor cart use.
-
Complete drop-in kit. Cables, brackets, hardware, drill bit, gauge, charger, converter, and safety gear are all in the box. There is nothing extra to buy to finish the install.
-
8-year warranty and US-based support. Coverage on the cells, BMS, and built-in electronics, plus lifetime customer support and step-by-step install videos.
Fitment & Compatibility
The redesigned 18.9 x 13.4 x 9.3 in pack is built to drop into most 48V golf carts using the factory battery tray. Always confirm your exact year, make, and model before ordering.
Fits with no modification
- Most Yamaha 48V carts (Drive / Drive2 and similar)
- ICON EV 48V models
- EZGO TXT
- Many other 48V carts using a standard battery tray
Fits with a minor battery tray modification
Does not fit
Suitable for
- Two- and four-passenger 48V golf carts
- Carts running lights, a sound system, or other accessories
- Carts with a light performance upgrade
- Golf course rounds, neighborhood cruising, and street-legal carts
If your cart is not listed, or you are not sure whether it will fit, contact us before ordering and we will verify fitment for your specific cart.
Note on range
Estimated range assumes a stock cart with factory-size wheels and tires (about 18 in overall height), factory controller, and factory motor. Terrain, driving style, tire size, accessories, and passenger weight all affect real-world range.
Specifications
Battery
| Nominal voltage |
51.2V (48V class) |
| Working voltage range |
43.2V to 58.4V |
| Capacity |
120Ah |
| Total energy |
6,144Wh (6.1 kWh) |
| Recommended depth of discharge |
80% DOD |
| Reserve at 25A draw |
Approx. 288 minutes |
| Cell chemistry |
Grade-A LiFePO4 prismatic cells |
| Cell configuration |
16 cells, 1P 16S (not series connectable) |
| Rated cycle life |
6,000+ charge cycles |
| Dimensions |
18.9 x 13.4 x 9.3 in (L x W x H) |
| Weight |
Approx. 120 lb |
| Terminal type |
M8 female |
| Enclosure |
Metal shell, iron-plate baking-varnish finish |
| Discharge temperature range |
-4°F to 131°F |
| Ingress rating |
IP65 (splash resistant) |
| Certifications |
UN38.3, MDSD (UN3480 shipping class) |
BMS and charging
| Max continuous discharge |
250A |
| Peak discharge |
500A |
| Recommended charge current |
25A |
| Max charge current |
120A |
| Charge time at 25A |
Approx. 288 minutes (about 5 hours) |
| Included charger |
25A smart charger with dual-mount bracket |
| Cell balancing |
Active |
| Protections |
Pack over-voltage, pack under-voltage, cell over-temperature, BMS over-temperature, short circuit, over-current |
Monitoring and connectivity
| Display |
4-inch round color LCD gauge with secondary power button |
| App |
Free Lithium Rhino app via built-in Bluetooth (iOS and Android) |
| App data |
Live state of charge, per-cell voltage and temperature, fault alerts, cycle history |
| 12V accessory power |
40A DC converter included |
Warranty
| Coverage |
8-year warranty on cells, BMS, and built-in electronics |
| Support |
US-based support plus lifetime customer support |

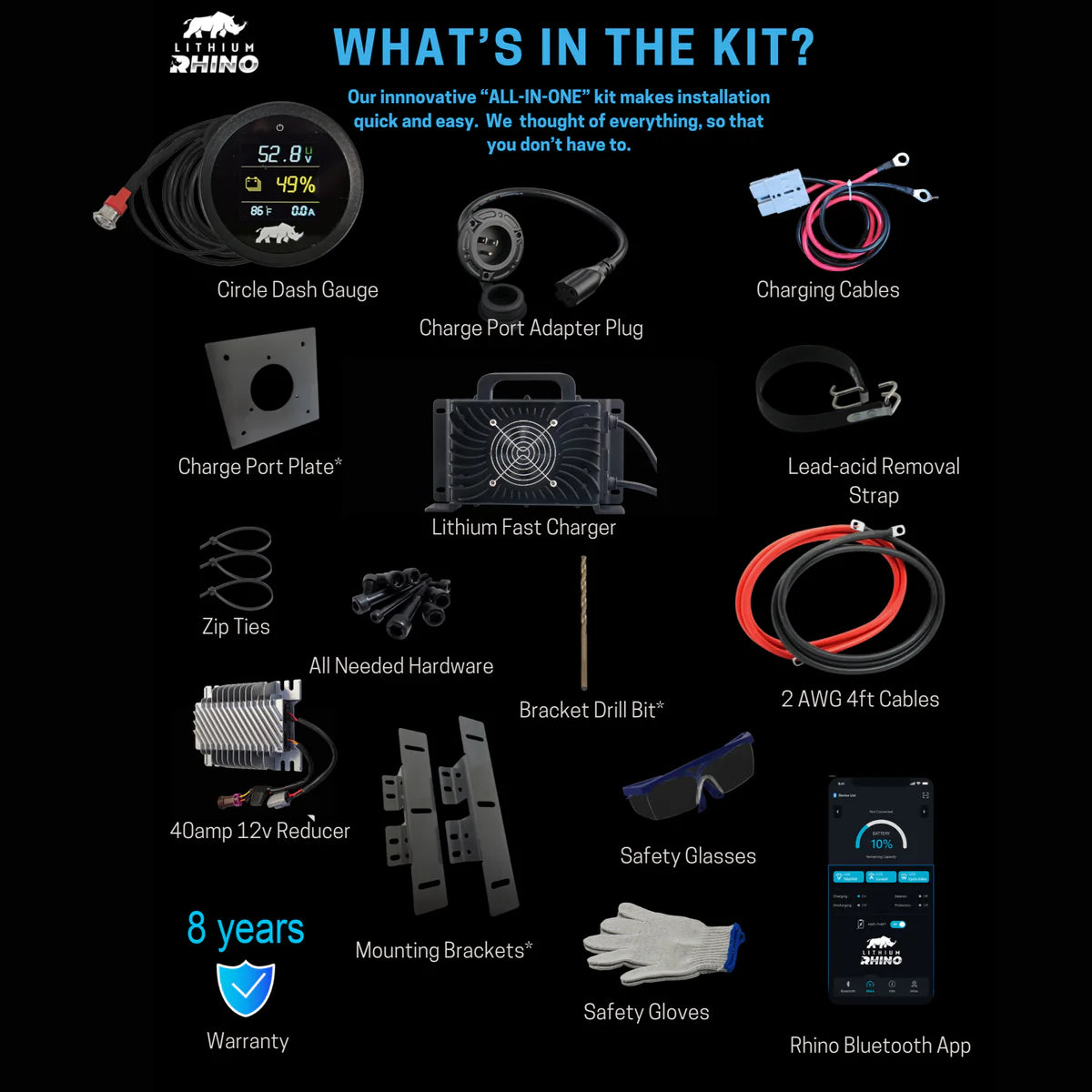

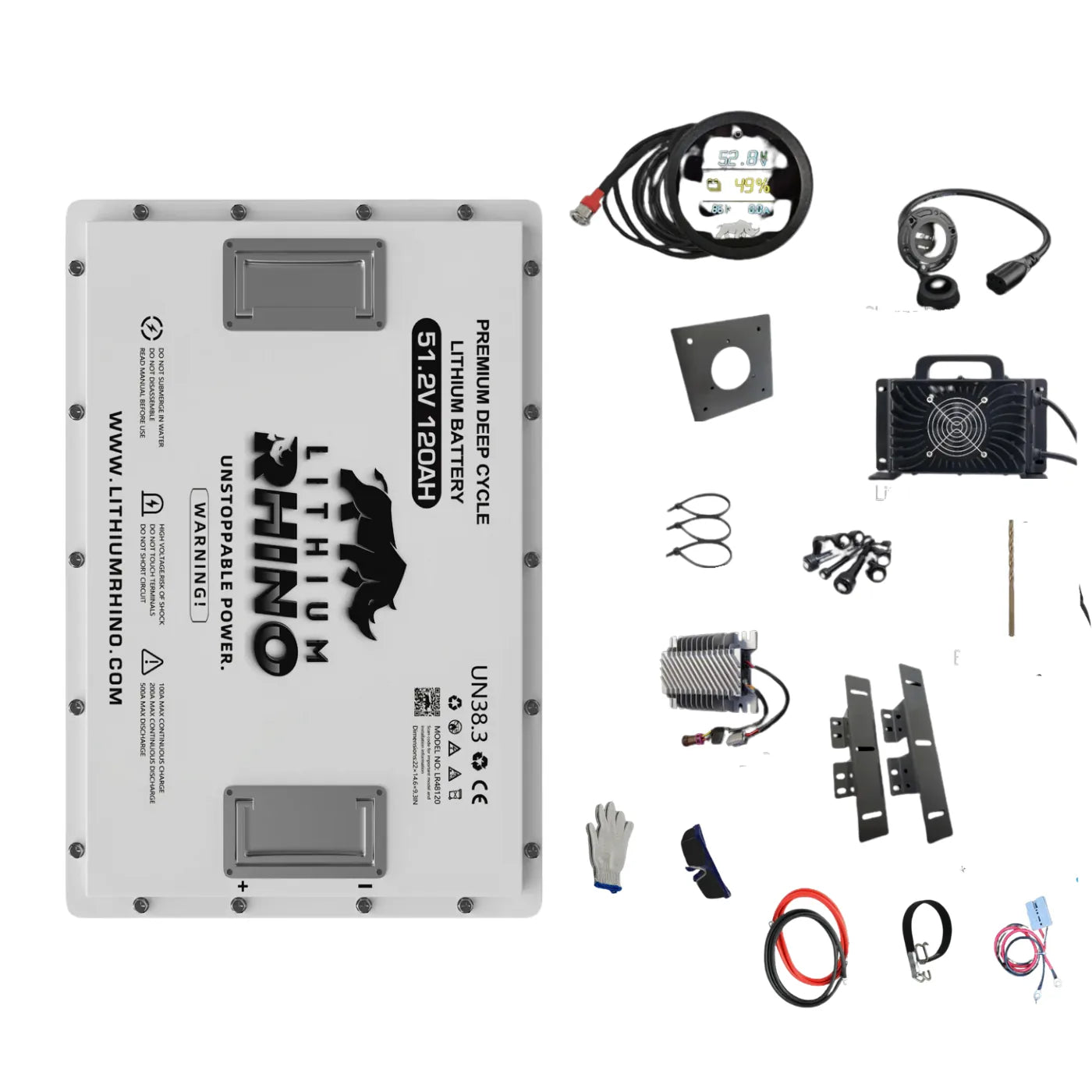

What's Included
Every kit ships complete. There is nothing extra to buy to finish the install.
- 51.2V 120Ah LiFePO4 battery pack
- 25-amp smart charger with dual-mount bracket
- 40-amp 12V DC converter (reducer) for accessory power
- 4-inch round color LCD gauge with secondary power button
- Charge port adapter plug
- Charge port plate
- Universal mounting brackets
- Heavy-gauge main cable set
- Mounting hardware
- Bracket drill bit
- Lead-acid battery removal strap
- Heavy-duty zip tie
- Safety glasses
- Safety gloves
- Built-in Bluetooth app module and model-specific install guide
Installation
This is a do-it-yourself drop-in kit. Most owners complete the install in about 2 to 4 hours with basic hand tools. The kit includes the mounting brackets, hardware, and drill bit needed to secure the pack.
Basic steps
- Disconnect and remove your existing lead-acid batteries using the included removal strap.
- Mount the lithium pack in the battery tray with the universal brackets and hardware.
- Connect the heavy-gauge main cables and the 40A DC converter for 12V accessories.
- Install the charge port adapter and plate, and mount the LCD gauge.
- Mount the 25A charger, power on, and confirm state of charge on the gauge or Lithium Rhino app.
Step-by-step videos are available for every major cart brand, and a free 30-minute video support call is available if you get stuck during the install.
Warranty & Shipping
Warranty
The kit is backed by an 8-year warranty covering the cells, BMS, and built-in electronics, plus lifetime US-based customer support. Register your kit on install day to activate coverage.
Shipping
Each kit ships in a single hazmat-certified wooden crate for safe transit. Please keep the crate and packaging in case a warranty claim ever requires return shipping.
Returns
Returns are accepted per our store return policy. Contact our support team to start a return and we will walk you through the process.
