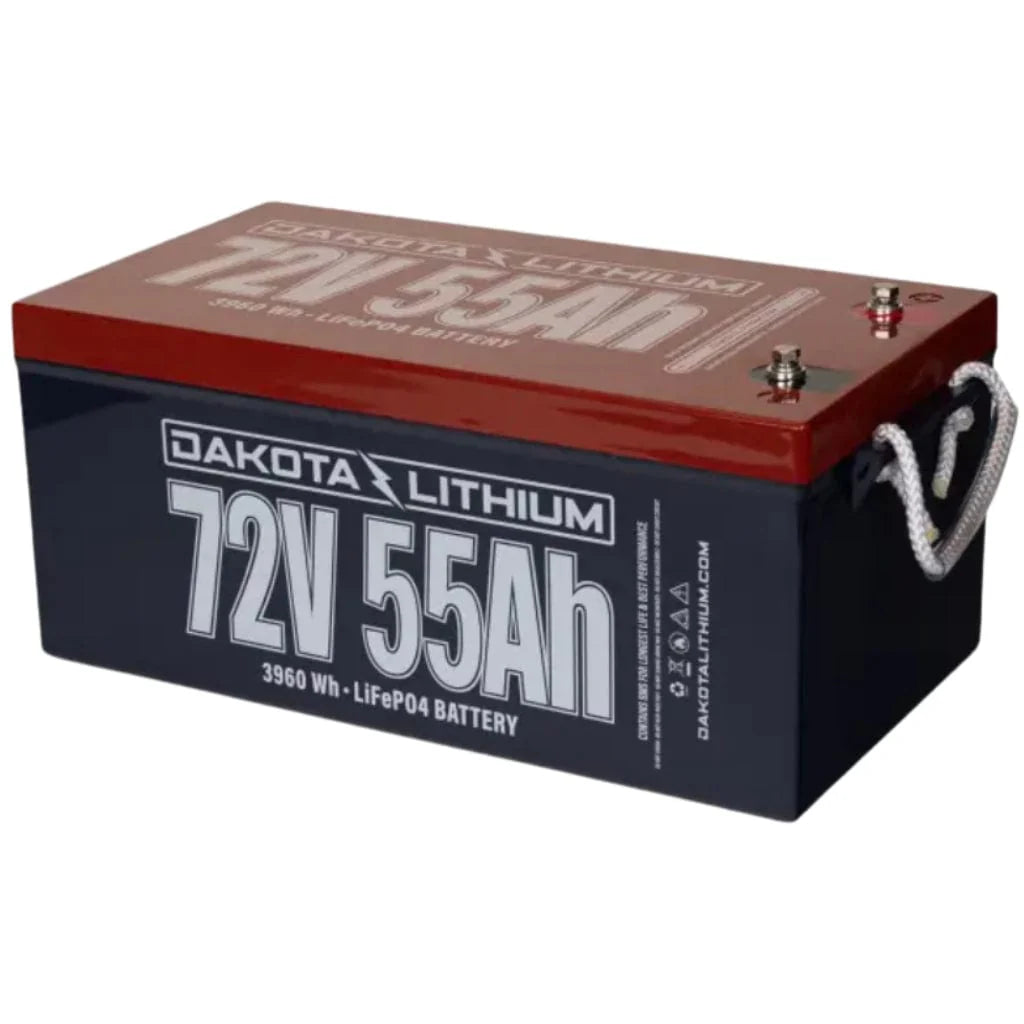

Dakota Lithium 72V 55Ah Golf Cart Battery

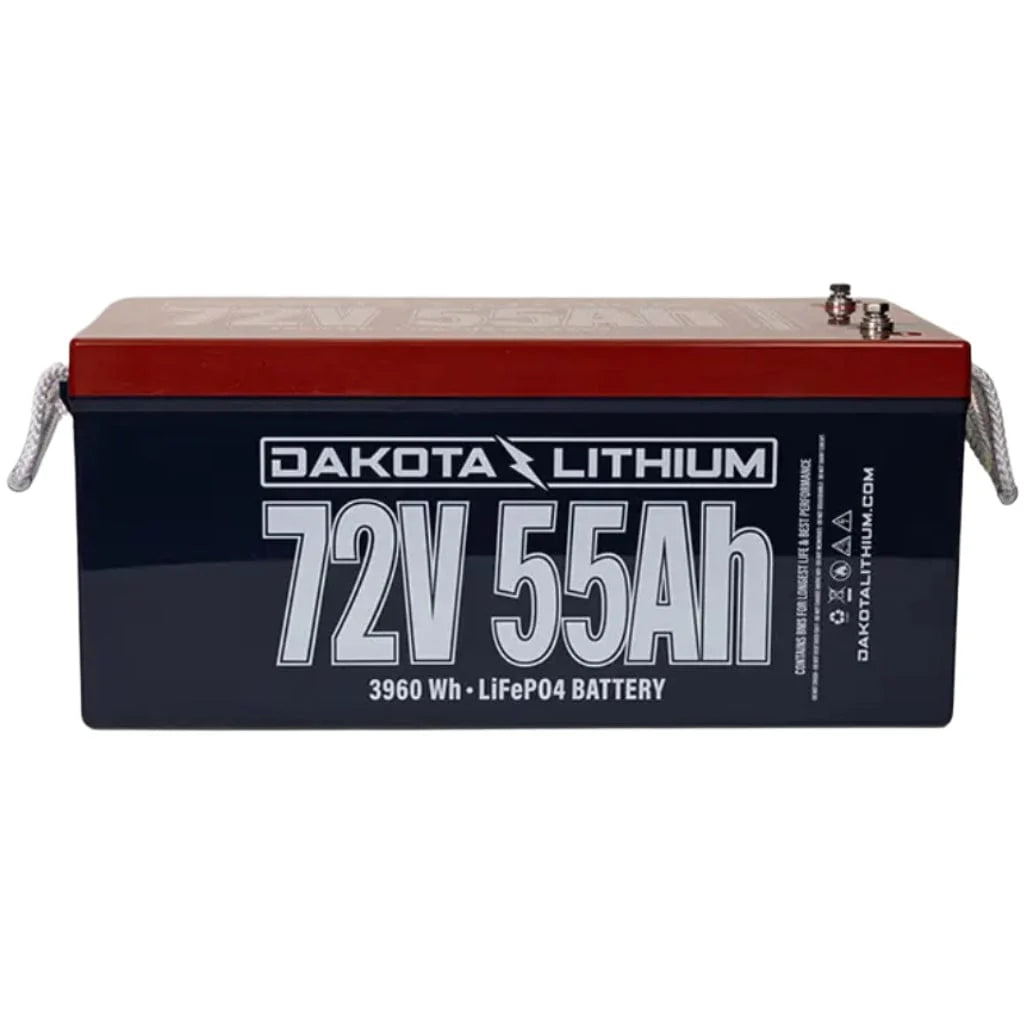

Dakota Lithium 72V 55Ah Golf Cart Battery Front View

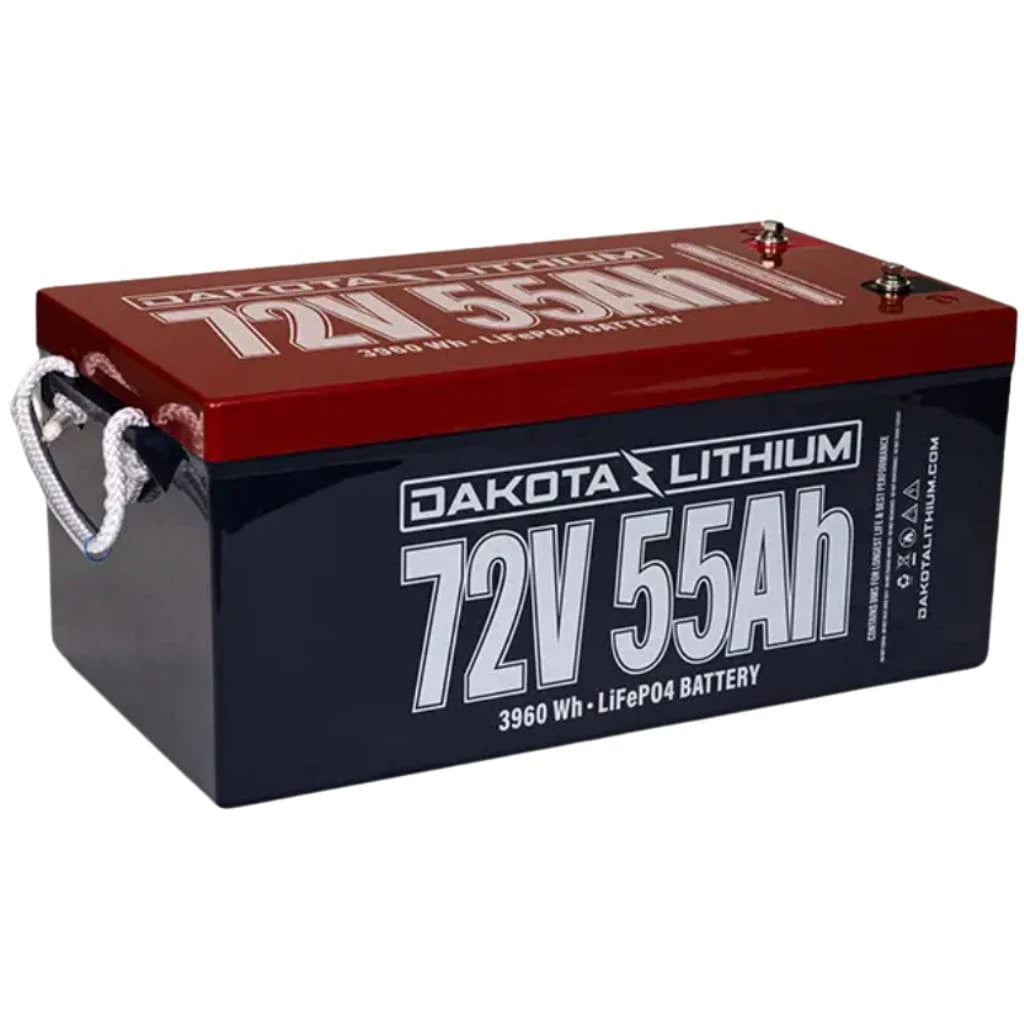

Dakota Lithium 72V 55Ah Golf Cart Battery Side View
Roll over image to zoom in Click on image to zoom
Dakota Lithium 72V 55Ah Golf Cart Battery Dakota Lithium 72V 55Ah Golf Cart Battery Front ViewDakota Lithium 72V 55Ah Golf Cart Battery Side View

Dakota Lithium 72V 55Ah Golf Cart Battery | LiFePO4 Deep Cycle Battery

Dakota Lithium
Logo
Authorized Dealer - Full Warranty Included

SKU DLB-72V-55AH

For 72V outboard motors
For 72V Golf Carts
For 72V electric vehicles
Ideal for rugged & harsh environments

Accessories

Dakota Lithium 72V 10A LiFePO4 Battery Charger
Dakota Lithium 72V 10A LiFePO4 Battery Charger
$299.00
Total: $2,160.00
Price:
$2,160.00

Shipping calculated at checkout

Stock:
In stock

📦 Fast 5-7 Day Delivery

🚚 Free Shipping

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Safety Notice

  • 38.3 CERTIFIED LITHIUM BATTERY
  • 18+ only

Read User Manual & Safety Sheet before installation

Support Icon

Need Help?

Our experts are here to help you find the lithium battery for your needs.

Call Us Live Chat

Product Resources

Dakota Lithium 72V 55Ah LiFePO4 Golf Cart Battery

The Dakota Lithium 72V 55Ah LiFePO4 battery is designed as a replacement for lead-acid batteries in 72V golf carts, electric vehicles, and marine applications. Built with Lithium Iron Phosphate (LiFePO4) technology, this deep cycle battery delivers 3,960 watt-hours of power while weighing significantly less than traditional lead-acid battery packs.

72V
Nominal Voltage
55Ah
Capacity
3,960Wh
Energy Storage
88.1 lbs
Weight

Product Overview

Performance Comparison: This lithium battery provides 5,000+ charge cycles compared to 500 for lead-acid batteries. Maintains consistent voltage throughout discharge cycle with no voltage drop during use. Charges faster than lead-acid alternatives, reducing downtime between uses. Requires no maintenance such as water refilling or terminal cleaning.

Specifications

ELECTRICAL SPECIFICATIONS
Nominal Voltage 72V (parallel connection only, up to 10 units)
Battery Capacity 55Ah at standard discharge rate
Total Energy Storage 3,960 Watt-hours (Wh)
Battery Chemistry Lithium Iron Phosphate (LiFePO4)
Cycle Life Rating 5,000+ cycles at 80% capacity
PHYSICAL SPECIFICATIONS
Length × Width × Height 20.5" × 10.5" × 8.62" (521 × 268 × 219 mm)
Total Weight 88.1 lbs (40 kg)
Terminal Configuration M8 bolt terminals (max torque 15 ft-lbs)
PERFORMANCE SPECIFICATIONS
Maximum Continuous Discharge 60A continuous
Peak Discharge Current 120A for 30-second pulse
Maximum Charging Current 30A at 86.4V
Operating Temperature Range -20°F to +120°F (-29°C to +49°C)
Charging Temperature Range Above 32°F (0°C)

Key Features

Deep Cycle LiFePO4 Chemistry

Lithium Iron Phosphate technology provides stable power delivery and enhanced safety for golf cart and marine deep cycle applications.

Extended Cycle Life

Rated for 5,000+ discharge cycles at 80% capacity under recommended conditions.

Wide Temperature Operation

Functions in temperatures from -20°F to +120°F (-29°C to +49°C). Charging recommended above 32°F for optimal battery life.

Built-in Battery Management System

Integrated BMS provides cell balancing, voltage protection, short circuit protection, and temperature monitoring.

Golf Cart Compatibility

Replacement for 72V golf cart battery systems. Compatible with Club Car, EZGO, Yamaha, and Star EV models in standard battery compartments.

Expandable Battery System

Connect multiple 72V batteries in parallel for increased capacity. Supports up to 10 units for high-performance applications.

Motor Controller Requirements

Battery Configuration by Controller Amperage:

  • Single Battery: Suitable for controllers up to 100A continuous
  • Two Batteries (Parallel): Recommended for 100A-250A motor controllers
  • Three Batteries (Parallel): Required for 250A-350A motor controllers
  • EZGO Freedom 72V: Requires 3 batteries in parallel (350A controller)

Compatible Applications

Designed for 72V electric vehicle systems: Compatible with vehicles that match physical dimensions and electrical specifications.

72V Golf Cart Batteries
Club Car Precedent, DS, Onward; EZGO TXT, RXV, Freedom; Yamaha Drive2, G-Series; Star EV models. Direct replacement for standard battery compartments.
Marine Lithium Batteries
72V electric outboard motors and marine propulsion systems. Saltwater resistant construction.
Neighborhood Electric Vehicles
Street-legal low-speed electric vehicles requiring 72V power systems.
Electric Utility Vehicles
Commercial and industrial electric carts and utility vehicles.
Solar Energy Storage
Large-scale 72V solar power storage systems and off-grid applications.
Electric Go-Karts
Racing and recreational electric go-kart applications requiring 72V power.

Installation and Setup

This 72V lithium golf cart battery serves as a replacement for lead-acid battery systems. Most golf carts accommodate multiple batteries in the battery compartment for extended range. Verify compartment dimensions (20.5" × 10.5" × 8.62") before installation.

  • Drop-in replacement design for standard golf cart battery compartments
  • Compatible with existing 72V golf cart electrical systems
  • Parallel connection capability for increased capacity
  • Can be mounted in any orientation
  • Professional installation recommended for multi-battery configurations
  • Motor controller matching required for optimal performance

Charging Requirements

Charging System: Requires 72V LiFePO4-compatible charger for optimal performance. Compatible with 72V 10A charger with 5.5-hour charge time (charger sold separately). Charging temperature: Above 32°F for optimal battery longevity.

  • Recommended charger: 72V 10A LiFePO4 charger
  • Charging voltage: 86.4V
  • Maximum charging current: 30A
  • Typical charge time: 5.5 hours with 10A charger
  • Charging temperature range: Above 32°F (0°C)
  • Compatible with standard 72V golf cart charging systems

Safety and Protection

  • Integrated Battery Management System (BMS)
  • Cell balancing for optimal performance
  • Overcharge and over-discharge protection
  • Short circuit protection
  • Temperature monitoring and protection
  • Saltwater resistant construction for marine applications
