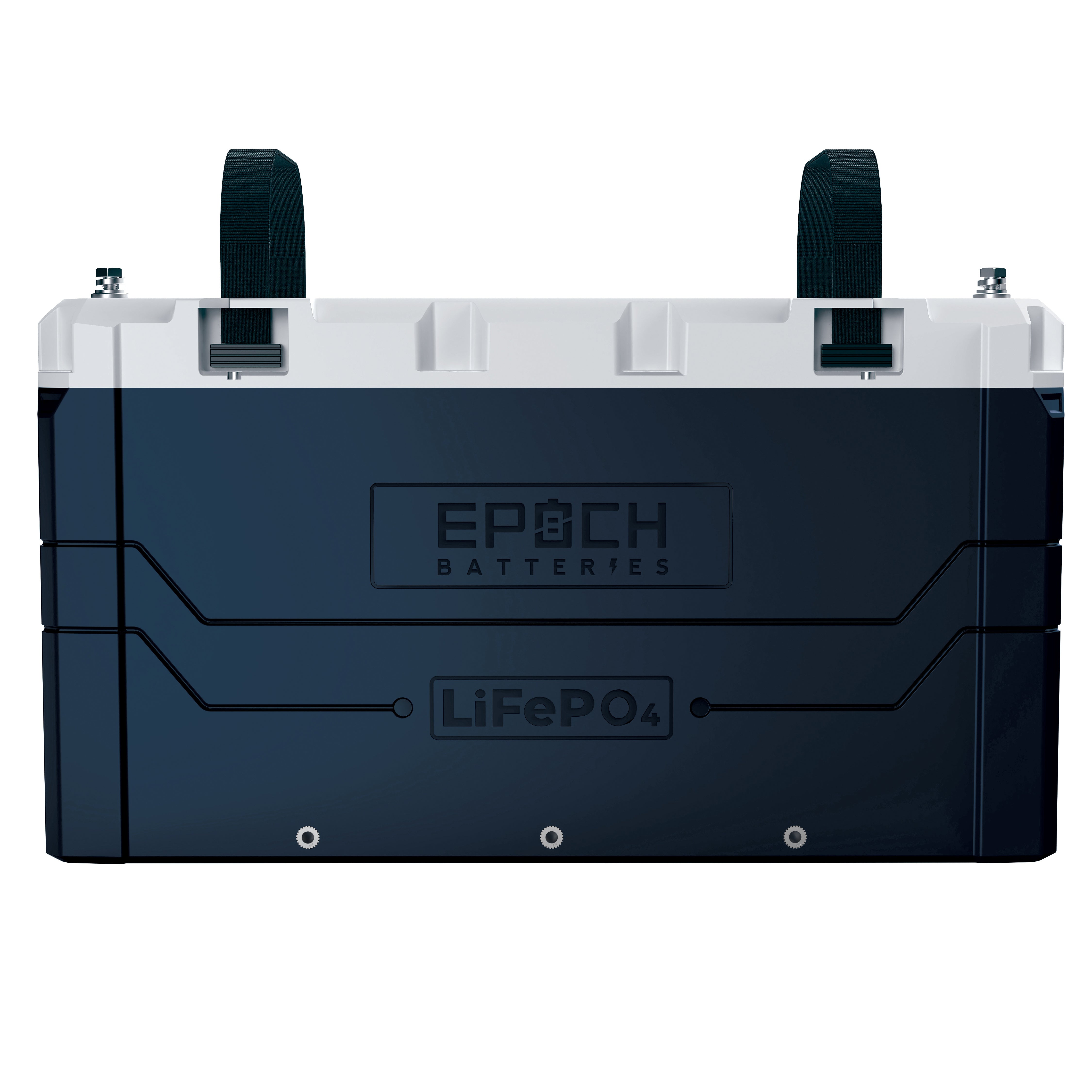

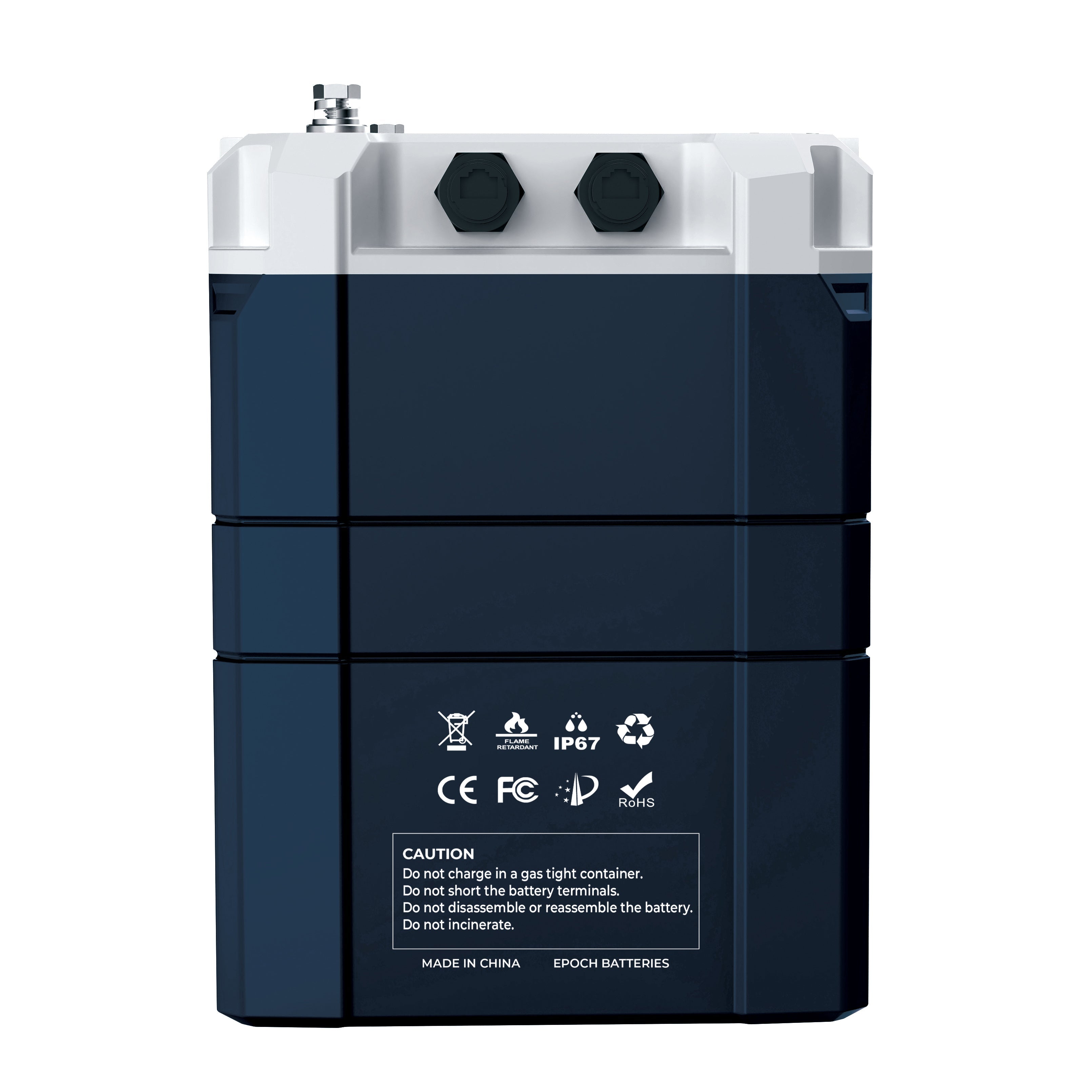

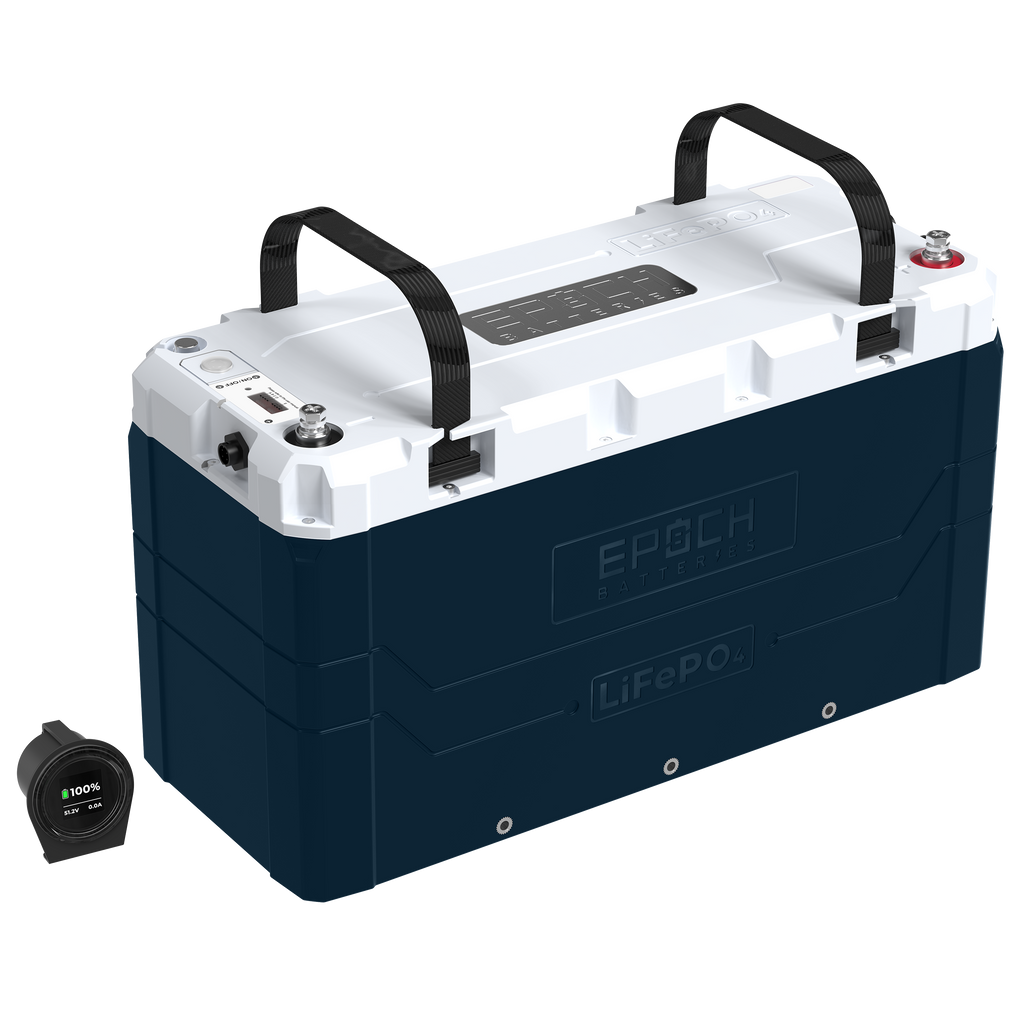

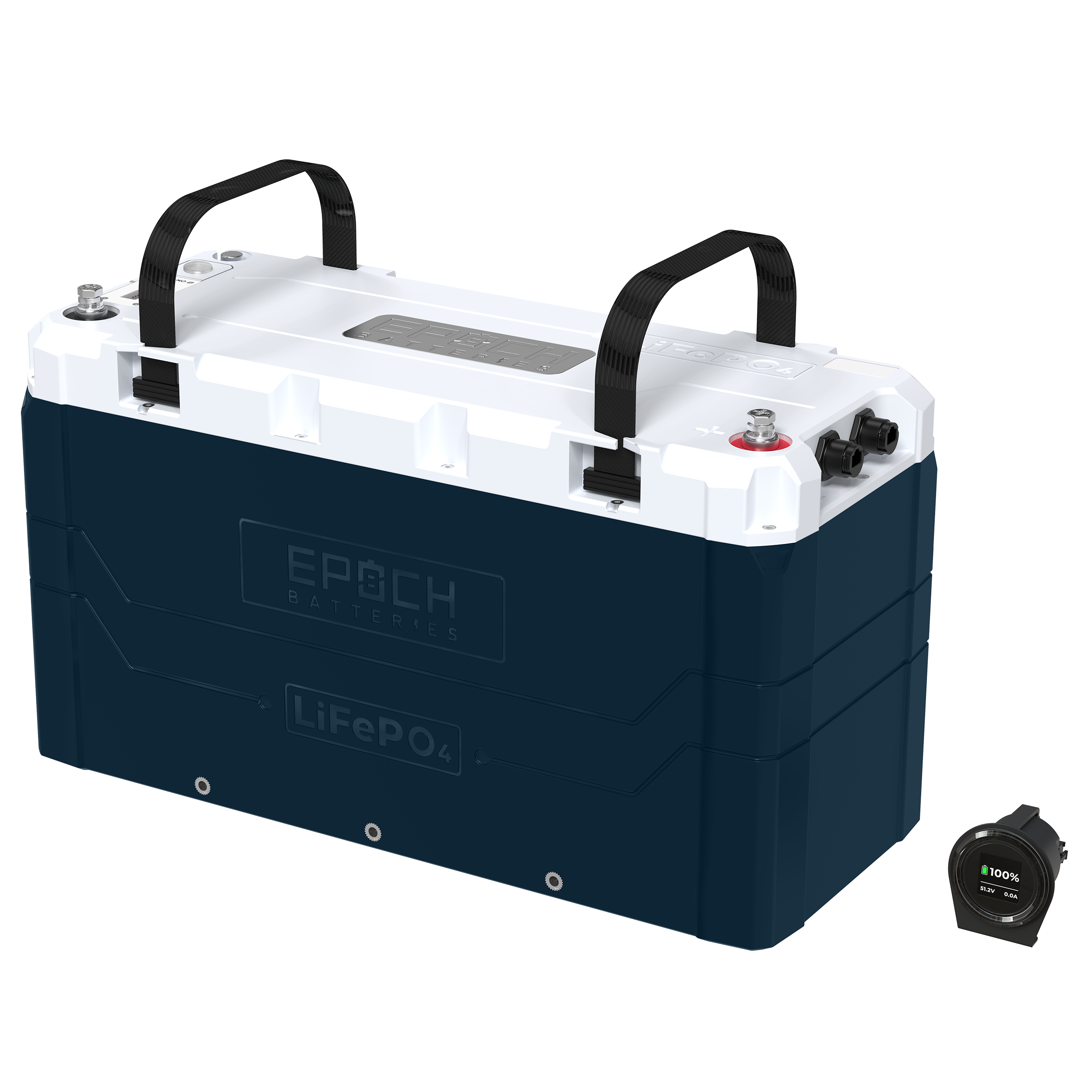

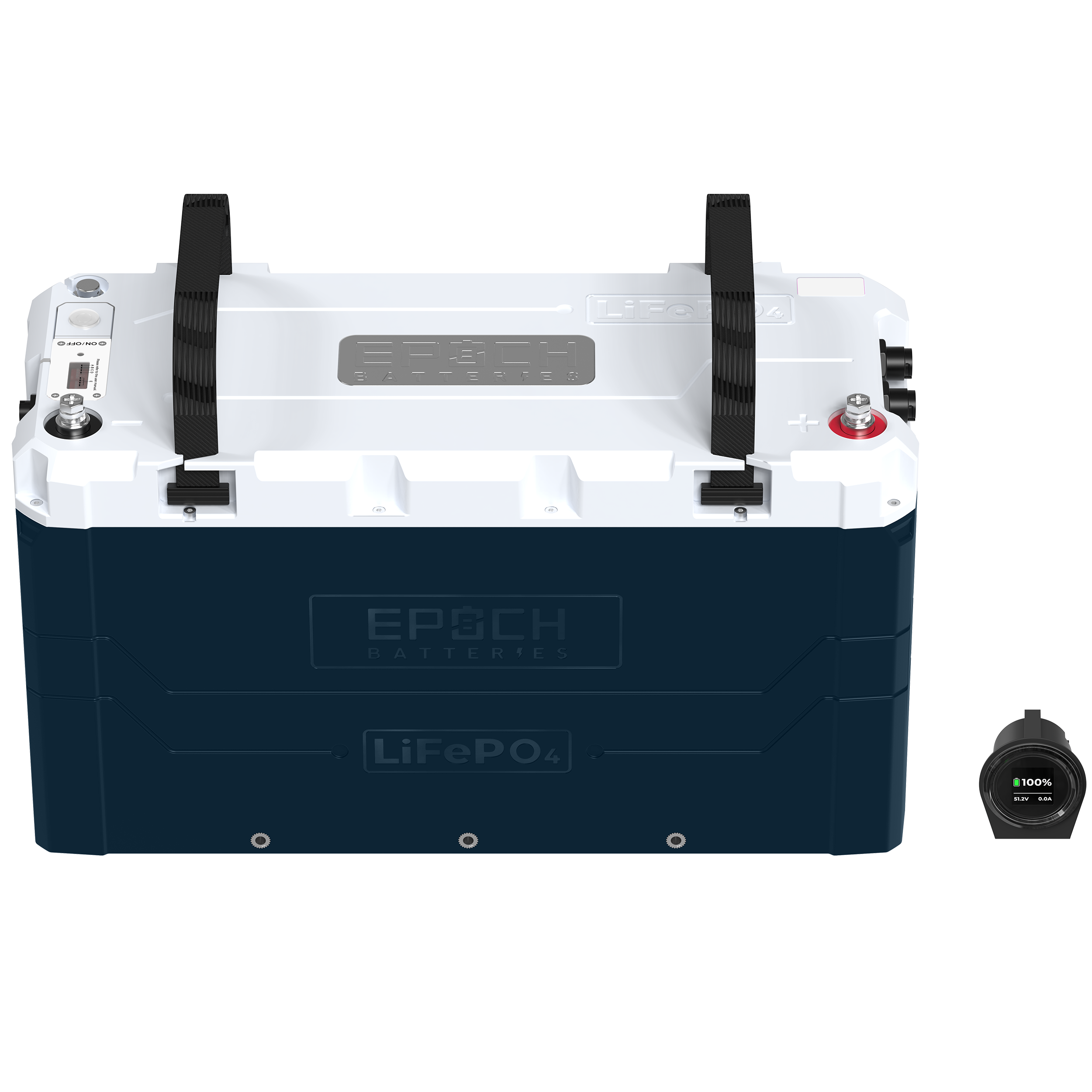

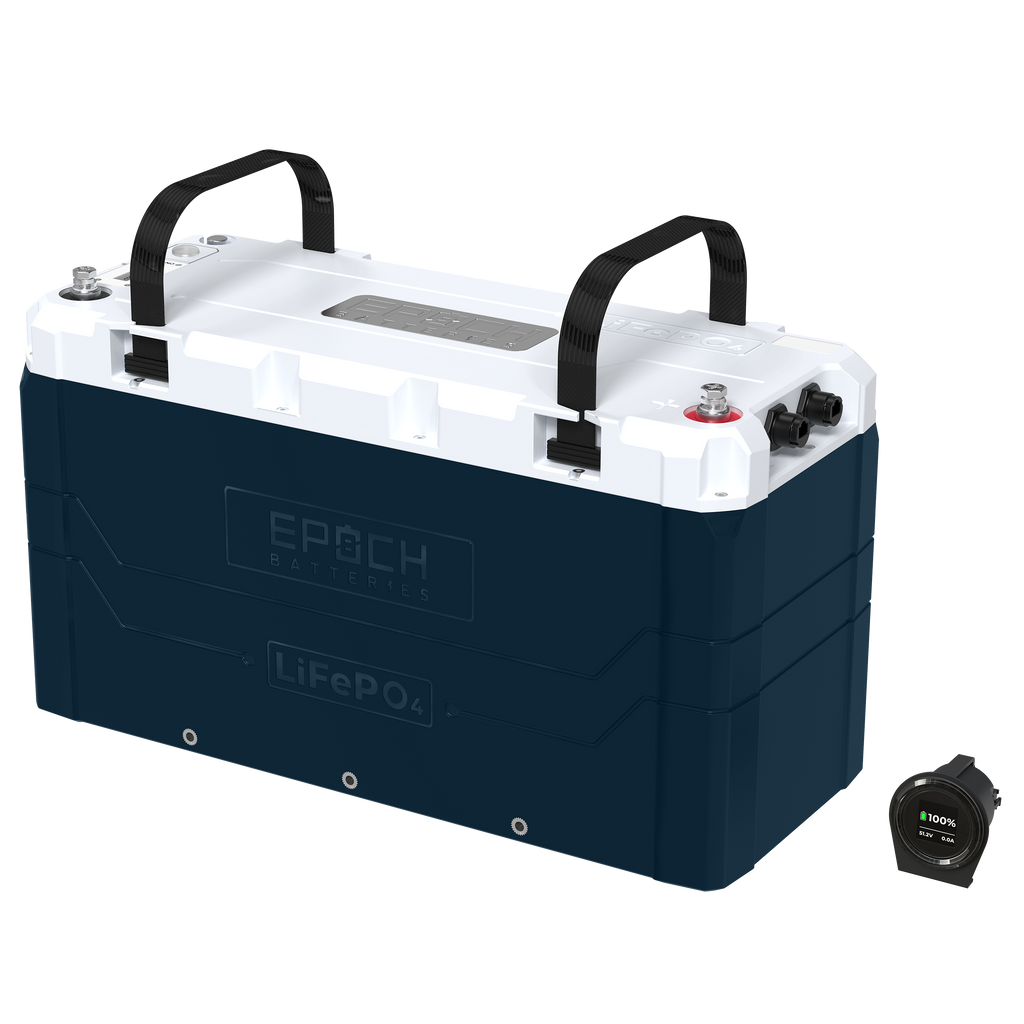

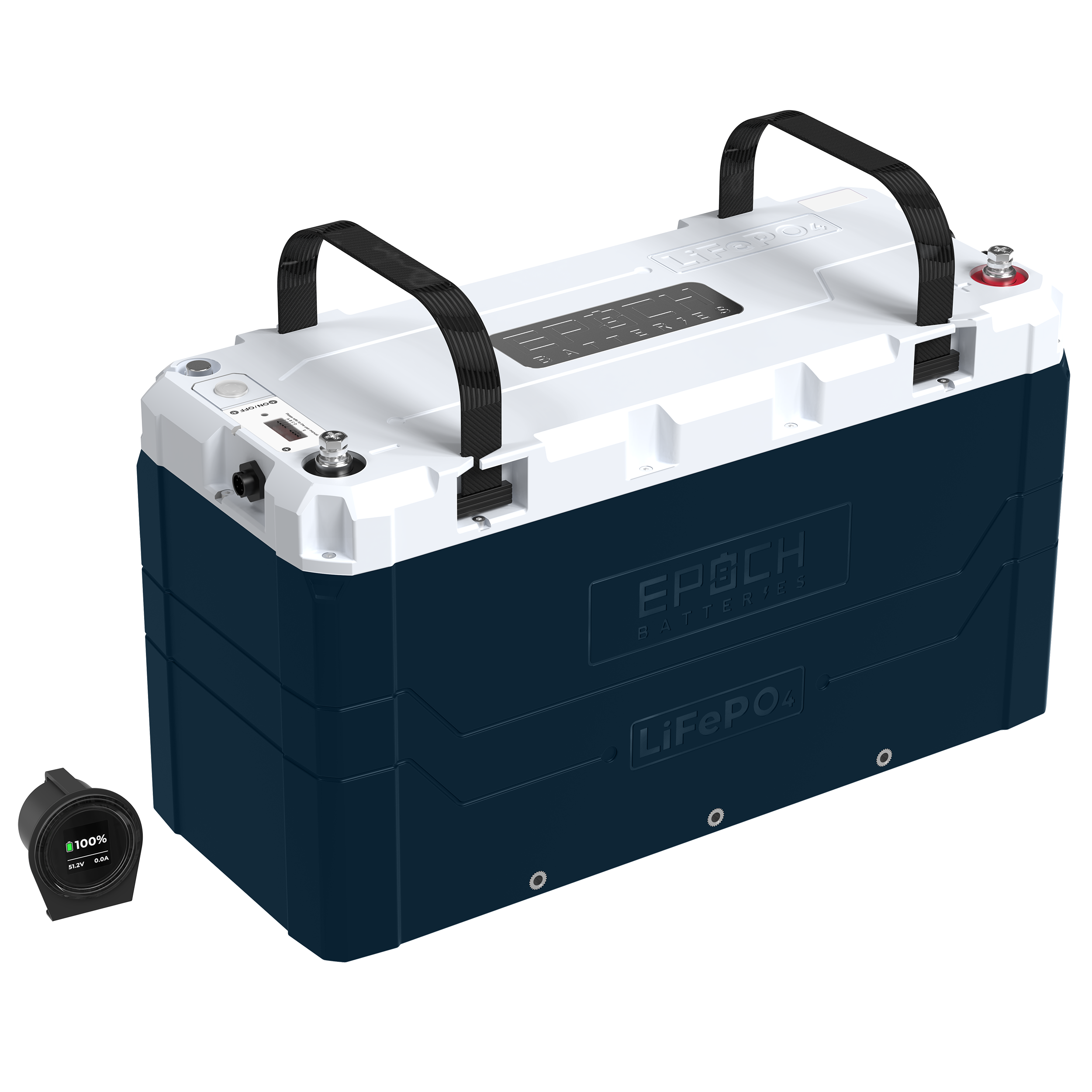

Epoch 24V 230Ah V2 Elite Series LiFePO4 Battery
The Epoch V2 Elite Series is designed for marine, RV, solar, and off-grid applications. This 24V 230Ah lithium battery features LiFePO4 chemistry with integrated heating, Bluetooth connectivity, and Victron communication capability for energy storage systems.
Cold Weather Performance
Integrated heating system enables charging in temperatures as low as -4°F (-20°C).
Bluetooth Monitoring

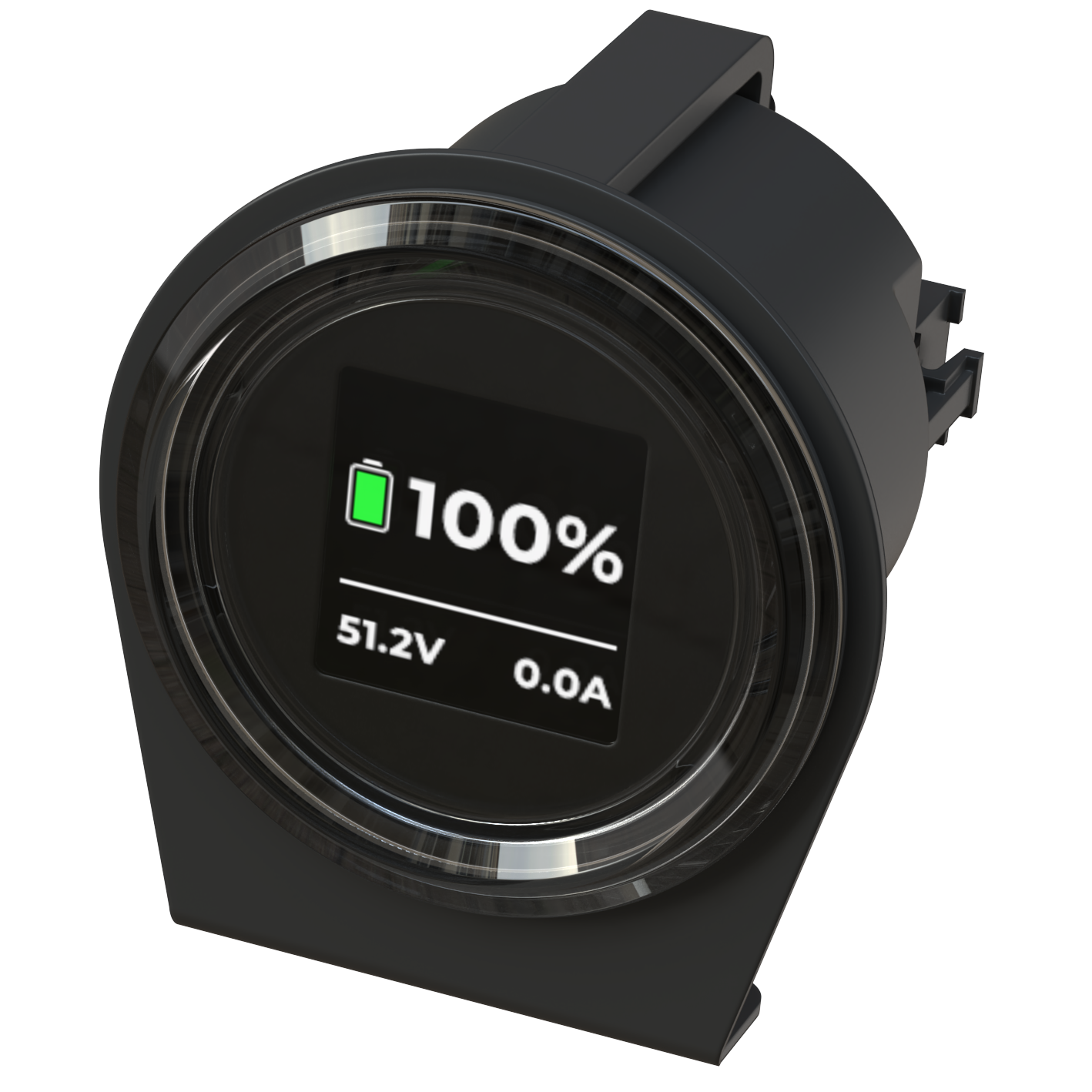

Bluetooth app supports monitoring up to 16 batteries from a single dashboard with real-time data including State of Charge, voltage, and current flow. Compatible with iOS and Android apps.
Victron Integration
CAN bus communication with Victron Energy systems for integration with solar installations.
Parallel Capacity
Connect up to 16 batteries in parallel for systems up to 3,680Ah capacity for large off-grid setups.
Technical Specifications
| Specification |
Value |
| Chemistry |
LiFePO4 (Lithium Iron Phosphate) |
| Nominal Voltage |
25.6V |
| Capacity |
230Ah |
| Energy Storage |
5,888 Wh |
| Max Continuous Discharge |
230A |
| Max Continuous Charge |
230A |
| Peak Discharge Current |
500A (30 seconds) |
| Cycle Life |
3,500+ cycles |
| Operating Temperature |
-4°F to 131°F (-20°C to 55°C) |
| Charging Temperature |
32°F to 131°F (0°C to 55°C) with heating |
| Dimensions (L x W x H) |
20.9" x 8.7" x 12.1" |
| Weight |
97 lbs |
| Protection Rating |
IP67 (Waterproof) |
| Series Connection |
Up to 2 batteries (48V system) |
| Parallel Connection |
Up to 16 batteries (3,680Ah) |
| Warranty |
11 Years Manufacturer Warranty |
Applications
Marine & Trolling Motors
24V marine battery for boats and electric trolling motors with IP67 rating
RV & Camper Power
24V battery for RV systems, providing power for off-grid use
Solar Energy Storage
24V lithium battery for solar installations with Victron compatibility
Off-Grid Cabins
24V deep cycle battery for remote locations
Backup Power Systems
Supports commercial and residential backup power with maintenance-free operation
Industrial Equipment
Compatible with floor scrubbers, forklifts, and other 24V industrial applications
Features & Benefits
The Epoch V2 Elite features a Battery Management System (BMS) with protection against overcharge, over-discharge, overcurrent, and short circuits. The system includes high and low temperature disconnects for operation in extreme conditions.
Key BMS Features:
| Feature |
Description |
| UL60691 Certified Fuse |
Internal fuse rated at 270A |
| Firmware Updates |
Over-the-air updates via Bluetooth app |
| Monitoring |
Real-time diagnostics |
| Cell Balancing |
Automatic balancing for optimal performance |
| Victron Integration |
Compatible with VE.CAN systems |
This 24V LiFePO4 battery offers advantages over traditional lead-acid batteries. With over 3,500 charge cycles compared to 300-500 cycles for lead-acid, it provides longer service life. The 97 lbs design replaces multiple heavy lead-acid batteries, and its maintenance-free operation eliminates the need for water additions and equalization charges.
The lithium iron phosphate chemistry provides consistent power output throughout the discharge cycle, unlike lead-acid batteries that experience voltage drop under load.
Installation & Setup
The Epoch V2 Elite is designed for installation in Group 8D battery compartments. The compact design optimizes space while the PC + ABS case material provides durability in marine and RV environments.
Non-Victron System Settings:
- Absorption voltage: 28.4V with minimum 15 minutes per battery
- Float voltage: 27.0V
- Equalization: OFF
- Temperature compensation: None required
Victron System Integration Setup:
- Connect waterproof bung to master blue port
- Run RJ45 cable from master black port to slave1 blue port
- Continue daisy chain pattern for up to 16 batteries in parallel
- Set DIP switches according to manual specifications
- Connect grey RJ45 plug to Cerbo/Ekrano GX BMS CAN port
- For Cerbo Mk2: Use VE-CAN1 or VE-CAN2, set speed to 500 KBPS LV
Victron System Configuration:
- Verify Epoch battery appears in GX device list
- Check module count matches installed batteries
- Confirm total Ah matches system capacity
- Enable DVCC on GX device
- Set controlling BMS to Epoch
- Set battery monitor to Epoch
- System displays "External Control" during charging
Backup Configuration: Manually program Multiplus, Quattro, and other charge sources with the same parameters (28.4V absorption, 27.0V float) in case of CAN communication loss.
Compatibility: Works with major inverter brands including Victron, Magnum, Aims, and others. This 24V lithium battery with BMS meets safety standards, including UL1642, UL1973, IEC 62619:2017, and RoHS compliance.
