The Eco Battery 51V 160Ah GEN3 Lithium Conversion Kit is a complete drop-in replacement for the eight lead-acid batteries in a Polaris Ranger EV. It is a single 51.2V 160Ah (48V) LiFePO4 battery bundled with a Polaris-specific mounting kit, a matched 15A CAN charger, a CAN LCD state-of-charge meter, a quick-connect charge port, and a remote wake-up button. The kit fits Polaris Ranger EV models from 2010 through 2022.

This conversion is built for owners who use their Polaris Ranger EV on farms, ranches, hunting properties, vineyards, orchards, and large acreage. It is rated for 250A continuous discharge and 600A peak, which handles hill climbs, mud, 4WD, and trailer towing within Polaris payload limits without BMS shutdowns.

Compared to the factory lead-acid pack, this lithium conversion delivers roughly twice the usable capacity, cuts approximately 535 pounds of weight from the cart, charges in about 3.5 hours, and eliminates watering, equalizing, and corrosion. Most owners report 50 to 60+ miles of range per charge on a stock Ranger in light to moderate use.

Every component in this bundle is Polaris Ranger EV-specific. No charger reprogramming, no Sevcon controller modification, no fabrication, and no additional 48V-to-12V converter required. The battery is backed by Eco Battery's Limited Lifetime warranty when registered within 60 days of purchase.

Quick Facts

A summary of the key information about the Eco Battery 51V 160Ah GEN3 Lithium Conversion Kit for Polaris Ranger EV:

• Product: Eco Battery 51V 160Ah GEN3 Lithium Conversion Kit for Polaris Ranger EV
• Bundle SKU: B-3175
• Battery SKU: A-051160-06
• Vehicle Compatibility: Polaris Ranger EV, 2010 through 2022, Mid-Size and 2-Seat models
• Battery Type: Lithium Iron Phosphate (LiFePO4), 51.2V nominal, 160Ah, 8.1 kWh
• Continuous Discharge: 250A
• Peak Discharge: 600A for 5 seconds, 550A for 10 seconds
• Charger Included: 38V to 51V, 15A CAN charger (A-1055)
• Charge Time: Approximately 3.5 hours from low to full
• Expected Range: 50 to 60+ miles on a stock Ranger EV in light to moderate use
• Battery Weight: 165 lbs (74.84 kg)
• Weight Savings vs Lead Acid: Approximately 535 lbs
• Dimensions: 22 inches long, 12.125 inches wide, 10.625 inches tall
• IP Rating: IP67 sealed, powder-coated steel case
• Communication: CAN bus and Bluetooth (EB Power app on iOS and Android)
• Charging Temperature Range: 32°F and above
• Discharge Temperature Range: -4°F to 140°F
• Warranty: Limited Lifetime, requires registration within 60 days of purchase
• Country of Origin: Designed by Eco Battery in the United States
• Shipping: Freight delivery to the contiguous United States only

Key Features and Benefits

The Eco Battery 51V 160Ah GEN3 conversion kit includes the following features, each chosen for the specific demands of the Polaris Ranger EV:

• 250A Continuous Discharge, 600A Peak. The Polaris Ranger EV's 30HP AC motor pulls roughly 200 to 300 amps continuous under heavy load and can spike to 400 to 500 amps. The 250A continuous rating handles these loads without BMS shutdowns on hills, in mud, or while towing.
• 8.1 kWh of Usable Energy. Lithium delivers 90%+ depth of discharge versus approximately 50% for lead acid. Real usable capacity is roughly double the factory lead-acid pack.
• CAN Bus Communication. The included Eco Battery CAN charger communicates directly with the battery's Battery Management System (BMS) during every charge cycle. The BMS controls current, balancing, and shutoff based on real cell data.
• Bluetooth Monitoring. The free EB Power mobile app on iOS and Android displays real-time voltage, current, individual cell voltages, temperatures, and state of charge. Firmware updates are pushed over Bluetooth.
• Grade A LiFePO4 Cells. Lithium iron phosphate is the most thermally stable lithium chemistry available for consumer use. It does not enter thermal runaway like NMC or LiPo packs.
• Smart BMS Protection. The Battery Management System protects against overvoltage, undervoltage, overcurrent, short circuit, overheating, and cell imbalance. Multiple internal temperature sensors monitor cell health.
• IP67 Sealed Steel Case. The powder-coated steel enclosure is dust-tight and protected against temporary water immersion. Built for off-road, mud, and trail use.
• Polaris Ranger EV-Specific Mounting Kit. The A-8172 mounting bracket and A-8016 flange supports fit the factory battery tray without modification or fabrication.
• 15A CAN Charger Included. No need to send the factory Delta-Q charger out for lithium reprogramming. The included charger is ready to use out of the box.
• Remote Wake-Up Button. Wakes the battery from protective sleep mode without opening the seat or hood. Useful after long-term storage.
• 535 lbs Weight Reduction. One 165 lb lithium battery replaces eight lead-acid batteries weighing approximately 700 lbs combined. Acceleration, handling, and chassis wear all improve.
• 3.5-Hour Charge Time. Versus 9+ hours for the factory lead-acid pack. Partial charges are fine and do not cause memory effect.
• Limited Lifetime Warranty. Backed by Eco Battery's US-based support team when registered within 60 days of purchase. For Full Details read "Warranty Tab"

Fits Your Polaris Ranger EV

The Eco Battery 51V 160Ah GEN3 Lithium Conversion Kit (Bundle SKU B-3175) is engineered specifically for the Polaris Ranger EV platform. The mounting kit, charge port, CAN charger, and BMS are all matched to the Ranger EV's electrical system and battery bay.

Compatible Polaris Ranger EV Models:

• 2010 Polaris Mid-Size Ranger EV
• 2011 Polaris Mid-Size Ranger EV
• 2012 Polaris Mid-Size Ranger EV
• 2013 Polaris Mid-Size Ranger EV
• 2014 Polaris Mid-Size Ranger EV
• 2015 Polaris Mid-Size Ranger EV
• 2016 Polaris 2-Seat Ranger EV (lead acid and Li-Ion factory variants)
• 2017 Polaris 2-Seat Ranger EV
• 2018 Polaris 2-Seat Ranger EV (lead acid and Li-Ion factory variants)
• 2019 Polaris 2-Seat Ranger EV
• 2020 Polaris 2-Seat Ranger EV
• 2021 Polaris 2-Seat Ranger EV
• 2022 Polaris 2-Seat Ranger EV

Recommended Applications:

• Farms and ranches with daily Ranger EV use across large acreage
• Hunting clubs, food plot maintenance, and game retrieval
• Vineyards, orchards, and tree farms with row-spacing constraints
• Equestrian properties and barn use where quiet electric operation matters
• Hilly terrain and off-road trail riding
• Heavy hauling and trailer towing within Polaris payload limits
• Off-grid and remote properties where lead-acid maintenance is impractical
• Snow plowing and four-season utility work
• Commercial and resort fleet use

Not sure which model year you have, or whether your Ranger EV is the lead-acid or factory Li-Ion variant? Send us your year and VIN and we will confirm fitment before you order. Lithium Battery Supply is an authorized Eco Battery reseller.

What's Included

Every component needed to convert a Polaris Ranger EV from lead-acid to lithium is in the box. There are no additional parts to source, no charger to reprogram, and no controller to ship out for modification.

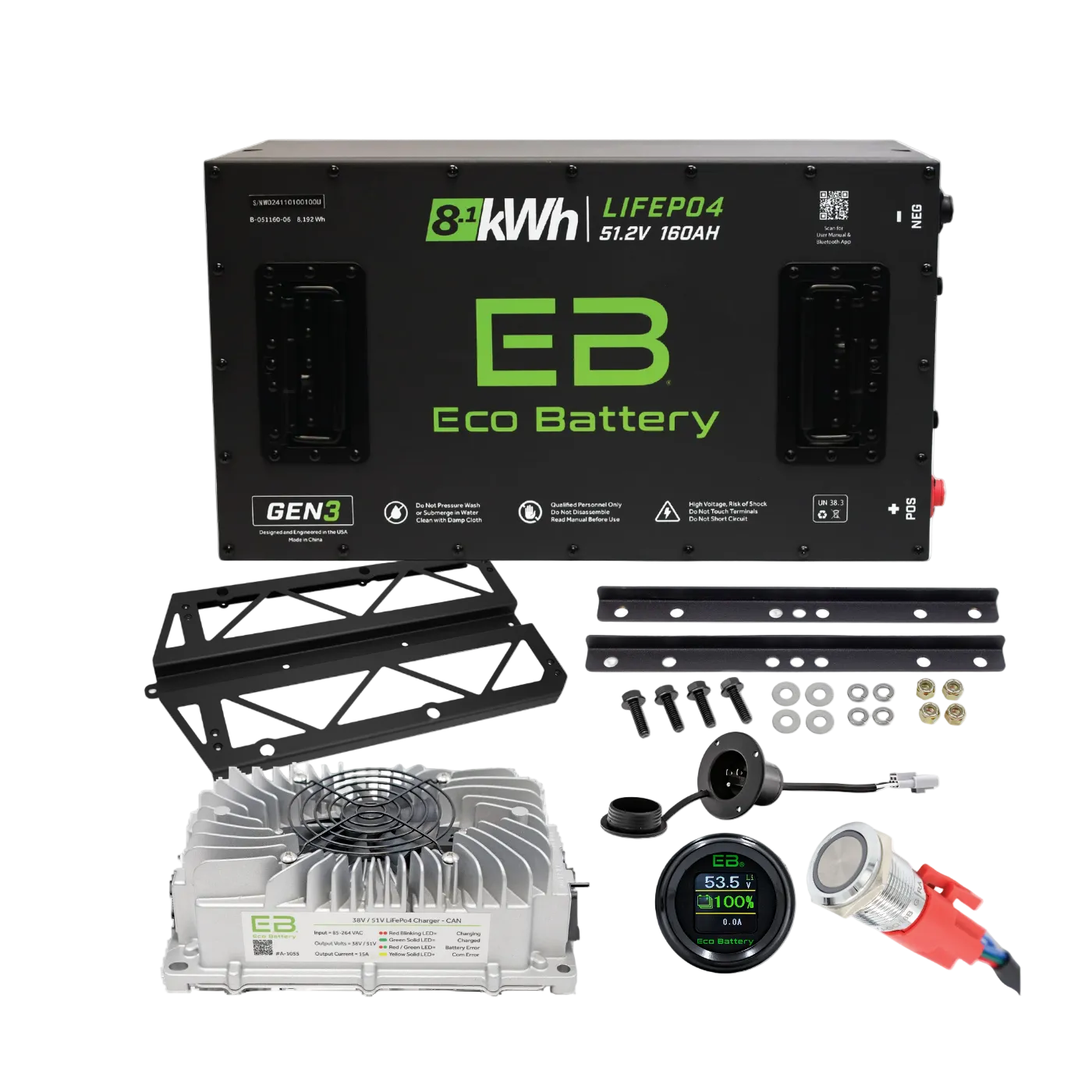

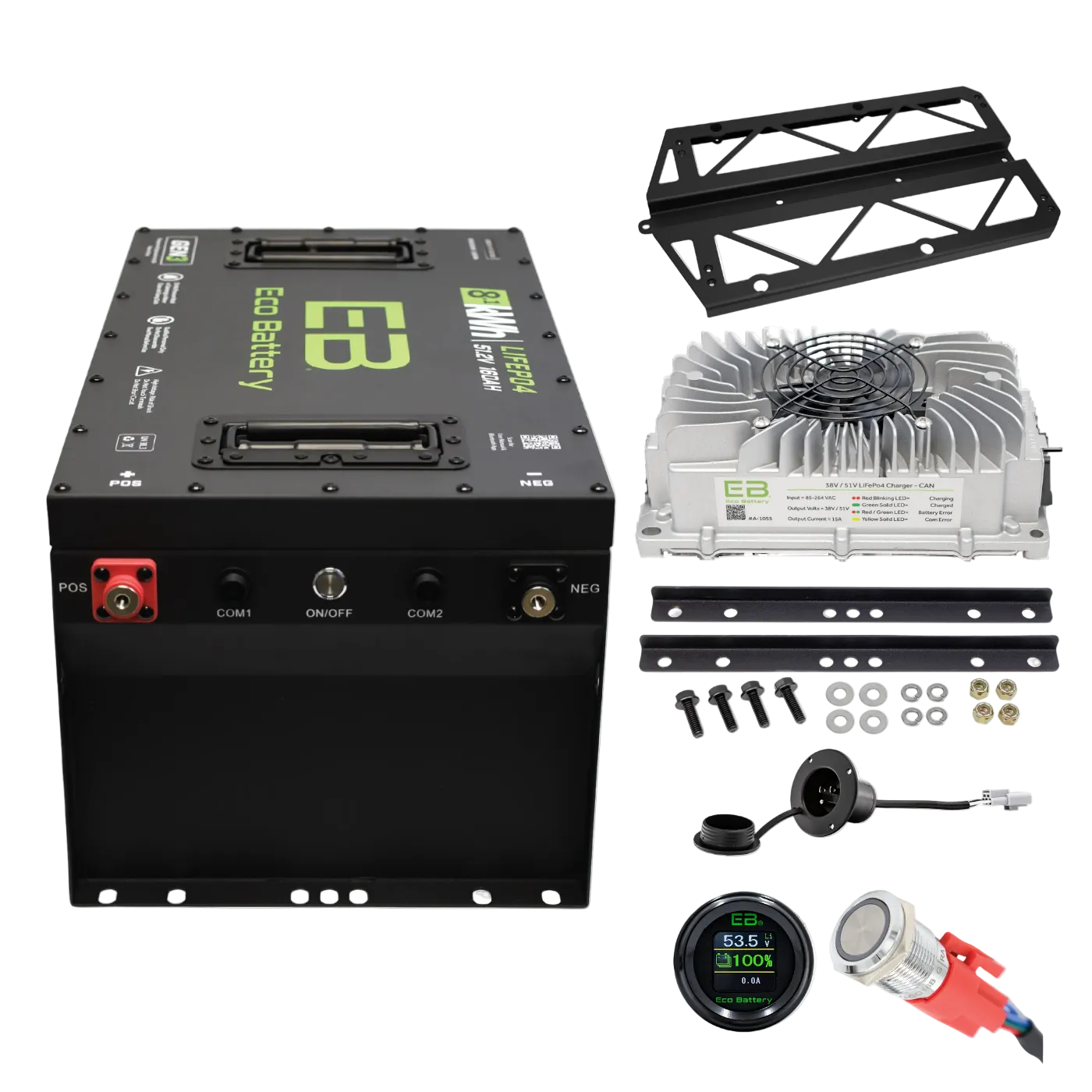

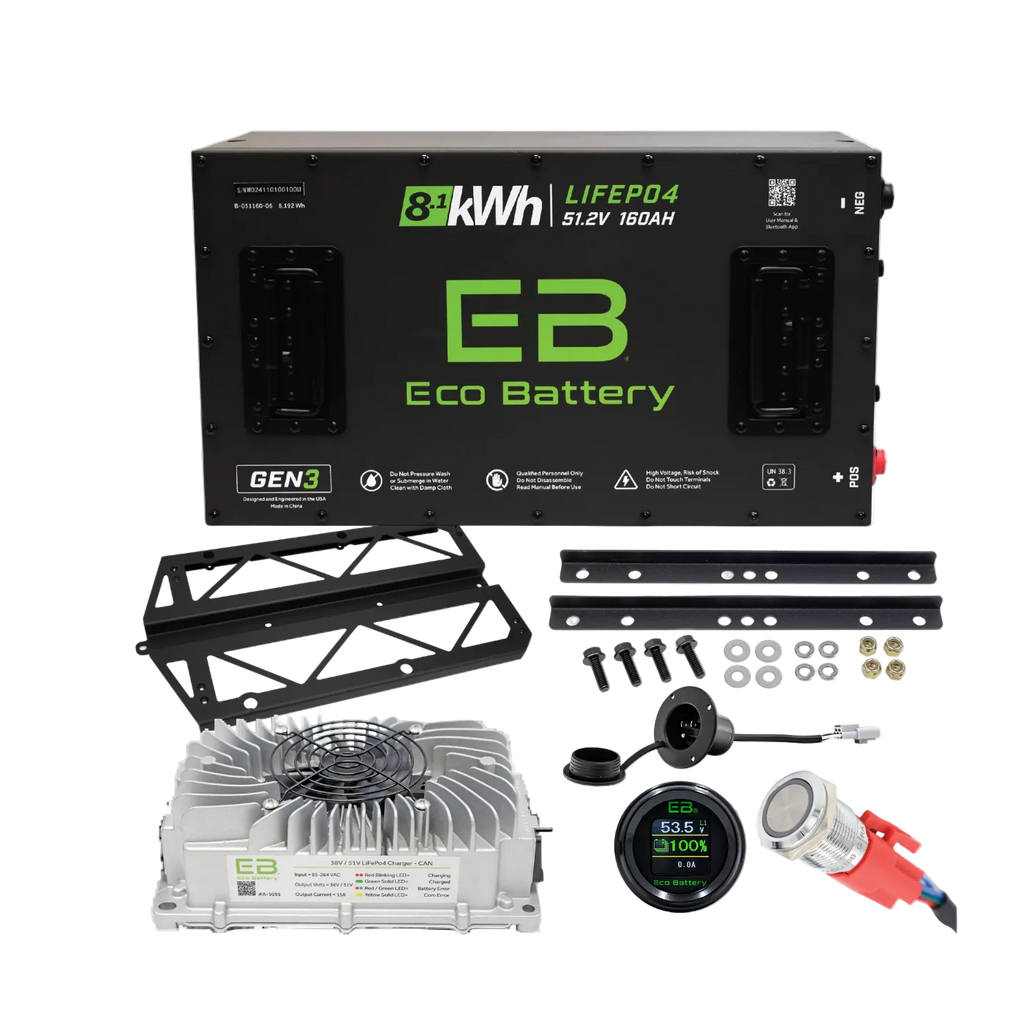

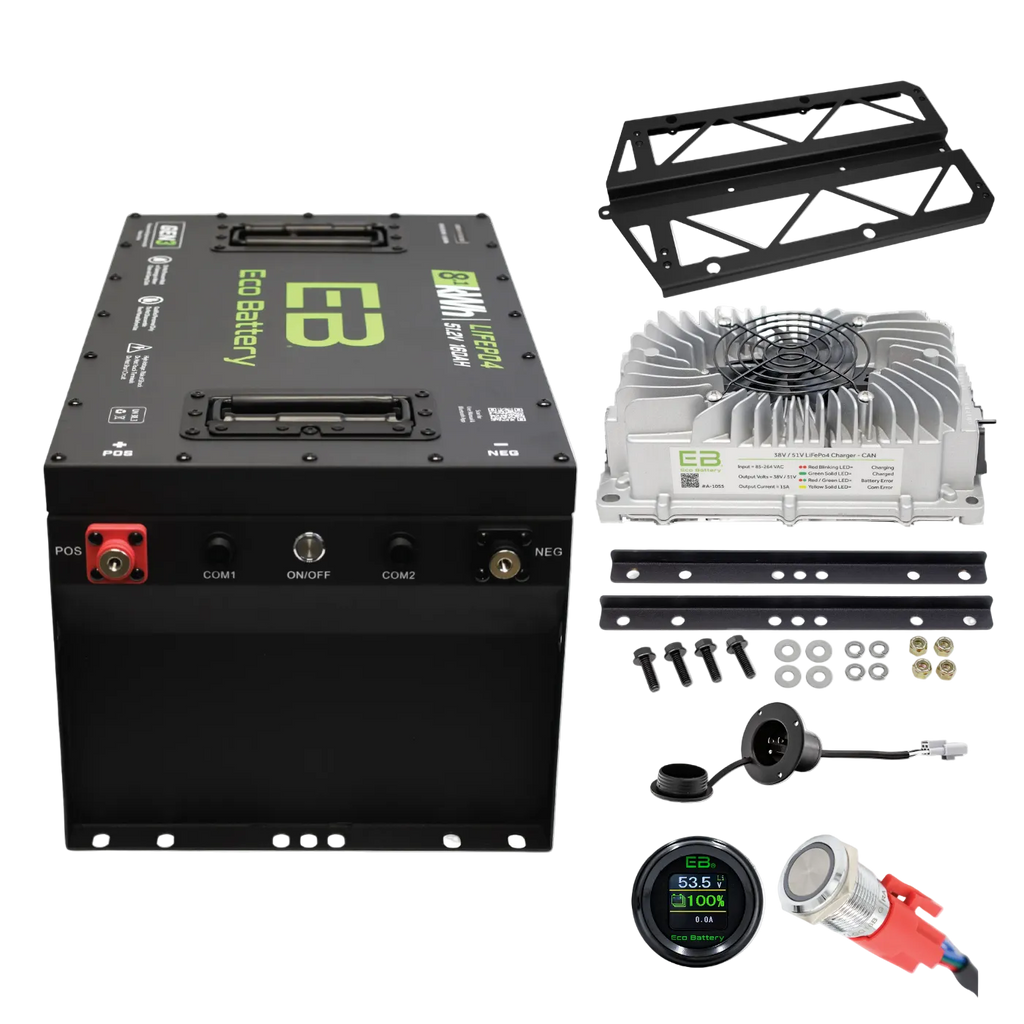

Bundle Contents (Bundle SKU B-3175):

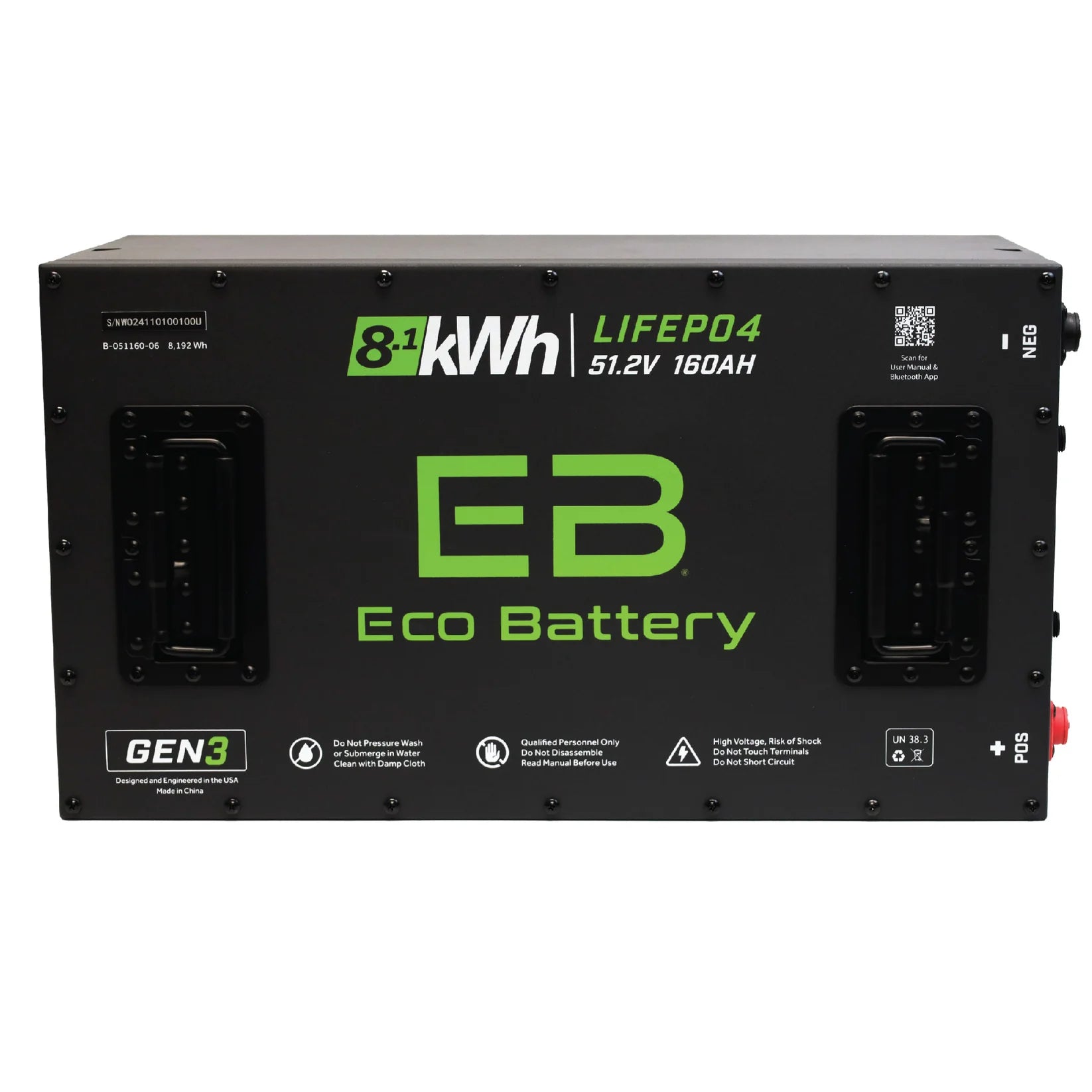

• 51V 160Ah (48V) LiFePO4 GEN3 Battery: 8.1 kWh, IP67 sealed, powder-coated steel case, advanced BMS with CAN protocol and Bluetooth communication
• 38V-51V 15A CAN Charger : Lithium-specific charger with locking quick connect, communicates with the BMS during every charge cycle
•  CAN LCD State-of-Charge Meter:  Auto-baud digital gauge that reads the BMS directly and displays true state of charge

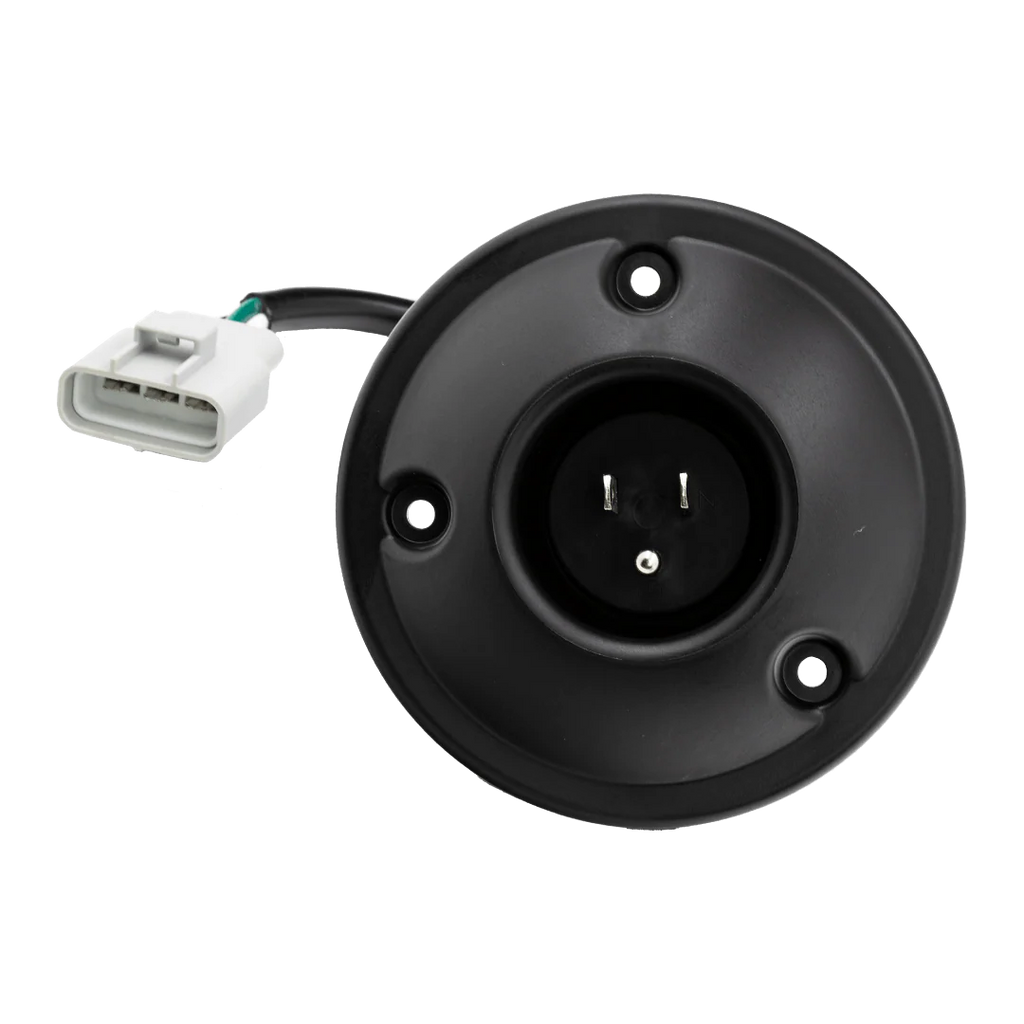

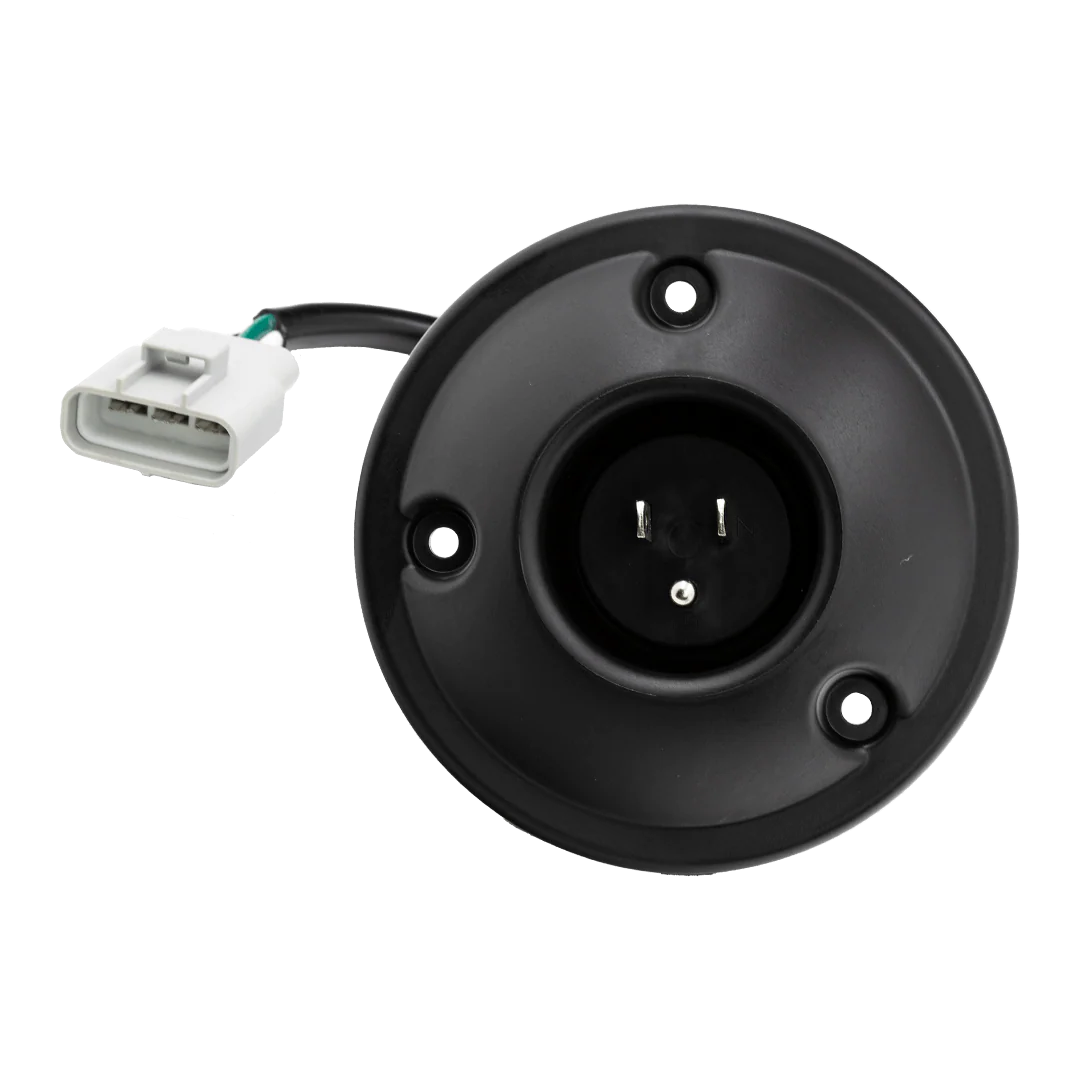

• Eco Battery Charge Port: Quick-connect 110V plug, mounts cleanly to the Ranger EV body
•  Battery Flange Supports (Wide): Secures the battery in the existing factory tray

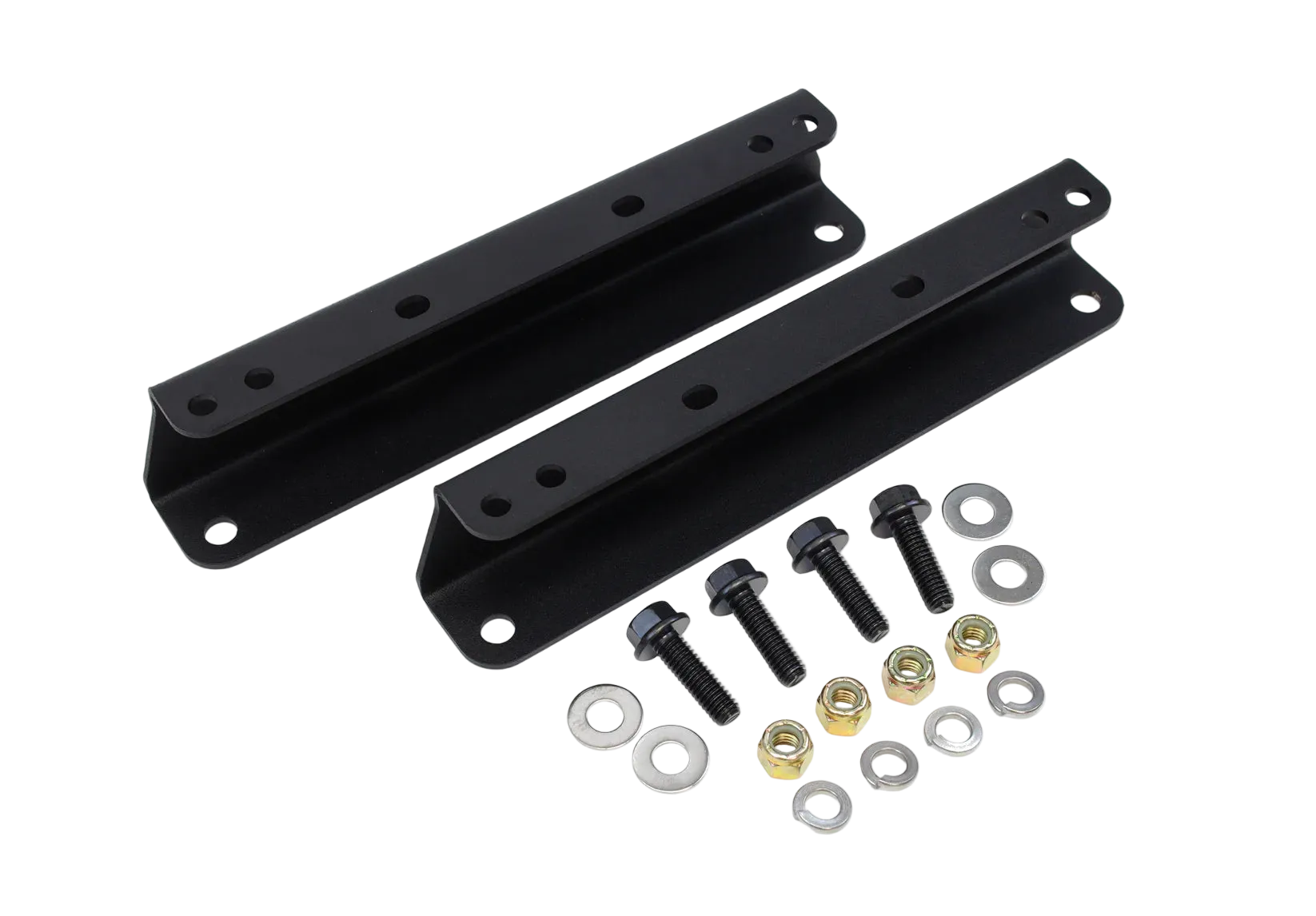

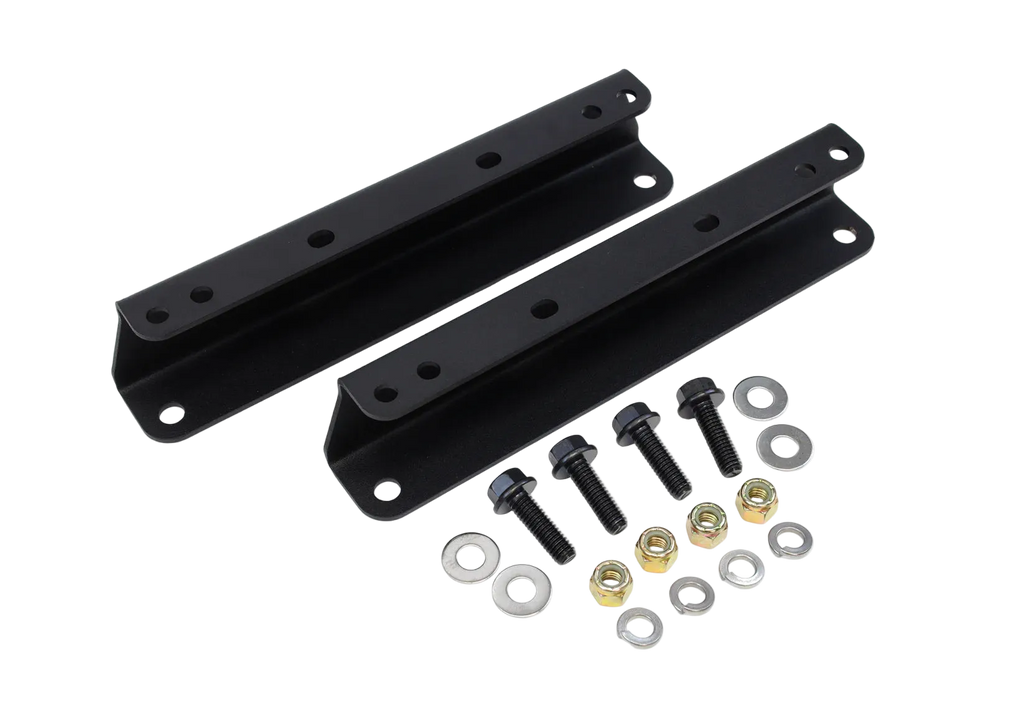

•  Polaris Ranger EV Mounting Kit:  Polaris-specific bracket sized for the Ranger EV factory battery bay
• Remote Wake-Up Button Kit: Wakes the battery from sleep mode without accessing the battery directly
• Step-by-step Polaris Ranger EV installation guide:  PDF from Eco Battery covering wiring, mounting, and 2015+ ground-jump procedure

Specifications

All specifications below are sourced from the Eco Battery GEN3 datasheet for the 51.2V 160Ah model (A-051160-06).

How It Compares

A comparison of the Eco Battery 51V 160Ah GEN3 against common Polaris Ranger EV battery options:

Eco Battery 51V 160Ah vs Eco Battery 51V 105Ah:

Single 51V 160Ah vs Dual 51V 105Ah:

• Single 160Ah: Simpler install, one BMS to manage, drops the most weight from the cart, leaves space in the battery bay for storage. Best for most Polaris Ranger EV owners.
• Dual 105Ah: Slightly more total range due to higher combined capacity. Two BMS units that operate independently. More complex install. Useful when an existing 105Ah owner wants to add capacity later.

Eco Battery 51V 160Ah vs Single 12V Drop-In Lithium Batteries:

• BMS Coordination: Four 12V drop-ins each have their own BMS, and those BMSs do not communicate. Under heavy Polaris Ranger EV load, the weakest BMS shuts down first and stops the cart. The Eco 160Ah uses a single BMS sized for the application.
• Continuous Current Rating: Most Amazon-grade 12V drop-ins are rated 100A to 200A continuous. The Polaris Ranger EV draws more than that on hills. The Eco 160Ah is rated 250A continuous.
• Fitment: Drop-ins require fabricated brackets to fit the Polaris tray. The Eco bundle includes the A-8172 Polaris-specific mount.
• Warranty: Eco Battery provides a Limited Lifetime warranty backed by US support. Most drop-ins carry shorter warranties or none at all.

Eco Battery 51V 160Ah vs Factory Polaris Lead-Acid (8 x 12V 155Ah):

• Usable Capacity: Lithium delivers approximately twice the usable kWh because depth of discharge is 90%+ versus roughly 50% for lead acid.
• Weight: 165 lbs vs approximately 700 lbs (535 lb weight savings).
• Charge Time: 3.5 hours vs 9+ hours.
• Maintenance: Zero vs monthly watering, terminal cleaning, and equalizing.
• Lifespan: Approximately 10 years vs 3 to 5 years for lead acid.
• Voltage Sag: Lithium holds steady voltage from 90% to 10% state of charge. Lead acid sags noticeably as it discharges, reducing performance late in a charge cycle.

Installation

The Eco Battery 51V 160Ah GEN3 conversion is designed as a drop-in upgrade for the Polaris Ranger EV. Most owners with basic mechanical skills complete the install in 3 to 5 hours. The majority of that time is spent removing the eight factory lead-acid batteries.

Installation Steps:

• Disconnect the main positive and negative cables and remove all eight factory lead-acid batteries from the Polaris Ranger EV
• Clean the battery tray and inspect cables for corrosion (replace any compromised cables)
• Install the A-8172 Polaris-specific mounting bracket in the factory tray
• Set the 51V 160Ah lithium battery into the bracket and secure it with the A-8016 flange supports
• Connect main positive and negative cables directly to the lithium battery terminals
• Mount the A-4012 quick-connect charge port and connect the included harness
• Install the A-3109 CAN LCD state-of-charge meter in place of the factory gauge
• Wire and mount the A-4220 remote wake-up button in a convenient location
• Power on the system, pair the EB Power app via Bluetooth, and run the recommended firmware update
• Test the cart at low speed before full use

Polaris Ranger EV-Specific Install Notes:

• Sevcon 12V Converter: The Polaris Ranger EV has its own factory Sevcon 48V-to-12V converter under the hood that powers headlights, switches, and the rear solenoid. Continue using it. No additional 12V converter is needed.
• Pink Wires: The two small pink wires with 2A fuses that previously tapped 12V off the lead-acid pack should be capped and zip-tied out of the way. They powered the lead-acid charge indicator only and are not needed with the new CAN LCD gauge.
• 2015 and Newer Rangers: Once the factory Delta-Q charger is removed, 2015+ Polaris Ranger EVs will not run unless the two ground wires inside the factory charger's molex connector are jumped. The installation guide covers this step.
• Pilot Car Upgrades: If your Ranger has a Pilot Car aftermarket upgrade, contact Pilot Car for cart-side programming to match the Eco Battery profile.
• Factory Lithium Variants (2016 / 2018 Li-Ion): The Eco 160Ah bundle is also compatible as a direct replacement for the factory Polaris lithium pack on these model years.

A full Polaris Ranger EV installation PDF is available from Eco Battery. Contact Lithium Battery Supply at sales@lithiumbatterysupply.com or (786) 321-3526 and we will email it before you order.

Charger and BMS

The Eco Battery 51V 160Ah GEN3 bundle includes the A-1055 38V to 51V 15A CAN charger, matched to the GEN3 battery. The charger and the battery's Battery Management System (BMS) communicate over CAN bus during the entire charge cycle. The BMS tells the charger when each cell is balanced and when to taper or shut off current.

What You Do Not Need to Do:

• Reprogram or modify the factory Polaris Delta-Q charger
• Ship the Delta-Q to Flight Systems, FSIP, or any third party for a lithium algorithm
• Rent or purchase a Delta-Q programming tool
• Reprogram the Sevcon motor controller
• Send the controller out for any modification

BMS Protections Included:

• Overvoltage cutoff (per cell and pack-level)
• Undervoltage cutoff to prevent deep discharge damage
• Overcurrent protection
• Short-circuit protection
• Multiple cell-level temperature sensors
• Active cell balancing during every charge cycle
• Low-temperature charge lockout (prevents charging below 32°F)
• Sleep mode for long-term storage
• Remote wake-up via button or charger connection
• Over-the-air firmware updates through the EB Power Bluetooth app

Charging from a fully discharged state takes approximately 3.5 hours. LiFePO4 does not need to be topped off between uses, has no memory effect, and is not damaged by partial charges. Storing the battery at 40 to 60% state of charge is optimal for long-term storage.

Cold Weather Performance

LiFePO4 batteries discharge reliably in cold weather but should not be charged below freezing. The Eco Battery 51V 160Ah GEN3 is rated to discharge between -4°F and 140°F and to charge between 32°F and 130°F.

Cold Weather Best Practices for Polaris Ranger EV Owners:

• Charge the battery as soon as you finish using it, while the cells are still warm internally from operation
• For overnight charging below freezing, store the Ranger in a garage that stays above 32°F
• The BMS automatically prevents charging when the battery is below freezing, protecting the cells from lithium plating damage
• Discharge performance gradually softens below 50°F but the battery remains fully functional down to -4°F
• For sub-freezing storage and outdoor charging, the Heated 160Ah GEN3 version is recommended

About the Heated 160Ah Upgrade: The heated version of this battery has integrated self-heating hardware. When the charger is plugged in and the battery temperature is below approximately 32°F, the BMS automatically activates internal heaters. Once the cells warm above freezing, normal charging begins. Heating runs only while the charger is connected. The heated version can be charged outdoors in temperatures as low as -4°F. Contact Lithium Battery Supply if you need a heated configuration.

If you regularly operate or store your Polaris Ranger EV in cold climates, contact us before ordering. We will confirm whether the standard 160Ah or a heated configuration is the better fit for your conditions.

Range and Performance

Real-world range on a Polaris Ranger EV with the Eco Battery 51V 160Ah GEN3 depends on terrain, load, tire size, speed, and temperature. The numbers below reflect typical results reported by Polaris Ranger EV owners running a single 160Ah configuration.

Expected Range by Use Case:

• Stock Ranger, flat terrain, light to moderate use: 50 to 60+ miles per charge
• Mixed work use, moderate hills: 40 to 50 miles per charge
• Hilly terrain, full bed, towing, or sustained 4WD off-road: 25 to 40 miles per charge
• Lifted carts with oversized tires: Expect 15 to 25% less range than the figures above

Performance Improvements vs Factory Lead-Acid:

• Voltage Stability: Lithium holds steady voltage from 90% to 10% state of charge. Hill climbs and acceleration feel the same at half charge as they do fully charged. Lead acid sags noticeably as it discharges.
• Acceleration: Approximately 535 lbs of weight removal results in quicker throttle response.
• Torque Under Load: The 250A continuous discharge rating delivers steady torque on hills and during towing without BMS cutbacks.
• Reduced Chassis Wear: Lower total vehicle weight reduces strain on the motor, controller, suspension, and frame.

Towing and Heavy-Use Notes:

• The Polaris Ranger EV is rated to tow up to 1,500 lbs. The Eco 160Ah handles this within the published continuous and peak discharge specs.
• For sustained towing on long grades, monitor the EB Power app for cell temperatures.
• If a single 160Ah is not enough for your duty cycle, a second 160Ah can be added in parallel for roughly double the runtime. Contact Us, Lithium Battery Supply, to spec a dual-battery configuration.
