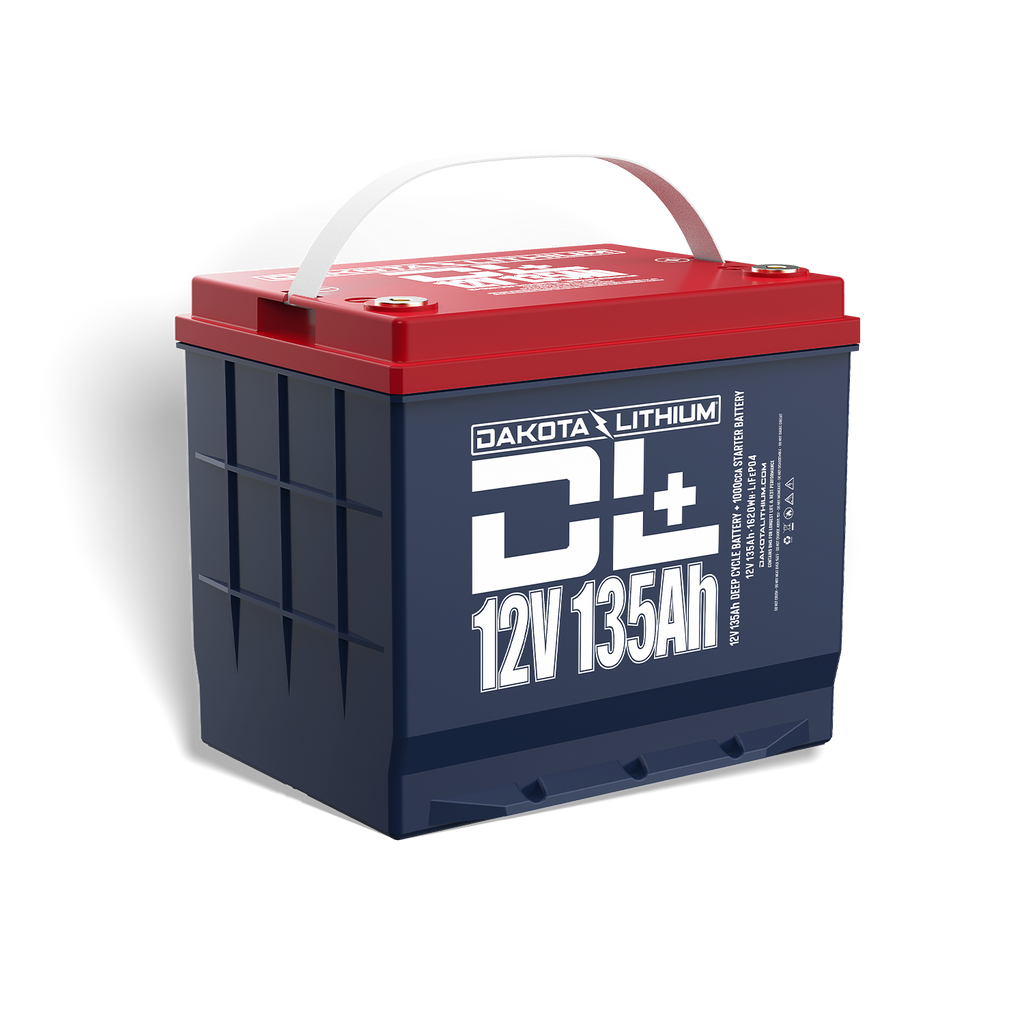

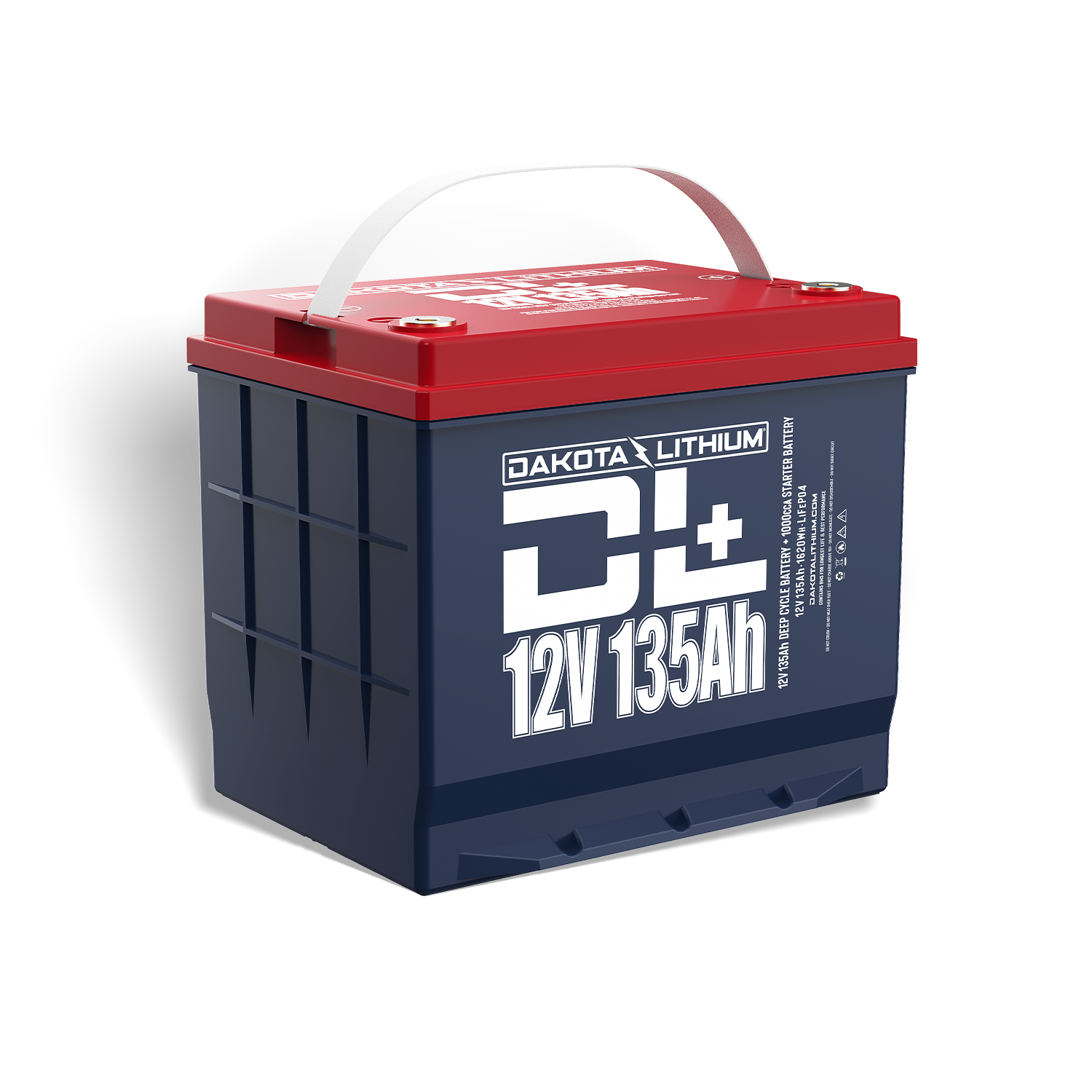

Dakota Lithium battery with red top and blue body on a white background

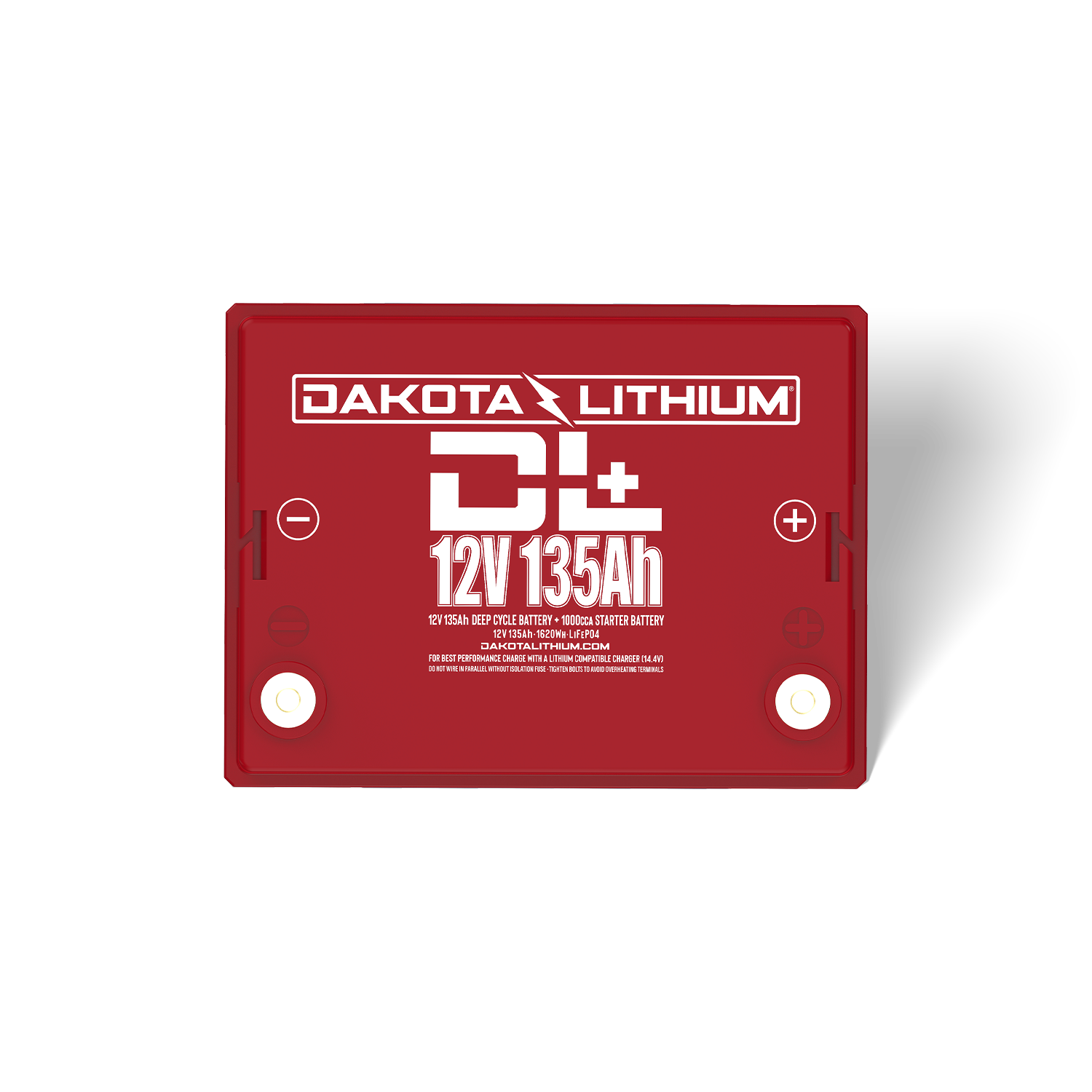

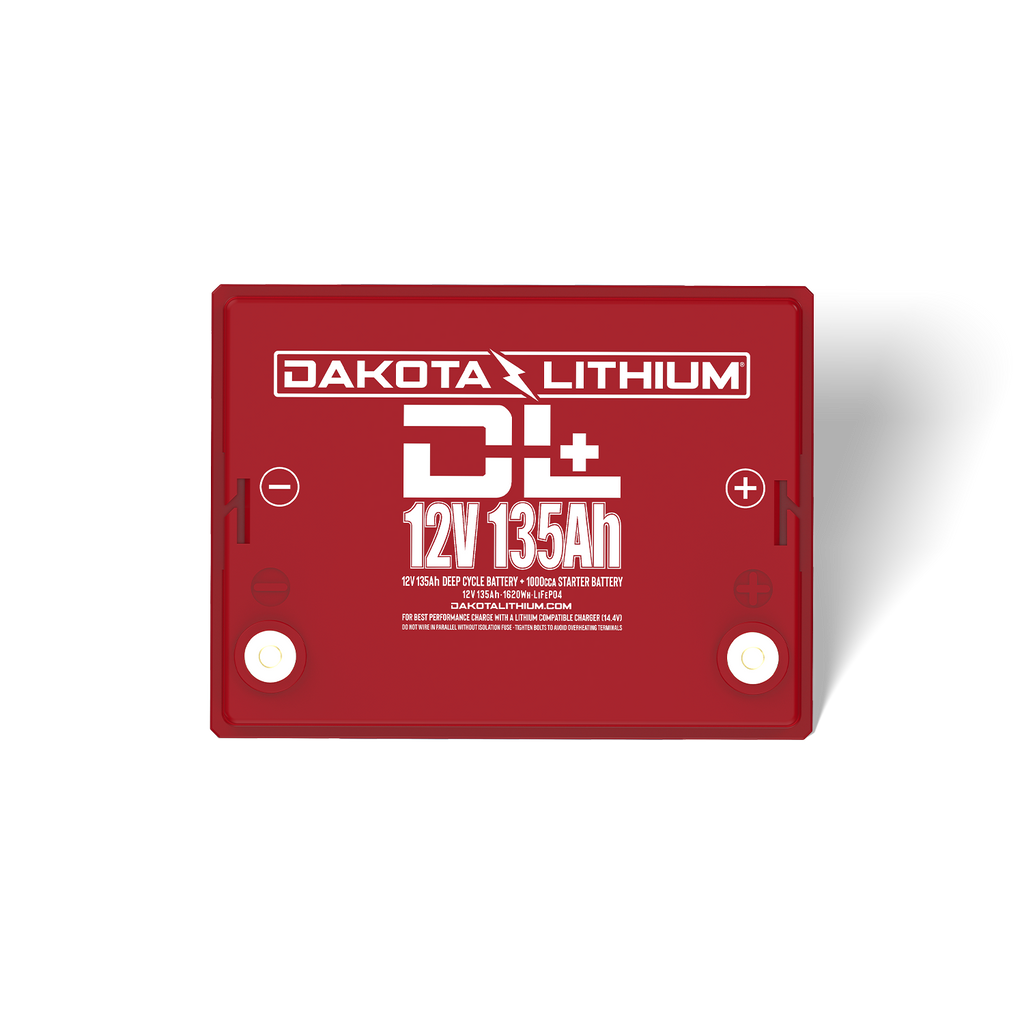

Dakota 12v 135h Front View

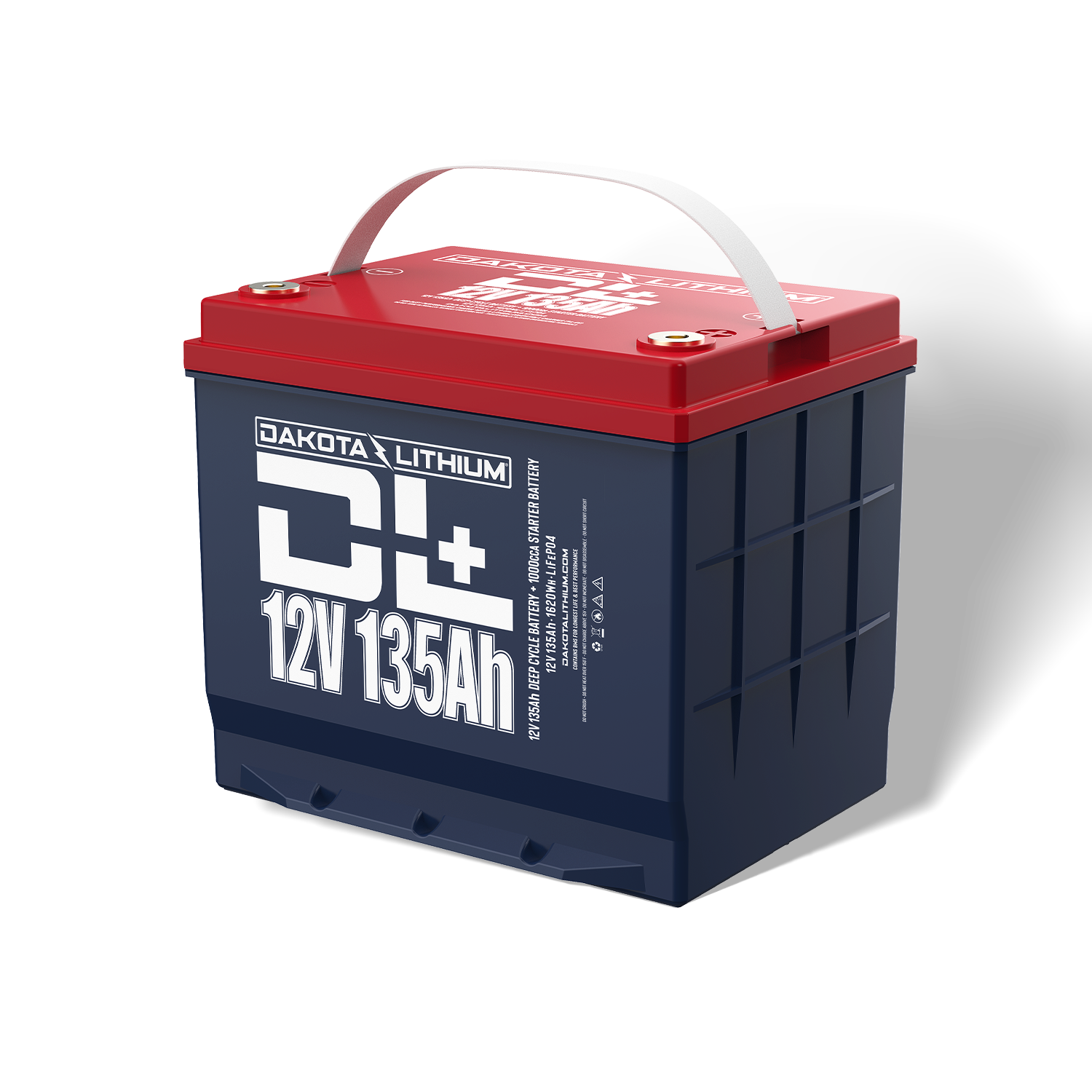

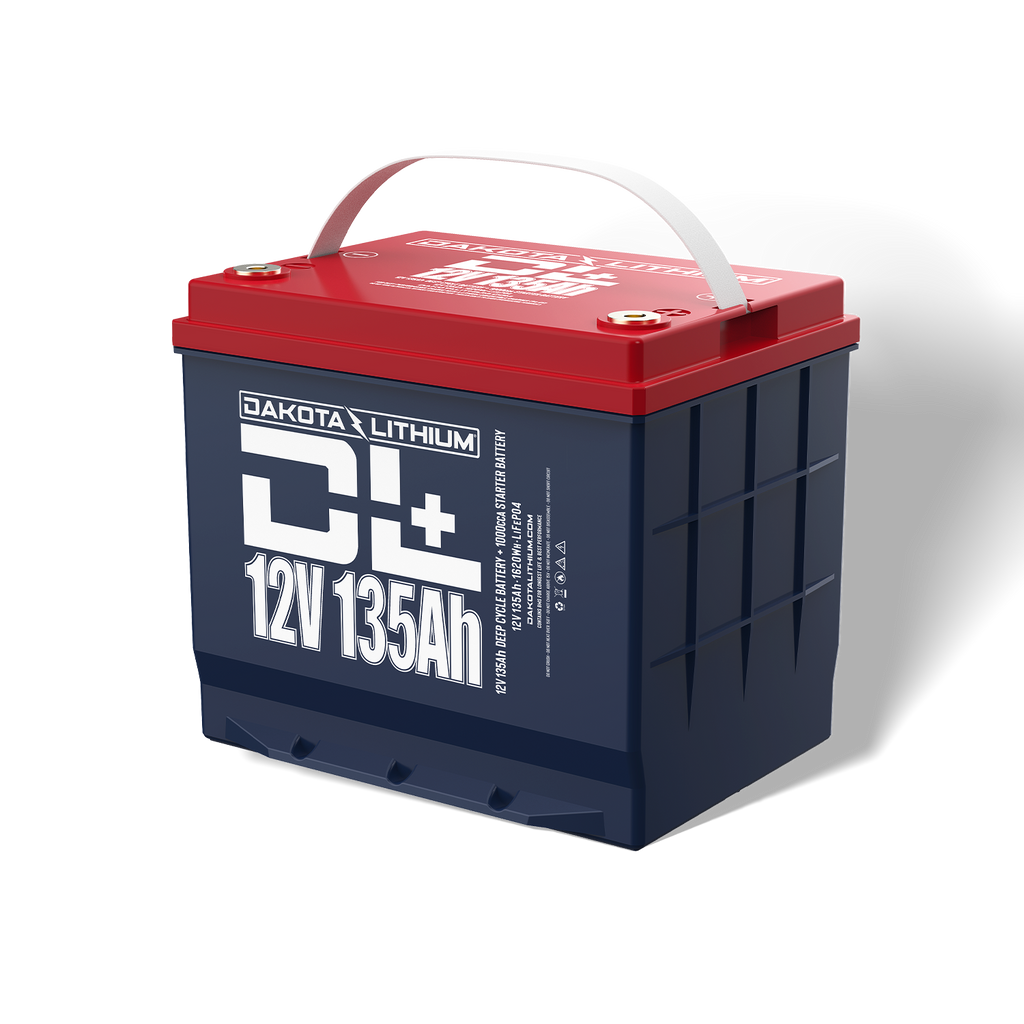

Dakota1 2v 135ah Group 24 battery

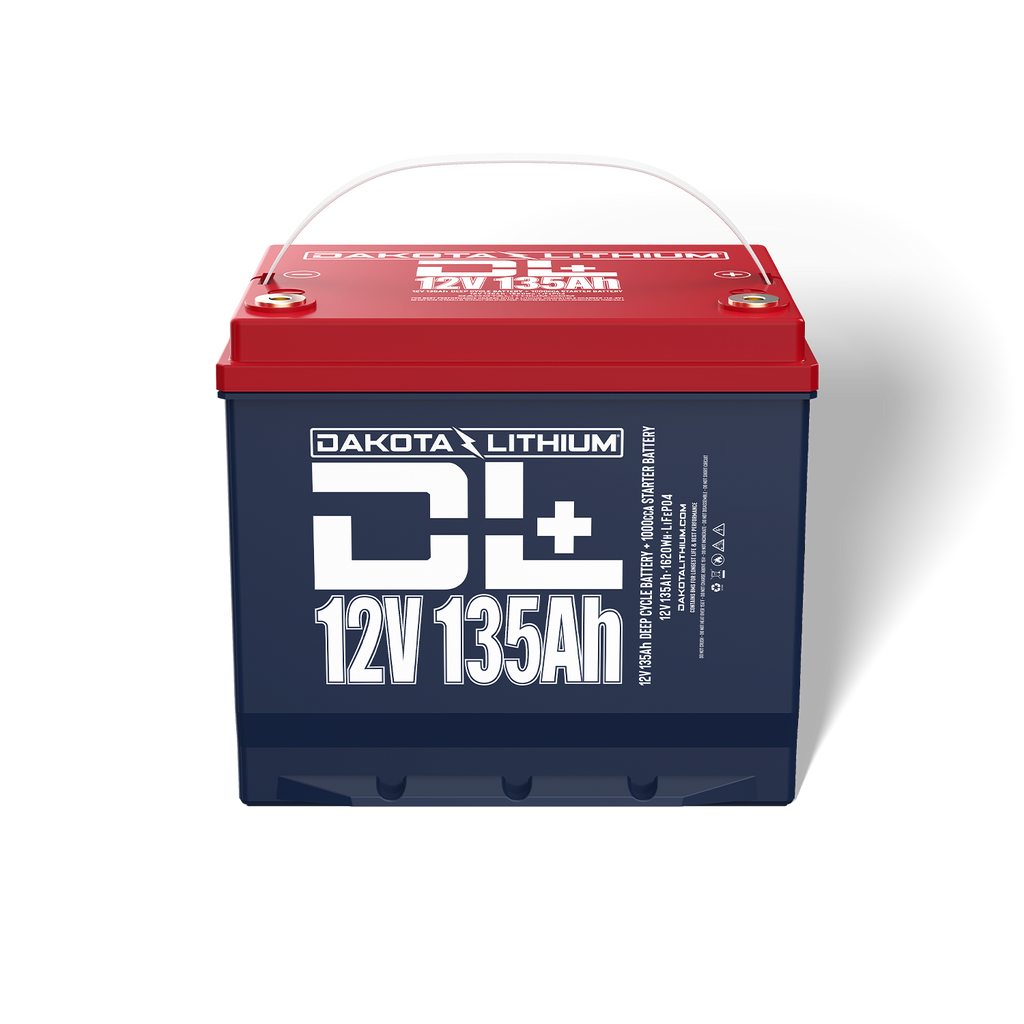

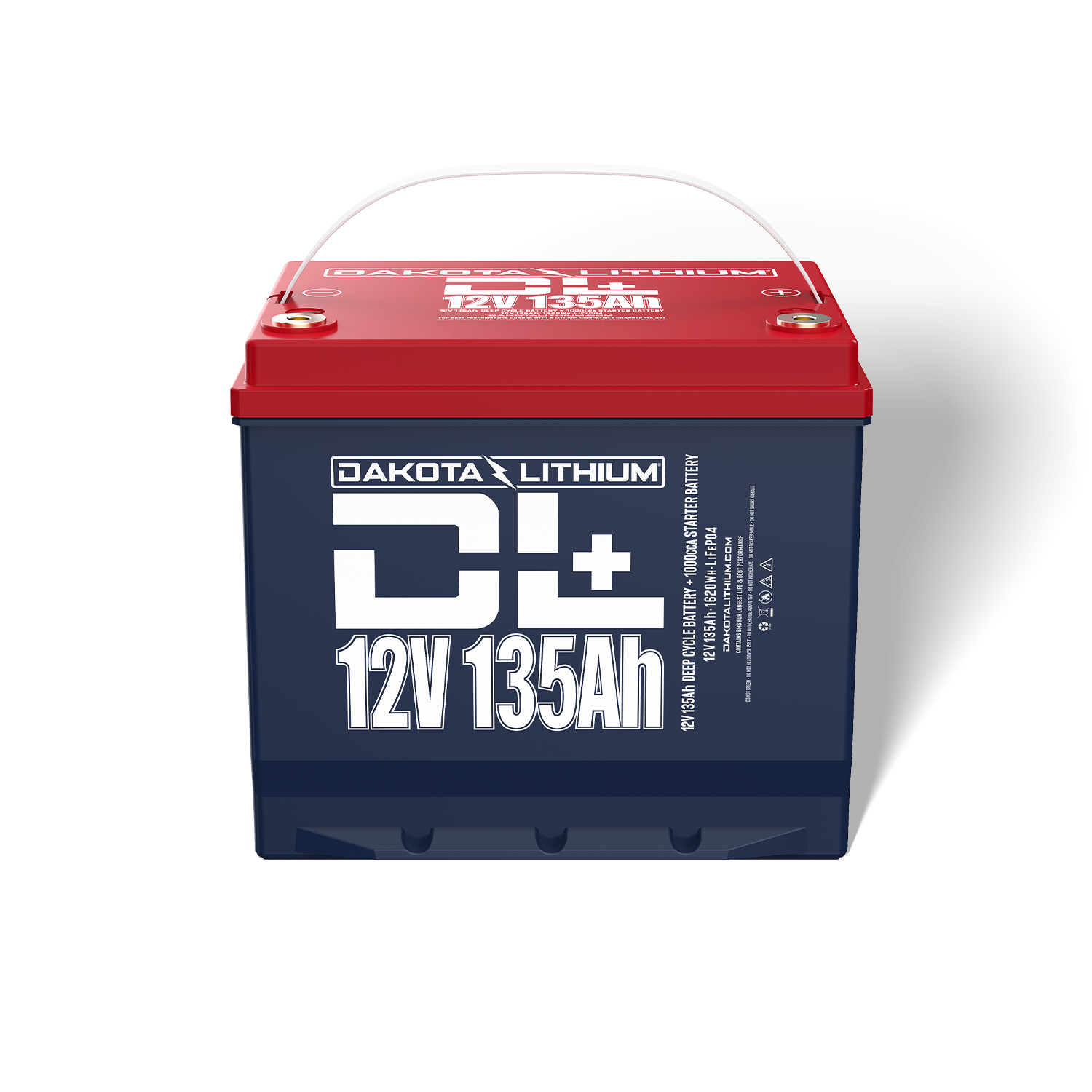

Dakota DL 12V1 35AH RV Marine Battery

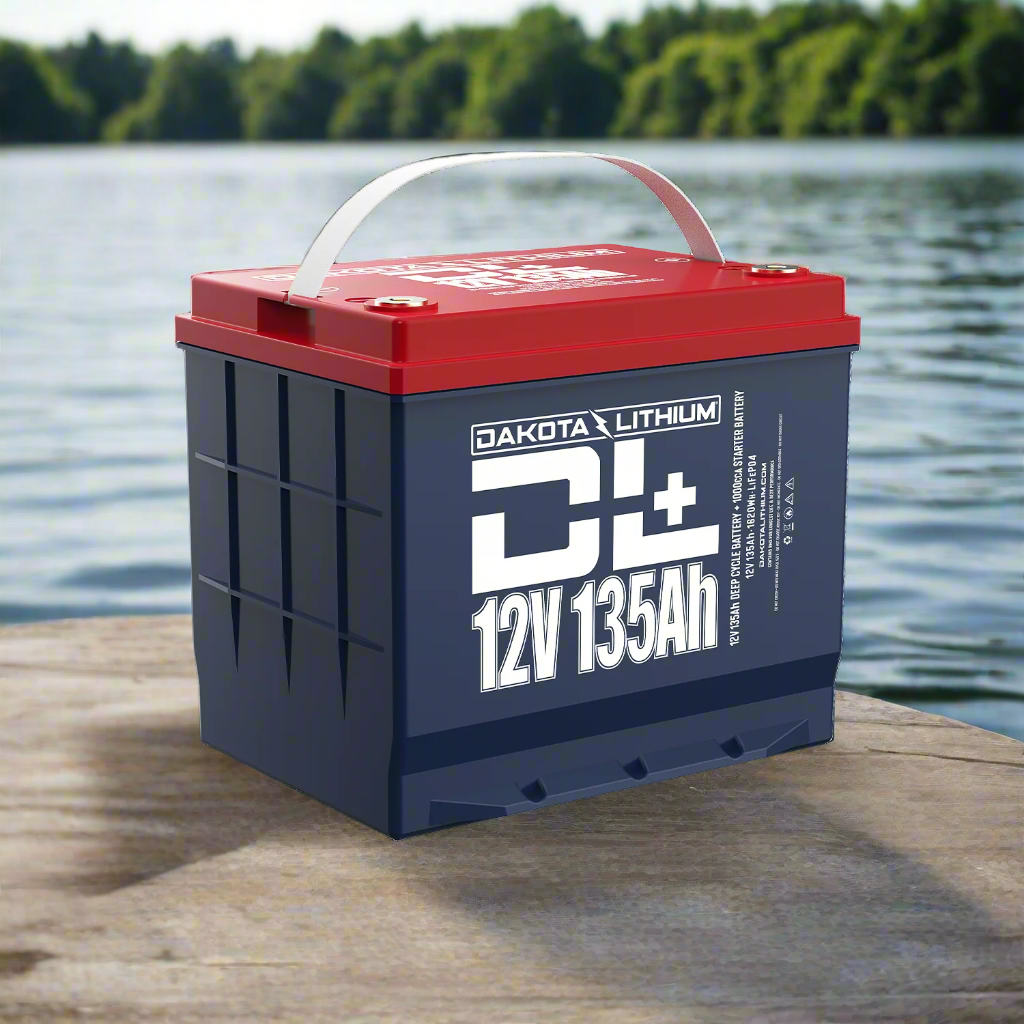

Dakota Lithium battery on a dock with water and trees in the background
Roll over image to zoom in Click on image to zoom
Dakota Lithium battery with red top and blue body on a white backgroundDakota 12v 135h Front ViewDakota1 2v 135ah Group 24 batteryDakota DL 12V1 35AH RV Marine BatteryDakota Lithium battery on a dock with water and trees in the background

Dakota DL+ 12V 135Ah LiFePO4 Battery - Group 24 - 1000 CCA

Dakota Lithium
Logo
Authorized Dealer - Full Warranty Included

SKU DL12V135

Dual Purpose
Internal Heating
1000 CCA Starting Power
Advanced BMS
Safety Certifications
Price:
$1,189.00

Shipping calculated at checkout

Stock:
In stock (10 units), ready to be shipped

📦 Fast 5-7 Day Delivery

🚚 Free Shipping

  • American Express
  • Apple Pay
  • Diners Club
  • Discover
  • Google Pay
  • Mastercard
  • Shop Pay
  • Visa

Safety Notice

  • 38.3 CERTIFIED LITHIUM BATTERY
  • 18+ only

Read User Manual & Safety Sheet before installation

Support Icon

Need Help?

Our experts are here to help you find the lithium battery for your needs.

Call Us Live Chat

Product Resources

Dakota DL+ 12V 135Ah Dual Purpose 1000CCA LiFePO4 Battery - Group 24

The Dakota DL+ 12V 135Ah Dual Purpose LiFePO4 Battery provides 135 amp hours of capacity with 1,000 Cold Cranking Amps in a Group 24 case design. This battery combines deep cycle performance with engine starting capability, suitable for marine, RV, automotive, and off-grid applications. Features advanced Lithium Iron Phosphate (LiFePO4) technology with internal even-heat technology for operation in extreme temperatures.

Product Overview

This dual-purpose lithium battery maintains consistent voltage output throughout its discharge cycle. Group 24 dimensions provide compatibility with standard battery compartments while offering reduced weight compared to lead-acid alternatives. Internal even-heat technology enables operation down to -20°F and charging below 32°F.

Specifications

Capacity and Power

135Ah capacity in Group 24 case with 1,000 CCA equivalent starting power

Temperature Range

Operating range: -20°F to +150°F with internal even-heat technology

Charging Performance

Maximum charge rate: 165A (1 minute), 135A continuous

Discharge Capability

135A continuous discharge, 1000A peak discharge (2 seconds)

Dual Purpose Design

Suitable for both engine starting and deep cycle applications

Protection Systems

Built-in BMS with overcharge, over-discharge, and temperature protection

Technical Specifications

ELECTRICAL SPECIFICATIONS
Battery Capacity 135 Ampere Hours (Ah)
Nominal Voltage 12.8V (Series compatible up to 48V)
Total Energy Storage 1,620 Watt-hours (Wh)
Cold Cranking Amps Equivalent 1,000 CCA
Reserve Capacity Rating 340 minutes (RC25 @ 80°F)
Cycle Life Rating Up to 5,000 cycles (80% capacity)
PHYSICAL SPECIFICATIONS
Length × Width × Height 9.5" × 6.9" × 8.22" (Group 24)
Total Weight 27.2 lbs
Battery Group Size Group 24 (Compatible with 24F, 24R, 24H, 24T)
Environmental Protection IP67 (Fully submersible)
Terminal Configuration M8 bolts with adapter kit (Max torque: 15 ft-lbs)
PERFORMANCE SPECIFICATIONS
Operating Temperature Range -20°F to +150°F
Continuous Discharge Current 135A continuous
Peak Discharge Current 1000A (2 seconds)
Maximum Charge Rate 165A (1 minute), 135A continuous
Recommended Charging Voltage 14.4V with LiFePO4 charger
Alternator Compatibility Up to 150 amps per battery

Suitable Applications

Starting Car & Truck Engines
Deep Cycle Applications
Trolling Motors
RV & Van Life
Marine & Boating
Golf Carts
Overland & Truck Builds
Off-Grid Solar Systems
Car Audio Systems
Industrial Applications
Fish Finders & Electronics
Emergency Backup Power
Mercury Outboard Motors
Electric Vehicles
Recreational Vehicles

Installation and Compatibility

The Dakota DL+ 12V 135Ah battery serves as a replacement for Group 24, Group 34, and GC2 lead-acid batteries. Compatible with Group 24F, 24R, 24H, and 24T configurations for installation in existing battery compartments.

  • Drop-in replacement design for standard Group 24 battery compartments
  • Terminal configuration: M8 size bolts with included adapter kit
  • Automotive and marine post adapters included for versatile connections
  • Maximum terminal torque: 15 ft-lbs on terminals, 5 ft-lbs on adapters
  • Can be mounted in any orientation
  • Series wiring compatible for higher voltage systems

Charging Requirements

For optimal performance, charge at 14.4 volts using a LiFePO4-compatible charger. Compatible with alternators up to 150 amps per battery. Standard lead-acid chargers will function but may only charge to 80% capacity.

  • Recommended charging voltage: 14.4V
  • Compatible chargers: 12V 10A or 12V 20A LiFePO4 chargers
  • Alternator compatibility: Up to 150 amps per battery
  • Lead-acid charger compatibility: Functional but limited to 80% capacity
  • Charging temperature range: Above 32°F (standard), below 32°F (with even-heat technology)

Advanced Features

  • Internal Even-Heat Technology: Enables charging below 32°F
  • Battery Management System: Overcharge, over-discharge, and temperature protection
  • Flat voltage discharge curve: Consistent power output throughout discharge cycle
  • Fast charge acceptance: Rapid charging capability reduces downtime
  • Lightweight design: 27.2 lbs compared to equivalent lead-acid batteries
  • Maintenance-free operation: No watering or equalization required

Safety Certifications

  • UL1642 certified for safety standards
  • UN38.3 compliant for safe transport
  • IEC62133 tested for battery safety
  • ISO 9001:2015 certified manufacturing
  • ABYC marine standards compliant
  • Mercury Motors approved for marine applications

Kit Contents

  • Dakota DL+ 12V 135Ah LiFePO4 Battery
  • Terminal adapter kit with automotive and marine posts
  • M8 brass terminal bolts
  • Installation manual
  • 11-year manufacturer warranty documentation
